Product Overview

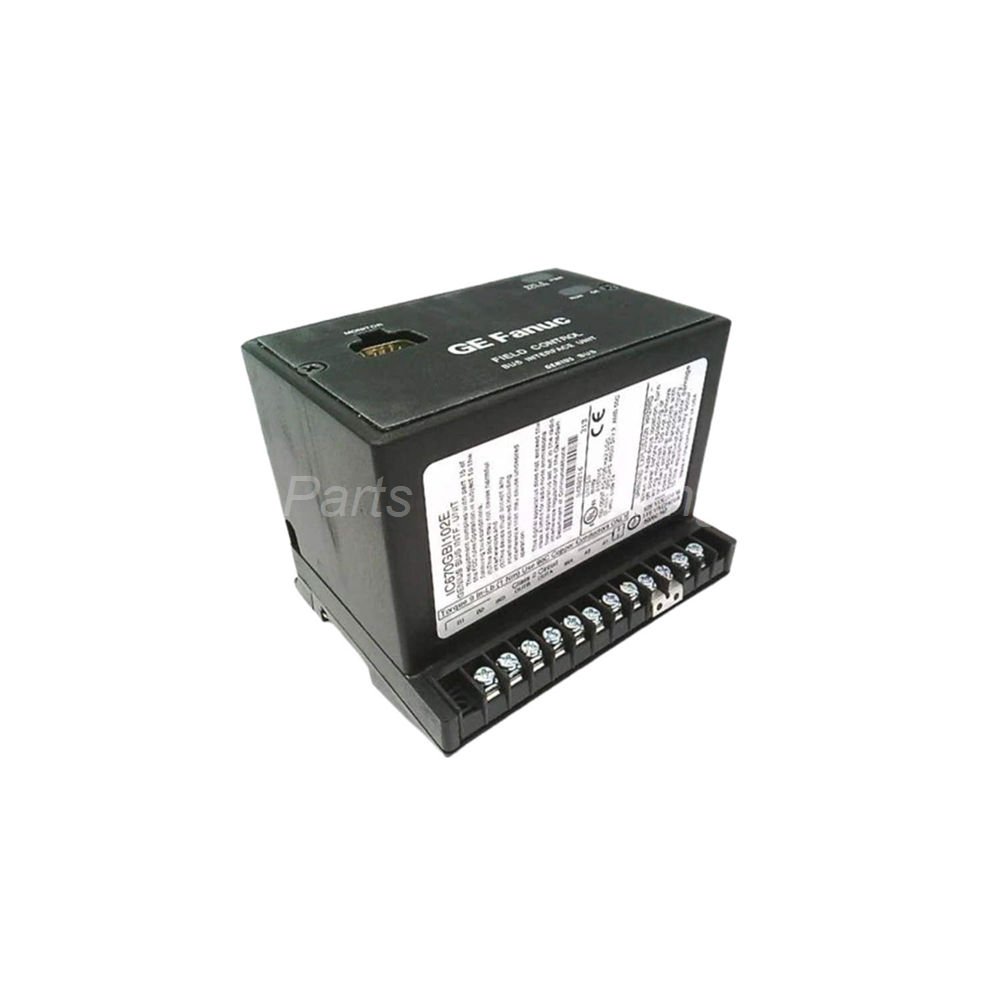

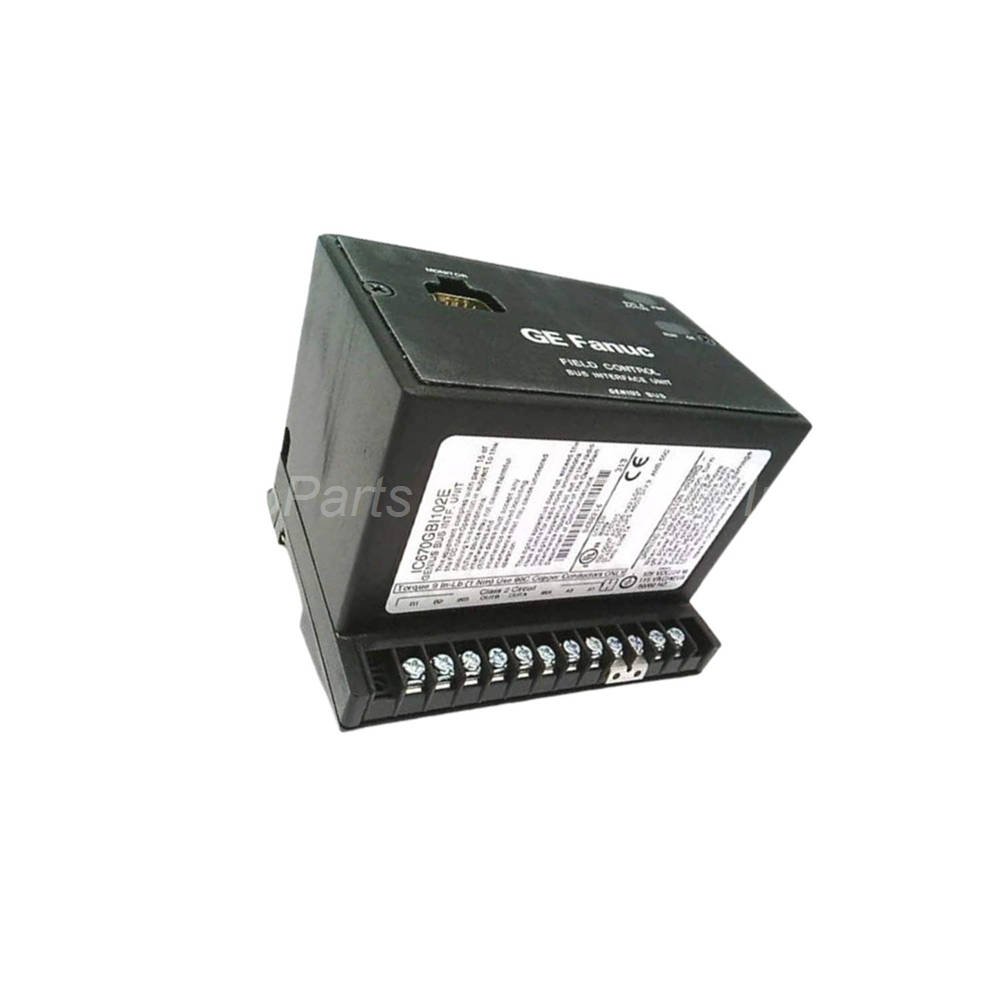

The GE Fanuc IC670GBI102 is a Genius bus interface module for Field Control systems. This module controls a wide variety of host architectures in distributed I/O applications. Engineers use the IC670GBI102 to interface Field Control I/O modules with a host PLC or computer via the Genius bus. It connects up to 8 I/O modules at a time for intelligent processing and I/O scanning. This unit suits applications that need fault reporting, analog scaling, and range selection.

Technical Specifications

The GE Fanuc IC670GBI102 delivers flexible bus interface capabilities with robust power options.

• Product Type: Genius Bus Interface Unit (BIU).
• Compatibility: Field Control IC670GB and IC670GBI modules.
• Nominal Rated Voltage: 115 Volts AC and 125 Volts DC.
• Voltage Range (AC): 90 to 135 Volts AC.
• Voltage Range (DC): 105 to 150 Volts DC.
• Frequency Range: 47 to 63 Hertz.
• Power at 115V AC (full load): 48 Volt-Amps maximum.
• Power at 125V DC (full load): 24 Watts maximum.
• Inrush Current: 15-50 Amps peak for 3 milliseconds maximum.
• Power Supply Output: 6.5 VDC ±5%.
• Holdup Time: 20 milliseconds maximum.
• Supported I/O Modules: Up to eight (8) modules.
• Data Exchange per Host: 128 Bytes input and output maximum per bus scan.
• Mounting Type: DIN Rail or panel mount via terminal block.
• Reliability (MTBF): More than 183,000 hours operation.
• Certifications: CE certified and cULus listed.

Transmission Speeds and Communication Protocols

The GE Fanuc IC670GBI102 supports multiple Genius bus transmission speeds. Standard speed reaches 153.6 Kbaud for high-performance applications. Extended speed also runs at 153.6 Kbaud with different timing parameters. Lower speeds include 76.8 Kbaud and 38.4 Kbaud for longer cable runs. The module supports the Genius protocol for distributed I/O architecture. Data exchange reaches 128 Bytes of input and output data per host in a single bus scan. Memory allocations include 256 Bytes for discrete inputs (%I) and status data. Additional memory includes 256 Bytes for discrete outputs (%Q) and fault clearing. Analog inputs (%AI) and analog outputs (%AQ) each receive 256 Bytes of memory. The IC670GBI102 supports daisy-chain topology on both primary and secondary buses.

Bus Termination and Cabling Options

The GE Fanuc IC670GBI102 provides terminating resistor connection points for bus stability. Both primary and secondary bus connections have dedicated termination points. These points connect across serial 1 and serial 2 terminals. Install terminating resistors at the start (first node) and end of the bus (last node). Resistor values include 75 ohm, 100 ohm, 120 ohm, or 150 ohm options. Pre-molded bus cables work with this bus interface module. Use catalog number IC660BLM508 which uses a 75 ohm resistor. Use catalog number IC660BLM506 which uses a 150 ohm resistor. Proper termination maintains a stable connection across the entire Genius network. The terminal block uses screw-type terminals for main bus and optional redundant bus connections. A metal grounding strip sits underneath the terminal block for proper grounding.

Dual Bus Support and Host Architecture

The GE Fanuc IC670GBI102 can be used with both single bus and dual bus setups. Dual bus configurations provide redundancy for critical control applications. The module supports CPU redundancy for high-availability systems. Hot insertion and removal of modules is supported for maintenance without shutdown. Compatible hand-held programmers include IC660HHM501 and IC693PRG300 for field configuration. Supported functions include I/O forcing, diagnostic display, and program upload/download. The IC670GBI102 interfaces with Field Control I/O modules and a host PLC or computer. Self-diagnostics run when the module starts up and check for errors. The module helps with fault reporting, analog scaling, and range selection applications.

Environmental Specifications and Installation

Mount the GE Fanuc IC670GBI102 on a DIN Rail or panel using the terminal block. Operating ambient air temperature ranges from 0°C to 60°C (32°F to 140°F). Storage temperature ranges from -40°C to 85°C (-40°F to 185°F) for wide tolerance. Relative humidity ranges from 5% to 95% non-condensing for harsh environments. The module withstands solid vibration and shock levels typical for industrial floors. The unit comes with a D connector for connecting to a display monitor or terminal. LED indicators show the power status and the Bus Active status. For wiring, use 90°C rated copper conductor wire. Rated torque for terminal connections is 9 N-m. The IC670GBI102 is CE certified and listed with the cULus standard for global acceptance.

Power Supply and Holdup Characteristics

The GE Fanuc IC670GBI102 operates on both AC and DC power sources. AC nominal voltage is 115 Volts with 47-63 Hz frequency. DC nominal voltage is 125 Volts for industrial control systems. Power consumption reaches 48 VA maximum at 115V AC under full load. Power consumption reaches 24 W maximum at 125V DC under full load. Inrush current peaks between 15 and 50 Amps for 3 milliseconds maximum. Power supply output provides 6.5 VDC ±5% to connected I/O modules. Holdup time reaches 20 milliseconds maximum during power interruptions. Current output to modules reaches 2 Amps for sufficient I/O power. The IC670GBI102 can be used on AC or DC power without configuration changes. Reliability exceeds 183,000 hours of operation MTBF (calculated).

Package Contents

When you unbox the GE Fanuc IC670GBI102, you will find these items:

• 1 x GE Fanuc IC670GBI102 Genius bus interface module.
• 1 x Terminal block for power and bus connections.
• 1 x Metal grounding strip for installation.
• 1 x Product label and identification tag.
• 1 x Installation and configuration guide.

Frequently Asked Questions (FAQ)

How many I/O modules can connect to the IC670GBI102?

The **IC670GBI102** connects up to eight (8) Field Control I/O modules at a time. This allows a complete distributed control station with up to 64 I/O points depending on module types.

What transmission speeds does the IC670GBI102 support?

This module supports 153.6 Kbaud standard, 153.6 Kbaud extended, 76.8 Kbaud, or 38.4 Kbaud. The Genius protocol handles all speed options automatically.

Does the IC670GBI102 support hot insertion of modules?

Yes, the **IC670GBI102** supports hot insertion and removal of modules. Compatible modules include IC670GBI002(F) and IC670GBI102A for maintenance without system shutdown.

What terminating resistors work with the IC670GBI102?

The module accepts 75 ohm, 100 ohm, 120 ohm, or 150 ohm terminating resistors. Pre-fabricated cables IC660BLM506 (150 ohm) and IC660BLM508 (75 ohm) are available.

What is the MTBF reliability rating of the IC670GBI102?

The **IC670GBI102** has a calculated reliability of more than 183,000 hours MTBF. This ensures long-term operation in continuous industrial applications.
