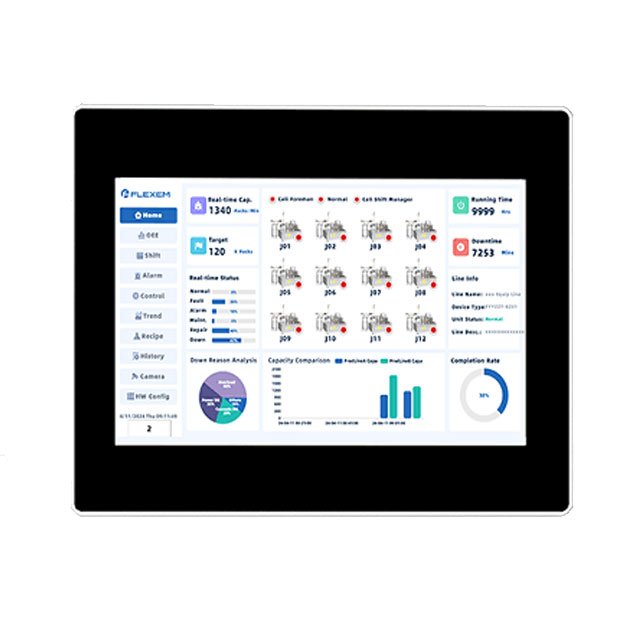

The Next Generation of Industrial IoT Interfaces

The Flexem FPad916R001 represents a significant leap forward in Human Machine Interface (HMI) technology. Flexem designed this next-generation IoT HMI to bridge the gap between traditional operator panels and powerful industrial PCs. It delivers an open-ended programming experience that allows engineers to handle massive volumes of data and complex processing tasks with ease.

With its sleek 15.6-inch widescreen display and robust internal hardware, the FPad916R001 excels in demanding IoT environments. It provides the computing overhead necessary for modern edge computing, advanced data visualization, and seamless cloud connectivity. Whether you manage an automated production line or a complex smart building system, this HMI offers the speed and reliability required for 24/7 industrial operation.

Core Technical Specifications

The FPad916R001 packs high-end computing components into a slim, industrial-grade chassis. The following table summarizes its primary technical parameters:

Exceptional Visual Performance and Touch Interface

The FPad916R001 features a brilliant 15.6-inch Full HD (1920×1080) display. This 16:9 widescreen format provides ample space for complex SCADA dashboards and detailed process flow diagrams. The 24-bit color depth and 250 cd/m² brightness ensure that operators can read critical data clearly under various lighting conditions.

Flexem utilizes a high-quality LED backlight with a 50,000-hour lifetime, ensuring long-term durability. The display offers wide viewing angles of 85° from all directions, allowing multiple operators to view the screen simultaneously without color distortion. For input, the device employs a rugged 4-wire industrial resistance touch screen. This technology ensures accurate responses even when operators wear industrial gloves or work in environments with electrical noise.

High-Performance Computing for IoT Applications

Unlike standard HMIs that rely on low-power ARM processors, the FPad916R001 utilizes an Intel Celeron J3455 quad-core processor. This CPU provides the horsepower needed for multi-threaded applications and heavy data crunching.

• Memory & Storage: The 8GB of DDR3L RAM ensures smooth multitasking, while the 128GB SATA SSD provides rapid boot times and plenty of space for data logging and large project files.
• Software Ecosystem: The device runs on a stable Linux operating system and supports the FStudio Unified programming software. This combination allows for a flexible, open programming environment that caters to modern software development standards.

Versatile Connectivity and Expansion

Connectivity is a cornerstone of the FPad916R001’s design. It acts as a powerful data gateway for your industrial network.

• Networking: Dual Gigabit Ethernet ports allow users to separate internal machine networks from external office or cloud networks. This separation enhances security and traffic management.
• Serial Communication: The unit includes multiple COM ports (RS232/RS485/RS422) for legacy PLC integration. Users can also expand RS485 capabilities using external USB-to-RS485 converters.
• Peripheral Support: Four USB 3.0 ports facilitate high-speed data transfer from external drives or the connection of peripherals like barcode scanners and cameras.
• Dual HDMI Output: Uniquely for an HMI, the FPad916R001 features two HDMI ports. These support resolutions up to 4K (3840×2160). You can mirror the HMI display onto larger plant-floor monitors or secondary workstations to improve visibility across the factory.

Rugged Mechanical Design and Installation

Flexem engineered the FPad916R001 to survive the rigors of the factory floor. The non-ferrous alloy housing provides excellent heat dissipation and structural rigidity.

• Environmental Protection: The front panel carries an IP65 rating, protecting the device against dust and low-pressure water jets. This makes it suitable for environments requiring regular wash-downs.
• Thermal Management: The device uses natural cooling (fanless design). This eliminates the risk of fan failure and prevents dust from entering the internal circuitry.
• Power Reliability: The isolated power adapter includes lightning surge protection. This feature ensures the HMI remains operational during electrical transients or unstable power conditions.

Typical Application Scenarios

The FPad916R001 is the ideal choice for several high-demand sectors:

1. Smart Manufacturing: It serves as a central control node for Industry 4.0 production lines.
2. Edge Computing: The unit processes and filters sensor data locally before sending it to the cloud.
3. Complex Machine Control: It manages high-axis count motion control systems that require significant CPU power.
4. Data Logging: The large SSD allows for extensive storage and visualization of historical process data for quality control.
