Product Overview

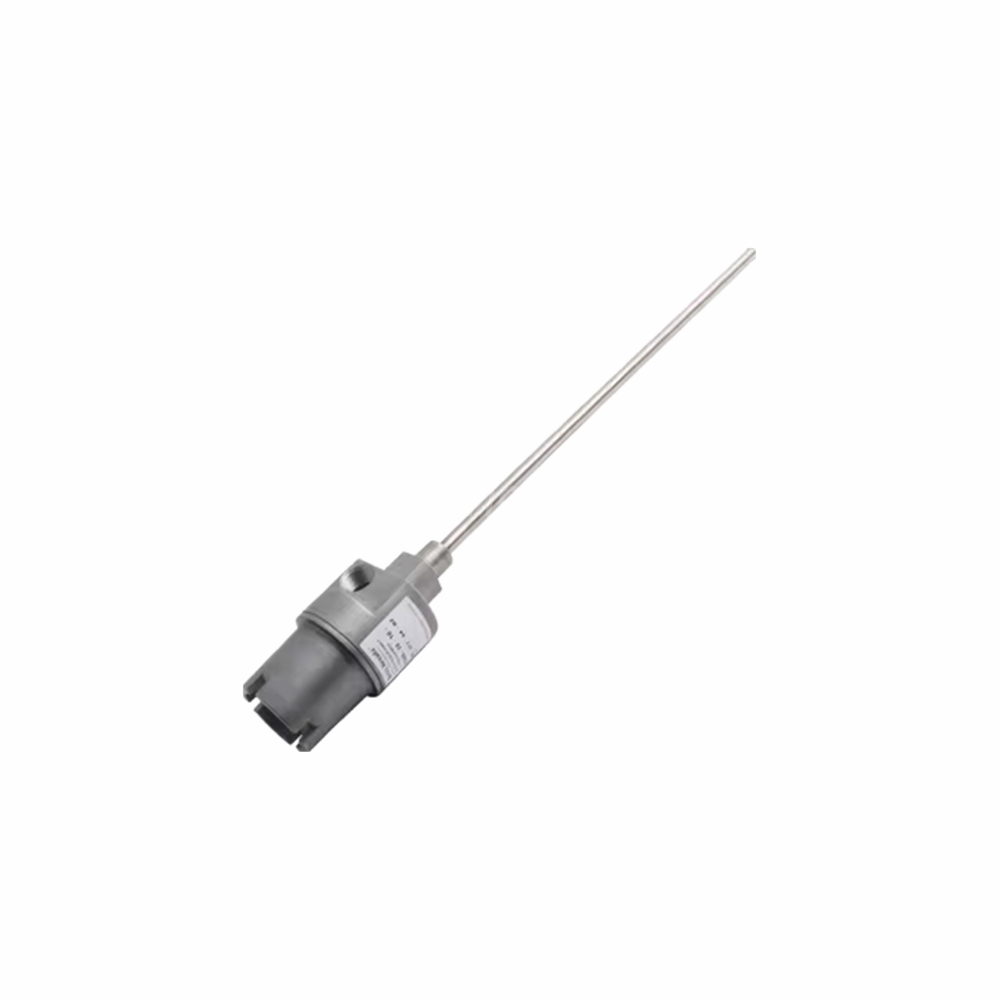

The Bently Nevada 24701-16-05-00-073-04-02 is a complete proximity probe housing assembly. This unit protects a 3300 XL 8mm probe inside a durable stainless steel enclosure. You get a compact design with no standoff adapter for close mounting applications. It works perfectly for measuring shaft vibration and position on rotating machinery. The assembly includes a dome cover, probe sleeve, and one NPT plug.

Technical Specifications

Probe and Cable Configuration

• Probe Option: 3300 XL 8mm probe with connector type.

• Probe Cable Length: 0.5 metres (20 inches).

• Standoff Adapter: Not included (option -00).

• Probe Penetration (C Dimension): 7.3 inches (185 mm).

• Maximum (C) + (D) Visible Probe: Not visible (P/N and S/N hidden).

• Maximum (C) + (D) Total Dimension: 13.5 inches (34.3 mm).

Fittings and Mounting

• Fittings Option (04): One 3/4-14 NPT plug only included.

• Mounting Thread Option: 3/4-14 NPT required when standoff adapter is not ordered.

• No Reducer Included: This option excludes the 3/4-14 to 1/2-14 NPT reducer.

• No Cable Seal Grip: This option excludes the cable seal grip and grommets.

Materials and Construction

• Body Material: 303 stainless steel.

• Sleeve Material: 304 stainless steel.

• Dome Cover: Screws directly into the housing body.

• Threaded Ports: For standard conduit connections.

• Included Components: O-rings, thread seal, reverse mount proximity probe.

• No Standoff Adapter: The probe mounts directly to the target surface.

Physical Characteristics

• Typical Weight: 1.8 kg (4.1 lb) without fittings.

• Probe Cable Length: 0.5 metres (20 inches) total.

• Probe Type: Reverse mount configuration.

• Housing Design: Screw-type dome cover for easy access.

• Penetration Depth: 7.3 inches for standard mounting scenarios.

Installation Guide

Follow these steps to install the Bently Nevada 24701-16-05-00-073-04-02 correctly. First, mount the housing using the 3/4-14 NPT thread option directly to your machine. Second, install the single 3/4-14 NPT plug into the unused conduit port. Third, run the probe cable through the remaining conduit port to your monitoring system. Fourth, verify the probe penetration reaches exactly 7.3 inches to the target. Fifth, screw the dome cover onto the housing body after checking the probe gap. Finally, tighten all connections to prevent moisture entry.

Package Contents

• 1 x Dome cover that screws into the housing body.

• 1 x Housing body with threaded conduit ports (303 stainless steel).

• 1 x Probe sleeve (304 stainless steel) with 7.3 inch penetration.

• 1 x Reverse mount proximity probe (3300 XL 8mm probe type).

• 1 x Set of O-rings for sealing.

• 1 x Thread seal compound.

• 1 x 3/4-14 NPT plug only (no reducer, no cable seal grip).

• Note: No standoff adapter included with this configuration.

Frequently Asked Questions (FAQ)

Q1: How is the Bently Nevada 24701-16-05-00-073-04-02 different from the -03 fitting option?
A: This -04 option includes only one 3/4-14 NPT plug. The -03 option adds a reducer and a cable seal grip with three grommets. Choose -04 for simple conduit connections without cable sealing needs.

Q2: Can I add a standoff adapter to this housing later?
A: Yes, you can add a standoff adapter separately. This model uses -00 which means no standoff adapter is pre-installed. You will need to order the adapter as a spare part and modify the mounting thread accordingly.

Q3: What is the probe penetration depth for the Bently Nevada 24701-16-05-00-073-04-02?
A: The probe penetration is exactly 7.3 inches (073 suffix code). This shallow depth works well for machines with limited internal clearance. The total (C)+(D) dimension still reaches 13.5 inches maximum.

Q4: Does this housing protect the probe serial number from visibility?
A: Yes. The probe part number and serial number remain not visible after full assembly. This feature prevents unauthorized reading of probe identification during normal operation.

Q5: What materials resist wear in this probe housing assembly?
A: The body uses 303 stainless steel for machinability and strength. The sleeve uses 304 stainless steel for better weldability and corrosion resistance. Both materials provide long service life in industrial environments.
