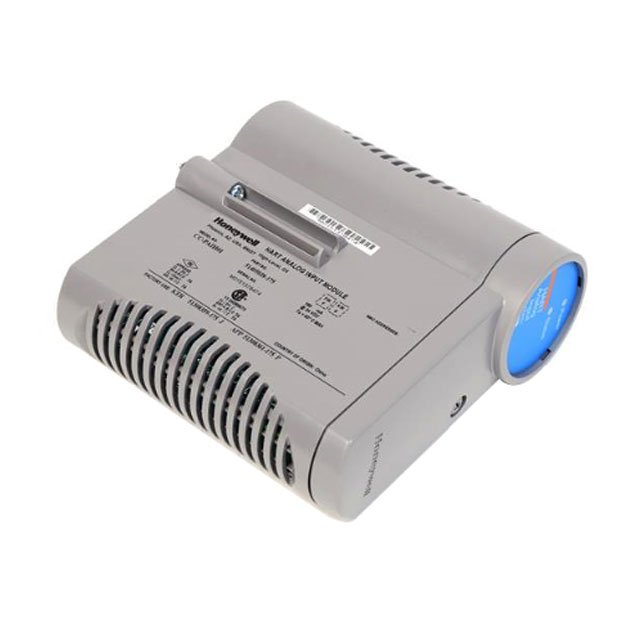

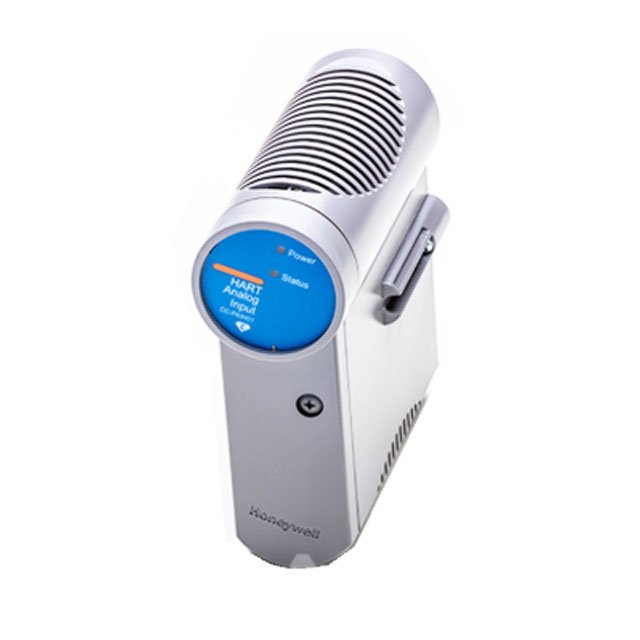

Overview of the Honeywell CC-PAIH01 Analog Input Module

The Honeywell CC-PAIH01 is a sophisticated Analog Input Module designed specifically for the Experion PKS (Process Knowledge System) Series C I/O family. This module serves as a high-performance interface, accepting high-level current or voltage signals from a variety of field transmitters and sensing devices. By integrating HART (Highway Addressable Remote Transducer) technology, the CC-PAIH01 does more than just read basic process variables; it acts as a gateway to rich diagnostic data from smart field instruments.

Engineers choose the CC-PAIH01 when they require a combination of high-speed data acquisition and comprehensive asset management. The module’s vertical orientation and compact design allow for efficient heat dissipation and space-saving installation within the Series C cabinet architecture.

High-Resolution Signal Processing and Accuracy

The CC-PAIH01 delivers exceptional measurement precision through its 16-bit A/D converter resolution. This high resolution ensures that even the smallest fluctuations in process variables are captured and transmitted to the controller. The module supports multiple input ranges to accommodate diverse industrial needs:

• Voltage Ranges: 0 to 5 V, 1 to 5 V, and 0.4 to 2 V.
• Current Range: 4-20 mA (achieved through an internal 250 Ω precision resistor).

With a hardware accuracy of ±0.075% of full-scale at room temperature, the CC-PAIH01 provides the reliable data necessary for tight loop control. Even across the full industrial temperature range of 0 to 60°C, the module maintains a strict accuracy of ±0.15%, ensuring consistent performance regardless of seasonal environmental changes.

Advanced HART Communication Capabilities

One of the standout features of the CC-PAIH01 is its integrated HART support. Unlike standard analog modules that only process the 4-20mA signal, this module features multiple internal modems. These modems facilitate the fast collection of secondary and tertiary control variables from multivariable instruments.

By utilizing HART data, plant operators can monitor device health, calibration status, and internal temperatures without ever leaving the control room. This capability significantly reduces maintenance costs and improves plant safety by identifying potential instrument failures before they impact the process.

Robust Diagnostics and System Safety

Honeywell has equipped the CC-PAIH01 with extensive self-diagnostic features to ensure maximum system uptime.

1. Open Wire Detection: The module includes a sophisticated “Bad PV” (Process Variable) detection diagnostic. If a field wire breaks or a connection loosens, the module immediately flags the data as invalid, preventing the control system from making decisions based on erroneous information.
2. Redundancy Options: For mission-critical loops, the CC-PAIH01 supports optional redundancy. In a redundant configuration, a secondary module stands by to take control instantly if the primary unit fails, ensuring zero interruption to the process.
3. Non-Incendive Field Power: The module supplies non-incendive power to field devices. It features individually protected current-limiting circuits that comply with Class 1, Div 2 standards. This design eliminates the need for external fusing and enhances safety in hazardous environments.

Speed and Signal Integrity

In fast-moving industrial processes, timing is critical. The CC-PAIH01 boasts an input scan rate of 50 ms, allowing it to track rapid changes in pressure or flow. To maintain signal integrity in electrically noisy environments, the module features a Common Mode Rejection Ratio (CMRR) of 70 dB and a single-pole RC filter that provides a -3 dB response at 6.5 Hz. These filters effectively strip away 50/60 Hz line noise and other high-frequency interference, leaving only the clean process signal.

Technical Specifications at a Glance

• Input Channels: 16 Channels (12 Single Ended / 4 Differential).
• Input Impedance: > 10 MΩ (for voltage inputs).
• Maximum Input Voltage: ± 30 Volts (differential, no damage).
• Crosstalk: -60 dB (channel-to-channel).
• Normal Mode Rejection: 19 dB at 60 Hz.
• Resolution: 16-bit A/D conversion.

Why Choose the CC-PAIH01 for Your Facility?

The Honeywell CC-PAIH01 represents the pinnacle of Series C I/O technology. It bridges the gap between traditional analog signaling and modern digital asset management. By choosing this module, you invest in a solution that offers:

• Simplified Maintenance: Through open-wire detection and HART diagnostics.
• Enhanced Safety: Via non-incendive power and Class 1, Div 2 compliance.
• Reliable Control: Supported by 16-bit resolution and a 50ms update frequency.

Whether you are upgrading an existing Experion PKS system or commissioning a new facility, the CC-PAIH01 provides the flexibility, precision, and durability required for world-class industrial automation.
