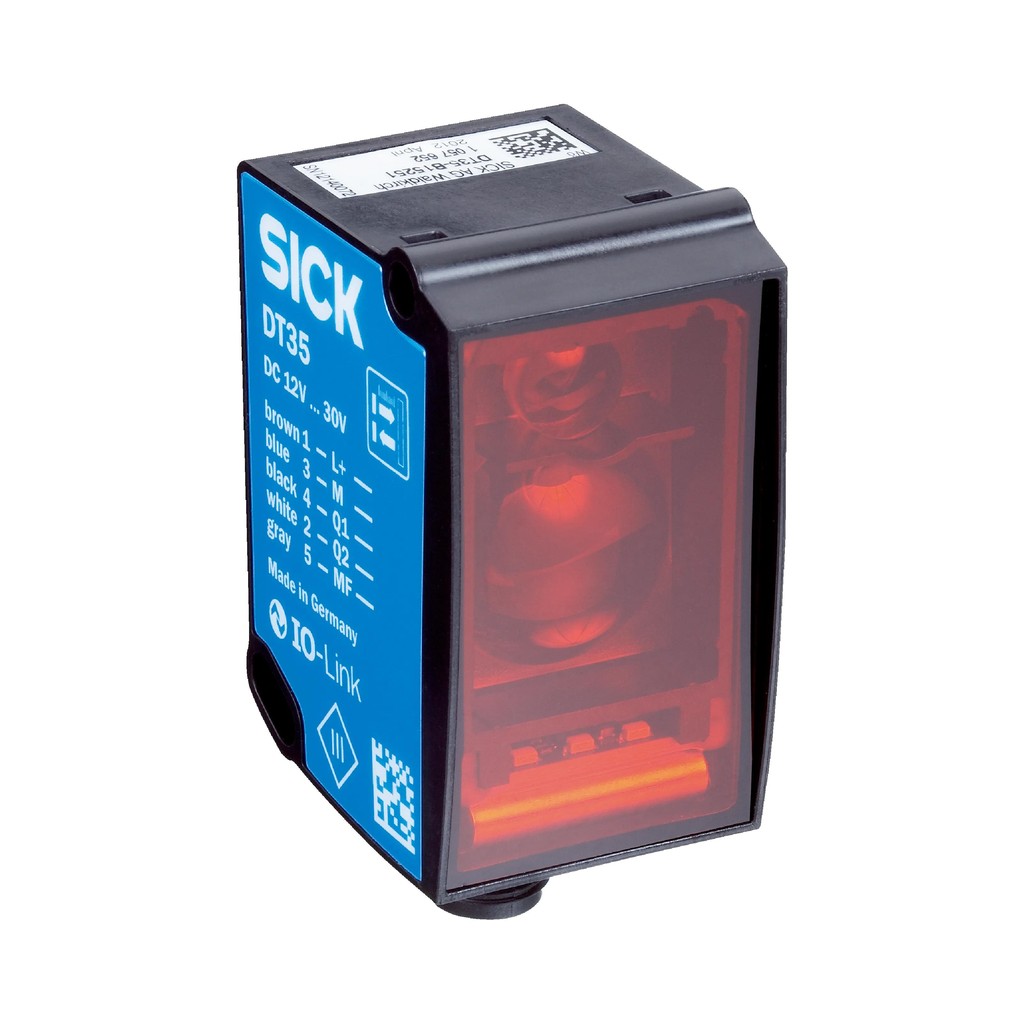

DS35-B15521 Switching Sensor: Rugged Distance Measurement for Harsh Conditions

The SICK DS35-B15521 is a Dx35 series switching sensor that uses HDDM™ optical time-of-flight measurement to detect objects at distances from 50 mm to 12,000 mm. Its Class 1 laser and IP65 housing make it a dependable choice for mission-critical position and presence sensing in oil and gas operations.

Engineers specifying sensors for demanding environments face a common set of pain points: unreliable detection at long range, electrical noise on DC supplies, and temperature swings that degrade performance. This unit addresses each with field-proven technology and a rugged build.

Key Specifications of This unit

• Measurement range: 50 mm ... 12,000 mm at 90% remission; 50 mm ... 5,300 mm at 18% remission; 50 mm ... 3,100 mm at 6% remission.
• Supply voltage: DC 12 V ... 30 V, reverse-polarity protected; Vs > 18 V required when IO-Link is active.
• Power consumption: ≤ 1.7 W at +20 °C without load on the Slow speed setting.
• Operating temperature: -30 °C ... +55 °C (Uv ≤ 24 V); storage from -40 °C ... +75 °C.
• Response time: selectable from 4.5 ms (Super Fast) to 192.5 ms (Super Slow).
• Switching frequency: up to 333 Hz, depending on speed setting.
• Repeatability: ≥ 0.5 mm ... 5 mm, depending on speed setting and remission factor.
• Outputs: two push-pull (PNP/NPN) digital outputs Q1 and Q2, with IO-Link V1.1 on Q1 and a multifunctional input.
• Electrical connection: M12 5-pin male connector.
• Enclosure rating: IP65 per EN 60529; housing in ABS/PC with PMMA optical window.
• Dimensions and weight: 32 mm x 58.6 mm x 42.7 mm, approximately 65 g.

These specifications are built for demanding environments where consistent detection and simple integration matter.

How This unit Solves Long-Range Detection Challenges

Long-range sensing in tank farms and loading areas often suffers from weak return signals. This unit uses a visible red laser diode at 658 nm with HDDM™ time-of-flight analysis. Consequently, it maintains a 12,000 mm range at 90% remission and still reaches 3,100 mm on low-reflectivity targets. The Class 1 laser is eye-safe per IEC 60825-1:2014, so operators can work near the beam without additional protective measures.

Electrical Reliability in Noisy Industrial Environments

Voltage transients and wiring errors can damage lesser sensors. This model accepts a wide DC 12 V ... 30 V supply and includes reverse-polarity protection. In addition, power draw stays at or below 1.7 W under reference conditions, which reduces heat inside enclosures. When IO-Link is active, the supply must exceed 18 V; plan the control cabinet voltage accordingly. The M12 5-pin connector provides a secure, field-proven interface for quick replacement.

Temperature and Environmental Durability

Oil and gas sites see temperature extremes and washdown. This unit operates from -30 °C to +55 °C and stores from -40 °C to +75 °C. Its IP65 enclosure protects against dust and water jets, while the ABS/PC housing and PMMA window resist typical plant conditions. Therefore, the sensor remains reliable across seasonal swings and outdoor installations.

Integration and IO-Link Setup

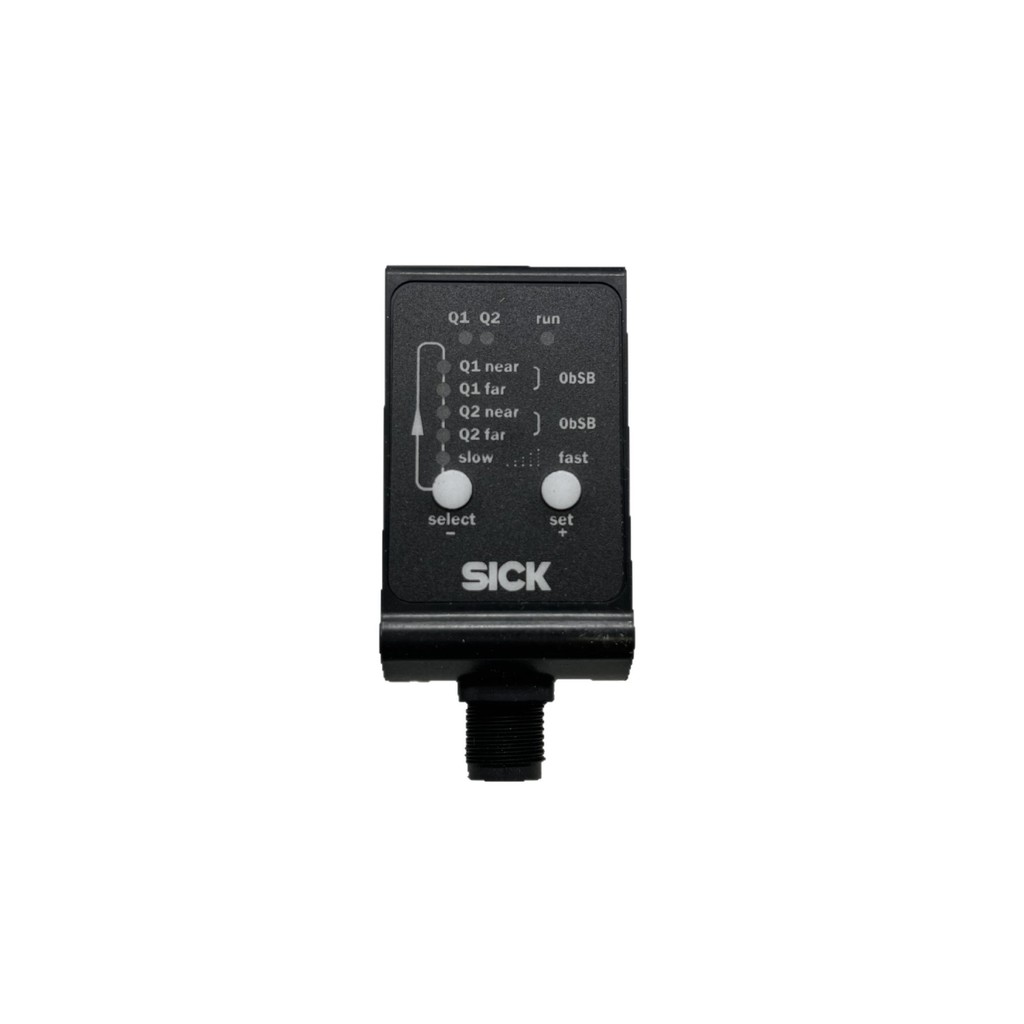

The two push-pull outputs support PNP or NPN logic, so This unit connects directly to most PLC digital inputs. IO-Link V1.1 on Q1 enables parameter access and diagnostics over the same M12 cable. A teach-in button allows quick switching-point configuration without software. For IO-Link wiring into fieldbus networks, an external gateway or connection module may be required; confirm cable and gateway compatibility with PetroPartsOnline.

Typical Applications and Selection Guidance

This switching sensor suits presence detection on conveyors, level monitoring in bins, and collision avoidance on moving equipment. Its long range and adjustable hysteresis (0 mm ... 11,950 mm) help filter false triggers from debris. For low-remission targets, select the Super Slow setting to improve repeatability. PetroPartsOnline offers application-specific selection guidance to match This unit to your process conditions.

Maintenance and Troubleshooting

Periodic inspection of the optical window keeps measurements accurate. Clean the PMMA window with a soft cloth and mild detergent, and check the M12 connector for tightness. If the sensor misreads, verify that the supply voltage exceeds 18 V when IO-Link is active. Also confirm that the target remission matches the selected range. For persistent faults, refer to the official SICK documentation or contact PetroPartsOnline.

Frequently Asked Questions

What is the maximum measuring range of This unit?

The SICK unit measures up to 12,000 mm on 90% remission targets, 5,300 mm on 18% remission, and 3,100 mm on 6% remission.

What supply voltage does This unit require?

The sensor operates on DC 12 V ... 30 V with reverse-polarity protection. When IO-Link is active, the supply must be greater than 18 V.

Is This unit laser eye-safe?

Yes. It uses a Class 1 laser per IEC 60825-1:2014 and EN 60825-1:2014, with average optical power below 1 mW.

What is the operating temperature range of This unit?

The SICK unit operates from -30 °C to +55 °C (Uv ≤ 24 V) and stores from -40 °C to +75 °C.

How do I connect This unit to a control system?

Use the M12 5-pin connector. The two push-pull outputs support PNP or NPN logic, and IO-Link V1.1 is available on Q1 for parameterization.

Contact PetroPartsOnline for parts suited to your application's requirements.
