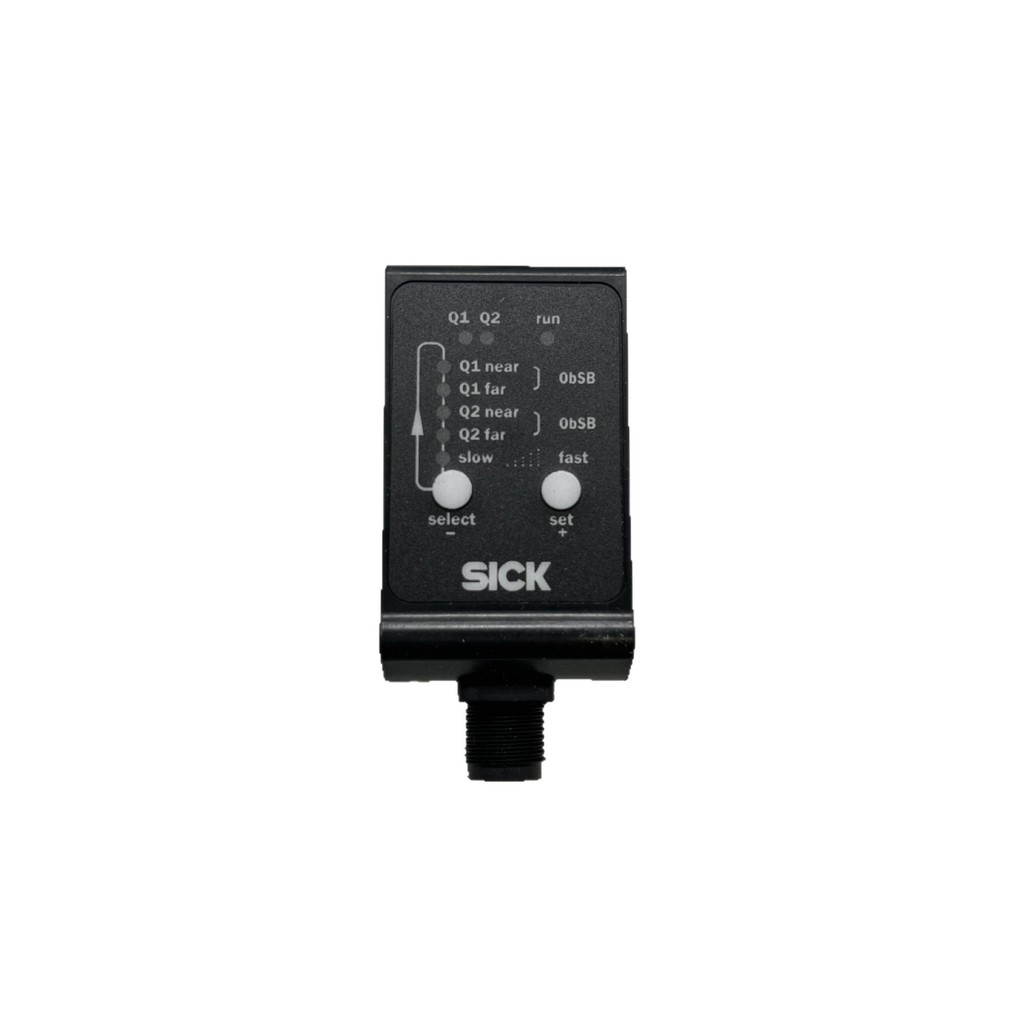

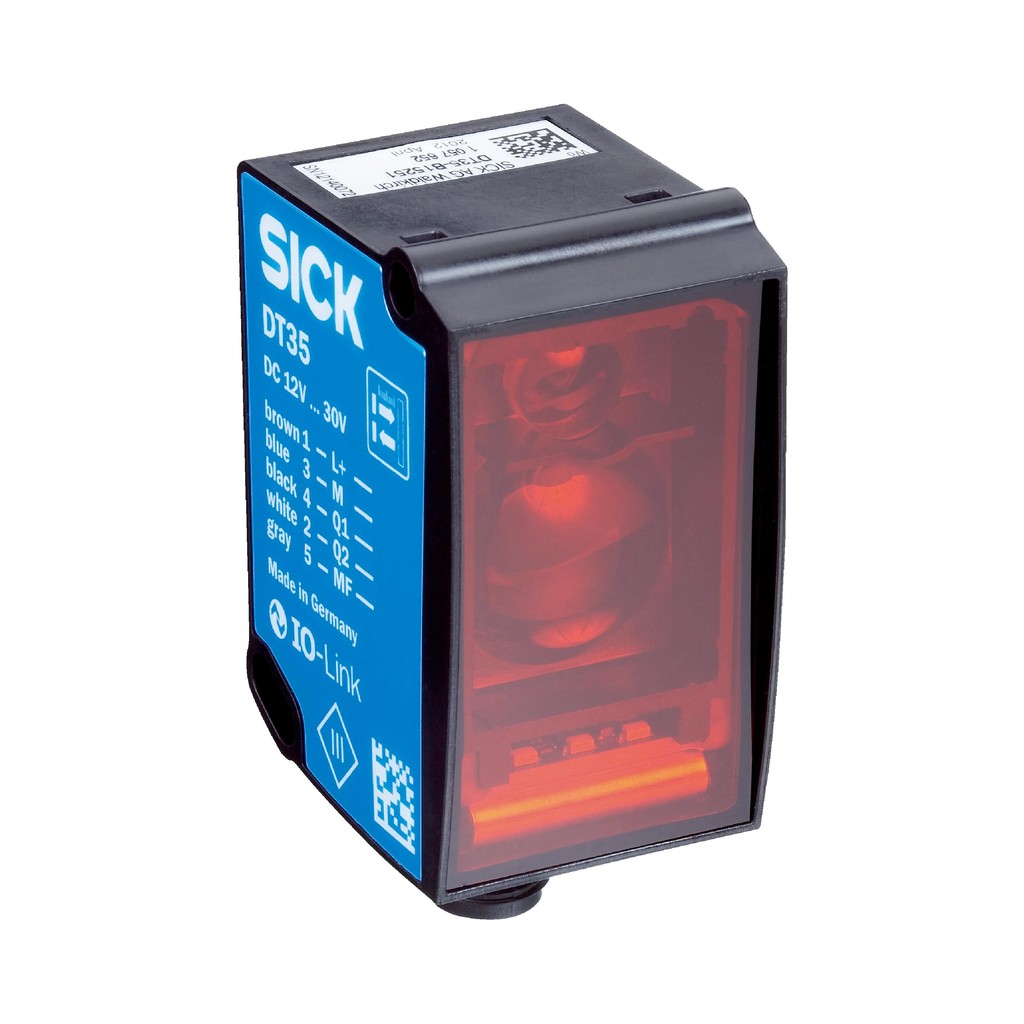

What the SICK DS35-B15221 Switching Sensor Delivers

The SICK DS35-B15221 is a Dx35 series switching sensor using HDDM optical time-of-flight measurement, with a measuring range of 50 mm to 12,000 mm at 90% remission. It combines a visible Class 2 laser, dual push-pull outputs and IO-Link V1.1 in a compact IP65 housing.

For oil and gas engineers, the value lies in dependable distance switching where dust, vibration and temperature swings are routine. This unit is built for demanding environments, and its specifications support that claim without exaggeration.

Key Specifications of This unit

• Measurement principle: HDDM optical time-of-flight with a visible red laser diode at 658 nm.
• Measuring range: 50 mm ... 12,000 mm at 90% remission; 50 mm ... 5,300 mm at 18%; 50 mm ... 3,100 mm at 6%.
• Supply voltage: DC 12 V ... 30 V, reverse-polarity protected; Vs > 18 V when IO-Link is active.
• Power consumption: ≤ 1.7 W at +20 °C, without load, speed setting Slow.
• Operating temperature: -30 °C ... +55 °C (Uv ≤ 24 V); storage from -40 °C ... +75 °C.
• Response time: 2.5 ms (Super Fast) to 96.5 ms (Super Slow), selectable by speed setting.
• Switching frequency: Up to 333 Hz, speed setting dependent.
• Outputs: 2x push-pull (PNP/NPN, Q1 and Q2) with IO-Link V1.1 on Q1; multifunctional input.
• Electrical connection: Male connector M12, 5-pin.
• Enclosure rating: IP65 per EN 60529; housing in ABS/PC with PMMA optical window.
• Dimensions and weight: 32 mm x 58.6 mm x 42.7 mm; approximately 65 g.

The 12,000 mm range at 90% remission is the standout figure. In practice, it allows a single sensor to cover wide approach zones on pipe racks or tank farms without mechanical repositioning.

Why This unit Suits Oil and Gas Environments

Oil and gas installations demand sensors that tolerate temperature extremes and contamination. This unit operates from -30 °C to +55 °C, covering most outdoor and unheated enclosure conditions. Its IP65 rating protects against dust ingress and water jets, which matters where washdown or condensate occurs.

Additionally, the visible Class 2 laser simplifies alignment during commissioning. Technicians can see the spot without extra tools, reducing setup time on elevated or confined equipment. The ABS/PC housing and PMMA window resist typical industrial wear, while the 65 g weight minimizes mounting stress on thin brackets.

Furthermore, the dual push-pull outputs provide flexibility. Engineers can configure Q1 and Q2 independently for presence, level or position switching. Because the outputs support PNP and NPN, the sensor integrates with either sinking or sourcing input cards, simplifying spare-part strategy across mixed control cabinets.

How Does IO-Link Improve This unit Installation?

IO-Link V1.1 on Q1 turns the sensor into a parameterizable device. During installation, engineers can set switching hysteresis from 0 mm to 11,950 mm, select response speed and read diagnostic data over the network. This reduces physical adjustment and supports remote verification after maintenance.

However, IO-Link requires Vs > 18 V. Therefore, confirm the supply is at least 18 V when digital communication is active. For standard switching without IO-Link, the sensor accepts DC 12 V ... 30 V. The M12 5-pin connector is standard in oil and gas panels, so replacement does not require new cabling.

Integration note: wiring into fieldbus networks may require an external gateway or connection module. Confirm cables and gateways with PetroPartsOnline for your specific control architecture.

Application-Specific Selection Guidance

This unit is a sound choice for the following duties:

• Level detection in tanks and silos where non-contact measurement is preferred.
• Presence sensing on conveyors and pipe handling systems.
• Position monitoring of valves, gates and dampers at distances beyond typical photoelectric limits.
• Collision avoidance on moving skids and access platforms.

For dark or low-remission targets, verify the reduced range. At 6% remission, the measuring range is 50 mm ... 3,100 mm. At 18%, it extends to 5,300 mm. Selecting the correct speed setting also balances response time against repeatability, which ranges from ≥ 0.5 mm to 5 mm.

Maintenance and Reliability Practices

This unit has no moving parts, so wear is minimal. Periodic inspection should focus on the PMMA optical window. Clean it according to site procedures when dust or oil film accumulates, because contamination reduces effective range. Also check the M12 connector for moisture ingress and verify that the supply voltage remains within DC 12 V ... 30 V.

Because the sensor reports over IO-Link, maintenance teams can trend diagnostic data and schedule intervention before a switching failure occurs. This supports reliability you can depend on in mission-critical loops. Always follow the manufacturer's safety manual for laser Class 2 devices.

Frequently Asked Questions

What is the operating temperature range of This unit?

The SICK unit operates from -30 °C to +55 °C when the supply voltage is 24 V or less. Storage temperature ranges from -40 °C to +75 °C.

Can This unit be used with IO-Link and standard switching simultaneously?

Yes. Q1 supports IO-Link V1.1, while Q2 remains a push-pull switching output. Note that IO-Link requires a supply voltage above 18 V.

What supply voltage does This unit require?

The sensor accepts DC 12 V ... 30 V and is reverse-polarity protected. For IO-Link operation, ensure Vs > 18 V.

How does This unit perform on low-remission targets?

At 6% remission, the measuring range is 50 mm ... 3,100 mm. At 18%, it reaches 5,300 mm. For best results, select a slower speed setting to improve repeatability.

Is This unit suitable for outdoor oil and gas installations?

With IP65 protection and a -30 °C to +55 °C operating range, it suits many outdoor and sheltered locations. Verify the actual ambient conditions and consult PetroPartsOnline for application-specific guidance.

Ordering This unit from PetroPartsOnline

PetroPartsOnline supplies the SICK unit with reliable sourcing for critical operations. Contact PetroPartsOnline for parts suited to your application's requirements.
