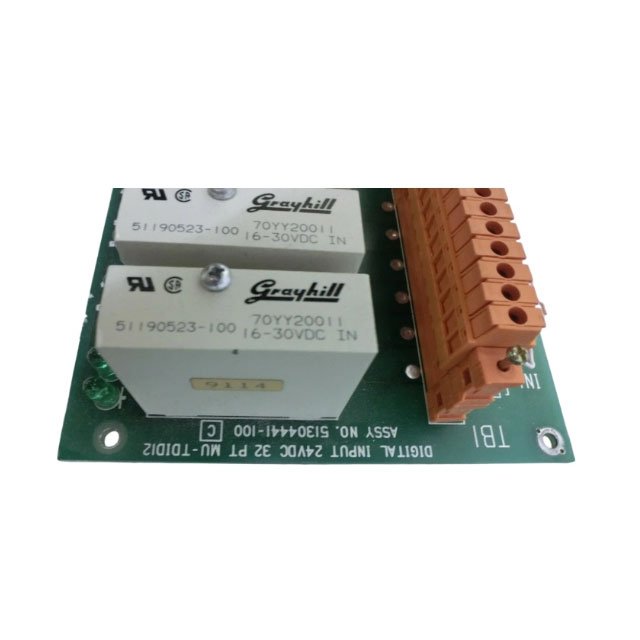

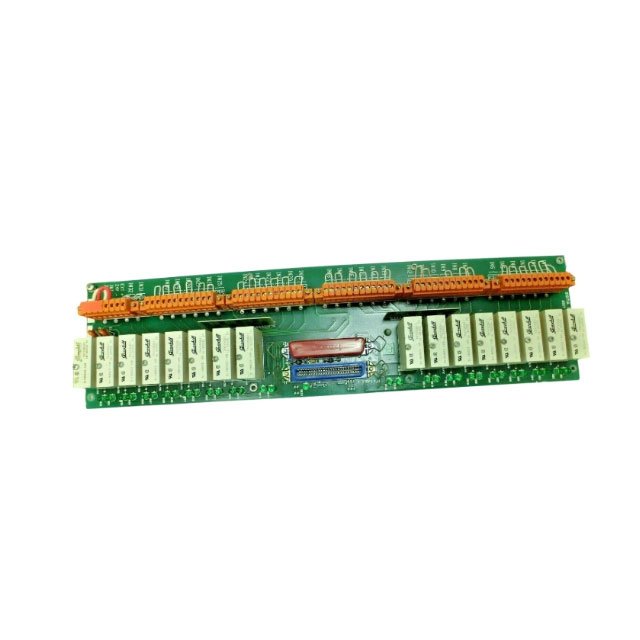

Overview of the Honeywell MU-TDID12 Digital Input Board

The Honeywell MU-TDID12 (Part Number: 51304441-100) is a high-density digital input board assembly designed for use within Honeywell’s legacy TDC 3000 and modern Experion PKS control systems. This module serves as the primary interface between field-level digital devices—such as limit switches, pushbuttons, and relay contacts—and the central Process Manager (PM), Advanced Process Manager (APM), or High-Performance Process Manager (HPM).

By providing 32 discrete input channels, the MU-TDID12 allows industrial facilities to monitor a vast array of status signals through a single hardware footprint. Honeywell engineered this board to deliver exceptional reliability in mission-critical environments, ensuring that every state change in the field reaches the controller with millisecond precision.

Technical Specifications and Electrical Characteristics

The MU-TDID12 operates on a standard industrial 24 VDC power architecture, offering broad compatibility with common field instrumentation.

• Input Capacity: 32 independent digital input channels.
• Operating Voltage: 20 to 30 VDC range.
• Isolation: 1500 Vac rms or +1500 Vdc galvanic isolation (Field to Logic).
• Isolation Method: High-speed optical coupling.
• Input Frequency: DC to 15 Hz (Accumulated).
• Connectivity: 2 dedicated FTA (Field Termination Assembly) ports.
• Surge Capability: Compliant with ANSI/IEEE C37.90.1-1978 standards.

The board’s ability to handle up to 1500V of isolation protects the expensive control logic from ground loops and high-voltage transients that often occur in industrial power grids.

Precision Switching and Signal Integrity

Accuracy in digital signaling depends on clearly defined “ON” and “OFF” thresholds. The MU-TDID12 utilizes strict current and voltage parameters to eliminate “chatter” or false triggering:

1. ON Condition (Pick Up): The module requires a minimum of 20 VDC and a sense current of at least 4.5 mA to register a logic high.
2. OFF Condition (Drop Out): The signal must fall below 10 VDC or the current must drop below 2.8 mA to register a logic low.
3. Rapid Response Time: The absolute delay across the input filter and isolation stage is a maximum of 2.0 ms. This “bounceless” input ensures that the PM/APM/HPM logic level changes almost instantaneously with the field contact, which is vital for high-speed interlocking and safety shutdown systems.

Robust Connectivity via FTA Ports

The MU-TDID12 features two FTA ports, which facilitate connection to Field Termination Assemblies. This architecture separates the sensitive board assembly from the actual field wiring terminals. Technicians can perform maintenance or replace the board without disconnecting individual field wires, significantly reducing the risk of wiring errors and shortening MTTR (Mean Time To Repair).

The board assembly integrates seamlessly into the standard Honeywell I/O rack. Its design focuses on long-term thermal stability, allowing it to operate continuously in the enclosed environments of control cabinets without the risk of overheating.

Industrial Reliability and Surge Protection

Process industries like oil refining, chemical manufacturing, and power generation demand hardware that survives harsh electrical conditions. The MU-TDID12 meets ANSI/IEEE C37.90.1-1978 surge withstand requirements. This means the board can survive the high-frequency oscillatory transients and fast transient surges typically caused by switching heavy inductive loads or lightning strikes near field wiring.

The use of optical isolation further enhances this durability. By converting the electrical signal into light and back again, the module physically breaks the electrical path between the field and the controller, providing a “firewall” that safeguards the core of the DCS (Distributed Control System).

Why Choose the Honeywell 51304441-100?

Maintaining legacy systems like the TDC 3000 requires components that match the original OEM specifications exactly. The 51304441-100 MU-TDID12 ensures that your system remains supported and compliant with its original safety certifications.

• High Density: 32 channels per board maximize cabinet space efficiency.
• Fast Diagnostics: The rapid 2.0ms response time allows for detailed sequence-of-events (SOE) recording.
• Proven Track Record: Thousands of these units operate globally in the world’s most demanding industrial plants.
• Ease of Replacement: The board assembly design allows for “plug-and-play” replacement within the I/O card file.

By choosing the genuine MU-TDID12 digital input board, you ensure the continued uptime and safety of your process control infrastructure, preventing the costly consequences of signal failure or controller damage.
