Product Introduction

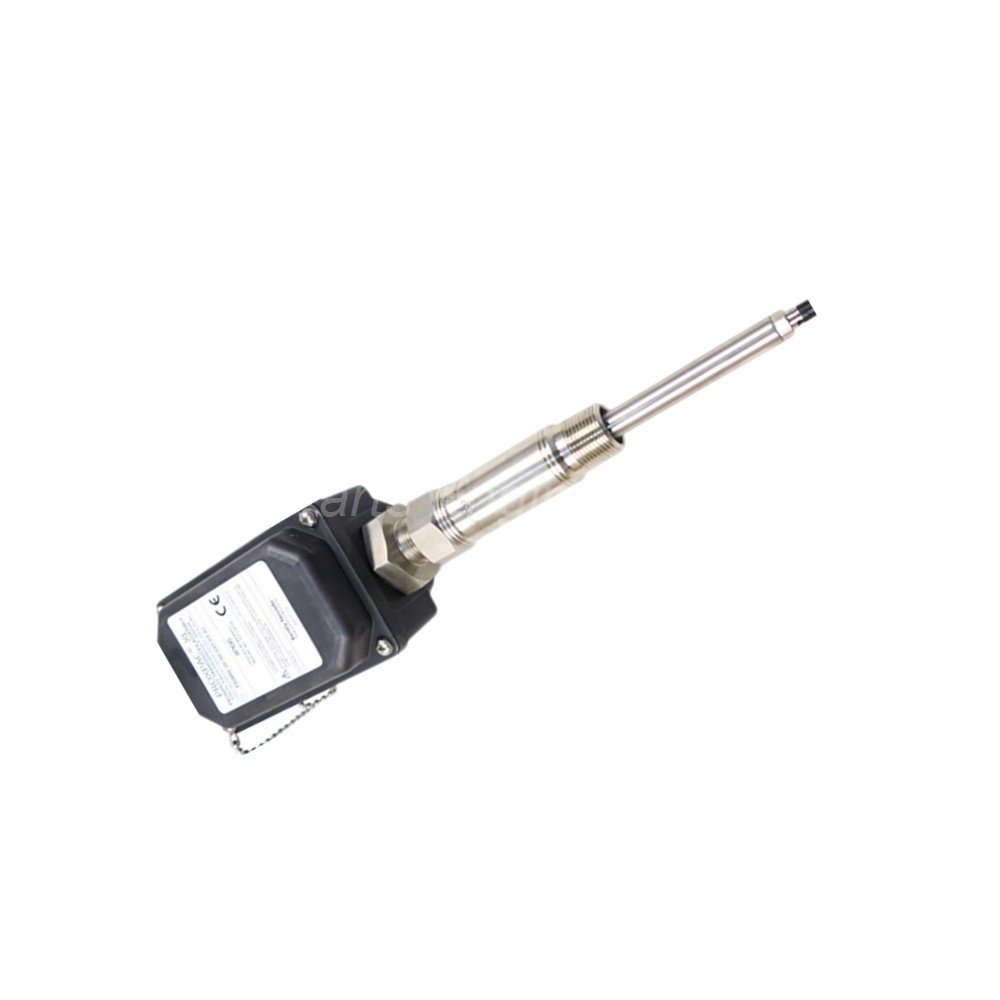

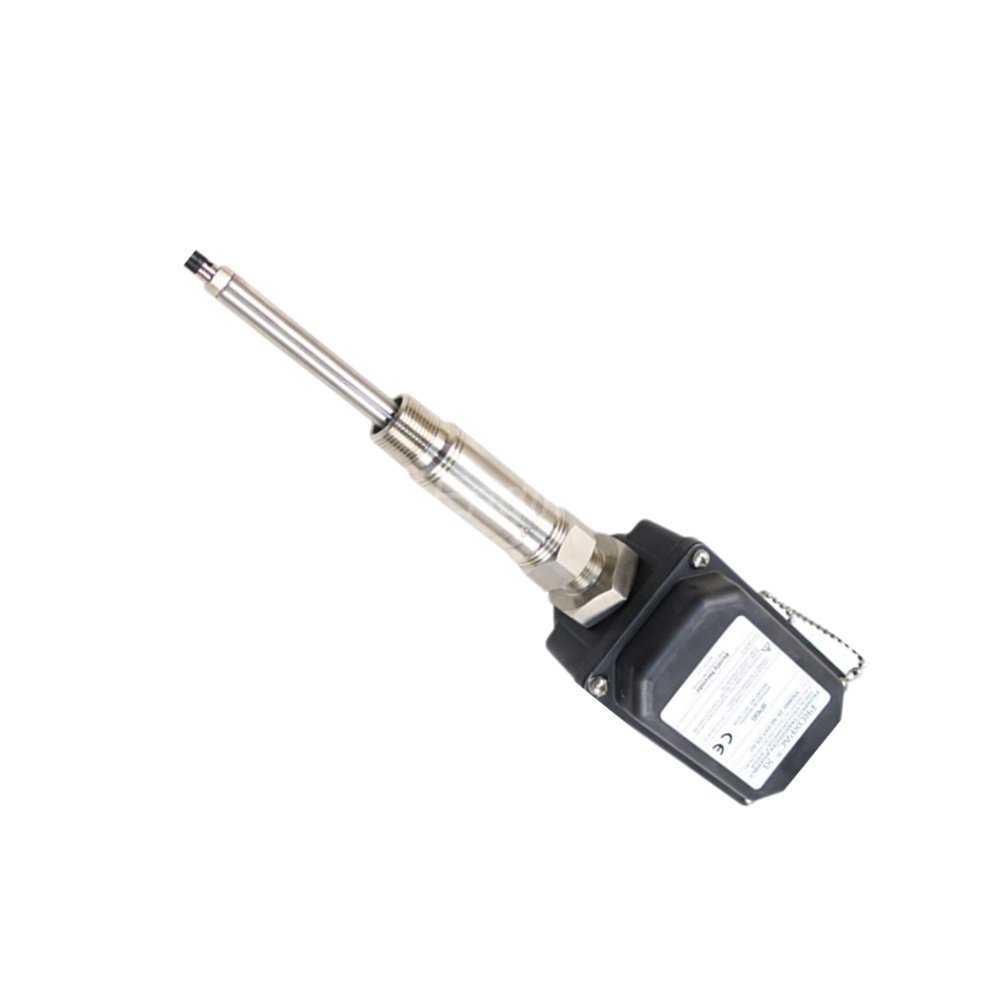

• The 330880-16-00-025-03-02 is a premium PROXPAC XL Proximity Transducer assembly.
• It integrates a 3300 XL 8mm probe into a rugged, glass-reinforced PPS thermoplastic housing.
• This system provides high-accuracy displacement and vibration data for critical rotating machinery.
• The IP66-rated enclosure protects internal components from UV, moisture, and chemical exposure.
• Engineers should download the full technical datasheet to verify mounting clearances and NPT seal steps.

Configuration Breakdown & Suffix Logic

• Model: 330880 (PROXPAC XL Proximity Transducer)
  • Probe & Approvals [16]: 3300 XL 8mm probe | No specific agency approvals.
  • Standoff Adapter [00]: No standoff adapter (Direct mount configuration).
  • Probe Penetration [025]: 25mm effective “C” dimension depth.
  • Fittings [03]: One 3/4-14 NPT fitting | 3/4 to 1/2 NPT SST reducer | Two plugs.
  • Mounting Thread [02]: 3/4-14 NPT standard interface.

Technical Performance Data

• Core Parameters
  • Manufacturer: Bently Nevada
  • Model: 330880-16-00-025-03-02
  • Linear Range: 2.0 mm (80 mils) total span.
  • Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% precision.
  • Frequency Response: 0 to 10 kHz (+0, -3 dB).
  • Output Resistance: 50 Ω low-impedance signal.
• Material & Durability
  • Housing Material: UV-resistant PPS Thermoplastic with conductive fibers.
  • Probe Tip: High-grade Polyphenylene Sulfide (PPS).
  • Environmental Rating: IP66 moisture and dust resistance.
  • Temperature Range: -51 °C to +177 °C (-60 °F to +350 °F).
  • Impact Strength: Certified to withstand 4 Joule to 7 Joule impacts.

Installation & Engineering Specs

• Shaft Requirements: Minimum shaft diameter must be 50.8 mm (2.0 in).
• Gap Setting: Recommended installation gap of 1.27 mm (50 mils).
• Torque Limits: Retaining Nut: 29.5 N·m | Probe Sleeve Locknut: 39.3 N·m.
• Wiring Compatibility: Supports 16 to 24 AWG field wiring (up to 305m).
• Vibration Control: Internal Extra Soft Cellular Silicone for isolation.

Expert Review & Manager Insight

• Expert Review: The 330880 series excels in offshore or outdoor environments where metallic housings might corrode. The internal SST grounding liner ensures signal stability.
• Manager Insight: This 25mm penetration model is a high-demand spare for turbine casings. We offer immediate dispatch to minimize costly machinery downtime.

Shipping & Warranty Terms

• Condition: New & Original, Made in U.S.A.
• Warranty: 12-Month comprehensive factory warranty.
• Lead Time: Order fulfillment within 12-48 hours.
• Logistics: Worldwide express via FedEx, UPS, and DHL.

Frequently Asked Questions

• Question: Why is the housing made of thermoplastic instead of aluminum?

  Answer: Glass-reinforced PPS provides superior UV and chemical resistance, making it ideal for harsh refineries.

• Question: Can I use this system for a shaft smaller than 50.8 mm?

  Answer: No, smaller diameters cause target curvature error, which leads to inaccurate vibration readings.

• Question: Does this probe require a specific Proximitor sensor?

  Answer: Yes, it is calibrated for use with the 3300 XL Proximitor series.

• Question: What if I need to mount this in a sub-zero environment?

  Answer: It is rated to -51 °C, but avoid mechanical stress below -34 °C to protect the pressure seal.

• Selection Guide: Always verify your “C” dimension (25mm) against your machine’s port depth to ensure the tip reaches the target.
