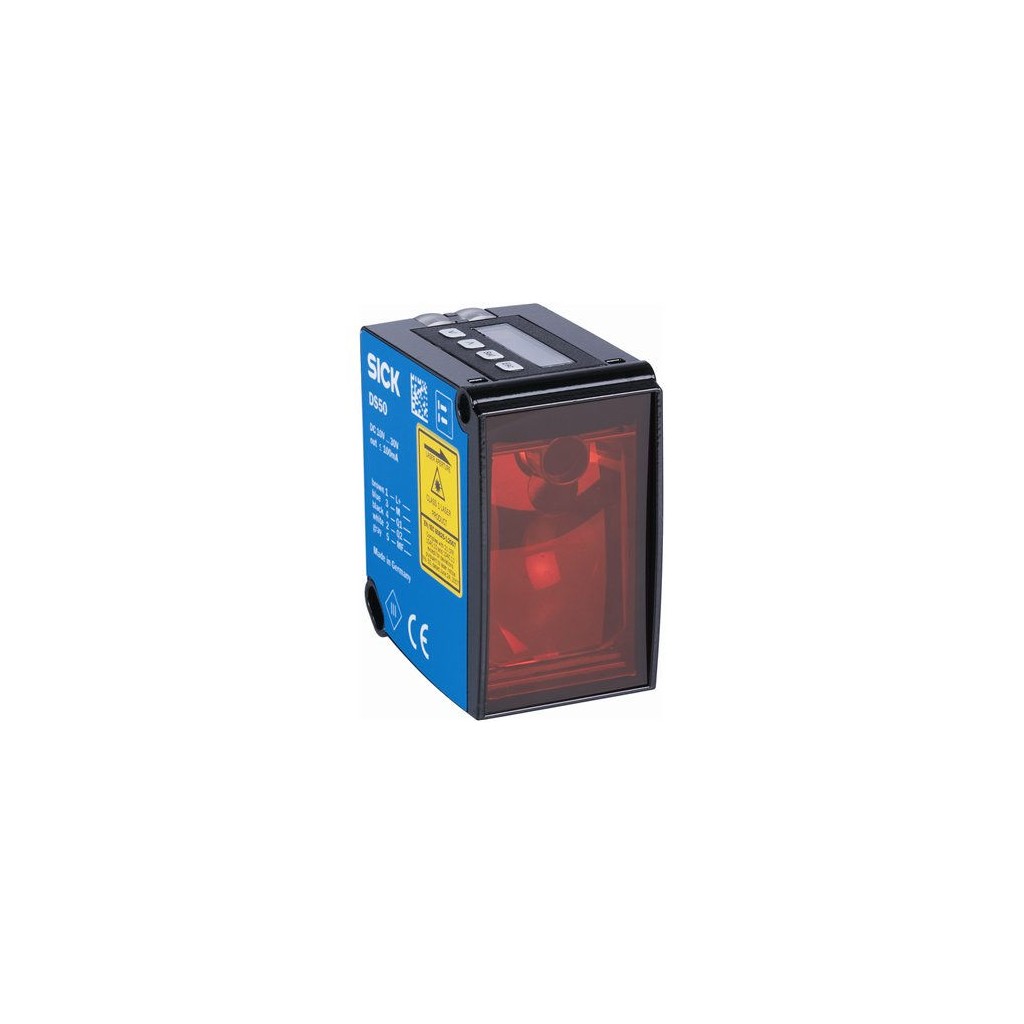

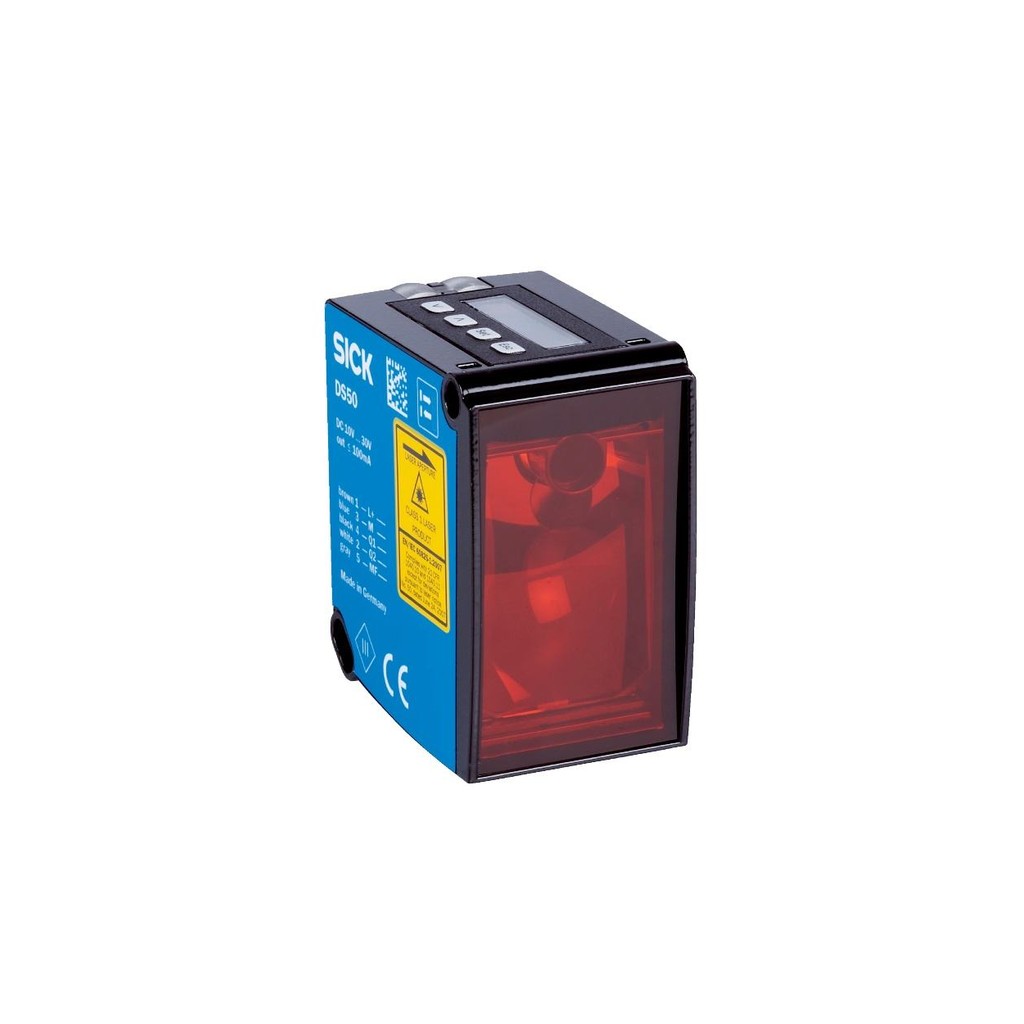

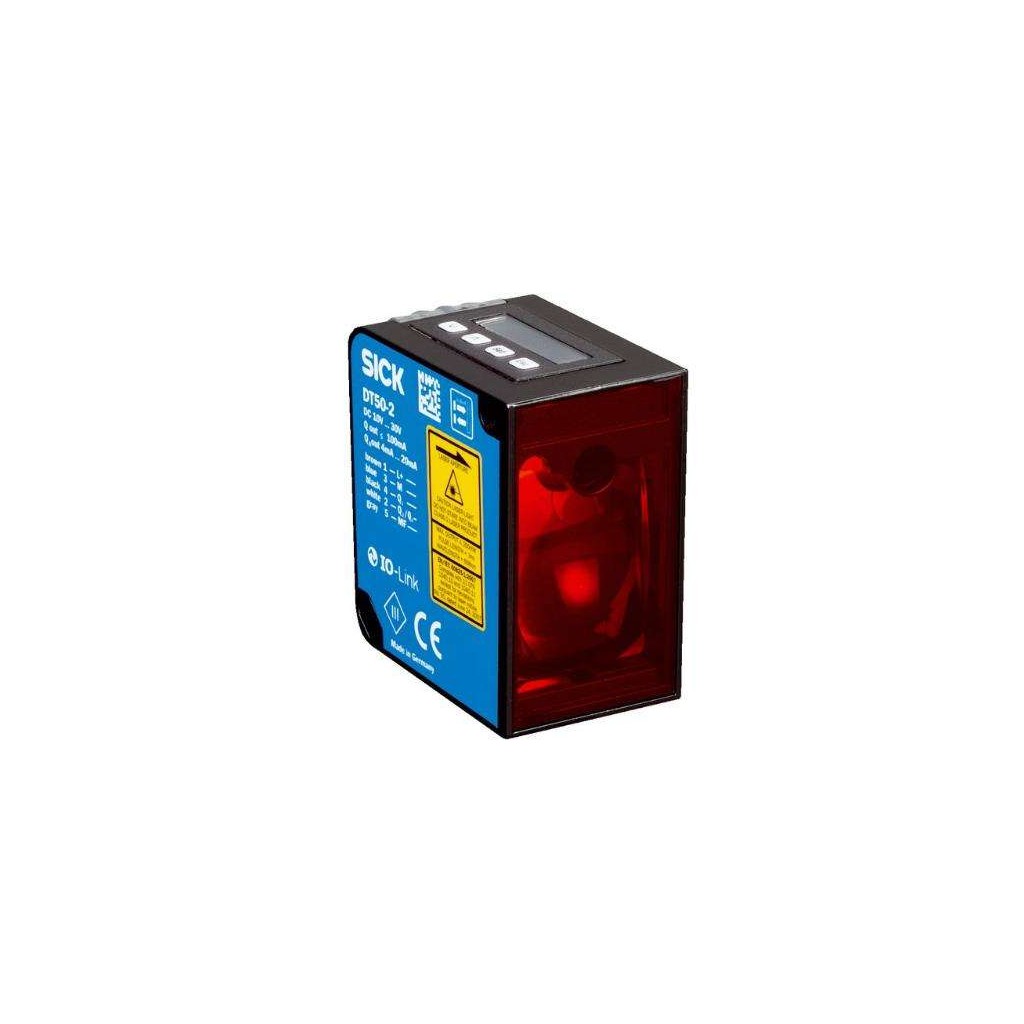

What Is the SICK DL50-2B215252 Distance Sensor?

The SICK DL50-2B215252 is a Dx50-2 Next Generation distance sensor that uses HDDM optical time-of-flight measurement to detect targets from 200 mm up to 50,000 mm on Diamond Grade reflective tape. Its rugged zinc die-cast housing and -40 °C to +65 °C operating range make it a dependable choice for demanding oil and gas environments.

Engineers evaluating long-range position feedback often need a sensor that survives washdown, temperature swings, and vibration without adding a heater or complex wiring. This unit addresses those needs with a dual digital and analog interface, IO-Link V1.1 connectivity, and IP65/IP67 protection in a compact 36.2 mm x 67.3 mm x 58 mm package.

Key Specifications of This unit

• Measurement principle: HDDM optical time-of-flight with a visible red laser diode at 658 nm.
• Laser class: Class 2 per IEC 60825-1:2014 with average power below 1 mW.
• Measuring range: 200 mm to 50,000 mm on Diamond Grade reflective tape.
• Repeatability: 0.5 mm to 5 mm depending on configured speed setting.
• Measurement accuracy: Typical ± 7 mm across the working range.
• Response time: 0.83 ms to 75 ms, configurable via speed settings.
• Supply voltage: DC 10 V to 30 V with reverse-polarity protection.
• Power consumption: ≤ 2.1 W.
• Outputs: One push-pull (PNP/NPN) digital output, one configurable analog output (4 mA to 20 mA or 0 V to 10 V, 16-bit), and IO-Link V1.1.
• Electrical connection: M12 5-pin male connector.
• Operating temperature: -40 °C to +65 °C; storage from -40 °C to +75 °C.
• Enclosure rating: IP65 and IP67 per EN 60529.
• Housing: Zinc die-cast (ZNAL4CU1) with acrylic glass (PMMA) optical window.
• Dimensions and weight: 36.2 mm x 67.3 mm x 58 mm, approximately 235 g.

For any specification not listed here, refer to the official SICK datasheet.

How Does the Extended Temperature Range Support Oil and Gas Operations?

Field equipment in oil and gas service must tolerate temperature extremes without auxiliary heating or cooling. This unit operates from -40 °C to +65 °C without an internal heater. This range covers outdoor wellhead monitoring in winter and hot process areas in summer. Because the sensor needs no heater circuit, wiring stays simple and power draw remains at or below 2.1 W. In addition, the IP65 and IP67 ratings protect against dust and water ingress during washdown or heavy rain. Together, these ratings and the zinc die-cast housing make the sensor built for demanding environments.

Where Is This unit Typically Used?

Long-range distance measurement with a reflective target suits many oil and gas tasks. For example, the sensor can monitor the position of a traveling block or crane trolley on a drilling rig. It can also check the fill level of a tank or silo by measuring to a reflective plate on a float. In pipeline valve skids, the analog output provides continuous position feedback to a control system. Because the digital push-pull output can drive a relay or PLC input directly, simple go/no-go detection is also possible. Finally, the IO-Link V1.1 interface supports parameter changes and diagnostics from a remote controller.

How Do You Install and Wire This unit?

Mount the sensor on a rigid bracket so the laser beam strikes the reflective tape at a consistent angle. Keep the optical window clean and free of oil film or dust, because contamination reduces the return signal. Connect the M12 5-pin connector to a supply of DC 10 V to 30 V. The reverse-polarity protection helps prevent damage if the supply leads are swapped during commissioning. For analog output, select either 4 mA to 20 mA (load ≤ 450 Ω) or 0 V to 10 V (load ≥ 50 kΩ) in the sensor configuration. The digital output can be set as PNP or NPN to match your control input. When using IO-Link V1.1, confirm that the master port supports the protocol and that the cable length meets the master's specification.

What Maintenance Practices Keep the Sensor Reliable?

Reliability you can depend on starts with simple inspection. Check the optical window weekly in dirty process areas and clean it with a soft, lint-free cloth and a mild lens cleaner. Verify that the reflective tape remains firmly attached and free of scratches or dirt. Inspect the M12 connector for moisture or corrosion during scheduled shutdowns. Because the sensor has no moving parts, wear is minimal; however, extreme temperature cycling can loosen mounting hardware. Therefore, confirm bracket torque at each maintenance interval. These steps help avoid unplanned downtime and protect the mission-critical measurements the sensor provides.

Integration and Compatibility Notes

This unit works with IO-Link V1.1 masters and standard PLC analog or digital input cards. When wiring into an IO-Link network, you may need an external gateway or connection module to bring the data into your control system. Confirm cable and gateway compatibility with your supplier before installation. The push-pull digital output simplifies direct connection to most PLC discrete inputs without additional interface relays.

Frequently Asked Questions

What is the measuring range of the SICK unit?

The SICK unit measures from 200 mm to 50,000 mm when using Diamond Grade reflective tape.

Can This unit operate in cold outdoor environments?

Yes. The operating temperature range is -40 °C to +65 °C, and the sensor requires no internal heater.

What output types does This unit provide?

It provides one push-pull (PNP/NPN) digital output, one configurable analog output (4 mA to 20 mA or 0 V to 10 V), and IO-Link V1.1 communication.

What is the supply voltage and power consumption of This unit?

The supply voltage is DC 10 V to 30 V with reverse-polarity protection, and power consumption is ≤ 2.1 W.

How should I clean the optical window on This unit?

Use a soft, lint-free cloth and a mild lens cleaner. Avoid abrasive materials that could scratch the PMMA window.

Contact PetroPartsOnline for parts suited to your application's requirements.
