Product Overview

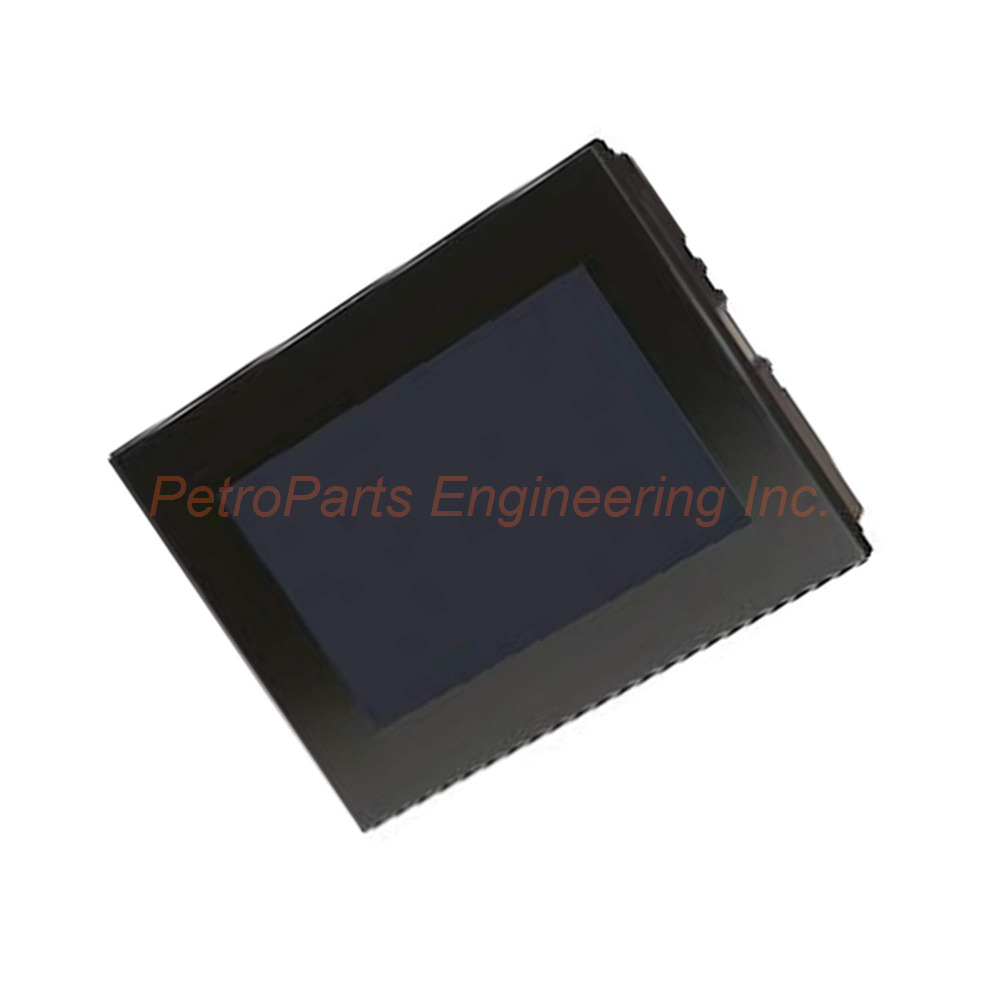

The B&R 6PPT50.0702-16B belongs to the Power Panel T50 series. This unit integrates a display and a powerful controller. The B&R 6PPT50.0702-16B has a 7.0 inch projected capacitive touch screen. You get multi-touch support for modern operator interfaces. The glass front has a black frame for a sleek appearance. The B&R 6PPT50.0702-16B supports both landscape and portrait orientation. You can configure this via software for your application needs.
Technical Specifications
The B&R 6PPT50.0702-16B delivers reliable HMI and control performance. All parameters follow the official datasheet.
Processor & Memory
Processor type: ARM Cortex-A9 dual core
Clock frequency: 800 MHz
L1 cache: 64 kB
L2 cache: 512 kB
DRAM: 1 GB with 64-bit connection
Flash memory: 512 MB onboard
Operating system: PPT50 system
Display Specifications
Display type: TFT color
Diagonal size: 7.0 inches
Colors: 16.7 million (RGB, 8 bits per channel)
Resolution: WVGA at 800 x 480 pixels
Contrast ratio (Rev ≥ I0): Typ. 550:1
Contrast ratio (Rev < I0): Typ. 600:1
Viewing angles horizontal: Direction L/R = Typ. 70°
Backlight type: LED
Backlight brightness: Typ. 500 cd/m²
Half-brightness time: 50,000 hours
Touch Screen
Touch technology: PCT (projected capacitive)
Type: Multi-touch support
Surface: Glass, chemically hardened to 6H
Screen rotation: Yes, software configurable
Interfaces
Ethernet: 2 ports with integrated 2-port switch
Ethernet variant: Shielded RJ45
Max transfer rate: 10/100/1000 Mbit/s
Max line length: 100 m between stations
USB 2.0: 2 ports (Type A)
USB current capacity: 0.5 A per port
Electrical Properties
Nominal voltage: 24 VDC
Voltage range: 24 VDC (-25% / +30%)
Typical power consumption: 7.4 W
Max power consumption: 8.8 W
Internal fuse: 3 A slow-blow
Reverse polarity protection: Yes
Electrical isolation: Ethernet isolated from other interfaces, power, and ground
Environmental & Certifications
CE: Yes
UKCA: Yes
UL: cULus E115267 (Industrial control equipment)
DNV: Temperature B (0 to 55°C), Humidity B (up to 100%), Vibration A (0.7 g), EMC B
CCS: Yes
LR: ENV1
KR: Yes
ABS: Yes
BV: EC31B
Operating temperature: -20 to 60°C
Storage temperature: -20 to 80°C
Degree of protection: Front IP65, Back IP20
Mechanical Properties
Front design: Black
Width: 197 mm
Height: 140 mm
Depth: 42.2 mm
Weight: 0.9 kg
Cooling: Passive
Buzzer: Yes
Power button: No
Reset button: No
Installation Guide
Follow these steps to install the B&R 6PPT50.0702-16B correctly.
Cut a panel opening according to the dimension drawing.
Insert the B&R 6PPT50.0702-16B from the front of the panel.
Secure the unit using the provided mounting brackets.
Connect 24 VDC power with reverse polarity protection.
Connect Ethernet cables to the two RJ45 ports for switching.
Attach USB devices to the Type A ports as needed.
Power on the unit and configure orientation in software.
Packing List
This package for the B&R 6PPT50.0702-16B includes the following items.
Frequently Asked Questions (FAQ)
1. Can I rotate the display on the B&R 6PPT50.0702-16B?
Yes, the B&R 6PPT50.0702-16B supports screen rotation. You can configure landscape or portrait format using software.
2. Does the 6PPT50.0702-16B support multi-touch?
Yes, the B&R 6PPT50.0702-16B has a projected capacitive touch screen. It supports multi-touch gestures for modern HMI applications.
3. What is the Ethernet configuration on this B&R panel?
The B&R 6PPT50.0702-16B has two Gigabit Ethernet ports. These form an integrated switch for daisy-chaining multiple devices.
4. What is the front protection rating of the B&R 6PPT50.0702-16B?
The front of the B&R 6PPT50.0702-16B has IP65 protection. This makes it resistant to dust and water jets from any direction.
5. What software does the B&R 6PPT50.0702-16B support?
The B&R 6PPT50.0702-16B supports mapp View. It also includes an integrated service page, VNC client, and embedded web browser.
