Product Overview

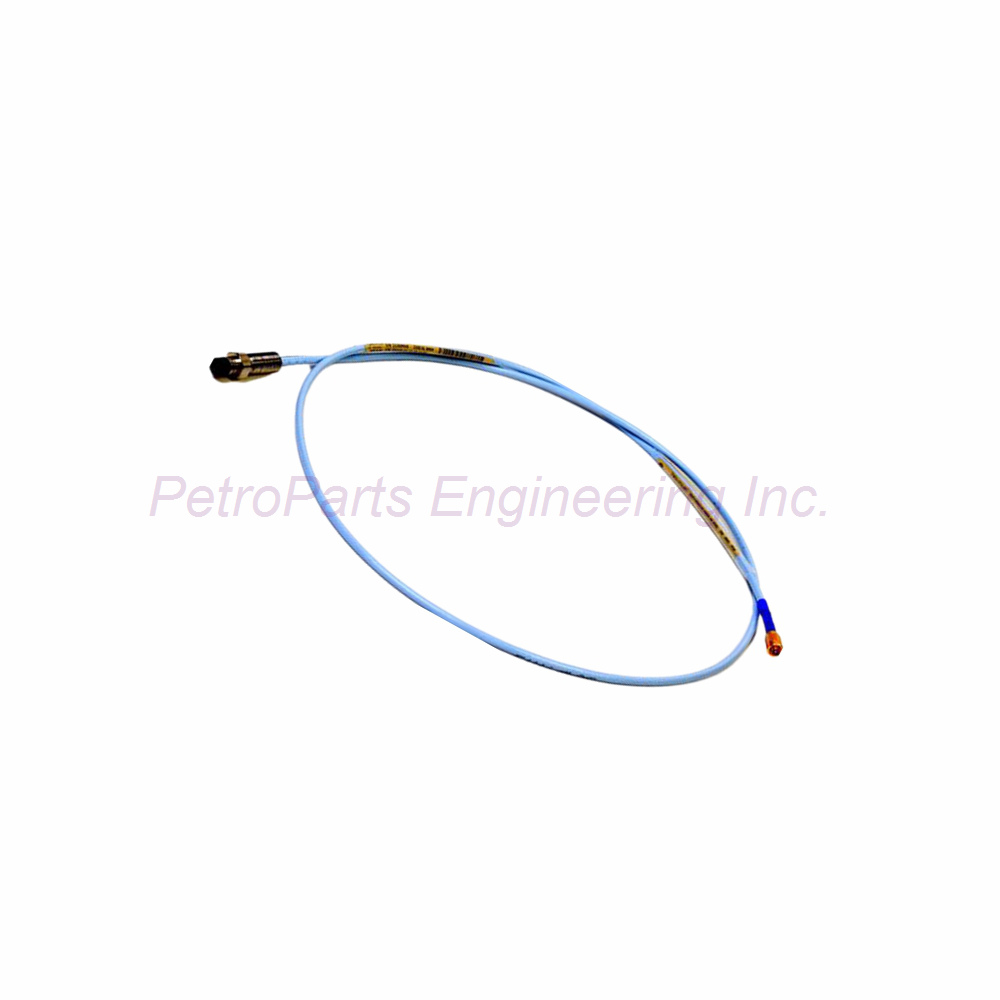

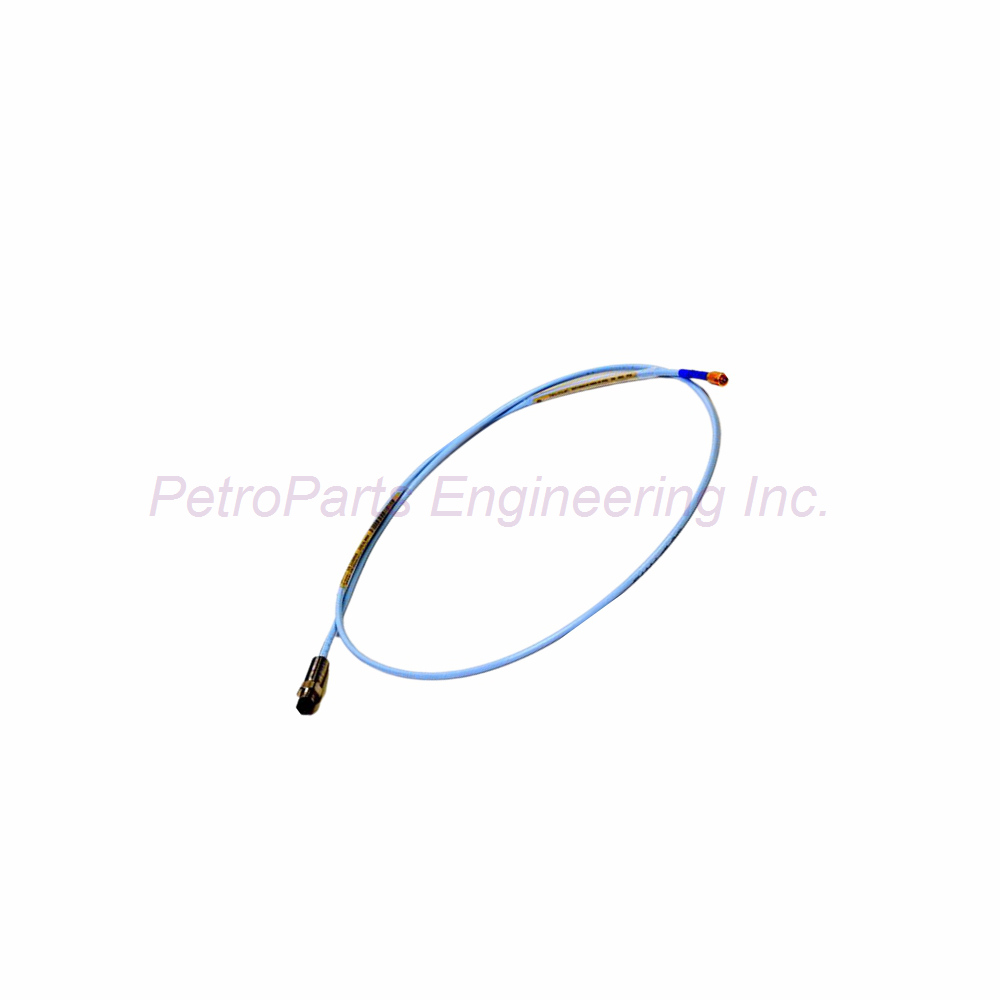

The 330106-05-30-05-02-00 is a 3300 XL 8 mm reverse mount probe from Bently Nevada. This device is made in the U.S.A. It uses M10 x 1 threads for secure installation. The probe measures shaft vibration and position in rotating machinery. The reverse mount design suits tight installation spaces.

Configuration Options

The 330106-05-30-05-02-00 has a total length option of 05 (0.5 meter / 1.6 feet). The connector option is 02 (Miniature ClickLoc coaxial connector). The agency approval option is 00 (not required). The probe uses Polyphenylene sulfide (PPS) tip material. The probe case uses AISI 303 or 304 stainless steel (SST). The 330106-05-30-05-02-00 is designed for standard industrial applications.

Electrical Specifications

The 330106-05-30-05-02-00 nominal probe DC resistance is measured from center conductor to outer conductor. The probe length is 0.5 meter. The RPROBE is 7.45 ± 0.50 Ω. This low resistance ensures accurate signal transmission. The probe cable is 75Ω triaxial type. The cable uses fluoroethylene propylene (FEP) insulation for standard temperature.

Probe Thread and Engagement

The 330106-05-30-05-02-00 probe case thread is M10 x 1. This metric thread suits many industrial mounting applications. The maximum length of thread engagement is 15 mm. This allows secure mounting without bottoming out. The probe weight is 323 g per meter (11.4 oz per meter). The 330106-05-30-05-02-00 0.5m length weighs approximately 162 g.

Probe Materials

The 330106-05-30-05-02-00 probe tip uses Polyphenylene sulfide (PPS). This material offers excellent chemical resistance. The probe case uses AISI 303 or 304 stainless steel (SST). The connector material is gold-plated brass or gold-plated beryllium copper. The gold plating ensures reliable electrical contact. The 330106-05-30-05-02-00 connector is the miniature ClickLoc type.

Cable Specifications

The 330106-05-30-05-02-00 uses standard 75Ω triaxial cable. The cable has fluoroethylene propylene (FEP) insulation. The total probe length is 0.5 meter. Options for extended temperature range cable use perfluoroalkoxy (PFA) insulation. Flexible armor is optional with AISI 302 or 304 SST and FEP outer jacket. The 330106-05-30-05-02-00 has no armor in this configuration.

Tensile Strength Ratings

The 330106-05-30-05-02-00 maximum rated tensile strength is 330 N (75 lbf). This applies between the probe case and probe lead. The tensile strength at the probe lead to extension cable connectors is 270 N (60 lbf). Do not exceed these ratings during installation. Excessive pulling may damage the internal connections.

Temperature Ranges

The 330106-05-30-05-02-00 operating and storage temperature for standard probe is -52°C to +177°C. This equals -62°F to +350°F. Exposing the probe to temperatures below -34°C (-30°F) may cause premature pressure seal failure. The probe sealing material consists of a Viton O-ring. The 330106-05-30-05-02-00 is not pressure tested prior to shipment.

Humidity Performance

The 330106-05-30-05-02-00 shows less than 3% change in Average Scale Factor (ASF). Testing occurs in 93% humidity according to IEC standard 68-2-3. The test duration is up to 56 days. This ensures reliable operation in humid environments. The 330106-05-30-05-02-00 maintains accuracy in challenging conditions.

Reverse Mount Design

The 330106-05-30-05-02-00 is a reverse mount probe. This design allows installation from the back of the mounting surface. Reverse mounting suits machines with limited front access. The M10 x 1 threads provide secure attachment. The 330106-05-30-05-02-00 fits into tight spaces where standard probes cannot reach.

Installation Guidelines

Mount the 330106-05-30-05-02-00 using the M10 x 1 threads. Ensure the thread engagement does not exceed 15 mm. Hand-tighten the probe into the mounting hole. Do not use excessive force or tools on the probe body. Connect the miniature ClickLoc coaxial connector securely. Hand-tighten the ClickLoc connector until it locks. Do not pull on the cable during installation. Keep the probe cable away from sharp edges. Protect the cable from crushing or excessive bending. Verify the probe tip is clean before installation. Set the proper gap according to your proximitor specifications.

Package List

• 1 x Bently Nevada 330106-05-30-05-02-00 3300 XL Reverse Mount Probe

• 1 x Miniature ClickLoc coaxial connector (pre-installed)

• 1 x Installation instruction sheet

Frequently Asked Questions (FAQ)

Q1: What is a reverse mount probe on the 330106-05-30-05-02-00?
The probe mounts from the back of the threaded hole. The 330106-05-30-05-02-00 reverse design suits tight installation spaces.

Q2: Can I use this probe with an extension cable?
Yes, the miniature ClickLoc connector mates with standard Bently extension cables. The 330106-05-30-05-02-00 connects to 3300 XL extension cables.

Q3: What happens if I exceed 15mm thread engagement?
The probe may bottom out and damage the tip. The 330106-05-30-05-02-00 maximum engagement is 15 mm.

Q4: Is this probe suitable for high humidity environments?
Yes, the probe passes 93% humidity testing for 56 days. The 330106-05-30-05-02-00 maintains less than 3% scale factor change.

Q5: Can I use this probe below -34°C continuously?
Prolonged exposure below -34°C may cause pressure seal failure. The 330106-05-30-05-02-00 should avoid these extreme low temperatures.
