Product Overview

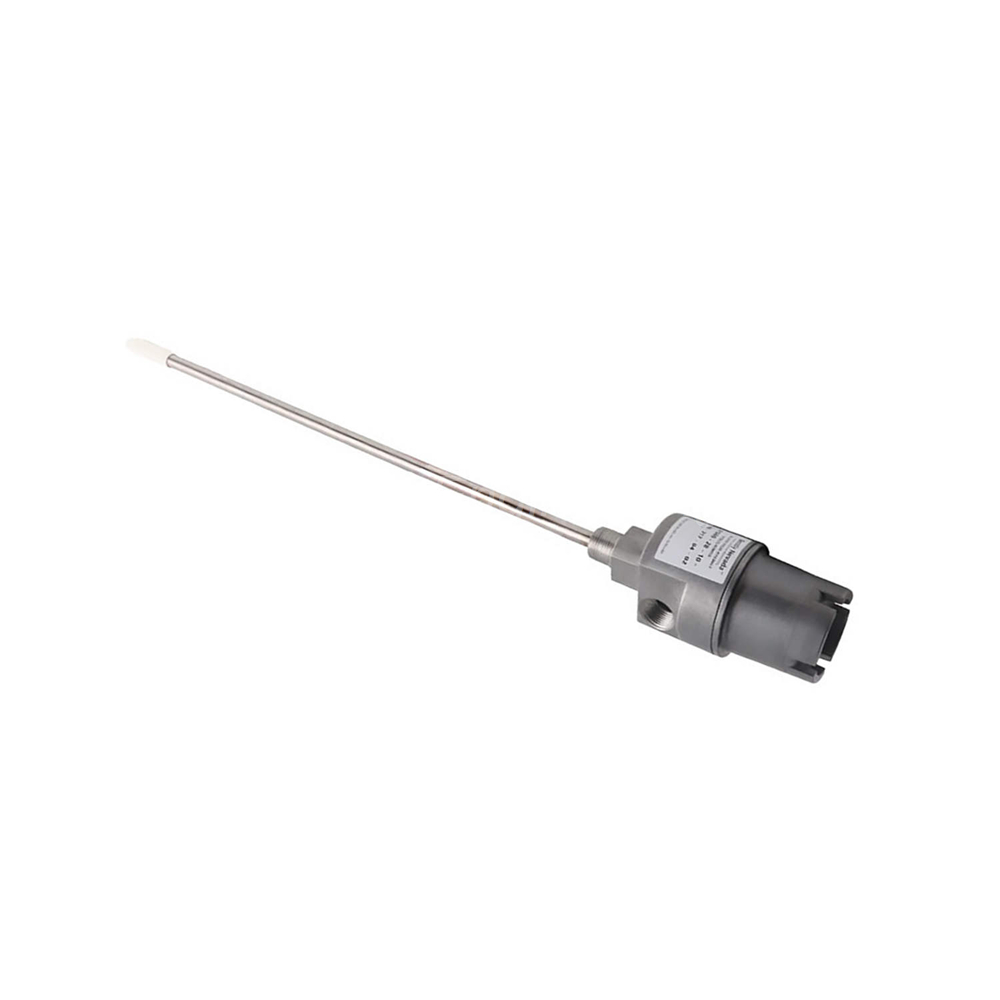

The Bently Nevada 24701-16-05-15-120-03-02 is a complete proximity probe housing assembly. This unit protects a 3300 XL 8mm probe inside a rugged stainless steel enclosure. It is ideal for measuring shaft vibration and position in harsh industrial environments. The assembly includes a dome cover, probe sleeve, and optional conduit fittings. You get reliable performance for turbines, compressors, and large rotating machinery.

Technical Specifications

Probe and Cable Configuration

• Probe Option: 3300 XL 8mm probe with connector type.

• Probe Cable Length: 0.5 metres (20 inches).

• Standoff Adapter: Minimum 1.5 inches (38 mm) length.

• Probe Penetration (C Dimension): 12 inches (305 mm).

• Maximum (C) + (D) Visible Probe: Not visible (P/N and S/N hidden).

• Maximum (C) + (D) Total Dimension: 13.5 inches (34.3 mm).

Fittings and Mounting

• Fittings Option (03): One 3/4-14 NPT plug included.

• Fittings Option (03): One 3/4-14 to 1/2-14 NPT reducer included.

• Fittings Option (03): One cable seal grip with three grommets.

• Grommet Cable Sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches.

• Mounting Thread Option: 3/4-14 NPT required with standoff adapter.

Materials and Construction

• Body Material: 303 stainless steel.

• Sleeve Material: 304 stainless steel.

• Dome Cover: Screws directly into the housing body.

• Threaded Ports: For standard conduit connections.

• Included Components: O-rings, thread seal, reverse mount proximity probe.

• Optional Items: Standoff adapter and conduit fittings.

Physical Characteristics

• Typical Weight: 1.8 kg (4.1 lb) without fittings.

• Probe Cable Length: 0.5 metres (20 inches) total.

• Probe Type: Reverse mount configuration.

• Housing Design: Screw-type dome cover for easy access.

Installation Guide

Follow these steps to install the Bently Nevada 24701-16-05-15-120-03-02 correctly. First, select the correct grommet for your cable size from the three options provided. Second, mount the housing using the 3/4-14 NPT thread option. Third, attach the standoff adapter if you need extra clearance from the target. Fourth, run the probe cable through the cable seal grip and tighten securely. Fifth, screw the dome cover onto the housing body after verifying the probe gap. Finally, connect the conduit using the threaded ports provided on the housing.

Package Contents

• 1 x Dome cover that screws into the housing body.

• 1 x Housing body with threaded conduit ports (303 stainless steel).

• 1 x Probe sleeve (304 stainless steel) with optional length.

• 1 x Reverse mount proximity probe (3300 XL 8mm probe type).

• 1 x Set of O-rings for sealing.

• 1 x Thread seal compound.

• 1 x 3/4-14 NPT plug.

• 1 x 3/4-14 to 1/2-14 NPT reducer.

• 1 x Cable seal grip with three interchangeable grommets.

• Optional: Standoff adapter (if selected in model configuration).

Frequently Asked Questions (FAQ)

Q1: What is the maximum penetration depth for the Bently Nevada 24701-16-05-15-120-03-02?
A: This assembly provides a probe penetration of 12 inches (C dimension). The total visible (C)+(D) dimension reaches 13.5 inches maximum. The probe serial number remains not visible at full extension.

Q2: Can I use this housing with different cable sizes?
A: Yes. The cable seal grip includes three grommets for different diameters. You can choose 1/8 to 3/16 inches, 1/4 to 5/16 inches, or 5/16 to 3/8 inches. Select the correct grommet during installation.

Q3: What materials resist corrosion in this housing assembly?
A: The body uses 303 stainless steel for strength. The sleeve uses 304 stainless steel for additional corrosion resistance. This combination works well in humid or mildly corrosive environments.

Q4: Does the Bently Nevada 24701-16-05-15-120-03-02 include a standoff adapter?
A: The standoff adapter is optional. This specific suffix code (-15) means you ordered the minimum 1.5 inch length. If you see -00 instead, then no standoff adapter is included.

Q5: How do I access the probe after installation?
A: Simply unscrew the dome cover from the housing body. This gives you direct access to the reverse mount probe. You can then adjust the gap or replace the probe without removing the entire housing.
