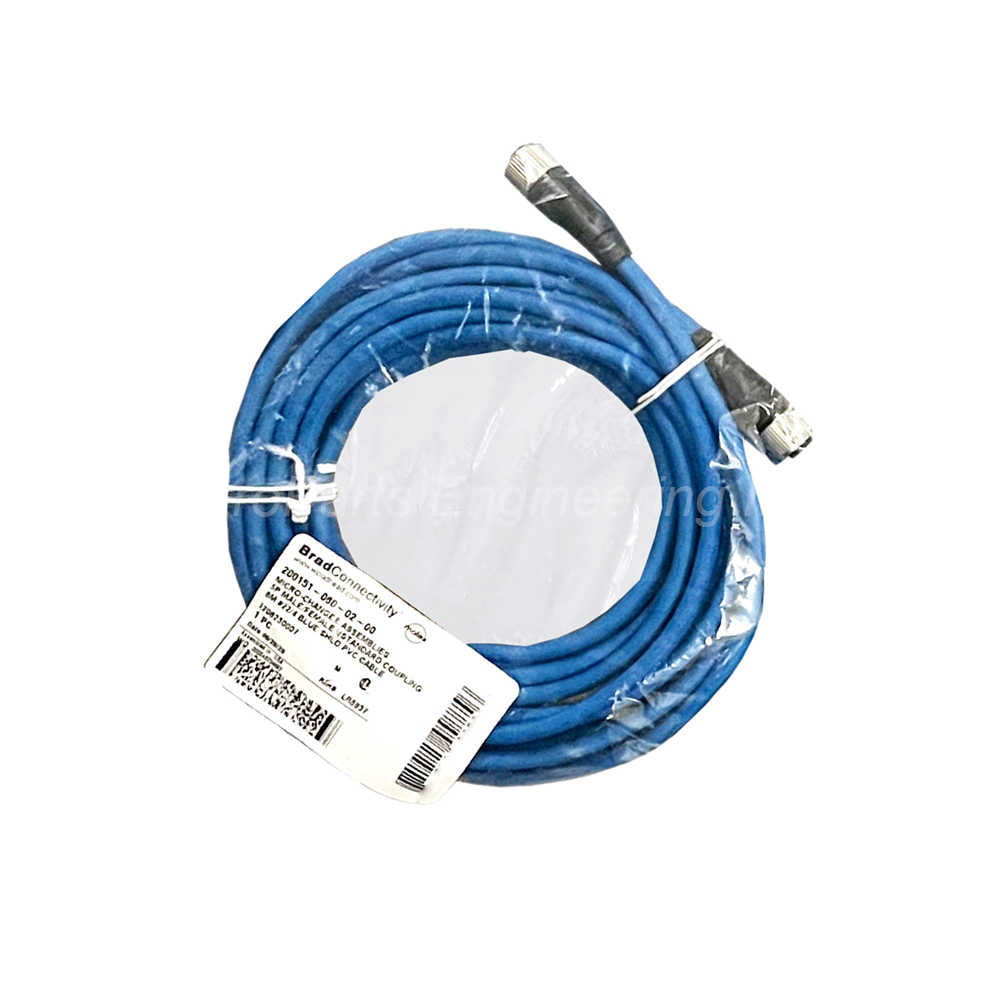

Bently Nevada 200151-60-02-02 Accelerometer Standard Cable

The Bently Nevada 200151-60-02-02 is an accelerometer interface standard cable. This cable has connectors on both ends for easy installation. You can use it to connect accelerometers to monitoring systems. The blue jacket provides good visibility without metal armor. The nylon coupling nuts offer a lightweight and corrosion-resistant connection.

Technical Specifications of the 200151-60-02-02

The Bently Nevada 200151-60-02-02 has a cable length of 6.0 meters. The armor option is blue cable without armor for flexibility. The coupling nut option is nylon coupling nut material. This provides excellent corrosion resistance in harsh environments. The minimum bend radius is 63.5 mm (2.5 inches).

Cable Construction

The Bently Nevada 200151-60-02-02 uses 4-conductor 22 AWG wire. A braided shield with drain wire provides 85% coverage minimum. The outer jacket is made of PVC for chemical resistance. This construction ensures reliable signal transmission for monitoring systems.

Connector Sealing

The connectors provide an IP67 seal to transducers and mating hardware. The Bently Nevada 200151-60-02-02 has connectors molded directly to the cable. DC4 electrical insulating compound is added inside the connectors. This provides additional moisture protection during thermal shock. The seal rating ensures reliable operation in wet environments.

Operating Temperature Range

The standard operating temperature range is -20°C to +100°C. The Bently Nevada 200151-60-02-02 may be used at lower temperatures. However, the installation must prevent cable flexing or bending. Flexing below -20°C may damage the cable. The connector temperature range is -55°C to +121°C for mating hardware.

Nylon Coupling Nuts

The nylon coupling nuts on the Bently Nevada 200151-60-02-02 offer several benefits. Nylon will not corrode in wet or chemical environments. The material is lightweight and easy to handle. Nylon provides good grip without galling or seizing. This makes installation and removal easier over time.

Cure Time

The curing time for the connector compound is 24 hours. The Bently Nevada 200151-60-02-02 requires this full cure period. Allow 24 hours before exposing the cable to extreme conditions. This ensures proper sealing and moisture protection.

Installation Guidelines for the 200151-60-02-02

Install the Bently Nevada 200151-60-02-02 with a minimum bend radius of 63.5 mm. Avoid bending the cable tighter than 2.5 inches radius. Hand-tighten the nylon coupling nuts for a secure connection. Do not overtighten as nylon threads may strip. Do not flex the cable at temperatures below -20°C. Allow 24 hours cure time before thermal shock exposure.

Package Contents

• One (1) Bently Nevada 200151-60-02-02 accelerometer standard cable (6.0m)

• Connectors on both ends with nylon coupling nuts

• Installation instructions

Common FAQs for the 200151-60-02-02

1. What is the length of the 200151-60-02-02 cable?
The Bently Nevada 200151-60-02-02 has a length of 6.0 meters. Other lengths are available under different part number suffixes.

2. Does this cable have armor protection?
No, the Bently Nevada 200151-60-02-02 has a blue cable without armor. The armor option -02 indicates no metal braid protection.

3. What material are the coupling nuts made of?
The coupling nuts on the Bently Nevada 200151-60-02-02 are made of nylon. This provides excellent corrosion resistance and lightweight handling.

4. What is the temperature rating of this cable?
The Bently Nevada 200151-60-02-02 operates from -20°C to +100°C. The connectors withstand -55°C to +121°C for mating hardware.

5. Is this cable suitable for outdoor use?
Yes, the Bently Nevada 200151-60-02-02 has an IP67 connector seal. The PVC jacket provides good environmental protection.

Why Choose the Bently Nevada 200151-60-02-02?

This accelerometer standard cable provides reliable signal transmission for monitoring systems. The 6.0 meter length offers flexible routing from sensors to monitors. Nylon coupling nuts resist corrosion and simplify installation. IP67 sealed connectors protect against moisture ingress. Order the Bently Nevada 200151-60-02-02 today for your accelerometer connectivity needs.
