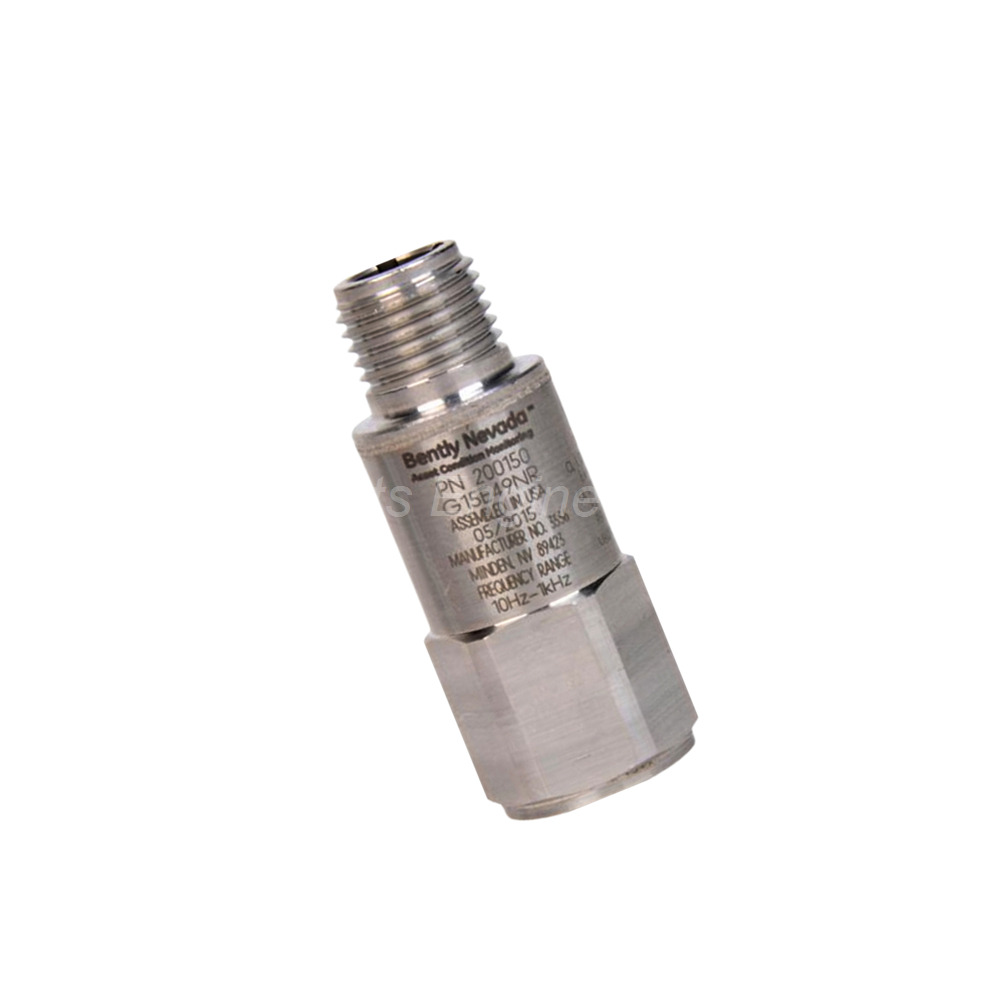

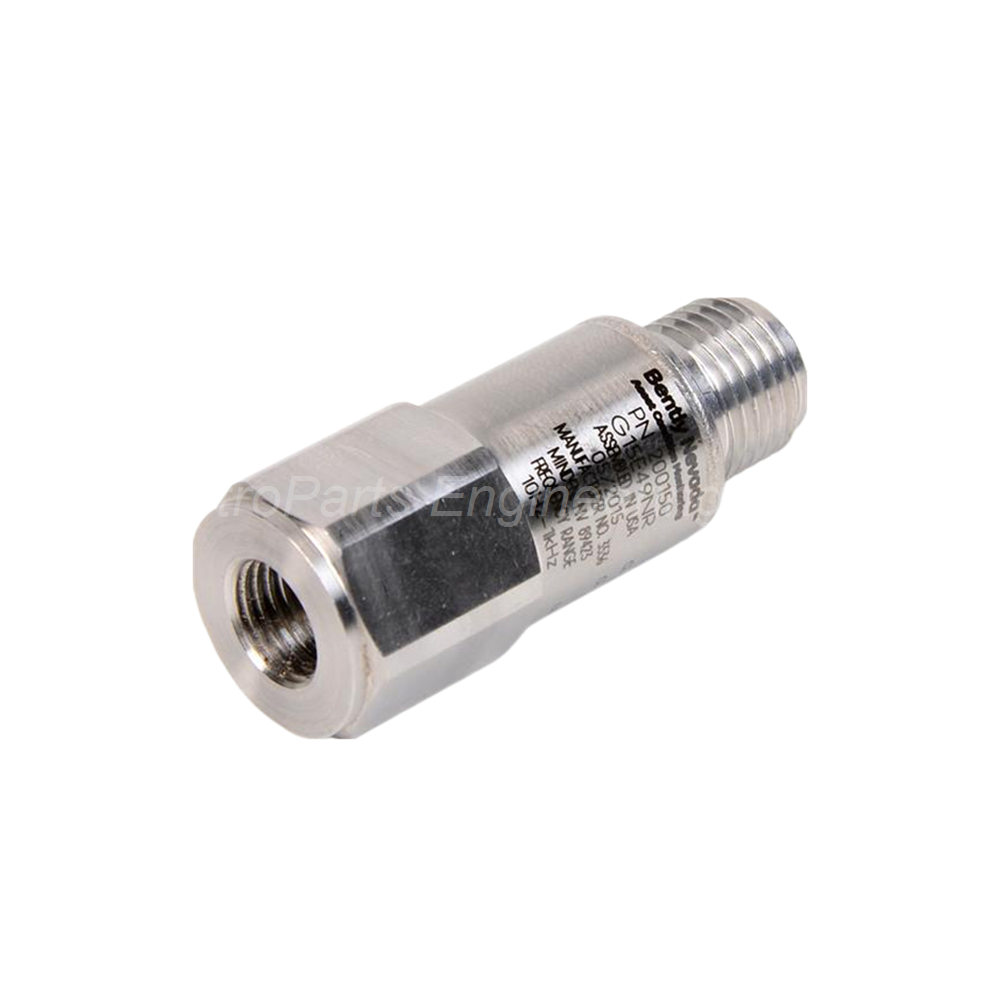

Bently Nevada 200150-14-05 General Purpose Accelerometer

The Bently Nevada 200150-14-05 is a general purpose accelerometer for machinery monitoring. This device works with Trendmaster 2000 and Trendmaster Pro systems. You can use it for general application vibration measurements. It is made in the U.S.A. The accelerometer provides reliable data for predictive maintenance programs.

Technical Specifications of the 200150-14-05

The Bently Nevada 200150-14-05 has a mounting stud option of 3/8-24 to 3/8-24 UNF. The hex stud is 3/4 inch in length. The approvals include CSA, ATEX, and IECEx (code -05). This allows installation in hazardous locations worldwide.

Electrical Specifications

The sensitivity at 80 Hz is 10.2 mV/(m/s²) or 100 mV/g. Tolerance is ±12% for accurate measurements. The measurement range is ±245 m/s² (±25 g). The frequency range is 10 to 1000 Hz (600 to 60,000 cpm). This is referenced to 80 Hz with ±10% tolerance.

The mounted resonant frequency exceeds 20 kHz (>1200 kcpm). Amplitude linearity is ±2% from 1 to 10g peak. Transverse sensitivity is ≤7% for minimal cross-axis error. Settling time is ≤300 ms within 5% of bias.

Power and Output

Excitation voltage is 4.7 to 5.5 V DC for operation. The Bently Nevada 200150-14-05 quiescent current is less than 800 µA. Output bias voltage is +2.5 ± 0.23 V DC. Polarity is SIG+ positive with respect to SIG-. This matches standard accelerometer interfaces.

Environmental Specifications

The axial shock limit is 49,050 m/s² peak (5,000 g peak). The temperature range is -40°C to +105°C. Hermetic sealing is 5x10⁻⁸ atm•cc/s maximum. The Bently Nevada 200150-14-05 handles 100% relative humidity with condensation. The unit is not submersible.

Physical Specifications

The hex size is 17.5 mm (11/16 inch). The height is 45.7 mm (1.8 inches). The Bently Nevada 200150-14-05 weight is 58 g (2.0 oz) typical. The mounting thread is 3/8-24 female. Mounting torque is 2.7 to 6.8 N•m (2 to 5 ft•lbf).

Construction

The sensing element is ceramic for durability. The sensing geometry is shear type for low base strain sensitivity. Housing and connector material is 316L stainless steel. The Bently Nevada 200150-14-05 is built for harsh environments.

Installation Guidelines for the 200150-14-05

Mount the Bently Nevada 200150-14-05 using the 3/8-24 female thread. Apply torque between 2.7 and 6.8 N•m (2 to 5 ft•lbf). Use the included 3/8-24 to 3/8-24 UNF stud for mounting. Clean the mounting surface before installation. Ensure proper cable connection for signal integrity.

Package Contents

• One (1) Bently Nevada 200150-14-05 general purpose accelerometer

• 3/8-24 to 3/8-24 UNF hex stud (3/4 inch)

• Installation and configuration manual

Common FAQs for the 200150-14-05

1. What is the sensitivity of the 200150-14-05 accelerometer?
The Bently Nevada 200150-14-05 has a sensitivity of 100 mV/g. This is measured at 80 Hz with ±12% tolerance.

2. What mounting stud does this accelerometer include?
The Bently Nevada 200150-14-05 includes a 3/8-24 to 3/8-24 UNF stud. The hex stud is 3/4 inch in length.

3. What approvals does this accelerometer hold?
The Bently Nevada 200150-14-05 has multiple approvals including CSA, ATEX, and IECEx. This allows hazardous area installation.

4. What is the operating temperature range?
The Bently Nevada 200150-14-05 operates from -40°C to +105°C. The housing is 316L stainless steel for corrosion resistance.

5. What is the frequency range of this sensor?
The Bently Nevada 200150-14-05 frequency range is 10 to 1000 Hz (600 to 60,000 cpm). This covers most machinery vibration frequencies.

Why Choose the Bently Nevada 200150-14-05?

This general purpose accelerometer provides reliable vibration data for Trendmaster systems. The 100 mV/g sensitivity suits most machinery monitoring applications. The 3/8-24 to 3/8-24 UNF stud offers a standard mounting interface. Multiple hazardous area approvals enable global installation. Order the Bently Nevada 200150-14-05 today for your general purpose accelerometer needs.
