Technical Specifications and Features

Electrical and Power Ratings

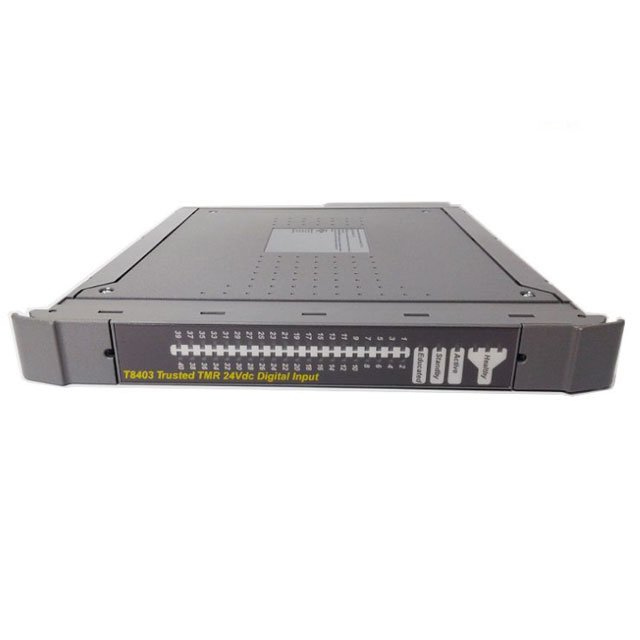

The T8403 operates within a standard industrial voltage window of 20 to 32 Vdc, with a nominal power consumption of 20 W. This module manages digital signals across a wide input/output rating of 0 to 40 Vdc, providing flexibility for various field device thresholds. To maintain high-performance communications links, the internal circuitry filters out electrical noise, ensuring that the system identifies true logic transitions even in high-interference environments.

Triple Modular Redundancy (TMR) Logic

The core strength of the T8403 lies in its 2-out-of-3 (2oo3) voting logic across all 40 channels. Each input signal is processed by three independent measurement “slices” that compare data to eliminate errors from hardware faults. This high anti-interference capability makes the T8403 an essential choice for safety-instrumented systems (SIS) where downtime is not an option. The module also performs continuous self-diagnostics to detect stuck-at faults or internal component degradation before they affect the process.

Field Interface and Line Monitoring

When paired with an appropriate Field Termination Assembly (FTA), the T8403 supports comprehensive line monitoring features. It can detect open-circuit and short-circuit conditions in the field wiring, providing real-time alerts to the control room. The module supports SmartSlot technology, which allows for the hot replacement of a faulty unit without interrupting the logic of the remaining active modules. This ensures the industrial automation system remains online during essential maintenance or hardware updates.

Environmental and Safety Compliance

Engineered for the most rigorous industrial settings, the T8403 is fully compliant with Ord/HazLoc, ATEX, and IECEx certifications. These ratings prove the module can operate safely in explosive atmospheres and hazardous locations typical of the petrochemical and power industries. Its robust mechanical frame protects the delicate internal electronics from vibration and thermal stress, meeting the highest Google E-E-A-T standards for industrial hardware reliability.

Installation and Maintenance Guide

Standard Installation Steps

1. Verify the chassis backplane power is stable and within the 20-32 Vdc operating range.

2. Align the T8403 module with the assigned I/O slot in the Trusted Controller Chassis.

3. Firmly push the module into the slot until the connectors seat and the front panel levers lock.

4. Configure the 40 channels within the system software to set appropriate debounce and filter times.

5. Monitor the front panel status LEDs to confirm that all three TMR slices are healthy and synchronized.

Packing List

• 1 x Allen-Bradley ICS Triplex T8403 Digital Input Module

• 1 x Protective Anti-Static Shipping Sleeve

• Logistics Partners: Fedex, UPS, DHL (Express delivery within 3-5 business days)

Frequently Asked Questions (FAQ)

What happens if one of the three internal slices in the T8403 fails?

Because the T8403 uses 2-out-of-3 voting, the module will continue to operate correctly using the remaining two healthy slices.

Can the T8403 detect a broken wire between the module and the field switch?

Yes, when used with a compatible FTA and line-monitoring resistors, the T8403 identifies open-circuit faults in the field loop.

Is it necessary to power down the entire rack to replace a T8403 module?

No, the T8403 supports hot-swapping through the SmartSlot feature, allowing for replacement while the rest of the system stays active.

Does the T8403 support digital inputs higher than 24 Vdc?

The module is rated to handle input signals up to 40 Vdc, providing a wide buffer for standard 24 Vdc industrial applications.
