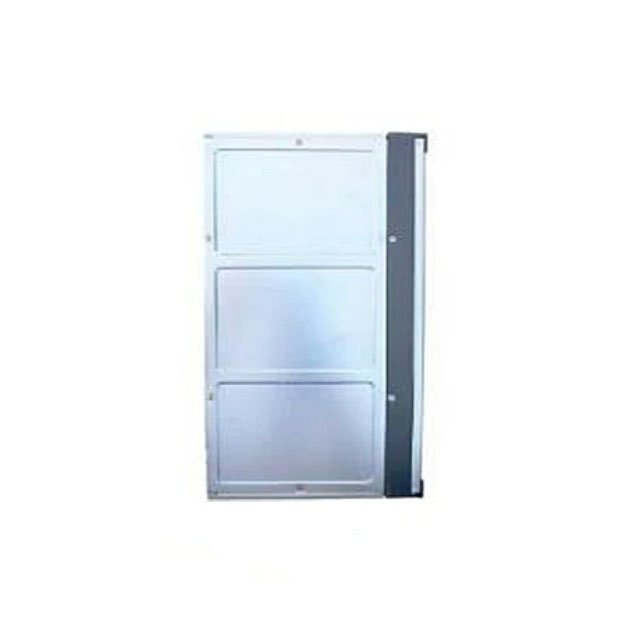

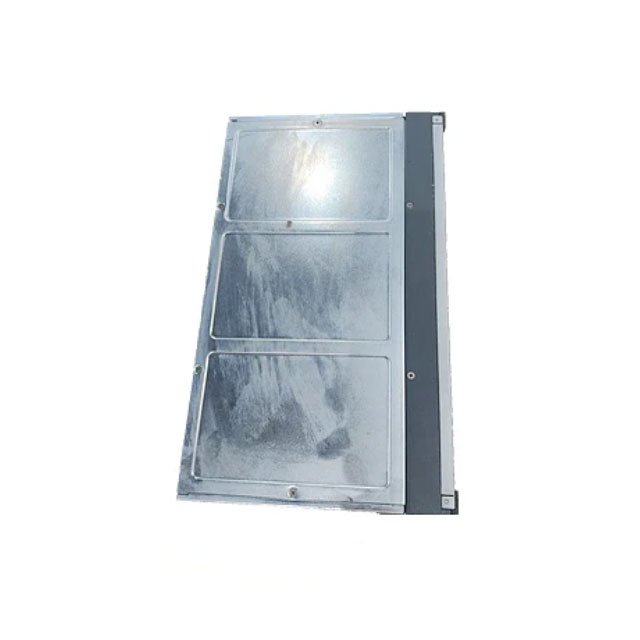

Overview of the ABB DAO 01 Analog Output Module

The ABB DAO 01 (Article Number: 0369629M-REF) represents a critical component in the ABB legacy automation ecosystem. Specifically designed as an analog output interface, this I/O module bridges the gap between the digital processing environment of a PLC and the analog reality of field-level actuators. Whether you are managing variable speed drives, modulating control valves, or driving analog gauges, the DAO 01 provides the consistent, linear signal required for stable process control.

This specific version, designated “as of V3,” incorporates hardware refinements and firmware optimizations that enhance signal stability and reduce thermal drift compared to earlier iterations. Manufactured in Germany, the DAO 01 reflects the high standards of European industrial engineering, ensuring longevity even in demanding 24/7 operational environments.

Key Functional Capabilities

The primary role of the DAO 01 is to convert digital values from the CPU into proportional analog signals. This process requires high-resolution digital-to-analog conversion (DAC) to ensure that the field device receives a smooth and accurate signal.

• Signal Conversion: The module typically handles standard industrial signal ranges, such as 0 to 20 mA, 4 to 20 mA, or 0 to 10 VDC. These signals allow for precise control of proportional actuators.
• Revision V3 Enhancements: The “V3” designation indicates an improved version of the DAO 01. This revision often includes better electrical isolation and a more robust output driver stage, protecting the module against transient spikes from the field side.
• Industrial Compatibility: ABB designed the DAO 01 as a direct-fit I/O module for their legacy PLC racks. It integrates seamlessly into the system’s backplane, allowing the central processor to address its output channels with minimal latency.

Technical Specifications and Identification

ABB provides the DAO 01 with specific identifiers to ensure correct procurement and maintenance.

• Product ID: 0369629M-REF
• Type Designation: DAO 01 (also referenced as DAO01)
• Country of Origin: Germany (DE)
• Customs Tariff Number: 85389091
• Product Type: I/O Module
• Minimum Order Quantity: 1 Piece
• Made to Order: No (Standard inventory item)

While the exact channel count may vary by specific sub-configuration, these modules typically provide four to eight analog output channels. Each channel operates independently, preventing a single point of failure from affecting the entire process.

Typical Application Scenarios

Engineers utilize the DAO 01 across several critical industrial sectors. Its ability to provide smooth, linear output makes it a preferred choice for:

1. Process Control: Driving modulating control valves in water treatment or chemical processing plants where precise flow rates are mandatory.
2. Motor Speed Control: Providing the setpoint signal for variable frequency drives (VFDs) in fan and pump applications.
3. Power Generation: Controlling fuel intake valves or turbine governor systems where signal reliability is a safety-critical requirement.
4. HVAC Systems: Modulating dampers and heating coils in large-scale commercial climate control systems.

Installation and Maintenance Considerations

The DAO 01 features a compact form factor that fits into standard ABB I/O racks. Maintenance personnel can easily identify the module by its clear front-panel labeling and the “V3” version mark. Because this module is not “made to order,” it remains a highly accessible spare part for facilities aiming to maintain their existing automation infrastructure without undergoing a full system migration.

ABB engineers recommend regular calibration checks for analog modules like the DAO 01. Over years of operation, analog components may experience slight drift. Recalibrating the output range ensures that a 4 mA digital command results in exactly 4 mA at the field terminal, preserving the overall accuracy of the control loop.

Why Choose the ABB DAO 01?

Selecting the genuine ABB DAO 01 (0369629M-REF) guarantees compatibility with your existing ABB control system. Unlike third-party alternatives, the DAO 01 adheres to the exact timing and electrical specifications required by the ABB backplane. This adherence eliminates communication errors and ensures that the module’s diagnostic features report correctly to the central PLC.

By choosing the V3 revision, you invest in a more stable and resilient hardware platform. The German engineering behind the DAO 01 ensures that it can withstand the electrical noise and vibration common in industrial cabinets. For facilities looking to extend the lifecycle of their reliable ABB systems, the DAO 01 remains an indispensable I/O component.
