Introduction to the ABB 3BSE018133R1 CI855 Communication Interface

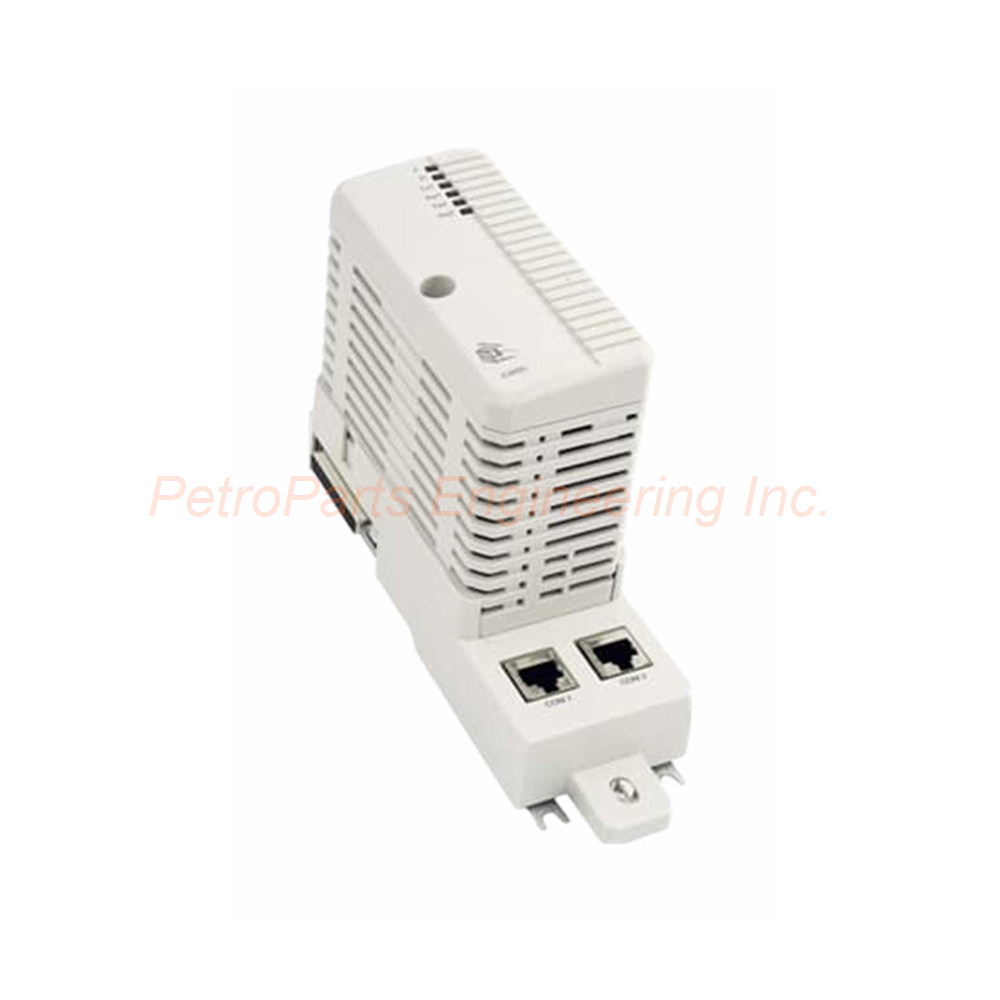

The ABB 3BSE018133R1 CI855 implements the MasterBus 300 (MB300) communication protocol. This protocol connects controllers and operator stations in Advant OCS installations. System 800xA controller AC 800M also supports MB300 communication. The CI855 interface realizes MB300 communication for AC 800M controllers. Specifically, the CI855 connects to the CEX-Bus through a baseplate. The baseplate named TP853 houses RJ45 connectors for two Ethernet ports. These ports provide network redundancy for reliable operation. Furthermore, the TP853 offers simple DIN-rail mounting for easy installation.

Key Benefits of the ABB CI855 Interface

The ABB CI855 interface offers a significant advantage for system integration. Specifically, it enables peer-to-peer communication between new and existing plant sections. New sections with System 800xA using AC 800M controllers connect seamlessly. Existing sections use MB300-based controllers like Advant Controller 410. Similarly, the CI855 works with Advant Controller 450 systems. It also supports MasterPiece 200/1 controllers without issues. As a result, you can upgrade plant sections gradually. This approach protects your investment in legacy equipment.

Technical Specifications of the ABB 3BSE018133R1 CI855

The ABB 3BSE018133R1 CI855 has article number 3BSE018106R1 for reference. Communication protocol is ABB's MasterBus 300 (MB300). The interface operates as a Master on the network. Transmission speed reaches 10 Mbit/s with 200 Datasets per second. Line redundancy is yes for network reliability. Module redundancy is not available on this model. Hot Swap is yes, allowing replacement during operation. Used together with HI Controller is yes for high integrity applications. Maximum units on CEX bus reaches 12 modules. Connector type is RJ-45 female with 8 pins. 24V consumption is typically 150 mA.

Communication Features of the CI855

The ABB CI855 includes several powerful communication features. For example, MB300 network redundancy keeps communication active during cable failures. Clock synchronization ensures all network nodes share accurate time. DataSet communication allows efficient data exchange between controllers. Peer-to-peer communication eliminates the need for a central gateway. Hot Swap functionality lets you replace the CI855 without powering down. Therefore, system uptime improves significantly. These features make the CI855 ideal for critical industrial networks.

Environmental and Certification Information

The ABB CI855 operates in a wide temperature range. Operating temperature spans 0 to +55°C (+32 to +131°F). Storage temperature ranges from -40 to +70°C (-40 to +158°F). Corrosion protection meets G3 compliance per ISA 71.04 standard. Protection class is IP20 according to EN60529 and IEC 529. CE-marking is yes for European markets. Marine certificates include BV, DNV-GL, and LR for shipboard use. RoHS compliance covers EU RoHS, UAE RoHS, and CN RoHS. WEEE compliance follows DIRECTIVE/2012/19/EU. Consequently, the CI855 suits harsh industrial environments.

Physical Dimensions of the ABB 3BSE018133R1 CI855

The ABB 3BSE018133R1 CI855 has a standard form factor for cabinet mounting. Width measures 59 mm (2.3 inches). Height reaches 185 mm (7.3 inches). Depth comes to 127.5 mm (5.0 inches). Weight including the baseplate is 700 g (1.5 lbs). These dimensions allow installation in standard industrial enclosures. The CI855 fits neatly alongside other CEX-Bus modules. Its weight makes handling and mounting straightforward for one technician.

Installation Guidelines for the ABB CI855

Install the ABB CI855 using the TP853 baseplate on DIN rail. First, mount the TP853 baseplate securely to the DIN rail. Then insert the CI855 module into the baseplate. Ensure the module clicks firmly into place. Connect the RJ45 Ethernet cables to both ports for redundancy. Provide 24V DC power with sufficient current capacity. Typical consumption is 150 mA at 24V. Maintain adequate spacing around the module for airflow. For peer-to-peer communication, configure the MB300 network addresses properly. Finally, verify communication status using diagnostic indicators.

Packaging List for the ABB 3BSE018133R1 CI855

- One ABB CI855 communication interface module - One ABB TP853 baseplate for CEX-Bus connection - One product identification and labeling sheet - One quick start installation guide

Frequently Asked Questions (FAQ)

1. What controllers work with the ABB CI855?

The ABB CI855 works with Advant Controller 410 and Advant Controller 450. It also works with MasterPiece 200/1 and AC 800M controllers via peer-to-peer communication.

2. Does the ABB CI855 support hot swap?

Yes, the ABB CI855 supports hot swap functionality. You can replace the module without powering down the system.

3. What is the transmission speed of the CI855?

The CI855 transmits at 10 Mbit/s. It processes up to 200 Datasets per second for efficient data exchange.

4. Is the ABB CI855 suitable for marine environments?

Yes, the ABB CI855 holds marine certificates from BV, DNV-GL, and LR. It also meets G3 corrosion protection standards.

5. What baseplate does the CI855 require?

The CI855 requires the TP853 baseplate for CEX-Bus connection. This baseplate provides two RJ45 ports for network redundancy.
