Module Architecture

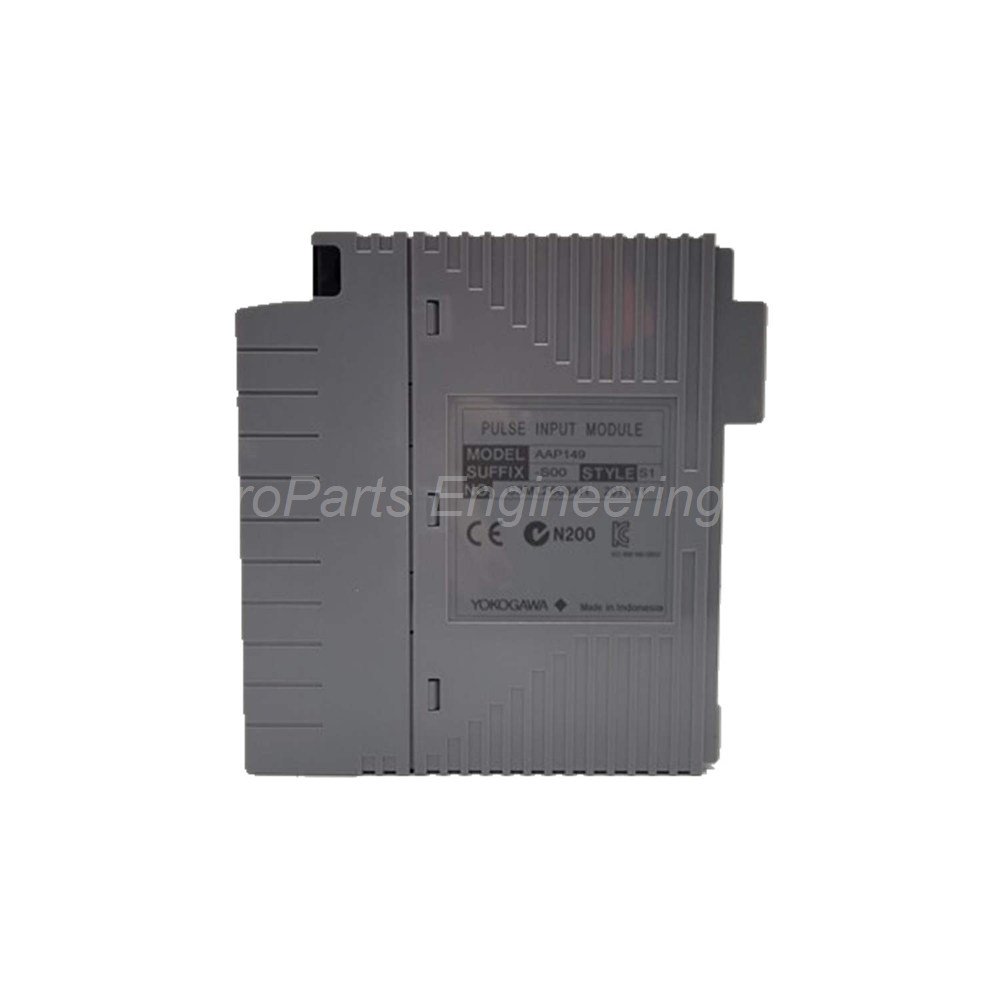

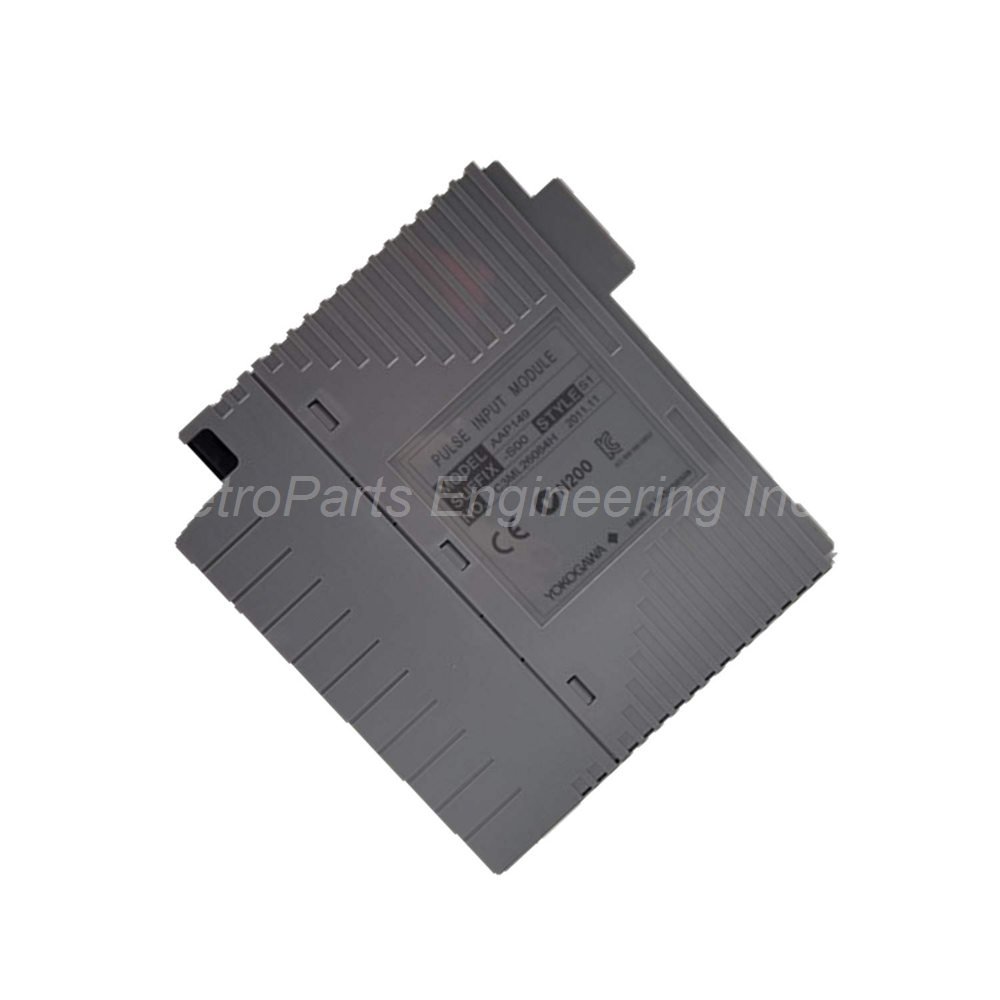

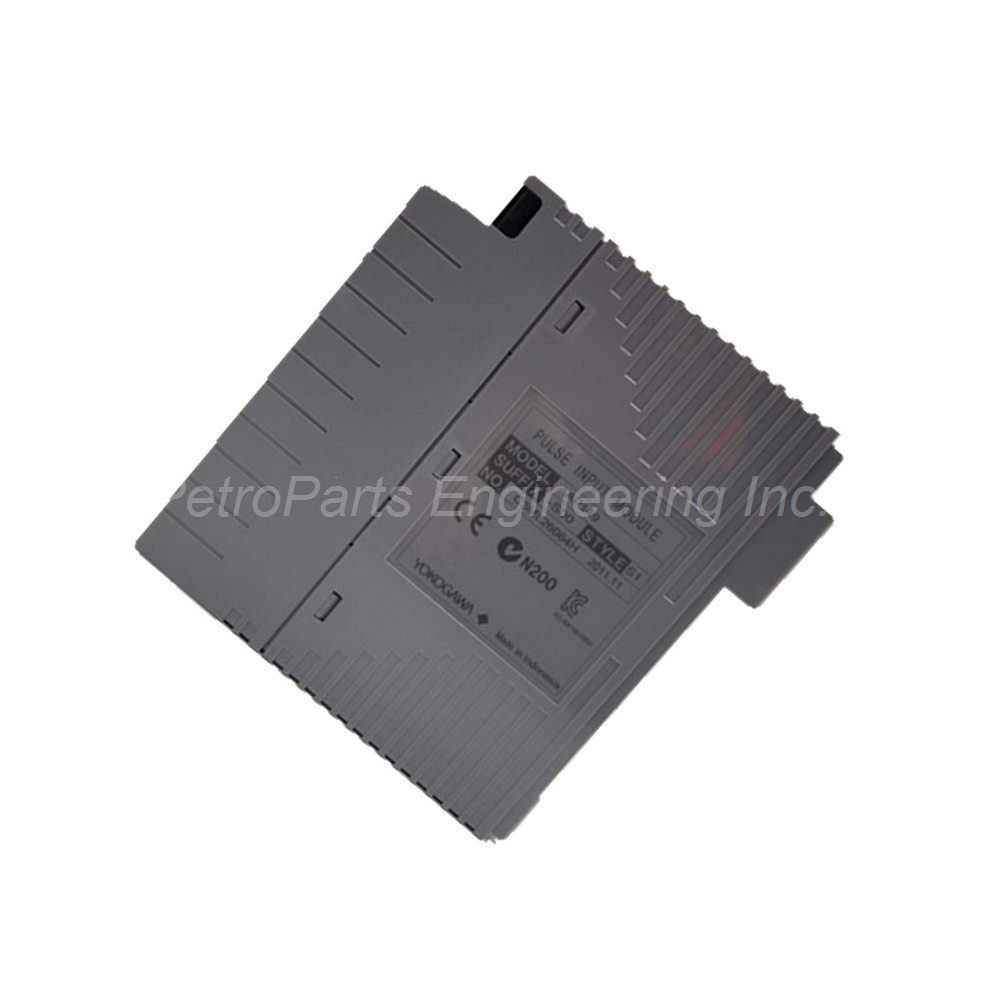

• The AAP149 is a dedicated Pulse Input Module for 16-channel pulse train signals.
• It interfaces with signal conditioner cards to convert raw pulses into system data.
• This AAP149 unit is specifically designed for Yokogawa PM1 compatibility.
• The module utilizes a Trailing edge detection method for high accuracy.
• System connection is handled via the KS2 dedicated interface cable.

Detailed Technical Data

• Brand: Yokogawa
• Model: AAP149
• Input Count: 16 channels (Non-isolated)
• Input Type: Transistor contact (Open collector)
• Frequency Range: 0 to 6 kHz per channel
• Update Speed: 2 ms data refresh period
• Power Consumption: 400 mA maximum at 5 V DC
• Physical Weight: Approximately 0.30 kg
• Interface: KS2 Dedicated Cable connection

System Compatibility Requirements

• FCS Hardware: Runs on AFV30S, AFV30D, AFV40S, and AFV40D.
• Control Function: Requires VP6F1700 for AFV30/AFV40 series.
• Engineering Software: Configurable via VP6E5100 Standard Builder Function.
• Input Source: Compatible with pulse train input signal conditioner cards.

Ordering & Logistic Terms

• Warranty Policy: Includes a full 12-month warranty from delivery.
• Shipping Partners: Express global delivery via FedEx, UPS, or DHL.
• Product Condition: Factory original equipment, brand new and tested.
• Inventory: Stock available for immediate international dispatch.
