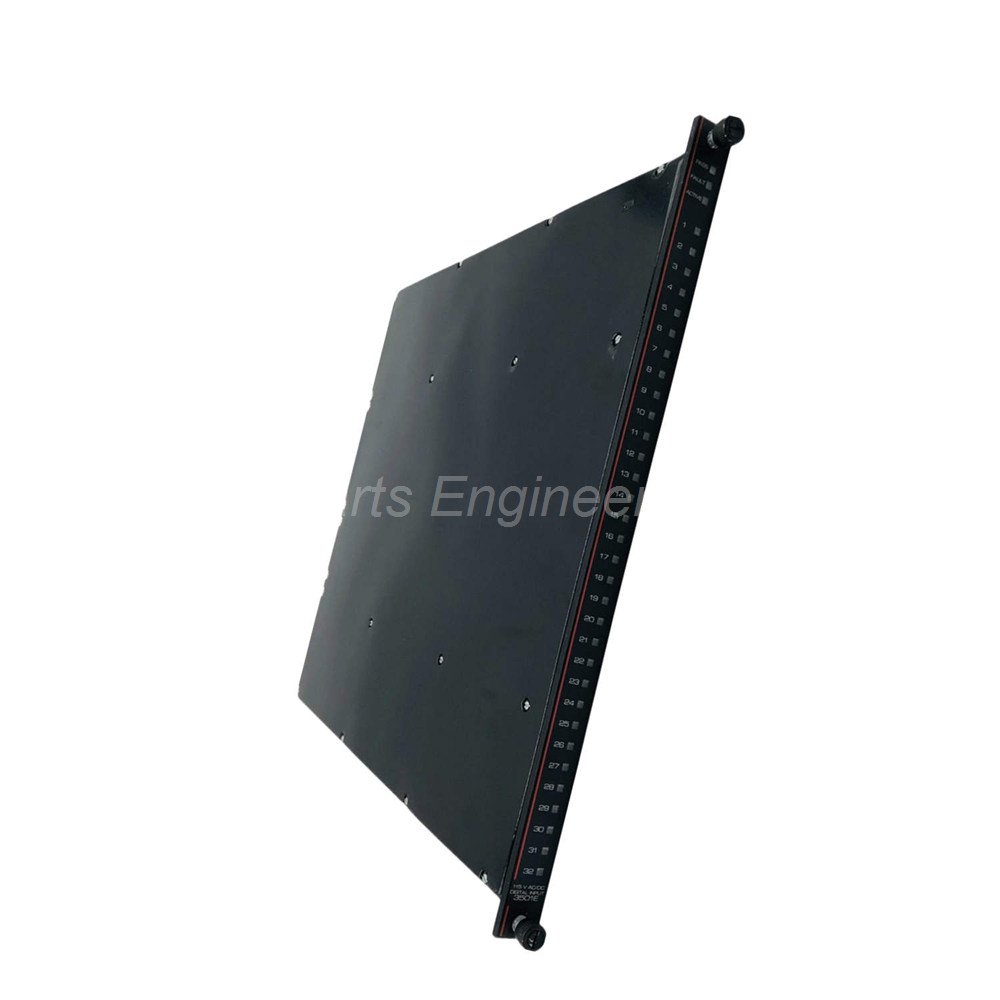

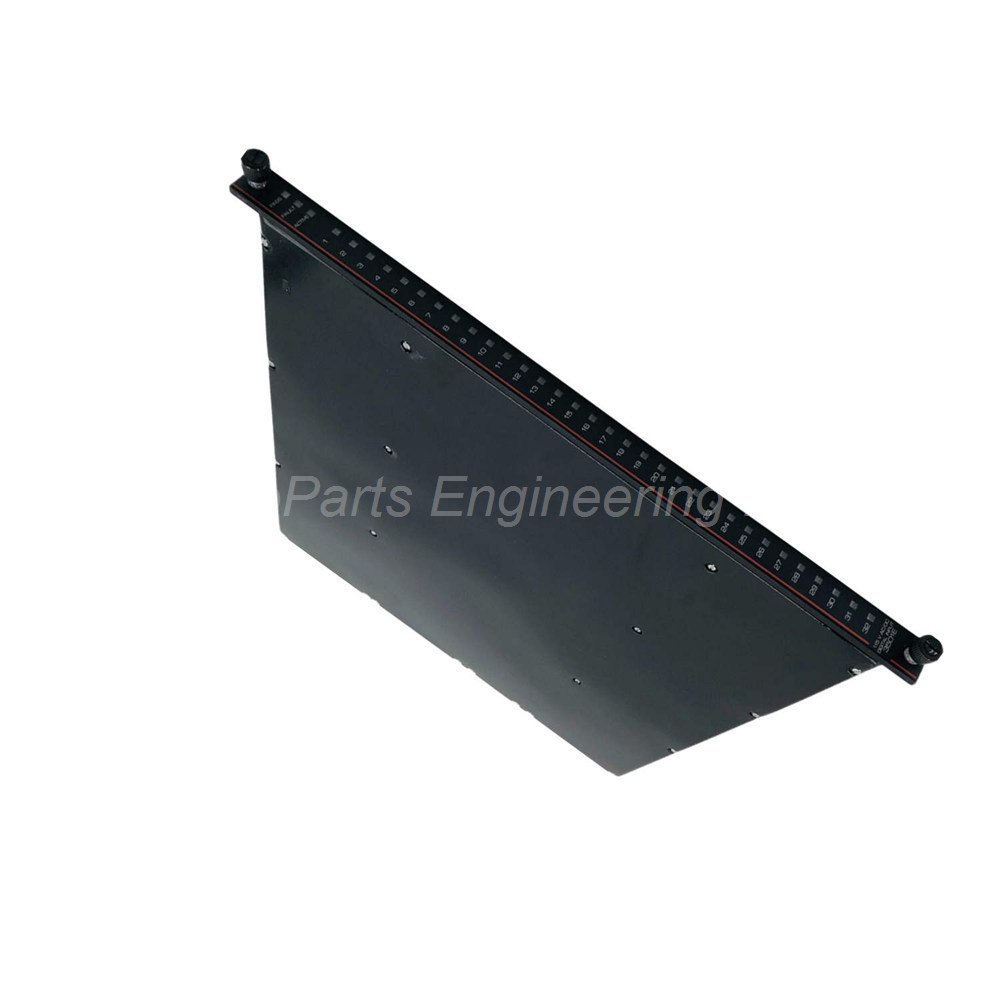

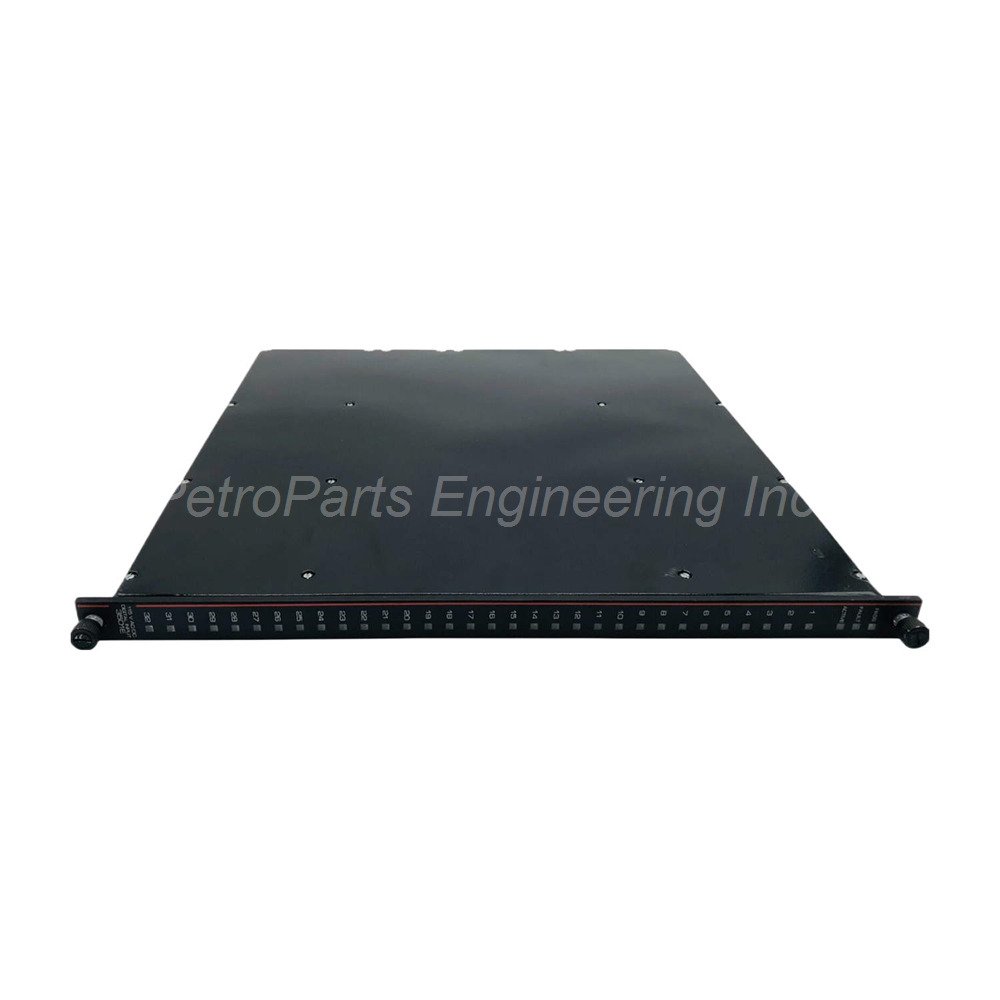

Safety Architecture & Logic

• The 3501E utilizes Triple Modular Redundancy (TMR) for 100% triplicated signal paths.
• Three microprocessors independently scan and compile input data to ensure zero single-point failure.
• Integrated Optical Isolation protects internal Triconex logic from field-side electrical surges.
• The 3501E performs ongoing diagnostics to detect stuck-at faults and channel discrepancies.
• A FAULT indicator signifies a specific channel issue without interrupting module operation.

Primary Technical Specifications

• Manufacturer: Schneider Electric (Triconex)
• Model Number: 3501E
• Input Type: TMR Digital Input (Opto-Isolated)
• Points: 32 Channels, non-commoned and fully isolated
• Nominal Voltage: 115 VAC/VDC (Universal Range: 90-155 VAC/VDC)
• Switching Threshold: Off-to-On > 86V | On-to-Off < 28V
• Frequency Range: DC or 47-63 Hz
• Point Isolation: 1,500 VDC (sustained)
• Input Delay: < 8 ms (OFF to ON) / < 15 ms (ON to OFF)
• Power Consumption: 1.5 Watts per ON point at nominal voltage
• Module Identification: Red Color Code for high-voltage digital input

Diagnostic & Status Indicators

• PASS: Indicates the module has successfully cleared internal power-up tests.
• FAULT: Lights up when a channel-specific internal fault is detected by diagnostics.
• ACTIVE: Confirms the module is communicating with the Triconex Main Processors.
• Input Status: Individual LED per point showing real-time field contact state.

Shipping & Global Support

• Condition: Brand new and original equipment in factory-sealed protection.
• Warranty: Complete 12-month replacement warranty provided.
• Logistics: Fast international delivery via FedEx, UPS, or DHL.
• Inventory: Ready for immediate dispatch to support critical system maintenance.

Expert FAQ & Selection Guide

• What does “Non-Commoned” mean for the 3501E selection?
  It means each of the 32 points is electrically independent with its own return path. This is vital for systems where inputs originate from different power sources or isolated circuits.
• How does the 3501E handle a “Fault” indicator without system shutdown?
  Because it is a TMR module, the other two channels continue to process data correctly. A single channel fault triggers the alarm but does not compromise the safety function.
• Can I use the 3501E for both 125VDC and 115VAC loops simultaneously?
  While the module supports both, engineering best practice suggests keeping voltages consistent across a single module to simplify field wiring and cabinet isolation.
• Why is the 1,500 VDC point-to-point isolation important?
  This high level of isolation prevents a catastrophic surge on one field wire from jumping to adjacent channels or damaging the Triconex chassis backplane.
• Is the 3501E compatible with all Tricon chassis types?
  The 3501E is designed for high-density Tricon systems. Always verify that your specific External Termination Panel (ETP) supports 32-point non-commoned wiring before installation.
