Series: 9200
Product Type: Two-Wire Velocity Seismoprobe Transducer
Product Category: Sensor, Transducer & Probe
Price (RMB): ¥8,500.00
Gross Weight: 0.45 kg

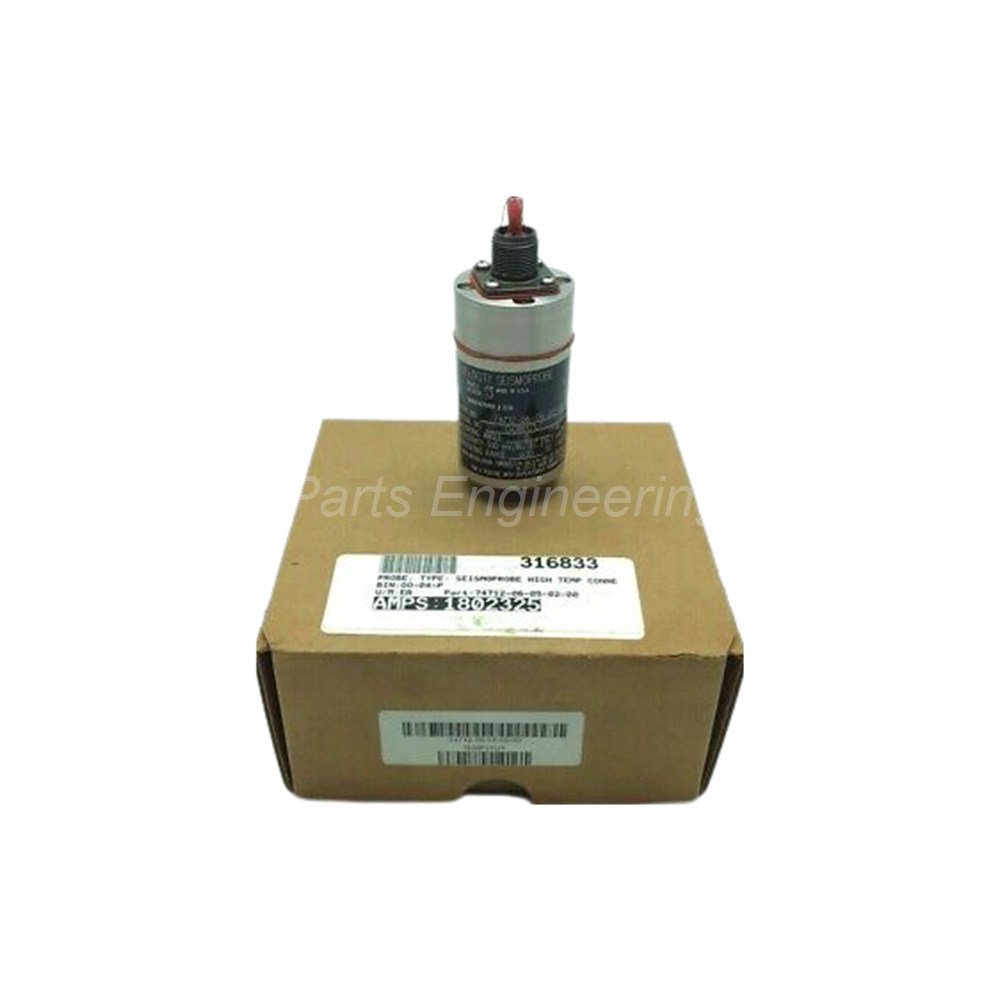

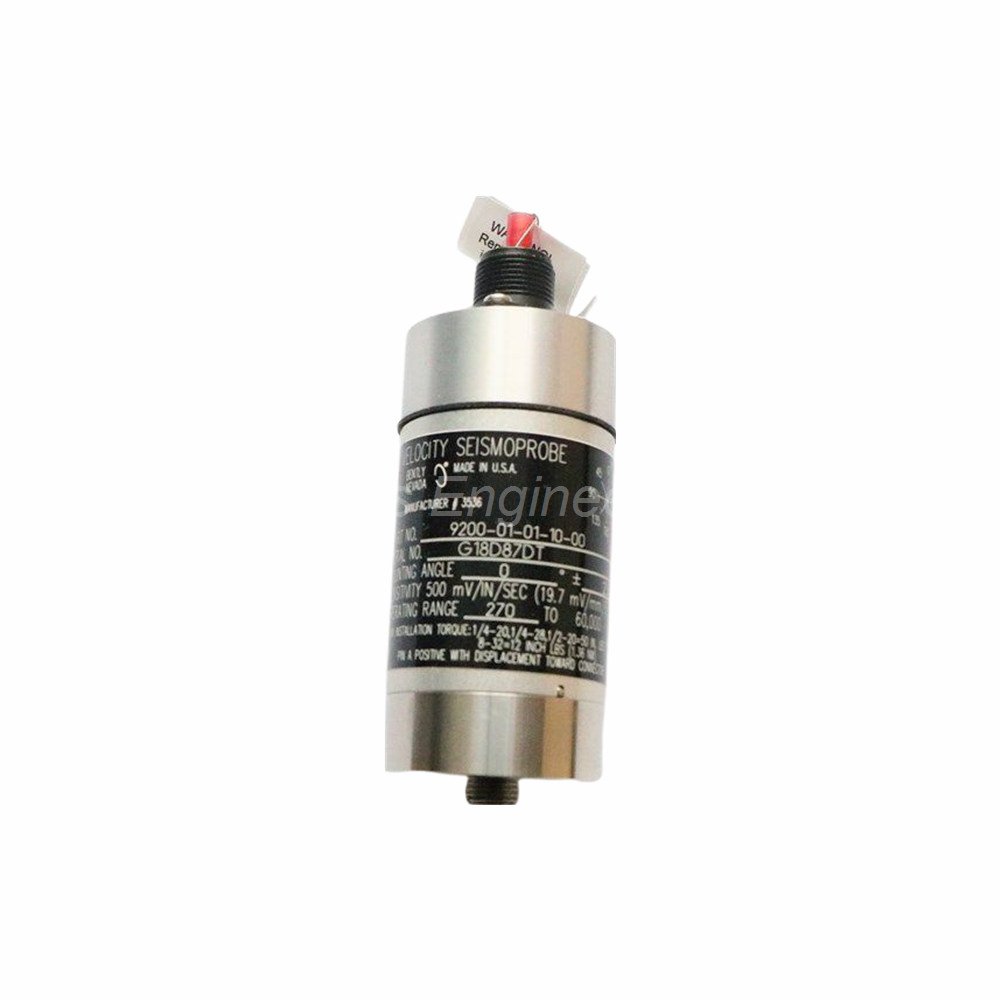

Bently Nevada 9200-01-01-10-00 Two-Wire Velocity Transducer

Full Summary: The Bently Nevada 9200-01-01-10-00 is a top mount two-wire velocity seismoprobe transducer. It provides 20 mV/mm/s sensitivity with a 0° mounting angle and 4.5 Hz minimum frequency. This sensor suits vertical machine casing vibration monitoring applications.

Technical Specifications

The Bently Nevada 9200-01-01-10-00 delivers a sensitivity of 20 mV/mm/s (500 mV/in/s) ±5%. This measurement requires proper termination and correct calibration angle orientation.

Its dynamic operating range reaches a maximum displacement of 2.54 mm (0.100 in) peak to peak. The velocity range equals 25 mm/s (1 in/s) at +22°C with a 10 kΩ load and 100 Hz casing vibration.

Coil resistance for this Two-Wire Velocity Seismoprobe Transducer is 1.25 kΩ ±5%. Locked coil inductance measures 125 mH typical.

Operating and storage temperature ranges from -29°C to +121°C (-20°F to +250°F). The case uses anodized aluminum A204 for excellent durability. Gasket material is neoprene.

This sensor resists dust and moisture effectively in harsh environments. Relative humidity tolerance goes to 95% noncondensing. It handles 100% humidity non-submerged when ordered with an integral cable.

The temperature coefficient of sensitivity is 0.2% per °C. Calibration load requires a 10 kΩ resistor between terminal A and B. Output measurement occurs across pins A and B only.

Typical device height is 102 mm (4 inches) depending on the connector option. Diameter measures 41 mm (1.6 inches) typical. Weight for model 9200-01-01-10-00 is 300 grams (10.5 ounces).

Installation Guidelines

Mount the transducer at a 0° ±2.5° angle with 4.5 Hz minimum operating frequency. This orientation works best for vertical machine casing measurements. Use the circular mounting base with M10x1 stud for secure attachment.

Select the top mount connector option which has no cable included. Ensure a 10 kΩ termination across terminal A to B for proper operation. Keep the calibration orientation angle consistent during the entire setup process.

Avoid exposing the device to submerged conditions unless ordered with an integral cable. Do not exceed the 121°C maximum operating temperature for standard units.

Package Contents

Each order includes one Bently Nevada 9200-01-01-10-00 transducer. You receive the factory-sealed unit with top mount connector option. The package contains the circular mounting base with M10x1 stud. No calibration certificate or warranty card is included inside the box. No FedEx, UPS, or DHL shipping labels are provided.

Frequently Asked Questions (FAQ)

1. What is the mounting angle for the 9200-01-01-10-00?

The mounting angle is 0° ±2.5° with a minimum operating frequency of 4.5 Hz (270 cpm). This suits vertical surface mounting.

2. What connector option does this Bently Nevada transducer have?

This version uses the top mount connector option (01) with no cable. You need to provide your own cable and connections.

3. What mounting stud does the 9200-01-01-10-00 include?

This model includes a circular mounting base with an M10x1 stud. It provides secure attachment to most machine surfaces.

4. Does this two-wire velocity transducer have any agency approvals?

No, this version has agency approval option 00 which means no approvals required. It does not carry CSA, ATEX, or other certifications.

5. What is the velocity range of the 9200-01-01-10-00?

The velocity range is 25 mm/s (1 in/s) at +22°C with a 10 kΩ load and 100 Hz casing vibration frequency.
