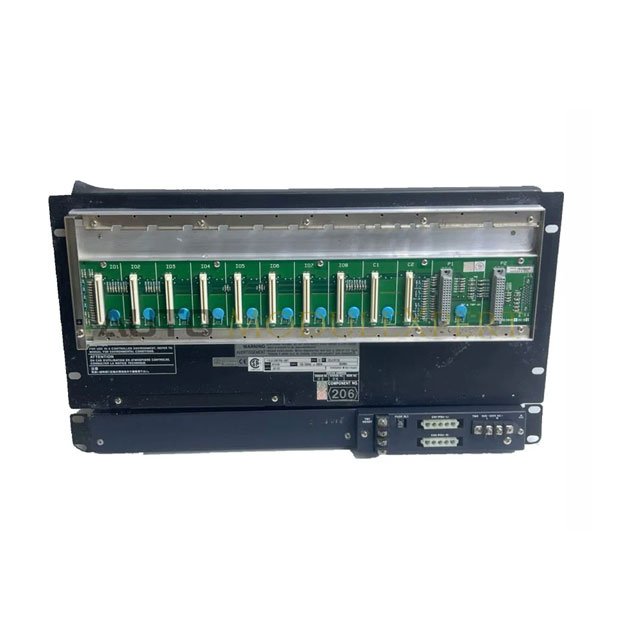

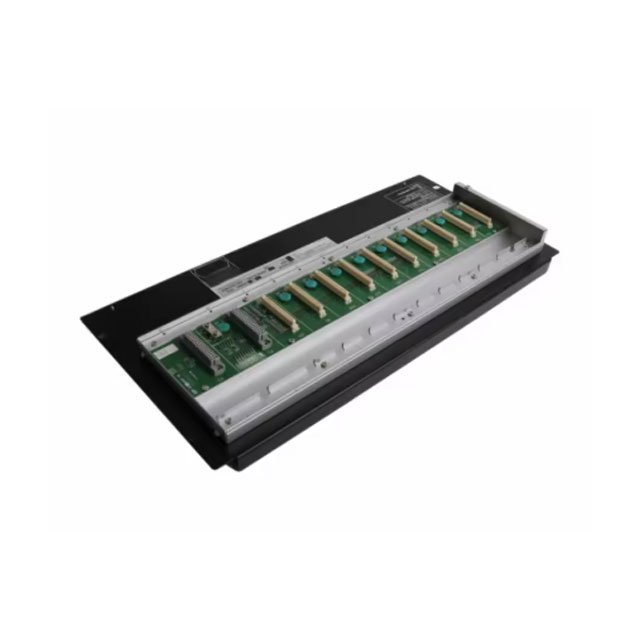

Introduction to the SNB10D Safety Node Unit

The Yokogawa SNB10D-425/CU2T is a critical component of the ProSafe-RS safety instrumented system (SIS). This rack-mountable safety node unit provides the necessary infrastructure to expand the I/O capacity of a safety control station. As industrial plants scale up, the SNB10D allows engineers to add more safety-related I/O modules while maintaining the highest levels of functional safety and system integrity.

Yokogawa designed the SNB10D-425/CU2T specifically for high-availability environments. It integrates seamlessly with ESB bus architectures, enabling fast and reliable data transmission between the main safety control unit and remote I/O points. This model combines a 24V DC power architecture with advanced environmental protections, making it suitable for demanding sectors like offshore oil platforms, chemical refineries, and power generation facilities.

Comprehensive Technical Specifications

The table below details the hardware configuration and electrical requirements for the SNB10D-425/CU2T:

Suffix Code Breakdown and Configuration

Yokogawa uses a precise coding system to define the capabilities of the SNB10D. Understanding these codes is essential for ensuring system compatibility:

• Suffix Code “4” (24 V DC): This unit operates on a standard industrial 24V DC power rail. This configuration is often preferred in systems where battery-backed DC power provides a higher degree of reliability than traditional AC mains.
• Suffix Code “2” (Redundant Power & License): This version includes two power supply modules for full redundancy. If one power module fails, the second unit maintains the load without interruption. This suffix also includes the necessary software license for R3 node expansion, simplifying the commissioning process.
• Suffix Code “5” (G3 & Temperature): The “5” designation confirms that the module features ISA Standard G3 conformal coating. This protection prevents corrosion from harsh gases. Additionally, the unit supports an extended temperature range from -20 to 70 °C, ensuring stable performance in non-climate-controlled environments.
• Option Code “CU2T”: This includes the S9343FA Connector Unit. It provides the physical interface for the ESB bus and includes a built-in terminator, which is required at the end of the bus segment to prevent signal reflection.

Seamless Connectivity via ESB Bus

The SNB10D-425/CU2T serves as a remote hub for safety data. It connects to the main safety control unit (such as the SSC60D or S2SC70D) using the ESB bus. The system’s expansion capability depends on the bus coupler module used in the main unit:

1. SEC402 Coupler: Using this module, the system supports up to 13 safety node units.
2. SEC401 Coupler: This configuration supports up to 9 safety node units.

The CU2T connector unit ensures that the high-speed safety communication remains stable across the entire bus length. By integrating the terminator directly into the connector unit, Yokogawa reduces the risk of installation errors that could lead to bus communication failures.

Advanced Reliability and Environmental Resilience

Safety systems must function perfectly during emergencies. The SNB10D-425/CU2T achieves this through a “safety by design” philosophy. The dual-redundant power supplies eliminate a common single point of failure. Meanwhile, the ISA Standard G3 protection ensures that the unit survives in “Class G3” environments, where airborne contaminants like sulfur dioxide or chlorine are present.

The wide operating temperature range (-20 to 70 °C) is particularly beneficial for global operations. Whether installed in the freezing conditions of a northern winter or the intense heat of a tropical summer, the SNB10D maintains its timing accuracy and logic processing capabilities.

Installation and Physical Dimensions

The SNB10D-425/CU2T features a standard 19-inch rack-mount design. Installation requires four M5 screws and the included insulation bushes. These bushes prevent electrical noise from the rack frame from interfering with the sensitive safety electronics inside the node unit. Weighing approximately 5.9 kg, the unit is robustly built to withstand the vibrations typically found in industrial machinery rooms.
