1790-T8BV8BX | Allen-Bradley CompactBlock LDX I/O Module
Introduction:
New original Allen-Bradley CompactBlock LDX I/O module. 8 inputs and 8 outputs. DeviceNet communication. 24V DC operation. In stock with 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

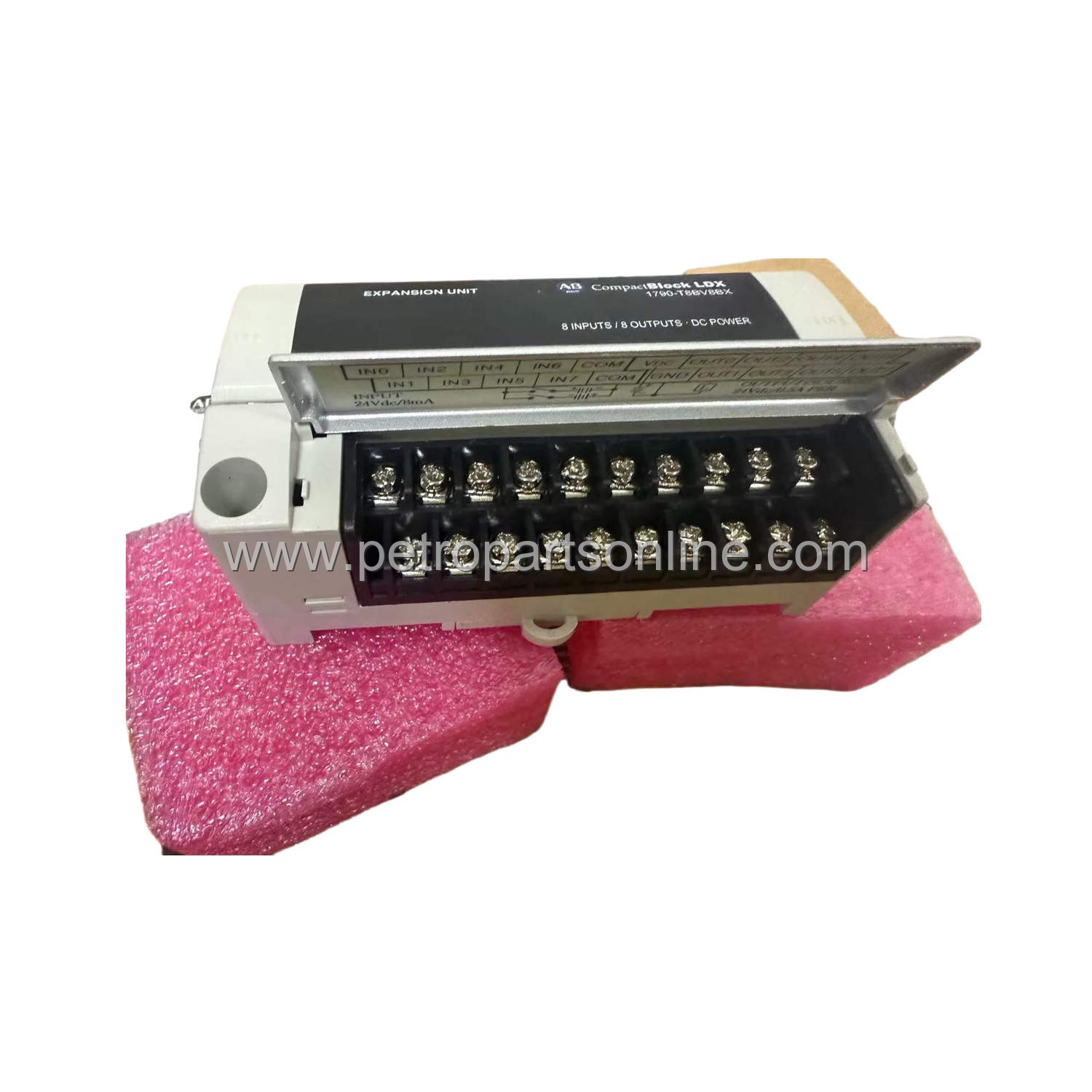

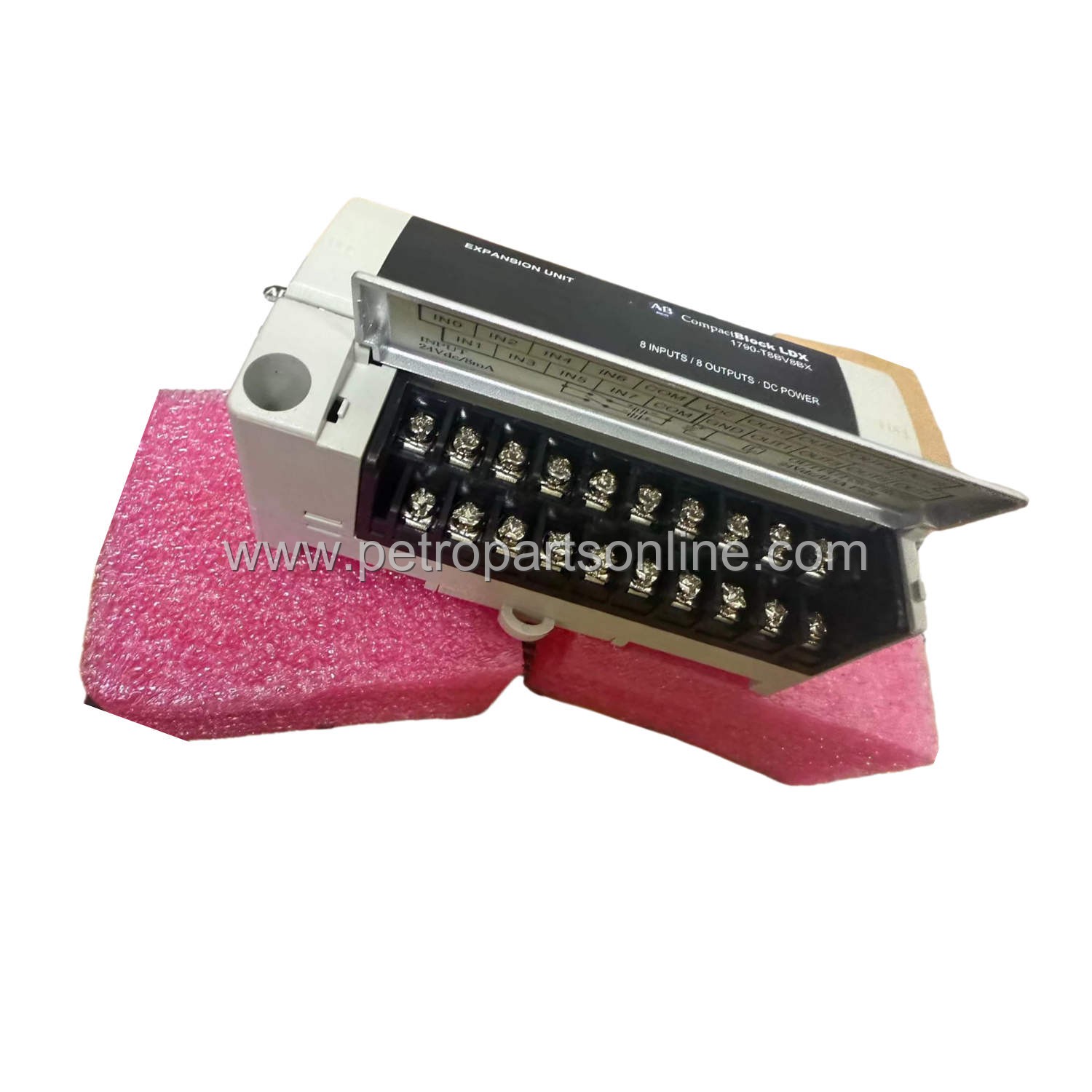

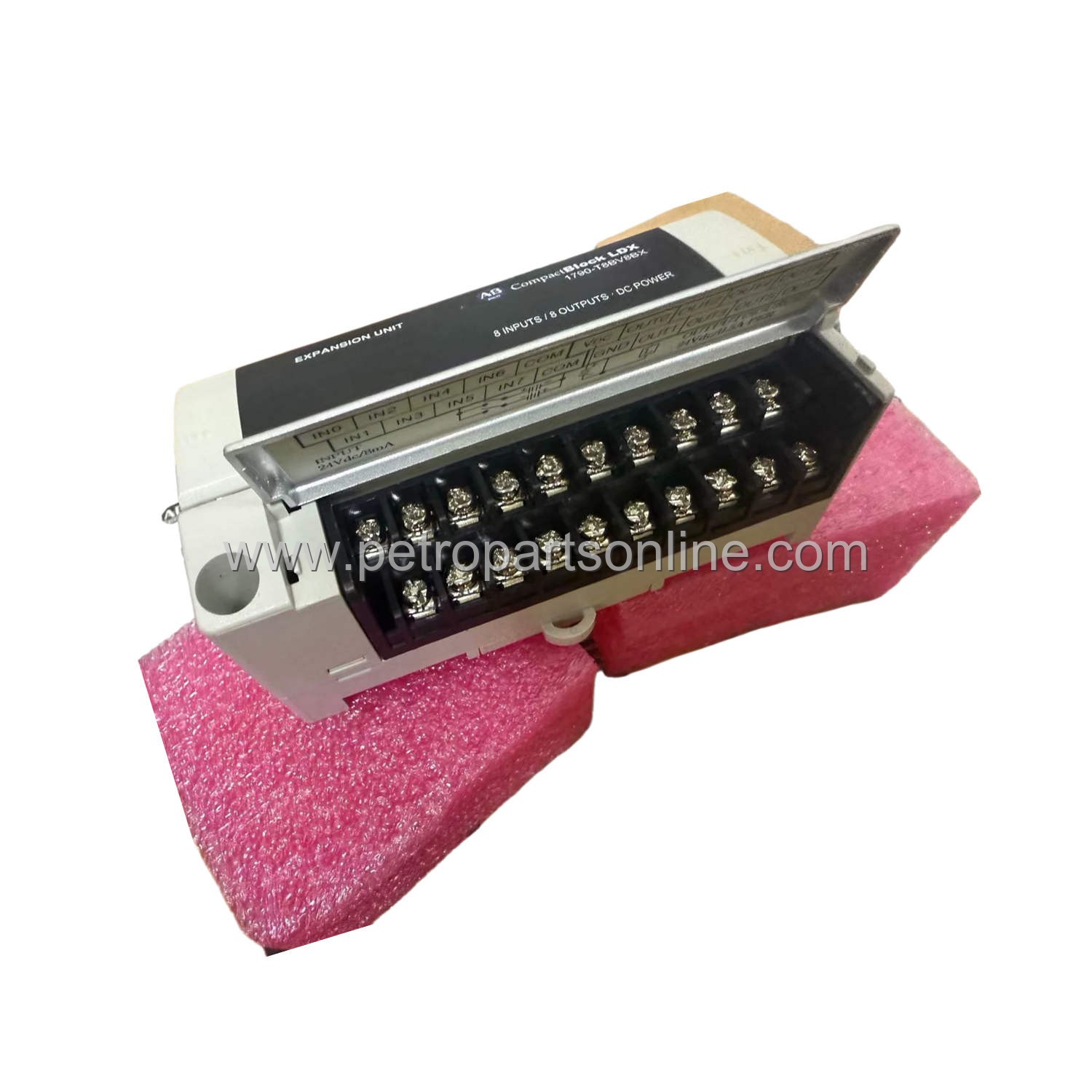

The 1790-T8BV8BX is a CompactBlock LDX I/O module from Allen-Bradley. It provides eight digital inputs and eight digital outputs in a compact block. This module is designed for distributed I/O applications. It reduces wiring and cabinet space. The module communicates via DeviceNet network. It is a new original unit in stock.
Application Scenarios
This module is used in industrial automation systems. It is ideal for machine control and material handling. It fits conveyor systems and packaging lines. The module works in automotive assembly plants. It supports food and beverage processing. It is suitable for water treatment facilities. It performs well in standard industrial environments.
Technical Specifications
- Supply voltage: 24V DC
- Input type: Sinking/Sourcing
- Output type: Sourcing
- Output current: 0.5A per point
- Communication protocol: DeviceNet
- Enclosure rating: IP20
- Operating temperature: 0 to 55 °C
- Dimensions: 120 x 80 x 50 mm
Installation & Maintenance Guide
Mount the module on a DIN rail. Connect the DeviceNet cable to the network port. Wire the input sensors and output actuators. Ensure power supply is 24V DC. Do not exceed the output current rating. Keep the module clean and dry. Check connections periodically. Replace a faulty module with an identical unit. Use standard industrial wiring practices.
Frequently Asked Questions (FAQ)
What is the primary function of 1790-T8BV8BX?
It is a CompactBlock LDX I/O module that provides eight digital inputs and eight digital outputs for distributed control.
What network does the 1790-T8BV8BX support?
It supports the DeviceNet network protocol for communication with a master controller.
What is the operating voltage of this module?
The module operates on a 24V DC power supply. It requires a stable power source.
Can the 1790-T8BV8BX be used in a hazardous location?
This module has an IP20 rating. It is not rated for hazardous locations. Use only in standard industrial environments.
What is the warranty period for the 1790-T8BV8BX?
The module comes with a 12-month warranty against defects. It is a new original Allen-Bradley product.
