Product Overview

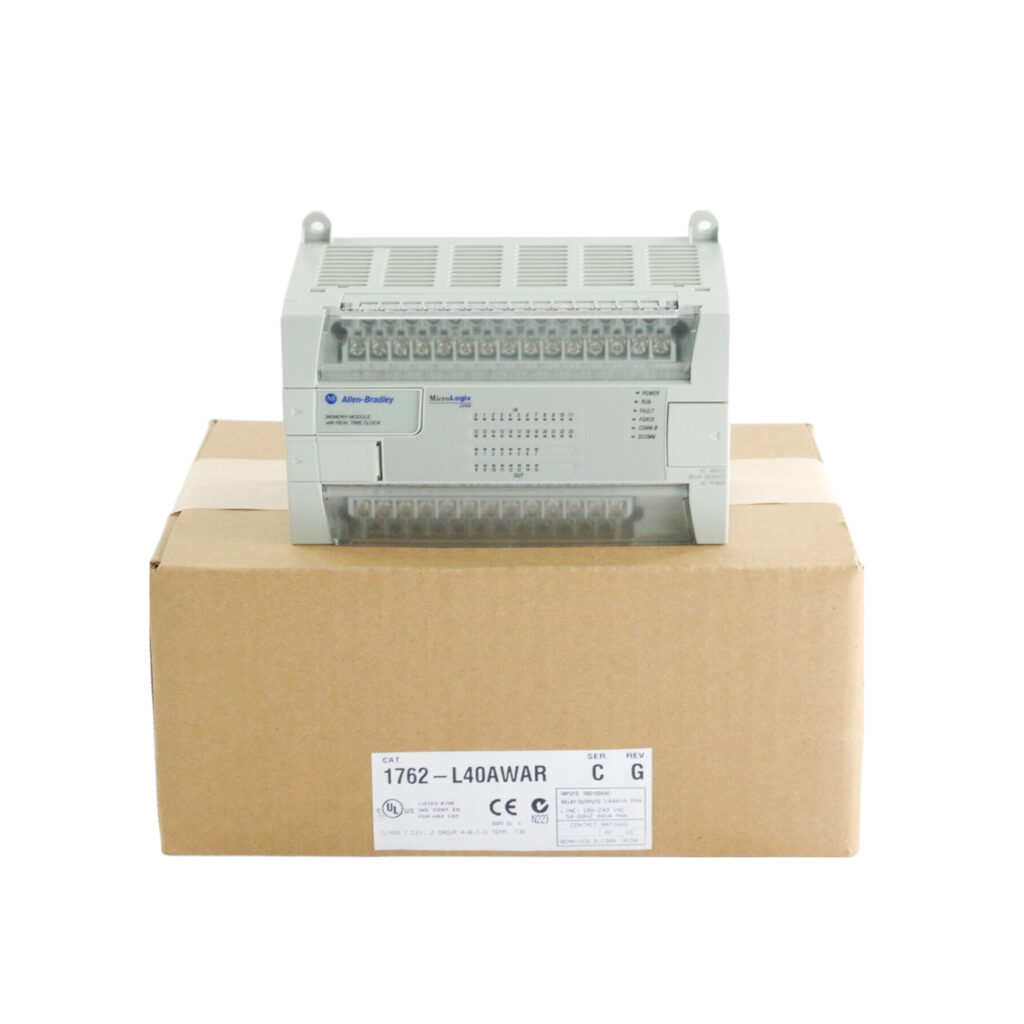

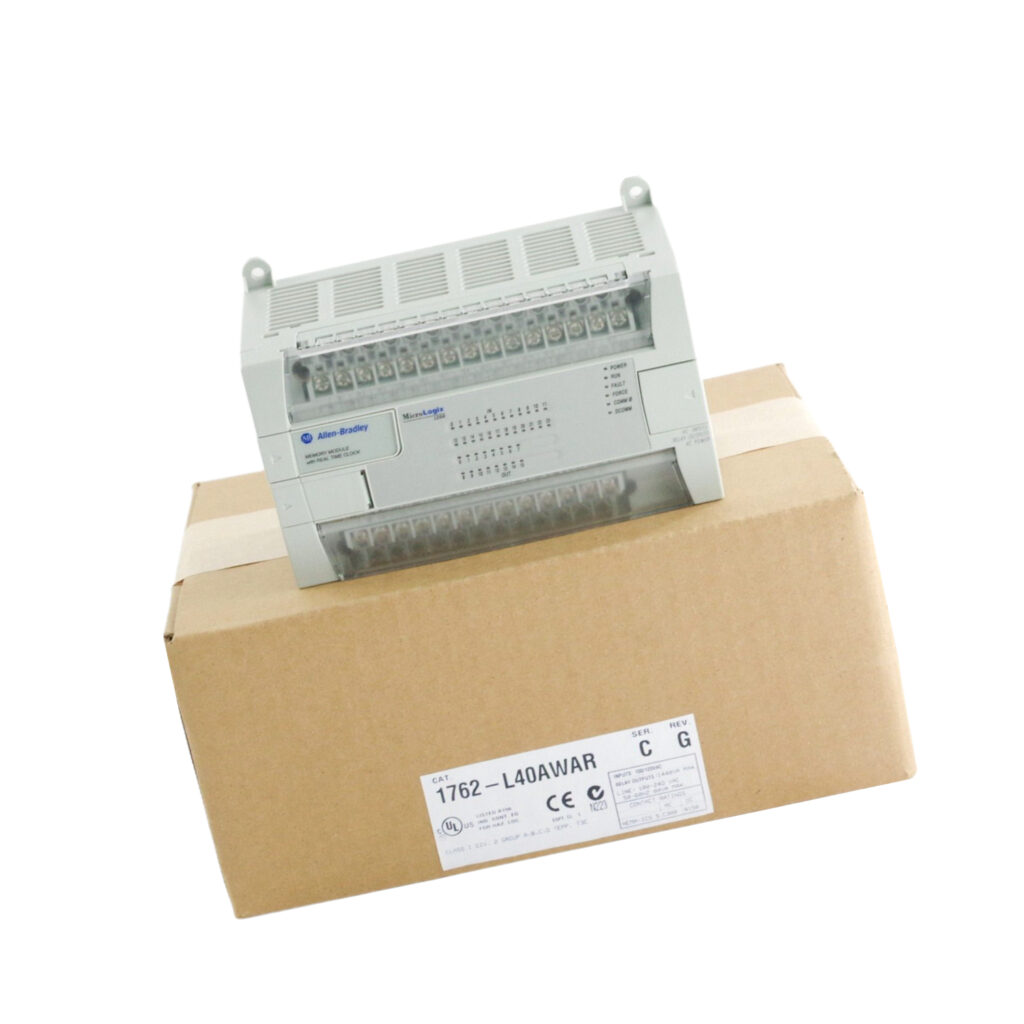

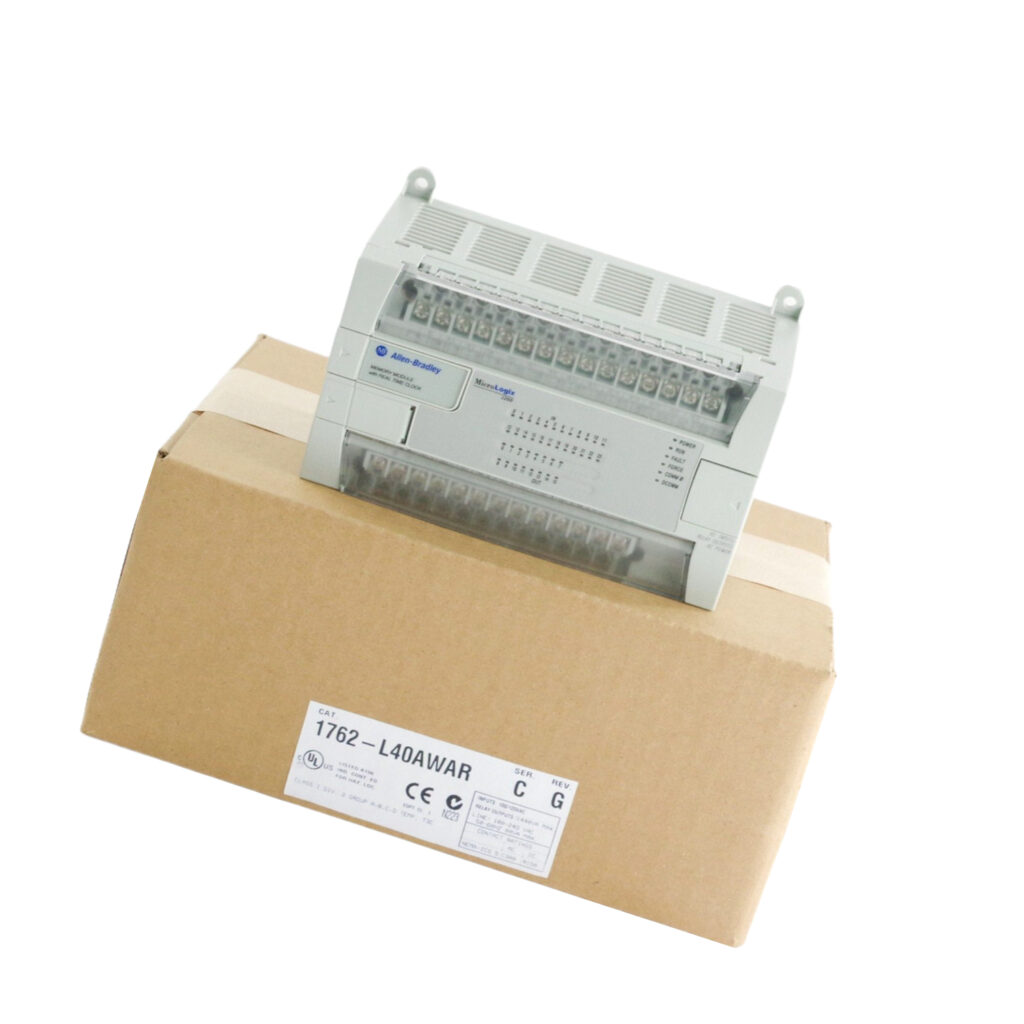

1762-L40AWAR is a programmable controller from Allen-Bradley.

It belongs to the MicroLogix 1200 series.

This module provides 40 I/O points for automation tasks.

It combines a CPU and I/O in one compact unit.

Users can program it with RSLogix 500 software.

This controller supports relay and analog outputs.

It is designed for small to medium control systems.

The module offers reliable performance in industrial settings.

It includes built-in communication ports for networking.

This unit is a cost-effective solution for machine control.

Application Scenarios

1762-L40AWAR is ideal for packaging machinery control.

It works well in conveyor system automation.

This controller manages material handling processes.

It is used in simple process control applications.

The module supports batch processing in factories.

It controls lighting and HVAC in building automation.

This unit operates in water treatment facilities.

It handles motor start-stop sequences reliably.

The controller is suitable for standalone machine control.

It integrates with sensors and actuators easily.

Technical Specifications

This controller operates on 24V DC power supply.

It has 24 digital inputs and 16 outputs.

The outputs include relay and analog types.

Memory capacity is 8K words for user program.

It supports up to 8 expansion I/O modules.

Communication includes RS-232 and RS-485 ports.

Operating temperature range is 0 to 55 degrees Celsius.

The module measures 110 x 80 x 60 millimeters.

Weight is approximately 0.3 kg.

It meets UL and CE safety standards.

Installation & Maintenance Guide

Mount the controller on a standard DIN rail.

Ensure proper clearance for heat dissipation.

Connect power supply to the designated terminals.

Wire inputs and outputs according to the manual.

Use shielded cables for analog signals.

Download the user program via RS-232 port.

Perform regular visual inspections for damage.

Keep the module free from dust and moisture.

Replace faulty modules with identical models.

Always disconnect power before maintenance.

Frequently Asked Questions (FAQ)

What is the primary function of 1762-L40AWAR?

This module is a programmable logic controller for automation.

What software is used to program this controller?

It is programmed using RSLogix 500 software from Rockwell.

Can this module be expanded with additional I/O?

Yes, it supports up to 8 expansion I/O modules.

What is the operating voltage of this unit?

It requires a 24V DC power supply for operation.

Is this controller compatible with analog sensors?

Yes, it includes analog outputs for sensor integration.
