Product Overview

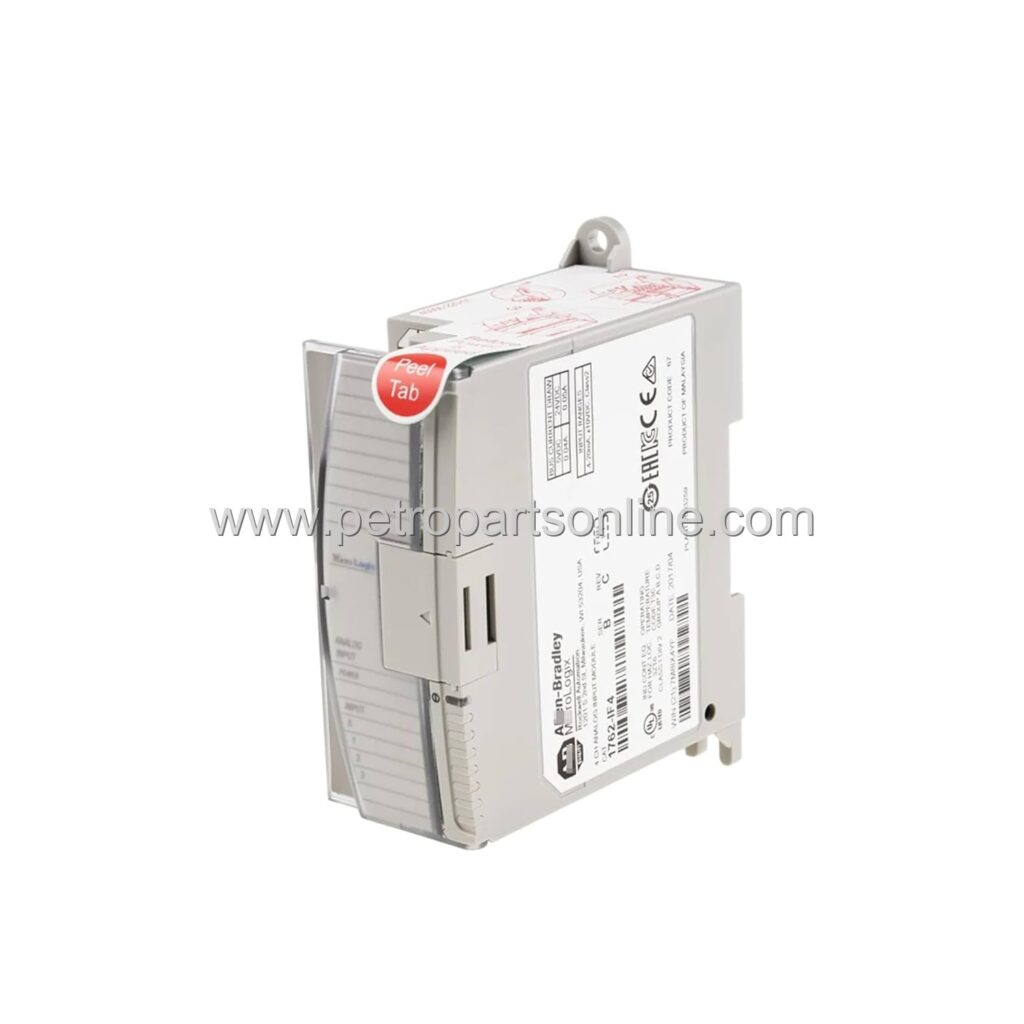

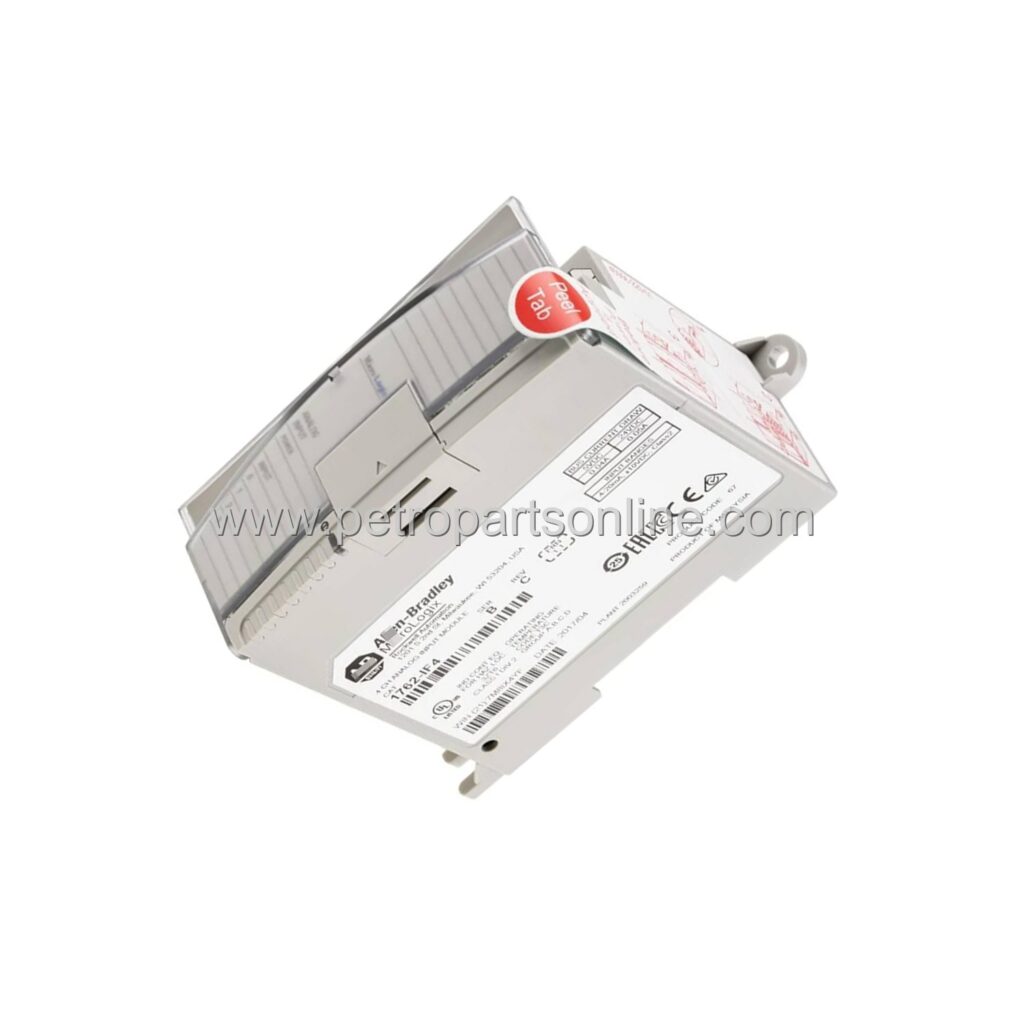

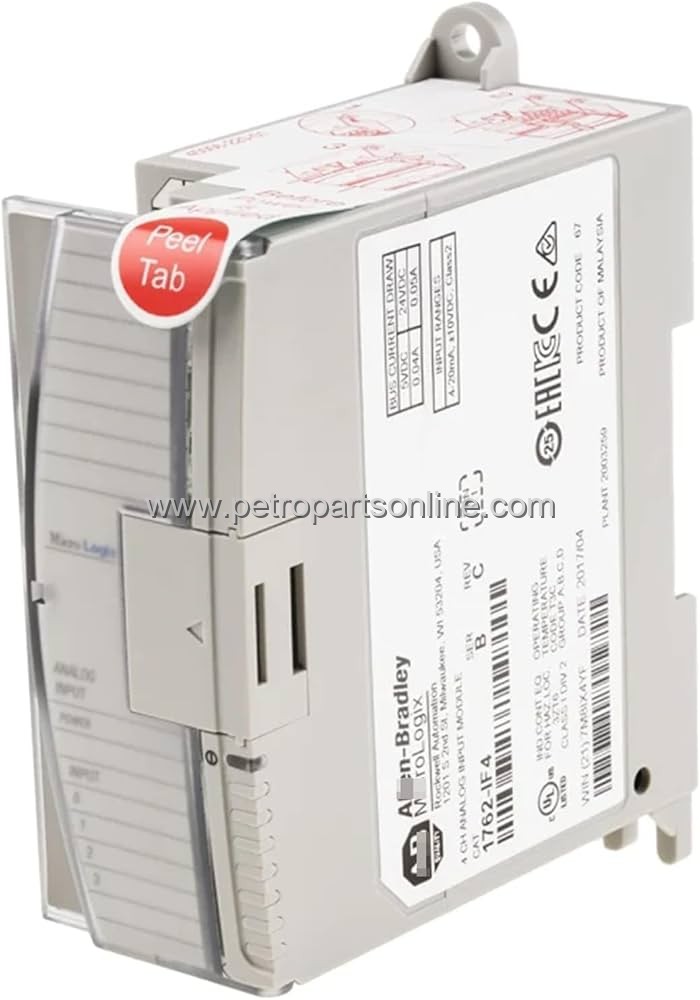

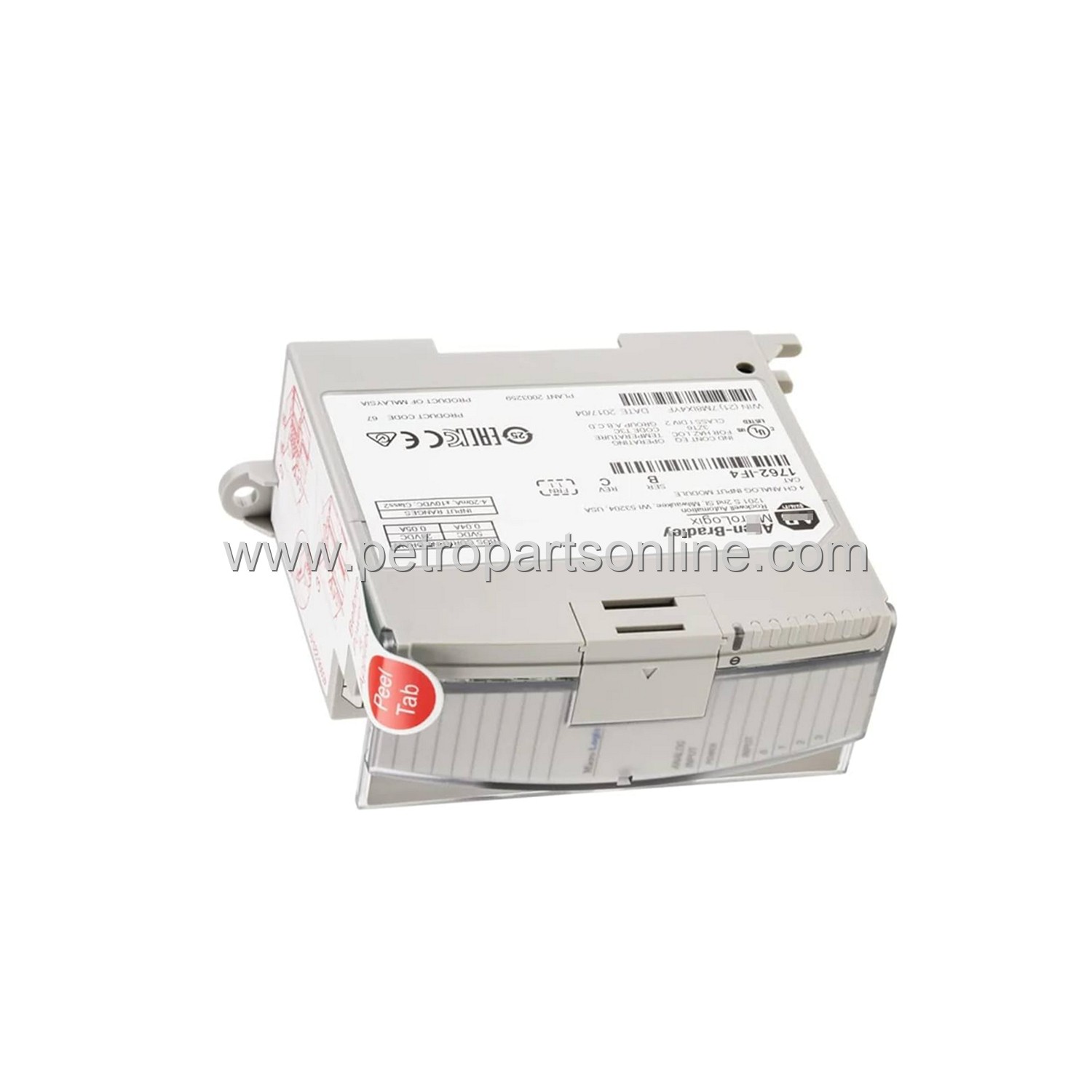

The 1762-IF4 is an analog input module from Allen-Bradley. It belongs to the MicroLogix 1200 and MicroLogix 1500 series. This module provides four analog input channels. Each channel accepts 0-10V DC or 4-20 mA signals. It is a new original module, fully tested. The module is in stock and ready for shipment. It offers 12-bit resolution for precise measurements. The module communicates via the backplane of the MicroLogix system. It is a compact, reliable solution for industrial automation. The module requires no external power supply. It draws power directly from the base unit. This simplifies wiring and reduces installation costs. The module supports both voltage and current inputs. This flexibility makes it suitable for various sensors. Typical sensors include pressure transmitters, temperature transducers, and flow meters. The module is designed for harsh industrial environments. It features a rugged, compact housing. The module is easy to install and configure. It is a cost-effective choice for small to medium control systems.

Application Scenarios

The 1762-IF4 is used in many industrial applications. It is ideal for process control systems. Common scenarios include water treatment plants. It monitors pressure and flow in pipelines. The module is also used in HVAC systems. It reads temperature and humidity sensors. In manufacturing, it monitors machine parameters. This includes speed, torque, and position feedback. The module is suitable for batch processing. It monitors chemical concentrations and pH levels. The module is also used in packaging machines. It monitors fill levels and product weights. The module works well in remote monitoring stations. It collects data from field sensors. This data is used for predictive maintenance. The module is a key component in SCADA systems. It provides real-time data acquisition. The module is also used in energy management. It monitors power consumption and voltage levels. The module is compatible with many sensor types. This makes it a versatile choice for system integrators. The module is used in both new installations and retrofits. It is a reliable solution for upgrading existing systems.

Technical Specifications

The 1762-IF4 has four analog input channels. Each channel is individually configurable. The input range is 0-10V DC or 4-20 mA. The resolution is 12 bits. The module has an update rate of 2.5 ms per channel. The accuracy is ±0.1% of full scale. The module has a common mode rejection ratio of 60 dB. The input impedance is 100 kΩ for voltage. For current, the input impedance is 250 Ω. The module operates in temperatures from 0 to 60 °C. The storage temperature range is -40 to 85 °C. The module has a humidity rating of 5 to 95% non-condensing. The module consumes 5V DC at 100 mA from the backplane. The module weight is approximately 0.5 kg. The module dimensions are 90 x 80 x 50 mm. The module has a screw-type terminal block. The wiring is straightforward and secure. The module meets CE and UL certifications. It is compliant with RoHS and WEEE directives. The module is designed for use in Class I, Division 2 environments. The module has a high immunity to electrical noise. It is suitable for use near variable frequency drives. The module has a built-in self-diagnostic feature. It detects open-circuit and short-circuit conditions. The module provides status indicators for each channel. This aids in troubleshooting and maintenance.

Installation & Maintenance Guide

Install the module in a MicroLogix base unit. Align the module with the backplane connector. Press firmly until the module snaps into place. Secure the module with the locking tab. Connect field wiring to the terminal block. Use shielded twisted-pair cable for analog signals. Keep sensor wiring away from high-voltage lines. Power up the system and configure the module. Use RSLogix 500 or Connected Components Workbench. Set the input range for each channel. Verify the module is recognized by the system. Monitor the input values in the programming software. Perform a calibration check if needed. For maintenance, periodically inspect the wiring. Check for loose connections or corrosion. Keep the module clean and free of dust. Use a dry cloth for cleaning. Do not use solvents or abrasive cleaners. Replace the module if the status indicators show faults. Ensure the system is powered down before removal. Follow all safety procedures during installation. The module is designed for long-term reliability. It requires minimal maintenance under normal conditions.

Frequently Asked Questions (FAQ)

What is the primary function of 1762-IF4?

The primary function is to convert analog signals from field sensors into digital values for the MicroLogix controller. It provides four input channels for 0-10V DC or 4-20 mA signals.

What is the resolution of the 1762-IF4 module?

The module has a 12-bit resolution. This provides 4096 discrete levels for accurate measurement of analog input signals.

Can the 1762-IF4 be used with a MicroLogix 1000 controller?

No, the module is designed specifically for MicroLogix 1200 and MicroLogix 1500 base units. It is not compatible with the MicroLogix 1000 series.

What type of cable should be used for wiring the module?

Use shielded twisted-pair cable for analog input wiring. This reduces electrical noise interference and ensures signal integrity. The maximum cable length is 100 meters.

How do I configure the input range for a channel on the 1762-IF4?

Configuration is done using RSLogix 500 or Connected Components Workbench software. In the I/O configuration, select the channel and set the desired input range to either 0-10V or 4-20 mA.
