Introduction:
Compact analog combo module for MicroLogix systems. Offers 2 inputs and 2 outputs with 12-bit resolution. Supports voltage and current signals. In stock with 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

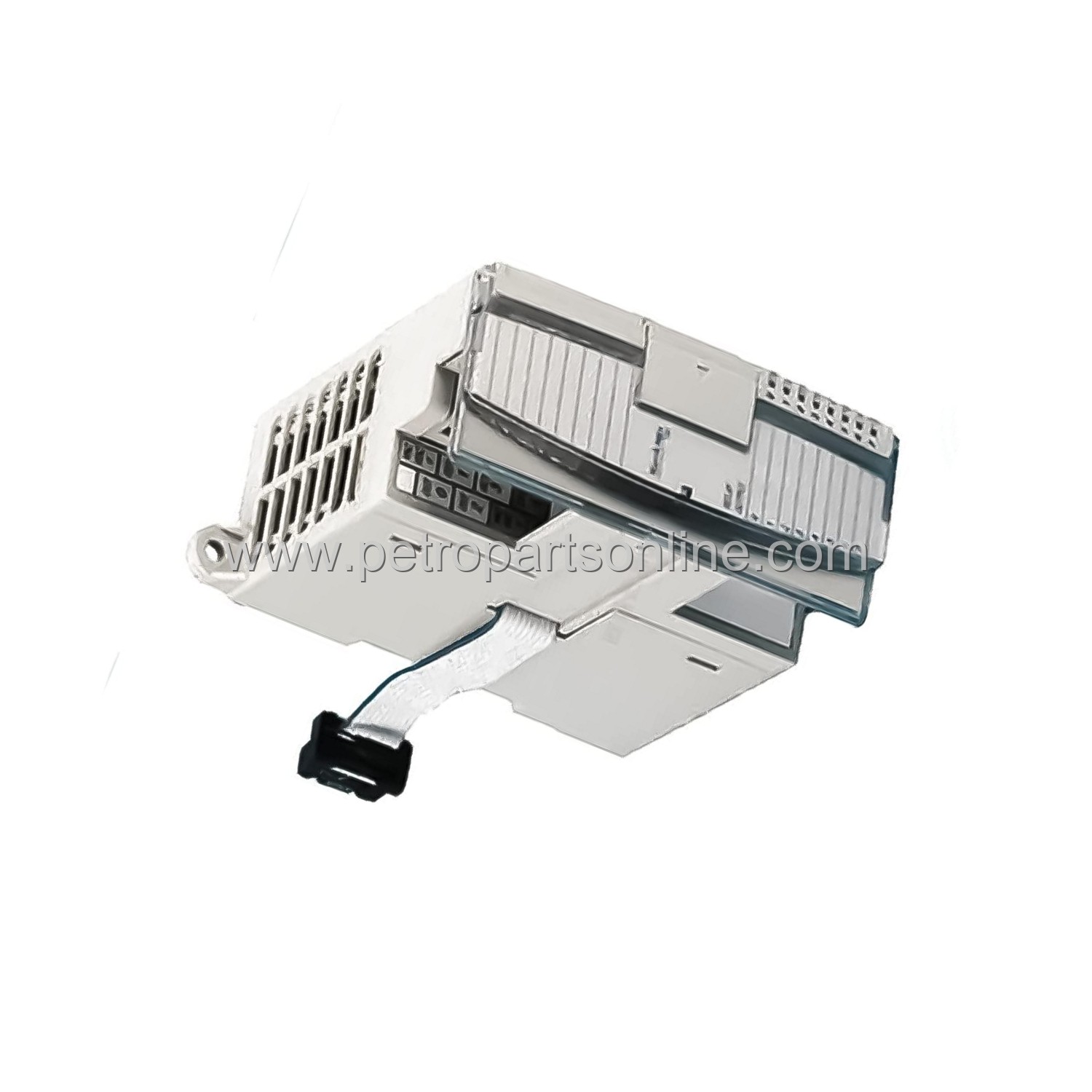

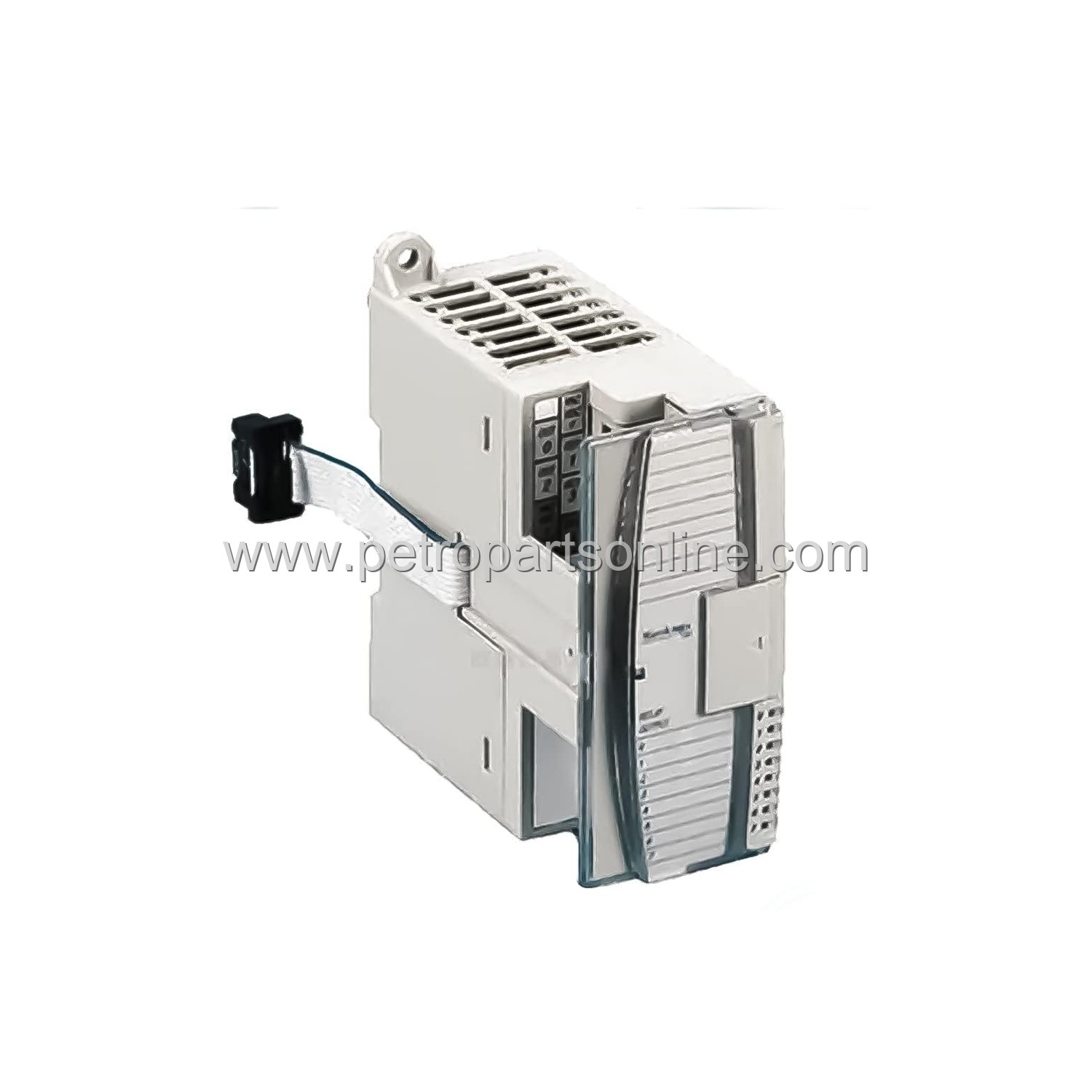

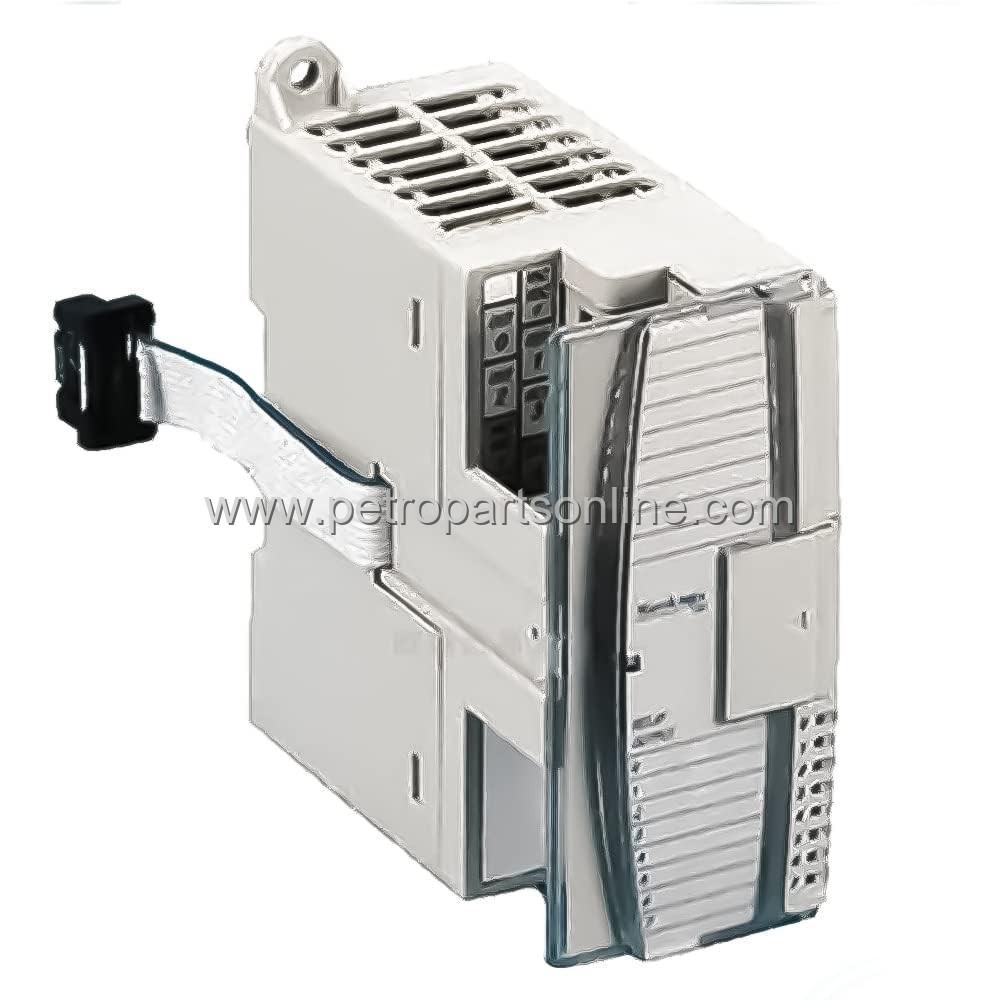

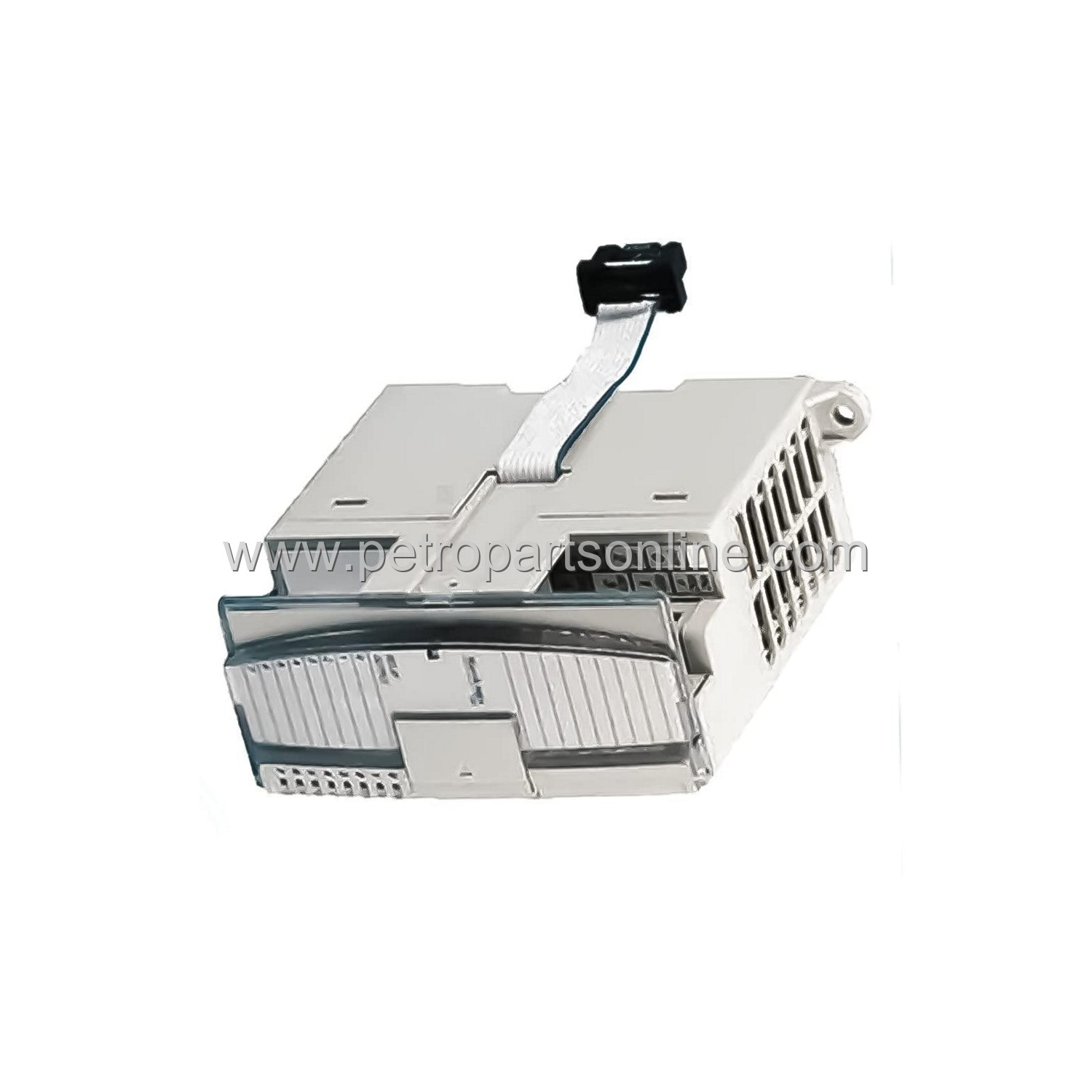

The 1762-IF2OF2 is a combination analog module from Allen-Bradley. It belongs to the MicroLogix family. This module provides two input channels and two output channels. It is a compact, reliable solution for mixed analog signal processing. The module directly interfaces with MicroLogix 1100 and 1400 controllers. It supports 0-10V and 4-20mA signal types. This module is ideal for applications requiring both sensing and control. It reduces the need for separate input and output modules. The design saves space in the control panel. It simplifies wiring and reduces overall system cost. The module is built for industrial environments. It offers robust performance and long service life. Users can configure channels individually for voltage or current. This flexibility makes it suitable for diverse automation tasks. The module communicates via the backplane of the controller. No external power supply is needed for the module itself. It draws power from the controller chassis. The module includes diagnostic LEDs for status indication. These LEDs help with quick troubleshooting. The 1762-IF2OF2 is a cost-effective choice for small to medium systems.
Application Scenarios
This module is used in many industrial automation fields. It is common in manufacturing plants. It works well for process control applications. The module can read sensor signals like pressure or temperature. It can also output control signals to valves or actuators. It is used in packaging machines for speed control. It helps in conveyor systems for monitoring and adjustment. The module supports HVAC systems for temperature regulation. It is also used in water treatment facilities. The module can monitor flow rates and adjust pumps. It is suitable for material handling equipment. It works in automotive assembly lines. The module is used in food and beverage processing. It helps in chemical mixing and dosing applications. The module is ideal for any system needing both analog input and output. It reduces component count and simplifies design. The module is also used in laboratory test setups. It provides precise signal generation and measurement. It is a versatile tool for engineers and technicians.
Technical Specifications
- Input channels: 2 differential or single-ended
- Output channels: 2 single-ended
- Input signal range: 0-10V DC, 4-20 mA
- Output signal range: 0-10V DC, 4-20 mA
- Resolution: 12 bits for input, 12 bits for output
- Update rate: 20 ms per channel
- Backplane current: 5V at 80 mA
- Operating temperature: 0 to 55 °C
- Storage temperature: -40 to 85 °C
- Relative humidity: 5% to 95% non-condensing
- Module location: any slot in MicroLogix 1100 or 1400
- Wiring: removable terminal block
- Approvals: UL, CSA, CE
- Dimensions: 90 x 87 x 40 mm
- Weight: 0.3 kg
Installation & Maintenance Guide
Install the module in any available slot of the controller. Ensure the controller power is off before installation. Align the module with the guide rails. Push firmly until it clicks into place. Connect the terminal block for wiring. Use shielded cable for analog signals. Keep signal wires away from high-voltage lines. Configure the module using the controller software. Set each channel for voltage or current. Calibrate the module if needed. For maintenance, regularly inspect connections. Clean the module with a dry cloth. Check for LED status indicators. Replace the module if it fails diagnostics. Follow all local safety codes during installation. Refer to the user manual for detailed instructions. The module does not require periodic recalibration. It is designed for long-term stability. Keep spare modules for critical systems. Store modules in a static-free environment. Use proper grounding techniques. Ensure the controller firmware is up to date.
Frequently Asked Questions (FAQ)
What is the primary function of 1762-IF2OF2?
The module provides two analog inputs and two analog outputs for MicroLogix controllers. It allows the system to read sensors and control actuators.
Which controllers are compatible with this module?
The module works with Allen-Bradley MicroLogix 1100 and 1400 programmable controllers. It cannot be used with other controller families.
What signal types does the module support?
It supports 0-10V DC and 4-20 mA for both input and output channels. Each channel can be configured independently.
How do I install the module in a MicroLogix system?
Turn off the controller power. Slide the module into an empty slot until it locks. Connect the wiring terminal block and configure via software.
What is the resolution of the analog channels?
The module uses 12-bit resolution for both input and output channels. This provides 4096 steps for precise signal measurement and generation.
