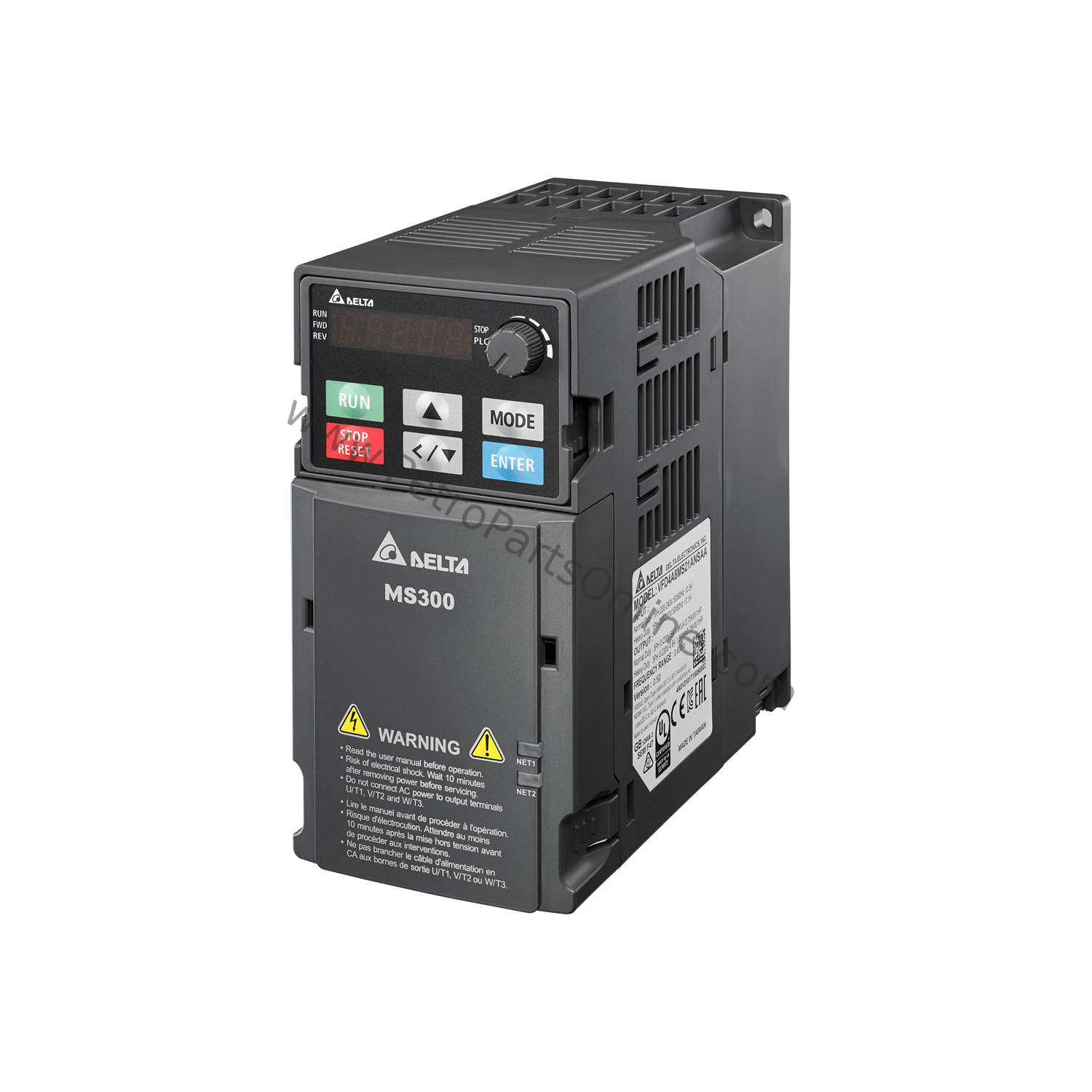

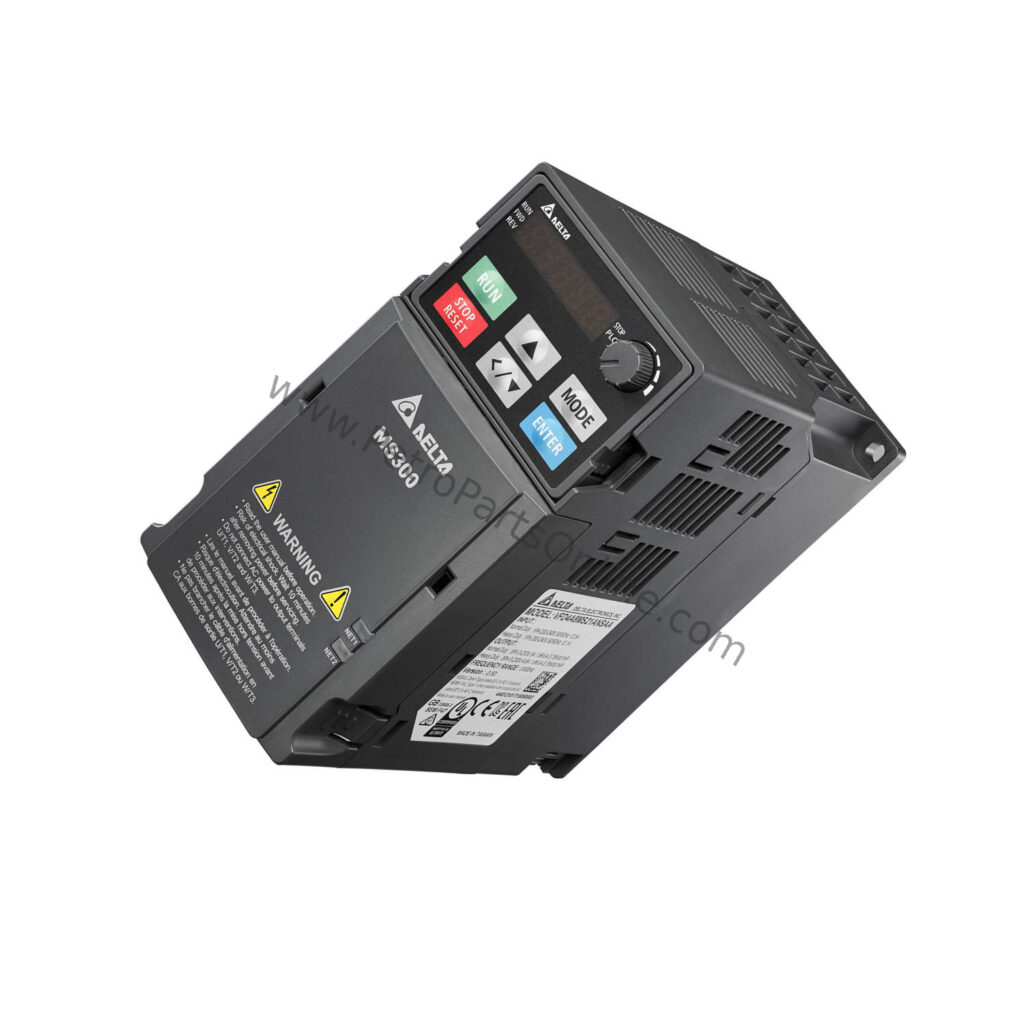

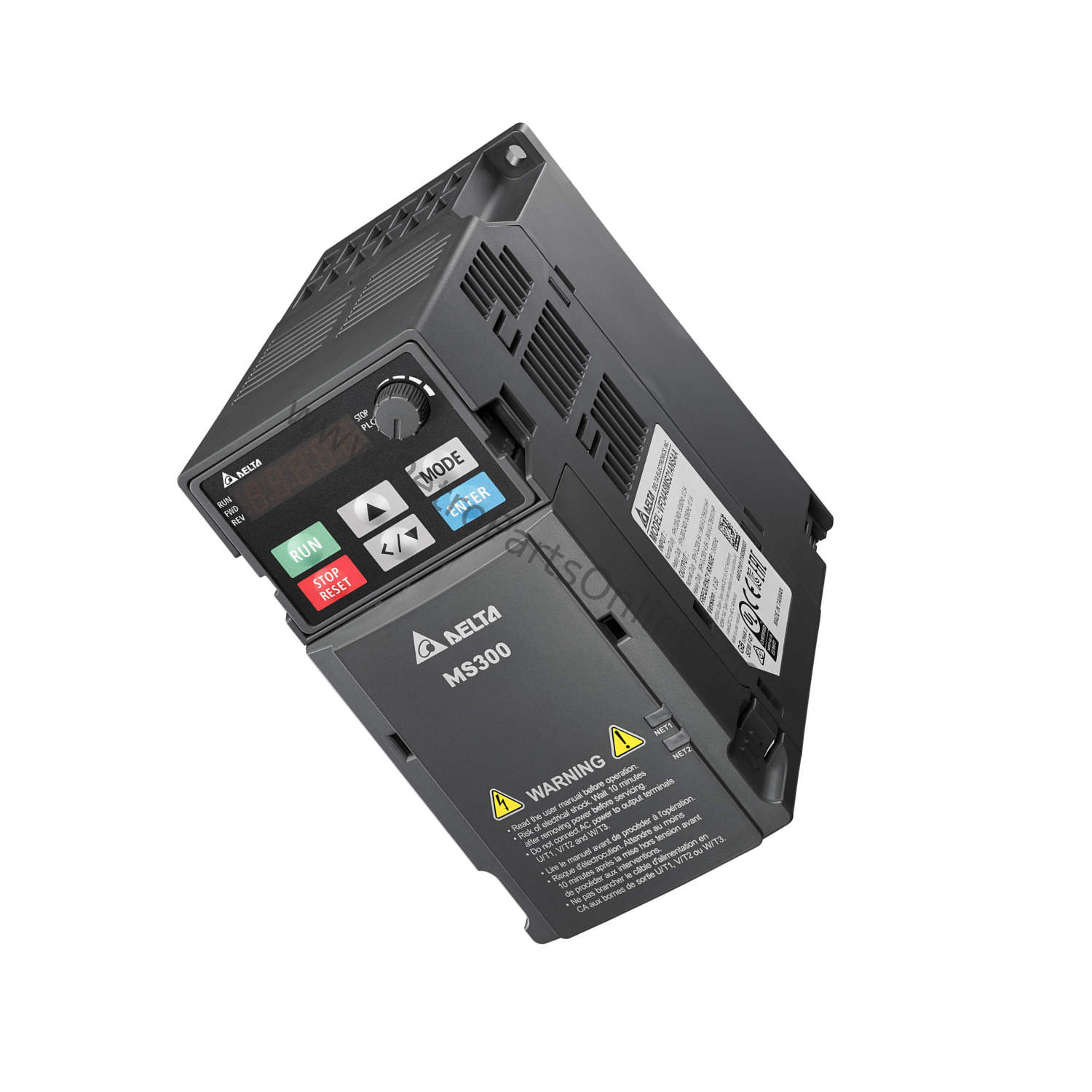

Introduction to the VFD1A7MS53ANSAA

When your application demands precise motor control and robust performance, the VFD1A7MS53ANSAA from Delta delivers. This VFD-MS300 series drive is rated for 1HP (0.75kW) at 575V, with a heavy-duty current of 1.7A. It supports three-phase input and offers an IP20 enclosure, making it suitable for a range of industrial environments. As part of the trusted MS300 family, this drive is engineered to provide reliable operation up to 599Hz.

Key Features & Technical Specs

• The VFD1A7MS53ANSAA supports Volt/Hertz, sensorless vector, and closed loop vector control modes.
• It features 11 digital inputs (4 dedicated, 7 programmable) and 3 analog inputs for flexible configuration.
• Outputs include 4 digital, 1 analog, and 1 digital frequency output for comprehensive signal handling.
• An RS-485 communication port with standard Modbus RTU and ASCII protocols enables easy integration.
• Built-in dynamic braking transistors are included for models up to 15HP, enhancing stopping performance.

Industry Applications & Use Cases

In manufacturing, the VFD1A7MS53ANSAA excels at controlling conveyors, pumps, and fans. Its programmable output current (up to 120% of nominal capacity) allows for handling short-term overloads. For high-speed applications, the drive supports frequencies from 0 to 2000Hz, making it ideal for spindle drives and centrifuges. The closed loop vector control mode ensures accurate speed regulation in demanding processes.

Installation & Setup Guidance

Mount the VFD1A7MS53ANSAA in a clean, dry location with adequate ventilation. Ensure the input voltage matches the 575V rating and that three-phase power is available. Connect the motor leads to the output terminals, and wire the control signals according to your application needs. For RS-485 communication, use twisted-pair cable and set the correct node address and baud rate via the drive parameters.

Maintenance & Reliability Tips

Regularly inspect the VFD1A7MS53ANSAA for dust buildup on the heatsink and fan. Check all wiring connections for tightness and signs of wear. The IP20 enclosure protects against solid objects, but avoid exposure to moisture or conductive dust. Following these steps helps extend the drive's service life and maintain reliable operation.

Compatibility & Integration

The VFD1A7MS53ANSAA integrates seamlessly with PLCs and HMIs via its RS-485 port using Modbus RTU or ASCII. It accepts both digital and analog control signals, making it compatible with a wide range of sensors and controllers. For advanced applications, the programmable inputs and outputs allow custom logic without external hardware.

Frequently Asked Questions

Q: What is the maximum output frequency of the VFD1A7MS53ANSAA?

A: The drive supports a maximum output frequency of 599Hz as standard, with programmable options up to 2000Hz for high-speed applications.

Q: Does the VFD1A7MS53ANSAA support closed loop vector control?

A: Yes, it offers closed loop vector control, along with Volt/Hertz and sensorless vector modes for versatile motor control.

Q: What communication protocols are available on this drive?

A: The VFD1A7MS53ANSAA includes an RS-485 port supporting Modbus RTU and ASCII protocols.

Q: How many analog inputs does the VFD1A7MS53ANSAA have?

A: It has 3 analog inputs for speed reference or process feedback signals.

Q: Is the VFD1A7MS53ANSAA suitable for constant torque applications?

A: Yes, all VFD-B drives are constant torque rated, making this model appropriate for conveyors, mixers, and other constant torque loads.

Product Support & Availability

The VFD1A7MS53ANSAA is in stock and ready to ship from PetroPartsOnline. As a trusted supplier of industrial automation and oil/gas parts, we ensure fast delivery and reliable support. Contact our team for assistance with specifications or ordering.
