TM221C24R | Schneider Modicon Controller Supplier
Introduction:

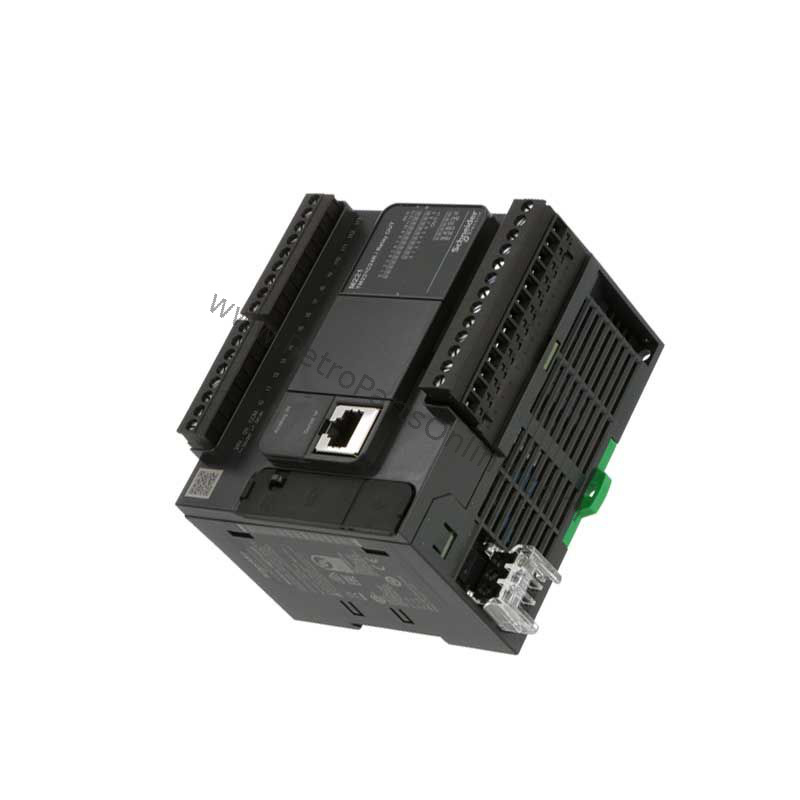

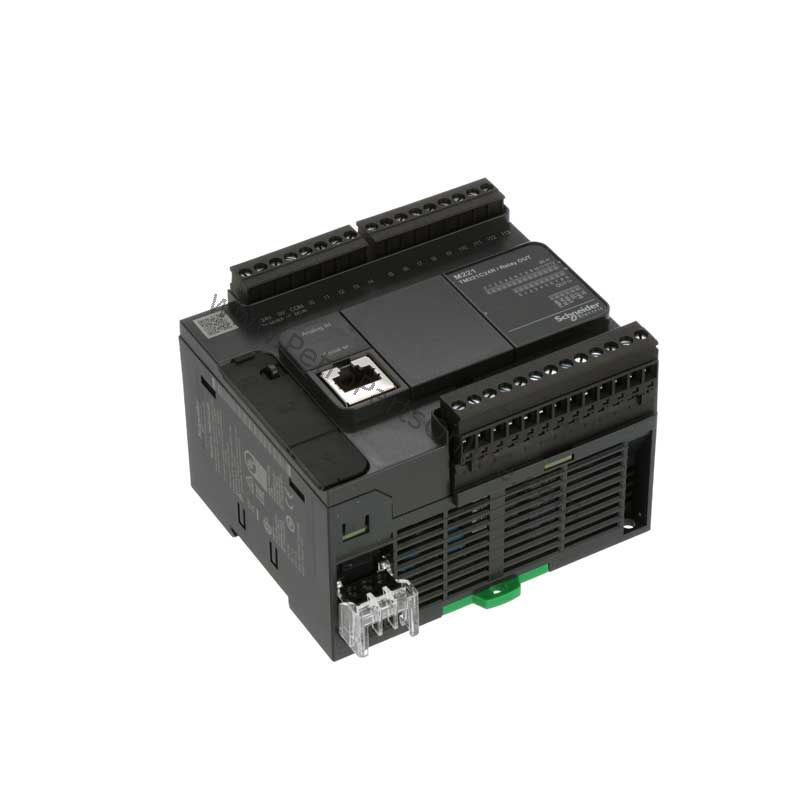

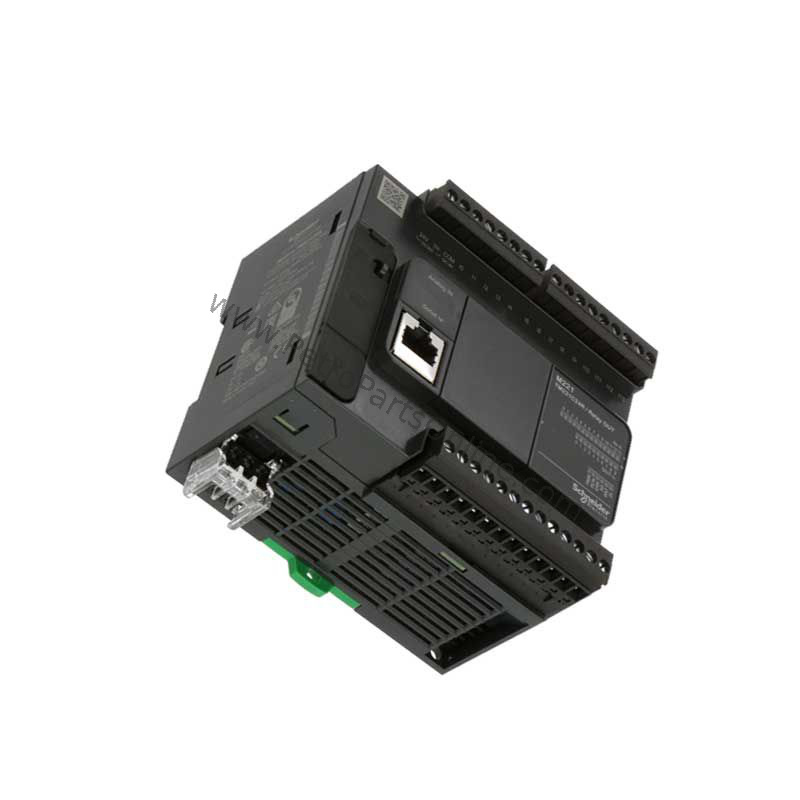

The TM221C24R from Schneider Electric is a compact Modicon controller with 14 digital inputs, 10 relay outputs, and 2 analog inputs, ideal for versatile automation tasks.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Introduction to the TM221C24R
When your control system demands reliable performance in a compact footprint, the TM221C24R from Schneider Electric delivers. Part of the Modicon product line, this controller is engineered for a wide range of automation applications. It operates on a 24 V DC power supply, making it suitable for industrial environments where stable DC power is standard. With a 32-bit processor and a processing speed of 22 ns per instruction, the TM221C24R handles logic tasks efficiently.
Key Features and Technical Specifications
The TM221C24R offers a balanced set of I/O options to meet diverse control needs. Here are the core specifications:
- 14 digital inputs for connecting sensors and switches.
- 10 relay-type digital outputs for controlling actuators and loads.
- 2 analog inputs (0-10V) for reading voltage signals.
- Built-in real-time clock for time-stamping and scheduling.
- 256 kB program memory and 64 kB retention memory for data storage.
- Supports additional I/O modules for system expansion.
- DIN rail mounting simplifies installation in control cabinets.
- Operating temperature range of -10°C to 55°C for varied environments.
One distinctive feature is the combination of relay outputs and analog inputs. This allows the controller to switch higher-power loads while also monitoring analog sensors, reducing the need for separate modules. Consequently, the TM221C24R can streamline your control panel design and lower overall system cost.
Applications and Use Cases
In manufacturing lines, the TM221C24R can manage conveyor systems, using its digital inputs to detect part presence and relay outputs to drive motor contactors. For building automation, the analog inputs can read temperature or pressure sensors, while the relay outputs control fans or pumps. Moreover, because the controller supports expansion modules, you can adapt it to growing application requirements without replacing the base unit. Therefore, the TM221C24R serves as a flexible foundation for many industrial control projects.
Installation and Setup
Mounting the TM221C24R is straightforward with its DIN rail clip. Ensure the power supply provides clean 24 V DC within the specified range. When wiring digital inputs, follow standard practices for connecting sensors, and for relay outputs, observe proper contact ratings to avoid overloading. The analog inputs accept 0-10V signals, so verify that your sensors match this range. Additionally, plan your I/O layout to simplify troubleshooting and maintenance. For detailed wiring diagrams, consult the official Schneider Electric documentation.
Maintenance and Reliability
To maintain long-term reliability, periodically inspect the controller for dust accumulation and ensure adequate ventilation around the unit. Because the operating temperature range is -10°C to 55°C, avoid placing the controller near heat sources or in direct sunlight. Relay outputs have a finite mechanical life, so consider cycle counts in high-frequency applications. Regular checks of connections and terminal tightness can prevent intermittent faults. By following these simple practices, you can extend the service life of the TM221C24R and minimize downtime.
Compatibility and Integration
The TM221C24R is part of the Modicon family, which means it integrates with Schneider Electric's ecosystem of automation products. It supports additional I/O modules, allowing you to expand I/O count as needed. For programming and configuration, use Schneider Electric's software tools, which are designed to work seamlessly with Modicon controllers. Although specific communication protocols are not listed in the provided data, the controller's expansion capability suggests flexibility for various industrial networks. For detailed compatibility information, refer to the official datasheet or contact PetroPartsOnline.
Troubleshooting Common Issues
If the controller fails to power up, first verify the 24 V DC supply is present and within tolerance. Check for blown fuses or tripped circuit breakers. For digital inputs that do not respond, confirm that the sensor wiring matches the input specifications. Relay outputs that do not energize may indicate a worn relay or an incorrect load connection. Analog readings that are inaccurate could stem from signal wiring issues or sensor calibration. Always consult the user manual for specific diagnostic procedures. If problems persist, contact PetroPartsOnline for technical support.
FAQs about the TM221C24R
Q: What is the power supply requirement for the TM221C24R?
A: The TM221C24R requires a 24 V DC power supply.
Q: How many digital inputs and outputs does the TM221C24R have?
A: It has 14 digital inputs and 10 relay-type digital outputs.
Q: Does the TM221C24R have analog input capabilities?
A: Yes, it includes 2 analog inputs that accept 0-10V signals.
Q: What is the processing speed of the TM221C24R?
A: The processing speed is 22 ns per instruction.
Q: Can the TM221C24R be expanded with additional I/O?
A: Yes, it supports additional I/O modules for expansion.
Q: What is the operating temperature range for the TM221C24R?
A: The operating temperature range is -10°C to 55°C.
Product Support and Availability
The TM221C24R is available through PetroPartsOnline, a trusted supplier of industrial automation components. We maintain stock to ensure prompt delivery for your projects. For lifecycle status and availability, please contact our sales team. We are ready to assist with your order and provide any additional information you may need.
