Product Overview

Module Design and Output Configuration

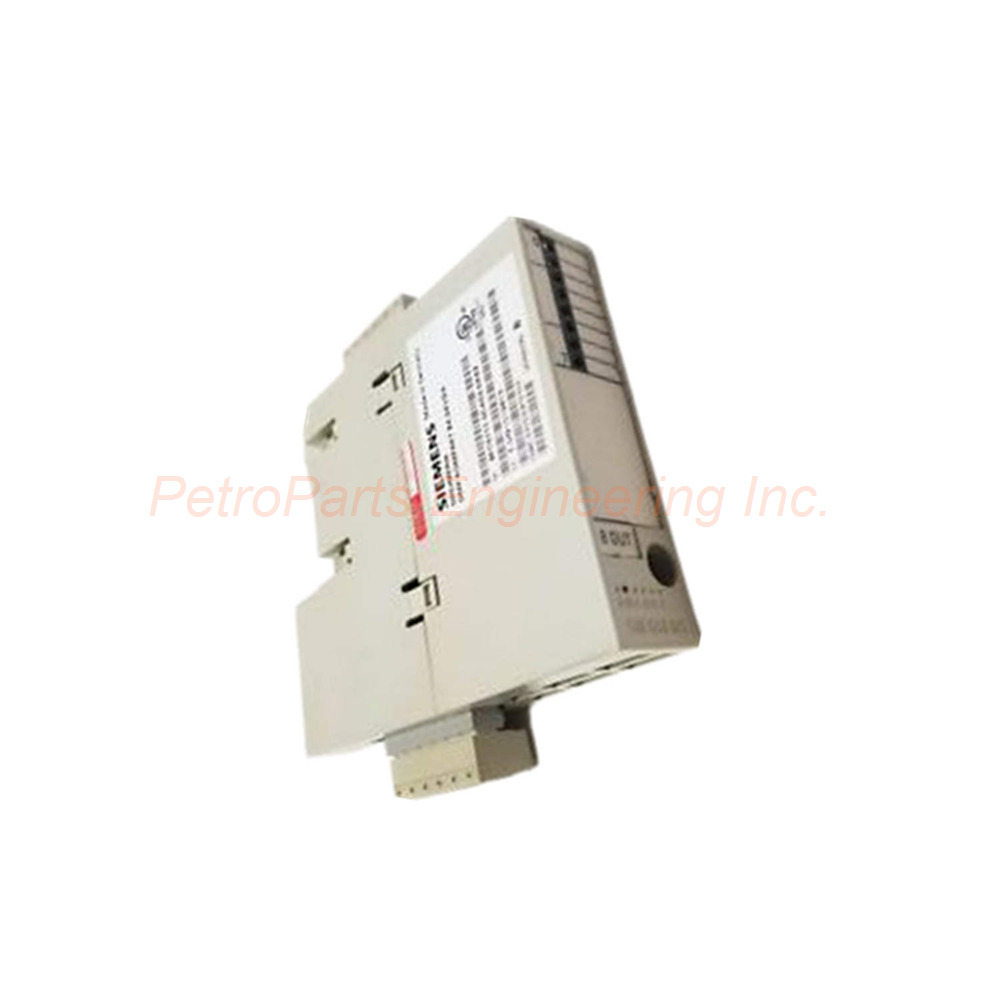

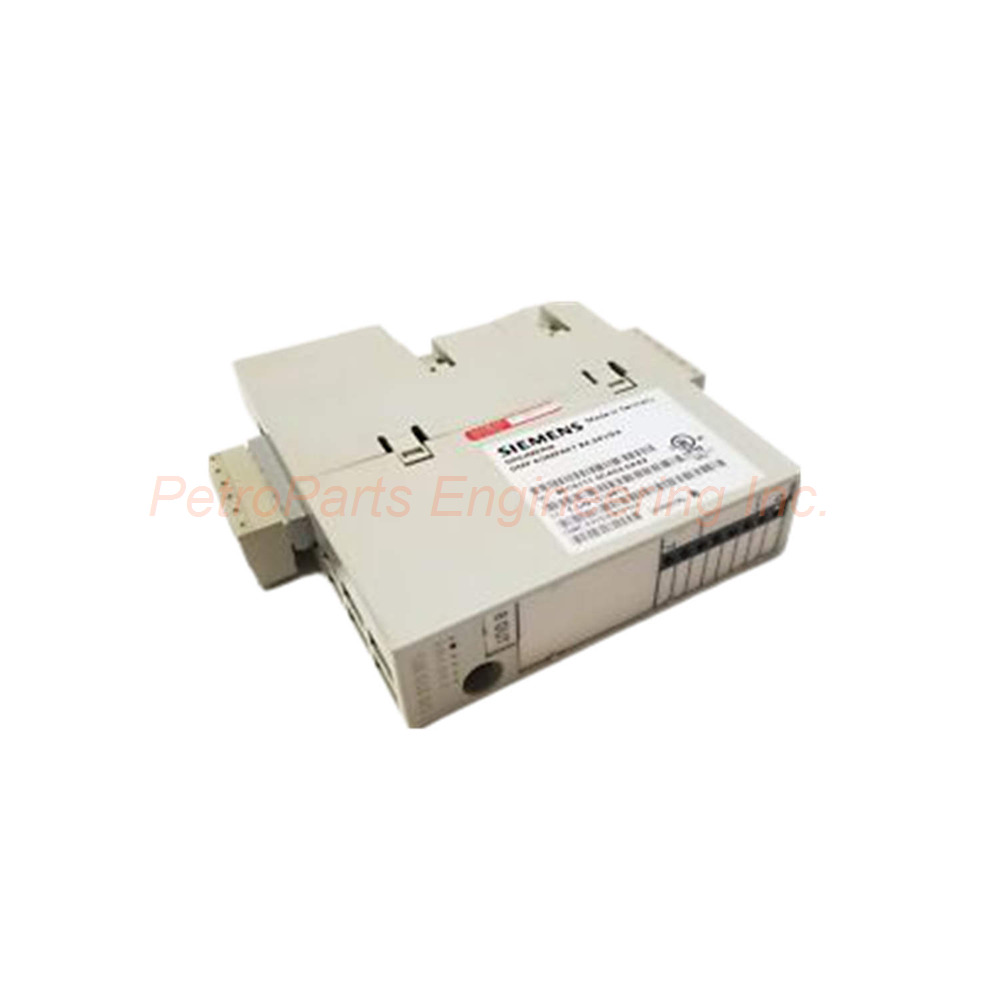

The Siemens 6FC5111-0CA03-0AA2 is an output module designed for reliable operation in diverse applications. Therefore, this module sits within the I/O Modules series for industrial control systems. It features eight outputs, each rated at 24 V DC. Consequently, the 6FC5111-0CA03-0AA2 provides ample channels for driving various field devices. Each output can deliver up to 2 A of current for efficient device control.

Output Type and Isolation

The 6FC5111-0CA03-0AA2 features floating and isolated outputs for each channel. Therefore, it ensures reliable signal transmission in various industrial applications. The isolation prevents ground loops and electrical interference between channels. Consequently, the module maintains signal integrity even in noisy environments. This design suits applications requiring high reliability and noise immunity.

Protection and Load Management

The integrated short-circuit protection mechanism safeguards the module during adverse conditions. Therefore, the 6FC5111-0CA03-0AA2 prevents damage from output overloads or faults. The freewheeling diodes assist in managing inductive loads effectively. Consequently, the module safely drives solenoids, relays, and contactors without voltage spikes.

Technical Specifications

General Specifications

• Manufacturer: Siemens

• Product Type: Output Module

• Product Line: I/O Modules

• Part Number: 6FC5111-0CA03-0AA2

• EAN: 4025515006084

• Mounting Type: Panel mount

• Environmental Protection: IP20

Output Specifications

The Siemens 6FC5111-0CA03-0AA2 provides robust output capabilities for industrial control.

Protection Features

• Short-Circuit Protection: Yes (integrated)

• Freewheeling Diode: Integrated for inductive load management

• Output Isolation: Floating and isolated design

Environmental Specifications

• Temperature Range: 0°C to +50°C

• Protection Class: IP20 (suitable for controlled environments)

Physical Specifications

• Weight: 0.45 kg

Installation Guide

Follow these steps to install the Siemens 6FC5111-0CA03-0AA2 correctly.

1. Power Down System: First, disconnect power from the control system completely.

2. Mount Module: Next, secure the 6FC5111-0CA03-0AA2 to the control panel using appropriate hardware.

3. Connect Power Supply: Then, wire the 24 V DC power to the module terminals.

4. Wire Outputs: After that, connect each output to the corresponding field device.

5. Verify Isolation: Meanwhile, confirm that outputs remain isolated from each other.

6. Restore Power: Finally, reapply power and test each output channel.

The 6FC5111-0CA03-0AA2 requires careful attention to load limits. Therefore, do not exceed 2 A per output channel. In addition, ensure ambient temperature stays between 0°C and 50°C. Consequently, proper installation ensures reliable output switching and long module life.

Package List

The package includes the following physical items.

• Siemens 6FC5111-0CA03-0AA2 output module (1 piece)

• Product label with part number and specifications

• Anti-static protective bag for safe transport

Note: Panel mounting hardware is not included. Field wiring and terminal blocks are sold separately. No configuration software is provided with this module.

Frequently Asked Questions (FAQ)

1. How many outputs does the 6FC5111-0CA03-0AA2 have?

The Siemens 6FC5111-0CA03-0AA2 features eight outputs. Therefore, it provides ample channels for controlling multiple field devices. Each output operates independently at 24 V DC. Consequently, the module suits applications requiring numerous digital output points.

2. What is the maximum current per output channel?

The Siemens 6FC5111-0CA03-0AA2 delivers up to 2 A per output channel. Therefore, the module can drive solenoids, relays, and small motors directly. Do not exceed this rating to avoid damage. Consequently, size your loads accordingly for reliable operation.

3. Are the outputs isolated on the 6FC5111-0CA03-0AA2?

Yes, the Siemens 6FC5111-0CA03-0AA2 features floating and isolated outputs. Therefore, each output is electrically separate from the others. This design prevents ground loops and crosstalk between channels. Consequently, the module suits applications requiring high noise immunity.

4. What protection features does the 6FC5111-0CA03-0AA2 include?

The Siemens 6FC5111-0CA03-0AA2 includes integrated short-circuit protection. Therefore, the module safeguards itself during output faults or overloads. It also features freewheeling diodes for inductive load management. Consequently, the module safely drives relays, contactors, and solenoids without external suppression.

5. What is the operating temperature range of this module?

The Siemens 6FC5111-0CA03-0AA2 operates between 0°C and 50°C (32°F to 122°F). Therefore, the module suits typical indoor industrial environments. For storage, follow standard electronic component guidelines. Consequently, avoid installing the unit in extreme temperature locations without additional cooling.

6. What is the IP rating of the 6FC5111-0CA03-0AA2?

The Siemens 6FC5111-0CA03-0AA2 has an IP20 protection class. Therefore, the module provides adequate protection against dust and debris in controlled environments. This rating suits installation inside control cabinets only. Consequently, do not expose the module to water or outdoor conditions.

7. How much current does the 6FC5111-0CA03-0AA2 consume?

The Siemens 6FC5111-0CA03-0AA2 consumes only 40 mA of current for its internal operation. Therefore, the module uses energy efficiently while driving outputs. This low consumption minimizes load on the system power supply. Consequently, you can install multiple modules without overloading the power budget.
