Product Overview

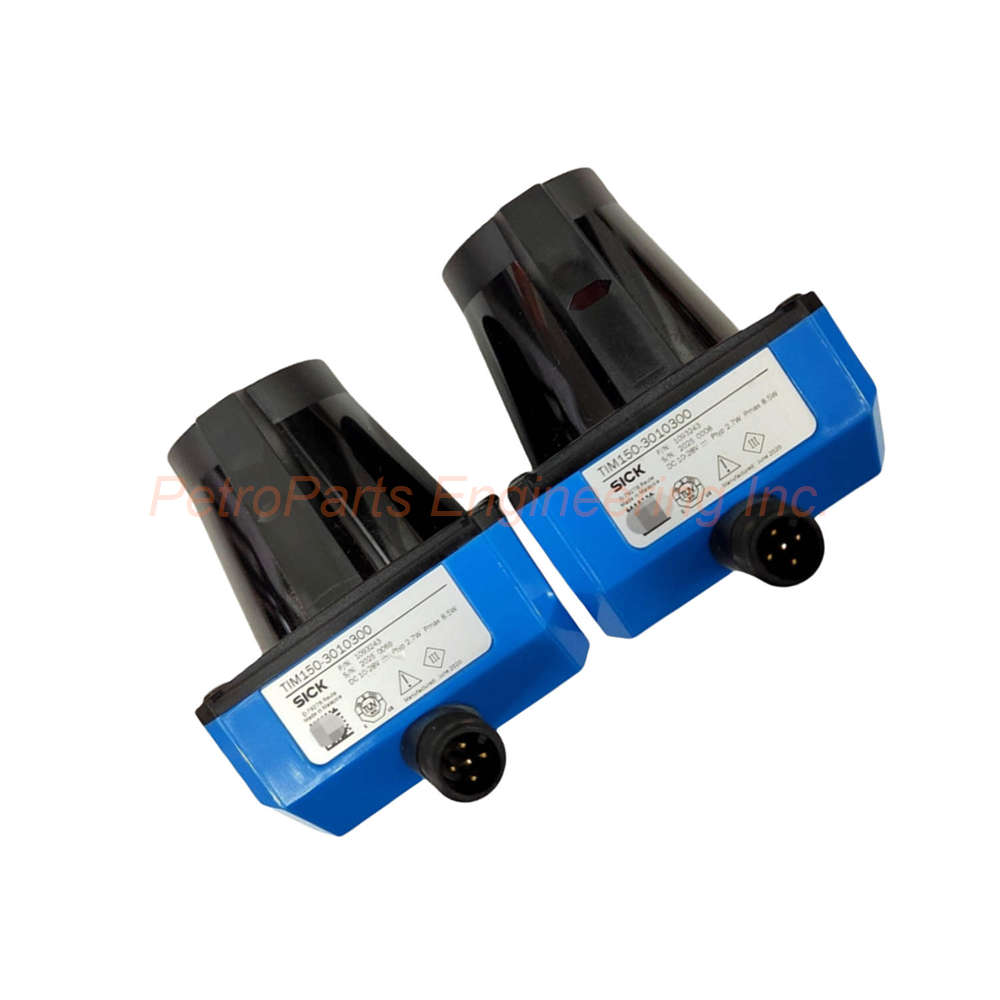

The SICK TIM150-3010300 belongs to the TiM 2D family of LiDAR sensors. This sensor provides cost effective environmental perception for indoor applications. The SICK TIM150-3010300 uses infrared laser class 1 for safe operation. You get a 200 degree horizontal aperture angle for wide coverage. The sensor has a compact and lightweight design at only 122 grams. The SICK TIM150-3010300 communicates via IO-Link for easy integration.

Technical Specifications

The SICK TIM150-3010300 delivers reliable 2D scanning for indoor monitoring tasks. All parameters follow the official datasheet.

Scanning Performance

• Application: Indoor

• Measurement principle: HDDM+ (High Definition Distance Measurement)

• Light source: Infrared at 850 nm

• Laser class: Class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)

• Horizontal aperture angle: 200 degrees

• Scanning frequency: 14.5 Hz

• Horizontal angular resolution: 1 degree

• Working range: 0.05 meters to 10 meters

• Scanning range at 10% remission: 2.8 m to 3 m (depending on angle)

System Accuracy & Error

• Systematic error: ± 40 mm

• Statistical error: 30 mm

• Response time: Typ. 70 ms

• Detectable object shape: Almost any

• Number of field sets: 1 field set

• Simultaneous evaluation cases: 1 (2 fields)

Interfaces

• IO-Link: Yes, for service interface and parameterization

• Digital inputs: 1

• Digital outputs: 2 (push-pull)

• Delay time: 69 ms to 30,015 ms (configurable)

• Dwell time: 69 ms to 30,015 ms (configurable)

• Optical indicators: 2 LEDs (ON, switching status)

Electrical & Mechanical Specifications

• Connection type: 1 x 5-pin M12 male device connector (rotatable)

• Supply voltage: 10 V DC to 28 V DC

• Typical power consumption: 2.7 W

• Output current: ≤ 100 mA

• Housing color: Light blue (RAL 5012)

• Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)

• Protection class: III (IEC 61140:2016-1)

• Weight: 122 g without connecting cables

• Dimensions (L x W x H): 60 mm x 60 mm x 75.8 mm

• MTBF: 82 years

Environmental Specifications

• Object remission: 4 percent to 1,000 percent (reflectors)

• EMC compliance: IEC 61000-6-3:2006+AMD1:2010 / IEC 61000-6-2:2005

• Vibration resistance: Sine resonance scan 10 Hz to 1,000 Hz

• Sine test: 10 Hz to 150 Hz, 1 g, 1 frequency cycle

• Noise test: 10 Hz to 200 Hz, 5 g RMS, 2 hours

• Ambient operating temperature: -10°C to +50°C

• Storage temperature: -30°C to +70°C

• Permissible relative humidity: ≤ 95 percent, non-condensing

• Ambient light immunity: 30,000 lx

Important Note

The SICK TIM150-3010300 does not constitute a safety component. It is not certified for machine safety applications under relevant legislation.

Installation Guide

Follow these steps to install the SICK TIM150-3010300 correctly.

1. Mount the sensor on a stable bracket at the desired height.

2. Connect the rotatable M12 5-pin male connector to your system.

3. Apply 10 to 28 V DC power to the SICK TIM150-3010300.

4. Configure the IO-Link interface for parameterization and service.

5. Set the delay and dwell times between 69 ms and 30,015 ms as needed.

6. Verify the two LEDs show correct ON and switching status.

7. Test the detection range at various remission percentages.

Packing List

This package for the SICK TIM150-3010300 includes the following items.

• SICK TIM150-3010300 2D LiDAR sensor (one unit)

• Rotatable M12 5-pin male device connector

• Product documentation and quick start guide

• Mounting bracket kit

Frequently Asked Questions (FAQ)

1. What is the scanning range of the SICK TIM150-3010300?
The SICK TIM150-3010300 has a working range from 0.05 to 10 meters. At 10 percent remission, the range is 2.8 to 3 meters depending on angle.

2. What is the aperture angle of the TIM150-3010300?
The SICK TIM150-3010300 scans 200 degrees horizontally. This wide angle provides excellent coverage for indoor monitoring applications.

3. Can the SICK TIM150-3010300 be used outdoors?
The SICK TIM150-3010300 is designed for indoor use only. The operating temperature range is -10°C to +50°C with IP65 protection.

4. What communication protocol does the TIM150-3010300 use?
The SICK TIM150-3010300 uses IO-Link for service interface and parameterization. It provides 1 digital input and 2 digital outputs.

5. What is the laser class of the SICK TIM150-3010300?
The SICK TIM150-3010300 is laser class 1. It complies with IEC 60825-1:2014 and EN 60825-1:2014+A11:2021 for eye safe operation.
