Schneider Electric BMEP58CPROS3 Safety Coprocessor Overview

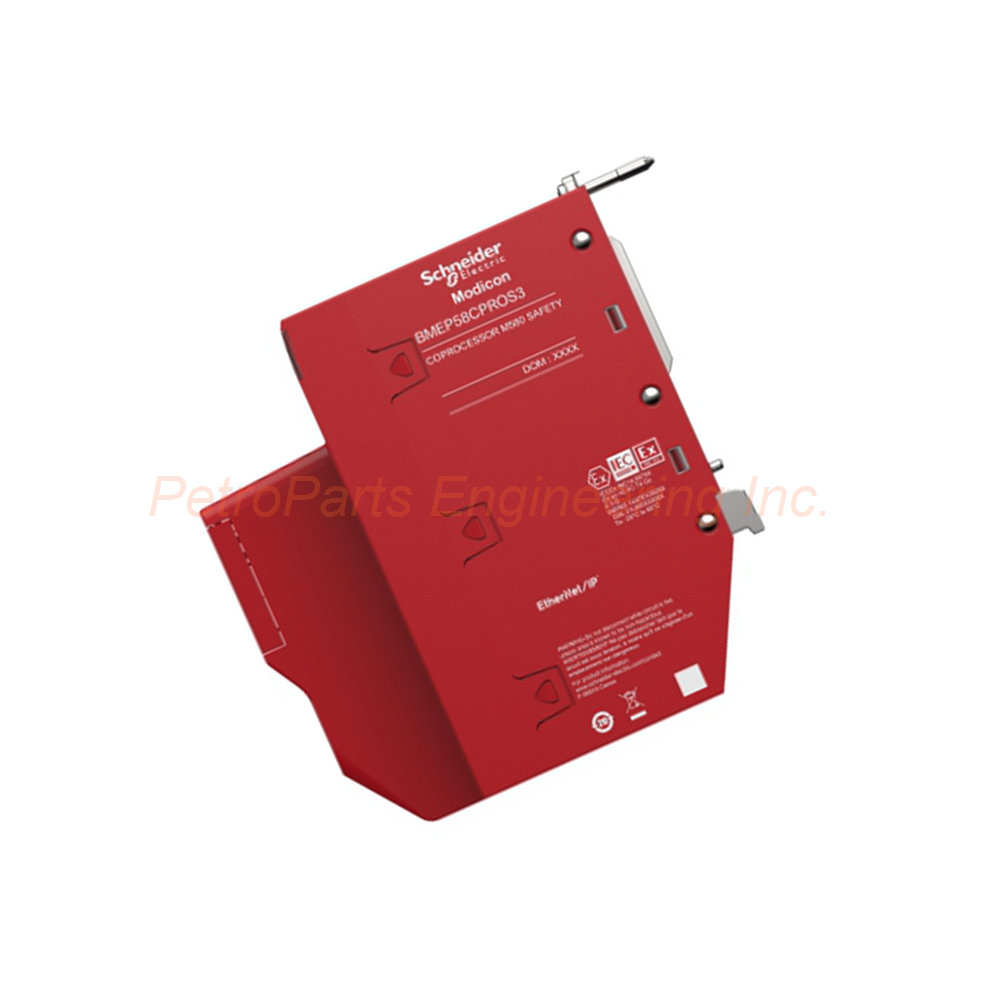

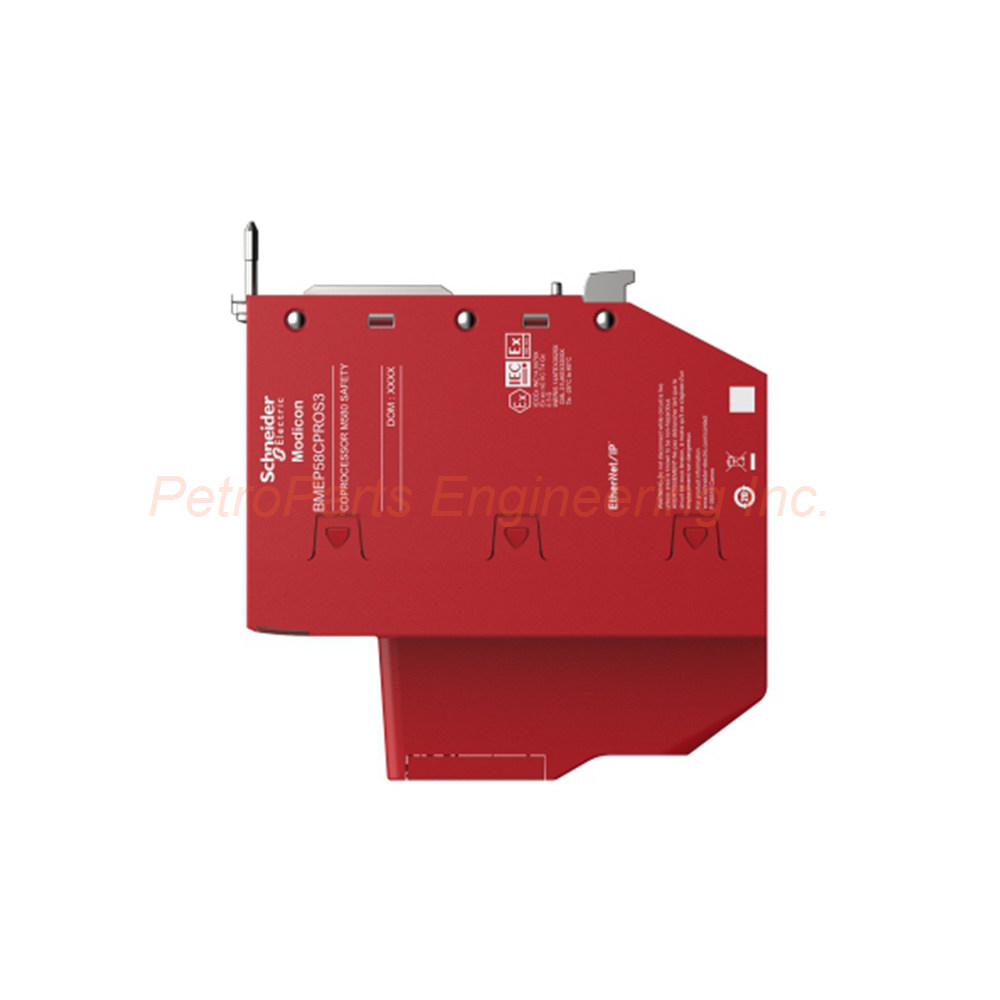

The Schneider Electric BMEP58CPROS3 is a standalone safety coprocessor for Modicon M580 systems. This processor module achieves Safety Integrity Level SIL3 for critical applications. The Schneider Electric BMEP58CPROS3 also meets Performance Level PL=e according to safety standards. It uses internal power supply via the rack for simple installation. This safety coprocessor features conformal coating for harsh environment protection. The Schneider Electric BMEP58CPROS3 has an MTBF reliability of 946,000 hours for high availability. It carries TÜV certification for functional safety compliance.

Technical Specifications

General Specifications

• Range of Product: Modicon M580.

• Product Type: Processor module (standalone safety coprocessor).

• Supply: Internal power supply via rack.

• Safety Level: SIL3 and PL=e.

• MTBF Reliability: 946,000 hours.

• Marking: CE.

• IP Degree of Protection: IP20.

• Protective Treatment: Conformal coating.

Current Consumption

• Current Consumption: 295 mA at 24 V DC.

Status LEDs

The Schneider Electric BMEP58CPROS3 provides the following status indicators:

• 1 LED (green): Processor running (RUN)

• 1 LED (red): Processor or system fault (ERR)

• 1 LED (green): Download in progress (DL)

• 1 LED (green): Processor in safety mode (SRUN)

• 1 LED (green): Processor in maintenance mode (SMOD)

Environmental Specifications

• Vibration Resistance: 3 gn.

• Shock Resistance: 15 gn.

• Ambient Air Temperature for Operation: -25°C to 60°C.

• Ambient Air Temperature for Storage: -40°C to 85°C.

• Operating Altitude: 0 to 2000 meters; 2000 to 5000 meters with derating factor.

• Relative Humidity: 5% to 95% at 55°C without condensation.

• IP Degree of Protection: IP20.

Directives Compliance

• 2014/30/EU (Electromagnetic Compatibility)

• 2006/42/EC (Machinery Directive)

• 2014/34/EU (ATEX Directive)

Product Certifications

The Schneider Electric BMEP58CPROS3 holds the following certifications:

• CE

• UL

• CSA

• RCM

• EAC

• Merchant Navy

• ATEX zone 2/22

• IECEx zone 2/22

• TÜV

Standards Compliance

• EN/IEC 61131-2

• EN/IEC 61010-2-201

• UL 61010-2-201

• CSA C22.2 No 61010-2-201

• IACS E10

• EN/IEC 61000-6-5 (interface type 1 and type 2)

• EN/IEC 61850-3 (location G)

• EN/IEC 60079-0

Environmental Characteristics

• Hazardous Location: Class I Division 2

• Gas Resistant: Class Gx according to ISA S71.04

• Gas Resistant: Class 3C4 according to IEC 60721-3-3

• Dust Resistant: Class 3S4 according to IEC 60721-3-3

• Sand Resistant: Class 3S4 according to IEC 60721-3-3

• Salt Resistant: Level 2 according to IEC 68252

• Mold Growth Resistant: Class 3B2 according to IEC 60721-3-3

• Fungal Spore Resistant: Class 3B2 according to IEC 60721-3-3

Physical Specifications

• Net Weight: 0.849 kg.

• Gross Weight: 0.843 kg (with packaging).

Packaging Specifications

• Unit Type of Package 1: PCE.

• Number of Units in Package 1: 1.

• Package 1 Height: 8.700 cm.

• Package 1 Width: 17.900 cm.

• Package 1 Length: 25.200 cm.

• Package 1 Weight: 843.000 g.

• Unit Type of Package 2: S03.

• Number of Units in Package 2: 6.

• Package 2 Height: 30.000 cm.

• Package 2 Width: 30.000 cm.

• Package 2 Length: 40.000 cm.

• Package 2 Weight: 5.452 kg.

Installation Guide

Follow these steps to install the Schneider Electric BMEP58CPROS3 correctly:

1. Turn off all power to the Modicon M580 rack before installation.

2. Insert the Schneider Electric BMEP58CPROS3 into the designated processor slot on the rack.

3. Secure the module using the locking mechanism on the rack.

4. Connect the 24 V DC power supply to the rack backplane.

5. Verify all five LED indicators illuminate appropriately during startup.

6. Configure the safety parameters using your engineering software.

7. Test the safety functions at SIL3 level before system operation.

8. Monitor the SRUN LED to confirm the Schneider Electric BMEP58CPROS3 is in safety mode.

Packaging List

• Schneider Electric BMEP58CPROS3 safety coprocessor module (1 unit)

• Anti-static protective bag (1 piece)

• Installation manual (1 copy)

• Product label with model number

• Safety certification documentation (1 copy)

Frequently Asked Questions (FAQ)

1. What safety level does the BMEP58CPROS3 achieve?
The Schneider Electric BMEP58CPROS3 achieves Safety Integrity Level SIL3 and Performance Level PL=e.

2. What is the operating temperature range of this safety coprocessor?
This processor module operates from -25°C to 60°C for demanding industrial environments.

3. Is the BMEP58CPROS3 approved for hazardous locations?
Yes, this module has ATEX zone 2/22, IECEx zone 2/22, and Class I Division 2 certifications.

4. What is the MTBF reliability of the Schneider Electric BMEP58CPROS3?
The MTBF reliability is 946,000 hours for high system availability.

5. Does the BMEP58CPROS3 have conformal coating?
Yes, the Schneider Electric BMEP58CPROS3 includes conformal coating for protection against harsh environments.
