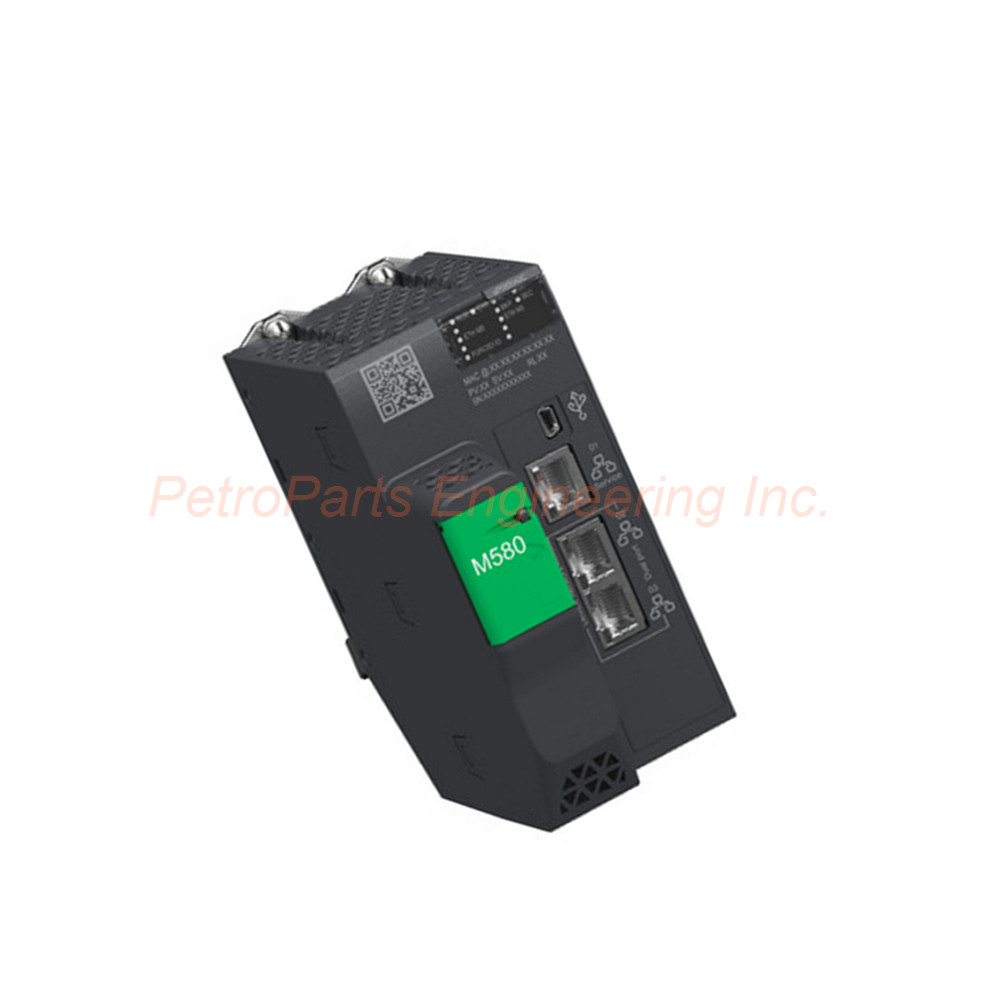

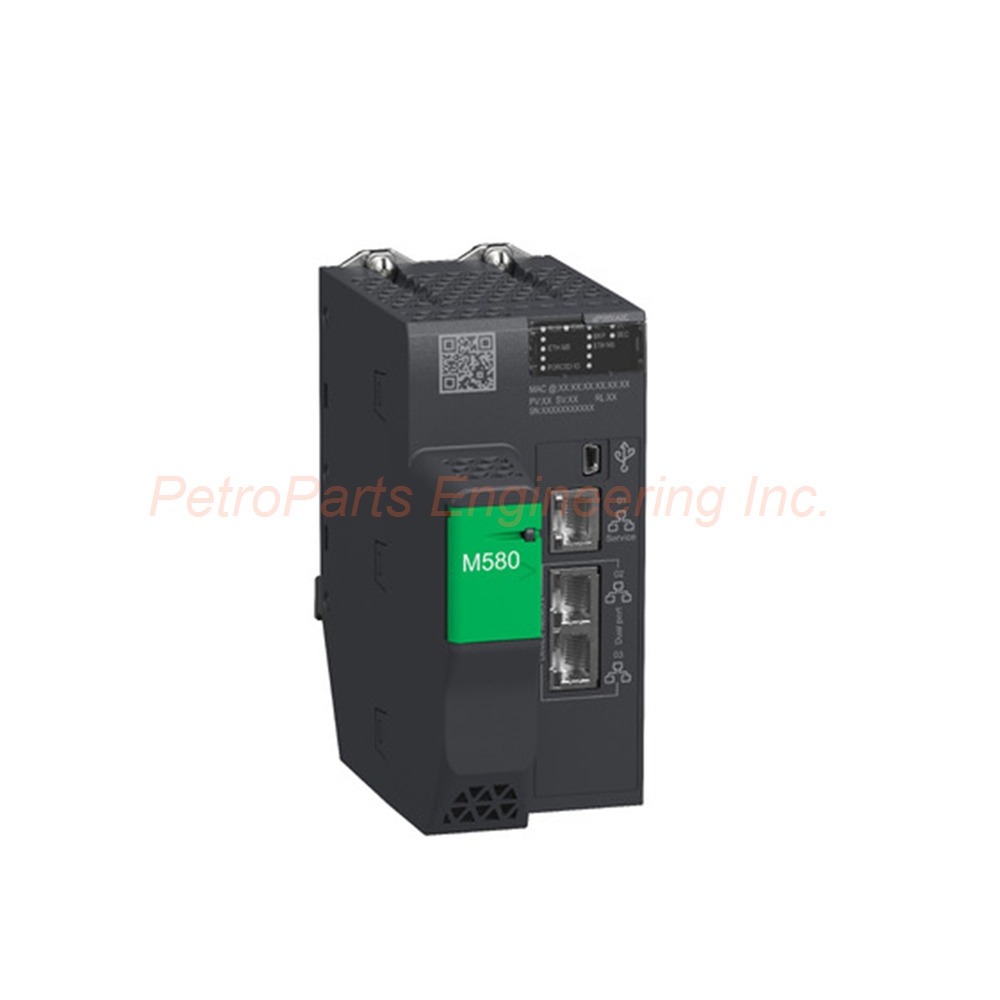

Schneider Electric BMEP585040C Processor Module Overview

The Schneider Electric BMEP585040C is a high-performance processor module for Modicon M580 PACs. This CPU supports up to 8 racks for large system configurations. The Schneider Electric BMEP585040C handles 5120 discrete I/O and 1280 analog I/O locally. It features conformal coating for protection against harsh industrial environments. This processor module executes 50 Kinstructions per ms for Boolean logic. The Schneider Electric BMEP585040C achieves an MTBF reliability of 775,000 hours. It includes integrated Ethernet ports and USB connectivity for versatile communication.

Technical Specifications

General Specifications

• Range of Product: Modicon M580.

• Product Type: Processor module.

• Impregnation Material: Conformal coated.

• Number of Racks: 8 racks maximum.

• Marking: CE.

• Protective Treatment: Conformal coating.

• Supply: Internal power supply via rack.

• Country of Origin: France (FR).

• GTIN: 3606485440040.

I/O Capacity

• Local Discrete I/O Capacity: 5120 I/O.

• Local Analog I/O Capacity: 1280 I/O.

• Number of Application Specific Channels (Local Rack): 180 channels.

• Application Specific I/O: Accurate time stamping, motion control, serial link, HART, SSI encoder, counter, checks, process control.

• Control Channels: Programmable loops.

• Number of Remote I/O Stations: 31 stations with 2 remote drops.

• Number of Distributed Equipment: 64 devices.

• Communication Module Processor Capacity: 16 AS-Interface modules, 6 Ethernet communication modules.

Communication Services

• Communication Service: RIO scanner and DIO scanner.

• Integrated Connection Type:

  • 1 Ethernet TCP/IP service port

  • 2 Ethernet TCP/IP device network ports

  • USB type mini B port

Memory Specifications

• Expandable Flash: 4 GB data storage.

• Integrated RAM (System Memory): 10 kB.

• Integrated RAM (Program): 24 MB.

• Integrated RAM (Data): 4096 kB.

Application Structure

• 1 periodic fast task

• 2 auxiliary tasks

• 128 event tasks

• 1 cyclic/periodic master task

Performance Specifications

• Instructions per ms (65% Boolean + 35% fixed arithmetic): 40 Kinst/ms.

• Instructions per ms (100% Boolean): 50 Kinst/ms.

Current Consumption

• Current Consumption: 300 mA at 24 V DC.

MTBF Reliability

• MTBF Reliability: 775,000 hours.

Status LEDs

The Schneider Electric BMEP585040C provides the following status indicators:

• 1 LED (Green): Processor running (RUN)

• 1 LED (Red): Processor or system fault (ERR)

• 1 LED (Red): I/O module fault (I/O)

• 1 LED (Green): Download in progress (DL)

• 1 LED (Red): Memory card or CPU flash fault (BACKUP)

• 1 LED (Green/Red): ETH MS (Ethernet port configuration status)

• 1 LED (Green/Red): ETH NS (Ethernet network status)

• 1 LED (Green): I/O values overridden by user (FORCED IO)

Environmental Specifications

• Vibration Resistance: 3 gn.

• Shock Resistance: 30 gn.

• Ambient Air Temperature for Operation: -25°C to 60°C (-13°F to 140°F).

• Ambient Air Temperature for Storage: -40°C to 85°C (-40°F to 185°F).

• Operating Altitude: 0 to 2000 meters; 2000 to 5000 meters with derating factor.

• Relative Humidity: 5% to 95% at 55°C without condensation.

• IP Degree of Protection: IP20.

Directives Compliance

• 2014/35/EU (Low Voltage Directive)

• 2014/30/EU (Electromagnetic Compatibility)

• 2014/34/EU (ATEX Directive)

Product Certifications

The Schneider Electric BMEP585040C holds the following certifications:

• CE

• UL

• CSA

• RCM

• EAC

• Merchant Navy

• ATEX zone 2/22

• IECEx zone 2/22

Standards Compliance

• IEC 61131-2

• IEC 61010-2-201

• UL 61010-2-201

• CSA C22.2 No 61010-2-201

• IACS E10

• EN/IEC 61000-6-5 (interface type 1 and type 2)

• EN/IEC 61850-3 (location G)

• IEC 60079-0

Environmental Characteristics

• Hazardous Location: Class I Division 2

• Gas Resistant: Class Gx according to ISA S71.04

• Gas Resistant: Class 3C4 according to IEC 60721-3-3

• Dust Resistant: Class 3S4 according to IEC 60721-3-3

• Sand Resistant: Class 3S4 according to IEC 60721-3-3

• Salt Resistant: Level 2 according to IEC 68252

• Mold Growth Resistant: Class 3B2 according to IEC 60721-3-3

• Fungal Spore Resistant: Class 3B2 according to IEC 60721-3-3

Physical Specifications

• Net Weight: 0.849 kg (1.872 lb).

• Gross Weight: 0.880 kg.

Packaging Specifications

• Unit Type of Package 1: PCE.

• Number of Units in Package 1: 1.

• Package 1 Height: 8.500 cm (3.35 in).

• Package 1 Width: 17.500 cm (6.89 in).

• Package 1 Length: 25.000 cm (9.84 in).

• Package 1 Weight: 880.000 g (31.041 oz).

• Unit Type of Package 2: S03.

• Number of Units in Package 2: 6.

• Package 2 Height: 30.000 cm (11.81 in).

• Package 2 Width: 30.000 cm (11.81 in).

• Package 2 Length: 40.000 cm (15.75 in).

• Package 2 Weight: 5.730 kg (12.632 lb).

Installation Guide

Follow these steps to install the Schneider Electric BMEP585040C correctly:

1. Turn off all power to the Modicon M580 rack before installation.

2. Insert the Schneider Electric BMEP585040C into the processor slot on the main rack.

3. Secure the module using the locking mechanism on the rack.

4. Connect the 24 V DC power supply to the rack backplane.

5. Connect Ethernet cables to the service port and device network ports.

6. Insert a USB cable to the mini B port for programming access.

7. Verify all LED indicators illuminate appropriately during power-up.

8. Download your control program to the Schneider Electric BMEP585040C via Ethernet or USB.

Packaging List

• Schneider Electric BMEP585040C processor module (1 unit)

• Anti-static protective bag (1 piece)

• Installation manual (1 copy)

• Product label with model number

• Protective caps for Ethernet ports (3 pieces)

Frequently Asked Questions (FAQ)

1. How much program memory does the BMEP585040C have?
The Schneider Electric BMEP585040C has 24 MB of integrated RAM for program storage.

2. What is the execution speed of this processor module?
This CPU executes 50 Kinstructions per ms for 100% Boolean logic operations.

3. How many remote I/O stations can the BMEP585040C support?
This processor supports up to 31 remote I/O stations with 2 remote drops.

4. Is the BMEP585040C approved for hazardous locations?
Yes, this module has ATEX zone 2/22, IECEx zone 2/22, and Class I Division 2 certifications.

5. What communication ports are available on the Schneider Electric BMEP585040C?
This module has 1 Ethernet service port, 2 Ethernet device network ports, and 1 USB mini B port.
