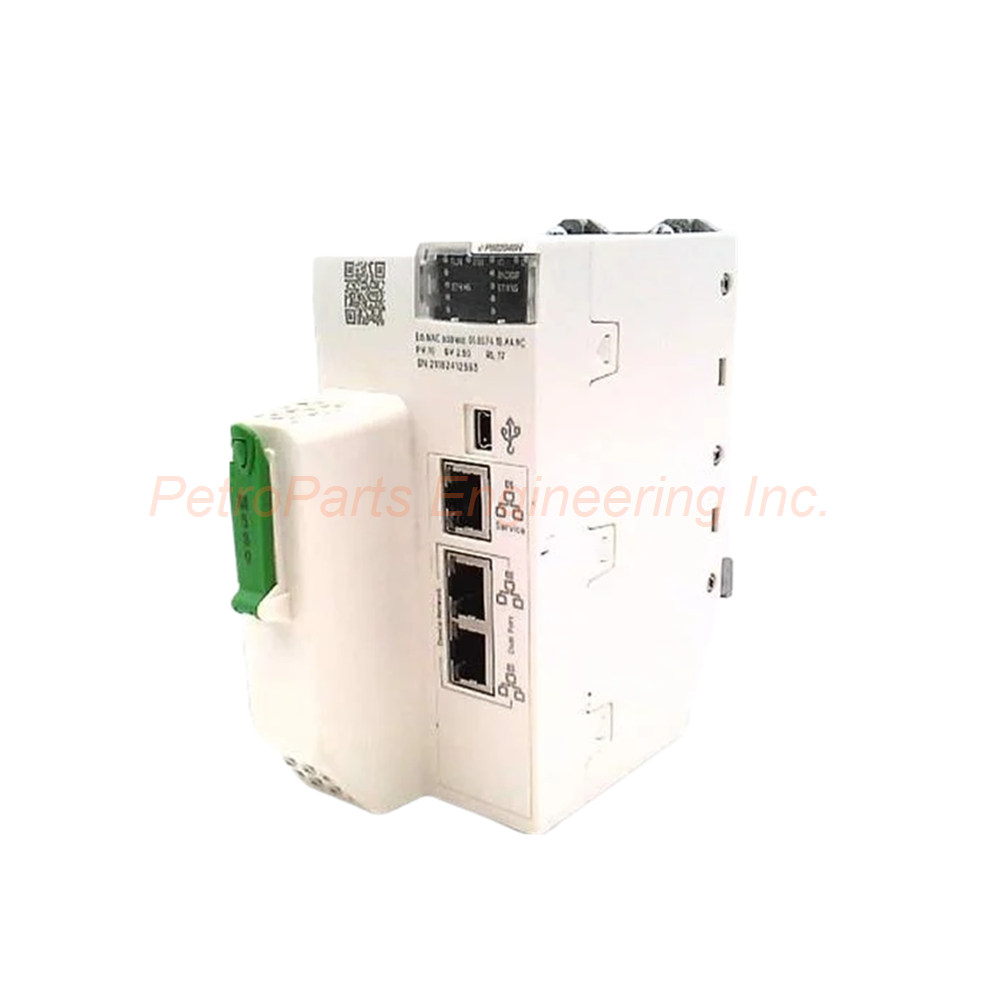

Product Overview of Schneider Electric BMEP582040

The Schneider Electric BMEP582040 is a processor module. Engineers specifically designed it for the Modicon M580 series. Therefore, it fits perfectly into the M580 ePAC (Ethernet Programmable Automation Controller) platform. This CPU features a high-performance processing core for demanding applications. In addition, it includes built-in Ethernet ports for seamless network integration. As a result, the BMEP582040 delivers reliable control in complex automation environments.

Core Memory and Processing Specifications

First, let us examine the memory configuration. The BMEP582040 provides 4 MB of RAM for user program and data storage. In addition, it includes built-in non-volatile memory for backup. Therefore, this processor handles medium to large automation programs effectively.

Regarding processing capability, this CPU executes Boolean and numerical instructions rapidly. Thus, it suits applications requiring fast logic solving and real-time control. Consequently, the BMEP582040 performs well in time-critical processes.

Built-in Communication Ports and Networking

Moving on, let us discuss communication features. The BMEP582040 includes built-in Ethernet ports as standard. These ports support the Modicon M580's native Ethernet architecture. In addition, they enable seamless integration with X80 I/O modules. Therefore, this processor reduces the need for separate communication modules.

Specifically, the Ethernet ports support:

• Web server for remote diagnostics

• Cyclic data exchange for real-time control

• Device transparency for easy configuration

• CIP (Common Industrial Protocol) communications

Thus, the BMEP582040 simplifies network design and reduces overall system costs.

Rack Optimum Architecture Support

Now, let us discuss system architecture. The BMEP582040 belongs to the Modicon M580 family. Therefore, it supports the Rack Optimum architecture. This architecture allows mixing standard X80 I/O modules with Ethernet I/O modules in the same rack. Consequently, system designers enjoy greater flexibility and reduced wiring complexity.

In addition, the BMEP582040 supports Hot Standby configurations for high availability. Thus, critical processes continue operating even if the primary CPU fails.

Programming Software and Standards

Regarding programming, the BMEP582040 uses EcoStruxure Control Expert software. This software complies with IEC 61131-3 programming standards. Therefore, programmers can use multiple languages including Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC). Thus, the BMEP582040 accommodates different programming preferences and application requirements.

Status Indicators and Diagnostics

Now, let us examine diagnostic features. The BMEP582040 includes multiple status LEDs on its front panel. These LEDs provide real-time feedback on processor status, communication activity, and fault conditions. Therefore, operators can quickly identify system state without external tools. Thus, troubleshooting becomes faster and more efficient.

In addition, the built-in web server provides remote diagnostics via a standard web browser. Consequently, maintenance personnel can monitor the BMEP582040 from anywhere on the plant network.

Environmental Specifications

Regarding environmental limits, the BMEP582040 operates within standard industrial ranges. Specifically, it works in temperatures from 0°C to 60°C. For storage, it tolerates temperatures from -40°C to 85°C. Thus, this processor withstands harsh storage conditions while maintaining reliable operation in typical factory environments.

In addition, it handles humidity levels up to 95% without condensation. Therefore, the BMEP582040 performs reliably in various industrial settings.

Physical Specifications and Mounting

Now, let us discuss physical characteristics. The BMEP582040 uses a compact form factor. It fits into standard Modicon M580 racks. Therefore, installation requires no special tools or adapters. The exact weight is approximately 0.55 kg. Thus, it is lightweight and easy to handle during system assembly.

Installation and Mounting Guide

Follow these steps to install the BMEP582040 safely. First, turn off all power to the M580 rack. Next, insert the processor into the dedicated CPU slot. Then, push firmly until the module locks in place. After that, connect Ethernet cables to the built-in ports. Then, apply power and verify the status LEDs. Finally, download the control program using EcoStruxure Control Expert software.

Important considerations: Use shielded Ethernet cables for reliable communication. Also, maintain proper grounding to ensure electrical noise immunity. For best results, keep the operating temperature below 60°C. Remember that the BMEP582040 requires compatible M580 rack and power supply. Therefore, verify system compatibility before installation.

Package Contents

• One Schneider Electric BMEP582040 Processor Module

• No Ethernet cables included

• No programming software included

• No mounting screws or accessories

• No printed manual (digital download available)

Frequently Asked Questions (FAQ)

1. What is the difference between BMEP582040 and older Quantum CPUs?
The BMEP582040 belongs to the Modicon M580 series, which uses native Ethernet architecture. In contrast, older Quantum CPUs used Modbus Plus or other legacy networks. Therefore, the M580 offers better performance and simpler networking.

2. Can the BMEP582040 be used in a Hot Standby system?
Yes, the BMEP582040 supports Hot Standby configurations. Therefore, two processors can work in redundant pairs for high-availability applications.

3. What software is required to program the BMEP582040?
Use EcoStruxure Control Expert software for programming. Therefore, ensure you have the correct software version before starting your project.

4. Does the BMEP582040 support X80 I/O modules?
Yes, the BMEP582040 fully supports X80 I/O modules. In addition, it supports mixed configurations with standard and Ethernet I/O modules in the same rack.

5. How much memory does the BMEP582040 provide?
The BMEP582040 provides 4 MB of RAM for user programs and data. Thus, it suits medium to large control applications.
