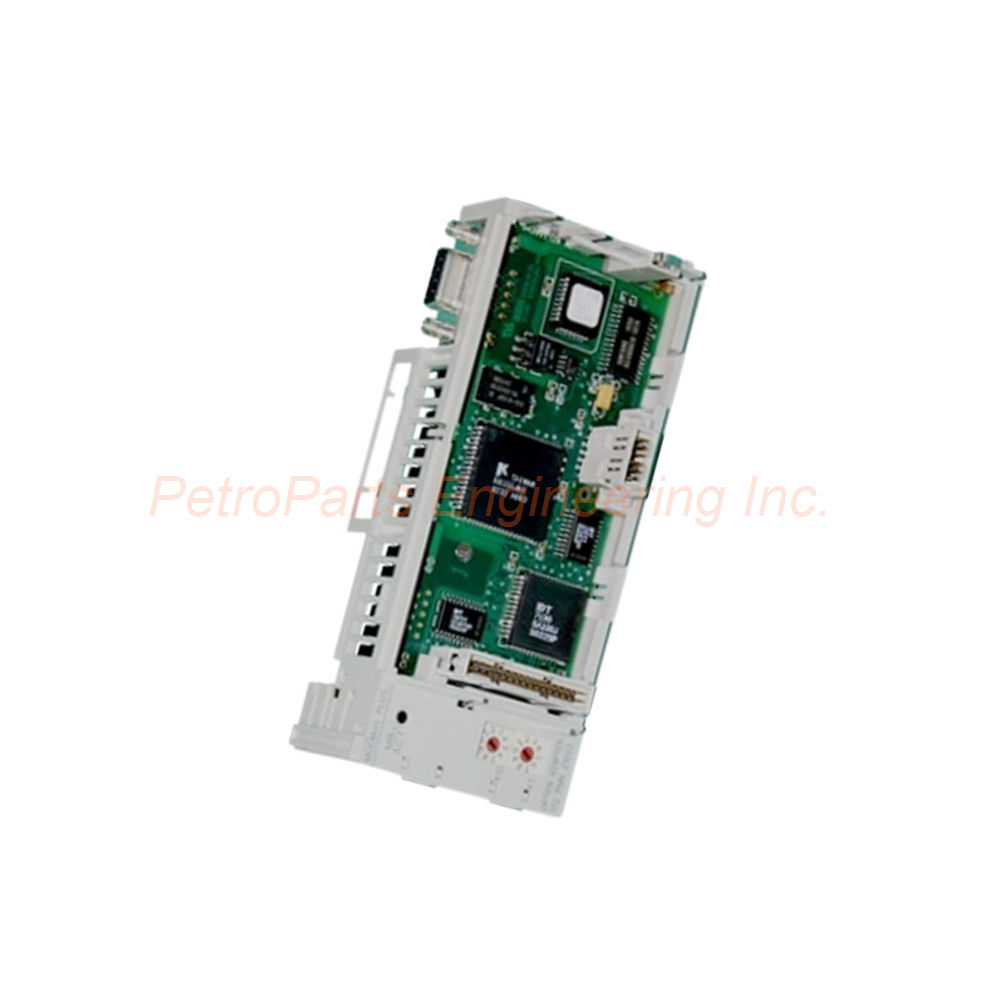

=== Technical Specifications ===
--- Communication Protocol ---
The Schneider Electric 172PNN21022C communicates using the Modbus protocol. Specifically, this industry-standard protocol ensures wide compatibility with many devices. Furthermore, Modbus supports both RTU and ASCII transmission modes. Thus, the adaptor connects seamlessly to PLCs, HMIs, and SCADA systems.

--- Supply Voltage and Power Source ---
The 172PNN21022C operates at a rated supply voltage of 5 V DC. Specifically, the adaptor receives power via the I/O base without external wiring. Furthermore, this design eliminates separate power supply connections. Thus, installation remains clean and simple within the Momentum chassis.

--- Current Consumption ---
The Schneider Electric 172PNN21022C draws 700 mA from the I/O base. Specifically, this current powers the internal communication circuits and LED. Furthermore, verify that your I/O base can supply this additional current. Thus, calculate total system power budget before installation.

--- Electrical Connection Interface ---
The 172PNN21022C uses a 9-pin D-shell connector for field wiring. Specifically, this D-sub connector provides robust mechanical retention. Furthermore, standard Modbus pinouts apply for easy cable sourcing. Thus, off-the-shelf Modbus cables work with this adaptor.

--- Local Status Indication ---
The Schneider Electric 172PNN21022C includes an integrated LED for local signalling. Specifically, the LED indicates power, communication activity, or fault status. Furthermore, operators check adaptor health at a glance without software. Thus, troubleshooting becomes faster during system commissioning.

--- Clock Performance ---
The 172PNN21022C has a clock drift of ±13 seconds per day. Specifically, this accuracy supports time-stamped data and scheduled events. Furthermore, the clock maintains time during power interruptions. Thus, time-sensitive applications remain coordinated across the network.

--- Battery Type and Size ---
The Schneider Electric 172PNN21022C uses a lithium battery for clock backup. Specifically, the battery size is 2/3 AA for compact fit inside the adaptor. Furthermore, lithium chemistry provides long shelf and operational life. Thus, the clock retains settings during extended power outages.

--- Physical Dimensions ---
The 172PNN21022C measures 1 inch in height for low-profile installation. Specifically, the width reaches 5.6 inches to match Momentum form factor. The depth extends 2.3 inches for shallow enclosures. Thus, the compact size fits easily into crowded control panels.

--- Weight and Handling ---
The Schneider Electric 172PNN21022C weighs only 85.05 grams (approximately 3 ounces). Specifically, this lightweight design simplifies handling during installation. Furthermore, the low weight reduces stress on the I/O base connections. Thus, one person manages the adaptor easily without lifting aids.

--- Construction Material ---
The 172PNN21022C uses Lexan for the housing material. Specifically, Lexan provides excellent impact resistance and dimensional stability. Furthermore, this material resists many industrial chemicals and solvents. Thus, the adaptor survives harsh panel environments reliably.

--- Dielectric Strength ---
The Schneider Electric 172PNN21022C has a dielectric strength of 500 V DC. Specifically, this rating proves adequate insulation between circuits. Furthermore, high dielectric strength prevents voltage breakdown failures. Thus, the adaptor meets industrial safety standards for electrical isolation.

--- Environmental and Operating Conditions ---
The 172PNN21022C operates within the Momentum series temperature range. Specifically, refer to the Momentum base documentation for full environmental specs. Furthermore, the Lexan housing protects internal components from dust and moisture. Thus, the adaptor suits standard indoor industrial installations.

=== Installation Guidelines ===
--- Adaptor Insertion ---
To begin, power down the Momentum I/O base completely. Next, align the 172PNN21022C with the dedicated communication slot. After that, press firmly until the adaptor seats into the base connector. Then, secure the adaptor using any retention clips or screws. Finally, verify that the LED illuminates when power returns.

--- Modbus Cable Connection ---
When wiring the Schneider Electric 172PNN21022C, use a standard 9-pin D-sub cable. Specifically, connect pin 2 for RS-485 data negative (B/B'). Furthermore, connect pin 3 for RS-485 data positive (A/A'). Additionally, connect pin 5 for signal ground common. Thus, follow standard Modbus pinouts for reliable communication.

--- Network Termination ---
The 172PNN21022C may require termination resistors on the Modbus network. Specifically, install a 120 ohm resistor at the last device on the bus. Furthermore, enable termination only at the physical ends of the cable. Thus, this prevents signal reflections and communication errors.

--- Battery Life and Replacement ---
The 172PNN21022C uses a lithium 2/3 AA battery for clock backup. Specifically, typical battery life reaches 5 to 10 years depending on usage. Furthermore, replace the battery only with the identical lithium type. Thus, schedule battery replacement during planned maintenance outages.

--- LED Status Interpretation ---
The integrated LED on the Schneider Electric 172PNN21022C indicates adaptor status. Specifically, a steady green LED means normal operation with power applied. A flashing LED may indicate communication activity or a configuration error. An off LED suggests no power or a hardware fault. Thus, refer to the manual for complete LED code definitions.

=== Packing List ===

• Schneider Electric 172PNN21022C Communication Adaptor (1 unit)

• Lithium 2/3 AA battery (pre-installed)

• Product identification and pinout label sheet

=== Frequently Asked Questions (FAQ) ===
1. Does the 172PNN21022C support Modbus TCP/IP?
No, the Schneider Electric 172PNN21022C supports Modbus serial protocol only. Specifically, it uses RS-485 physical layer for Modbus RTU or ASCII. For Ethernet-based Modbus TCP/IP, use a different Momentum adaptor model. Thus, verify your network type before ordering.

2. Can I hot-swap the 172PNN21022C while the system runs?
No, the 172PNN21022C does not support hot swapping or hot plugging. Specifically, you must power down the I/O base before removing or installing this adaptor. Furthermore, live removal may damage the adaptor or the base. Thus, follow proper lockout-tagout procedures before servicing.

3. What happens when the backup battery fails?
When the lithium battery fails, the 172PNN21022C loses clock settings during power loss. Specifically, the adaptor continues normal Modbus communication while powered. However, time-stamped data may become inaccurate after power cycles. Thus, replace the battery promptly when the low battery warning appears.

4. How many 172PNN21022C adaptors fit in one Momentum base?
The Schneider Electric 172PNN21022C occupies the dedicated communication slot. Specifically, each Momentum I/O base accepts only one communication adaptor. Furthermore, the adaptor does not consume I/O module slots. Thus, you retain all I/O positions for field signals.

5. What is the maximum cable length for Modbus with this adaptor?
The 172PNN21022C supports Modbus cable lengths up to 1200 meters (4000 feet). Specifically, this applies at baud rates of 9600 bps or lower. Furthermore, reduce cable length for higher baud rates above 19.2 kbps. Thus, consult Modbus design guidelines for your specific network speed.
