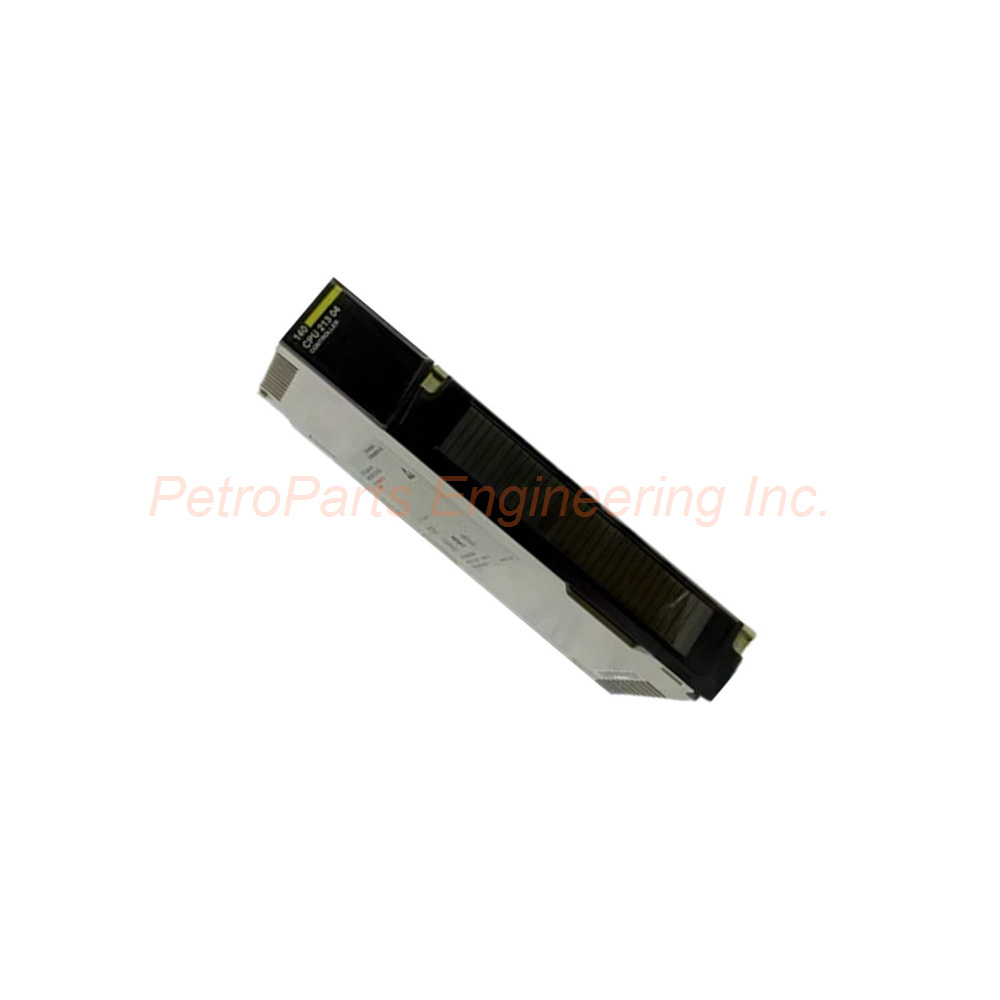

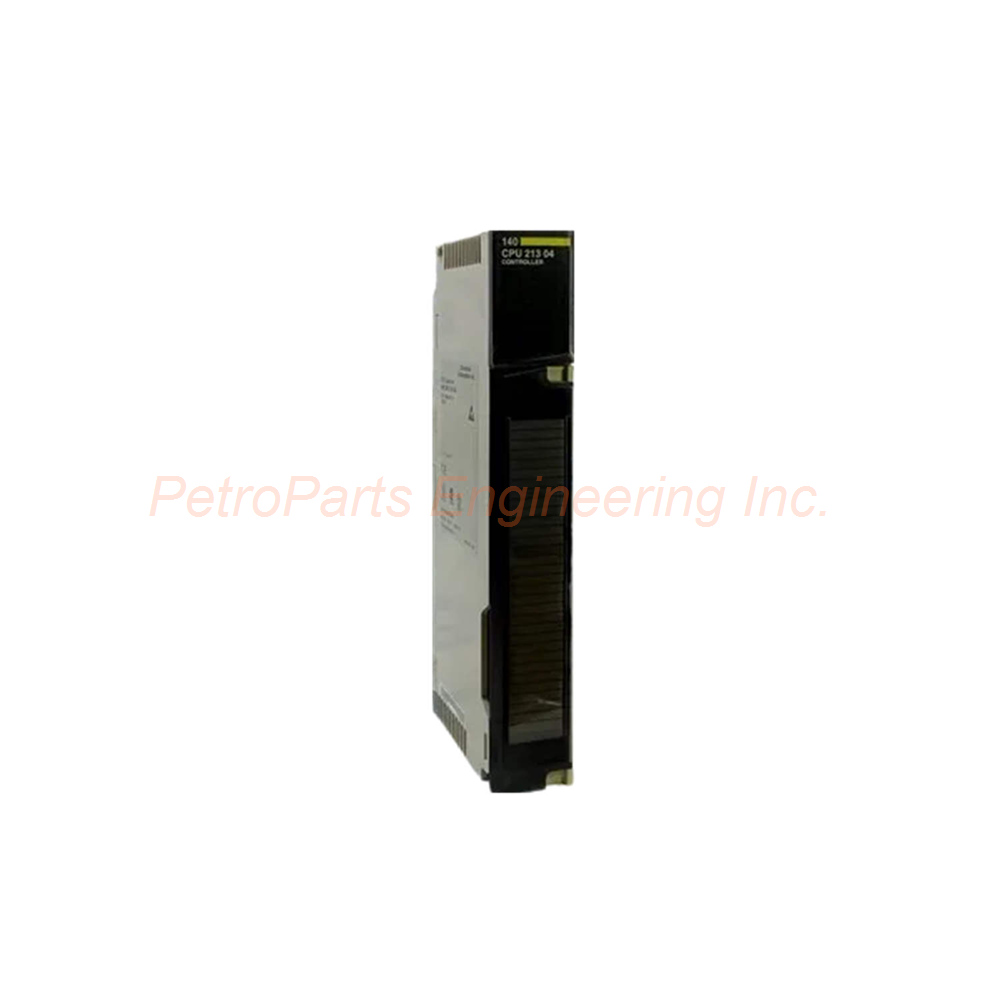

Schneider Electric 140CPU21304C CPU Module

The Schneider Electric 140CPU21304C is a CPU module from the Modicon Quantum series. Specifically, this unit features conformal coating for protection against harsh environments. You can therefore use it in demanding industrial applications with moisture or contamination. The module is rack-mounted for easy integration into Quantum systems. It supports both local and remote I/O configurations for versatile system design.

Technical Specifications of the 140CPU21304C

Regarding memory capacity, the Schneider Electric 140CPU21304C offers 768 KB of RAM. Program memory is 16 KB for application storage. Battery-backed RAM ensures data retention during power outages. Consequently, your program remains safe even when power is lost.

Processing Performance

Boolean execution time is approximately 0.3 microseconds. This provides fast response for discrete control applications. The Schneider Electric 140CPU21304C supports advanced math instructions. Therefore, it can handle computational tasks beyond basic logic. An integrated watchdog function monitors proper processor operation.

Communication Ports

For connectivity, the Schneider Electric 140CPU21304C includes one RS232 Modbus port. It also features one Modbus Plus port for high-speed networking. These dual ports facilitate connectivity within industrial networks. You can therefore connect to a wide range of field devices and HMIs.

I/O Support

The Schneider Electric 140CPU21304C supports both local and remote I/O configurations. Local I/O provides fast response for nearby modules. Remote I/O enables distributed architecture across large facilities. This flexibility expands the module's use in different system architectures.

Status Indication

Status LEDs provide real-time operational feedback. A RUN indicator shows normal processor operation. An ERR LED alerts you to fault conditions. I/O and COMM LEDs display input/output and communication status. Therefore, you can easily monitor the Schneider Electric 140CPU21304C at a glance.

Environmental Specifications

The module operates from 0°C to 60°C ambient temperature. Conformal coating protects circuit boards from moisture and contaminants. This makes the Schneider Electric 140CPU21304C suitable for harsh industrial environments.

Installation Guidelines for the 140CPU21304C

First, mount the Schneider Electric 140CPU21304C in an appropriate Quantum rack slot. Then, connect the RS232 Modbus port to your programming device. After that, configure Modbus Plus networking for multi-drop communication. Finally, apply power and verify the RUN LED illuminates.

Package Contents

• One (1) Schneider Electric 140CPU21304C CPU module (conformal coated)

• Installation and configuration manual

Common FAQs for the 140CPU21304C

1. What memory does the 140CPU21304C provide?
The Schneider Electric 140CPU21304C has 768 KB of RAM. Program memory is 16 KB with battery backup.

2. Is this CPU module suitable for harsh environments?
Yes, the Schneider Electric 140CPU21304C has conformal coating. This protects against moisture, dust, and contaminants.

3. What communication ports are on this CPU?
The Schneider Electric 140CPU21304C includes one RS232 Modbus port. It also has one Modbus Plus port for high-speed networking.

4. What is the Boolean execution time?
The Schneider Electric 140CPU21304C executes Boolean logic in approximately 0.3 microseconds. This provides fast discrete control response.

5. Does this module support remote I/O?
Yes, the Schneider Electric 140CPU21304C supports both local and remote I/O. This enables distributed system architectures.

Why Choose the Schneider Electric 140CPU21304C?

This CPU module delivers reliable processing for Modicon Quantum systems. Conformal coating ensures operation in harsh industrial environments. Dual communication ports (Modbus and Modbus Plus) offer networking flexibility. Fast Boolean execution suits high-speed control applications. Order the Schneider Electric 140CPU21304C today for your harsh environment CPU needs.
