GE IS200EMIOH1A Exciter Main I/O Board

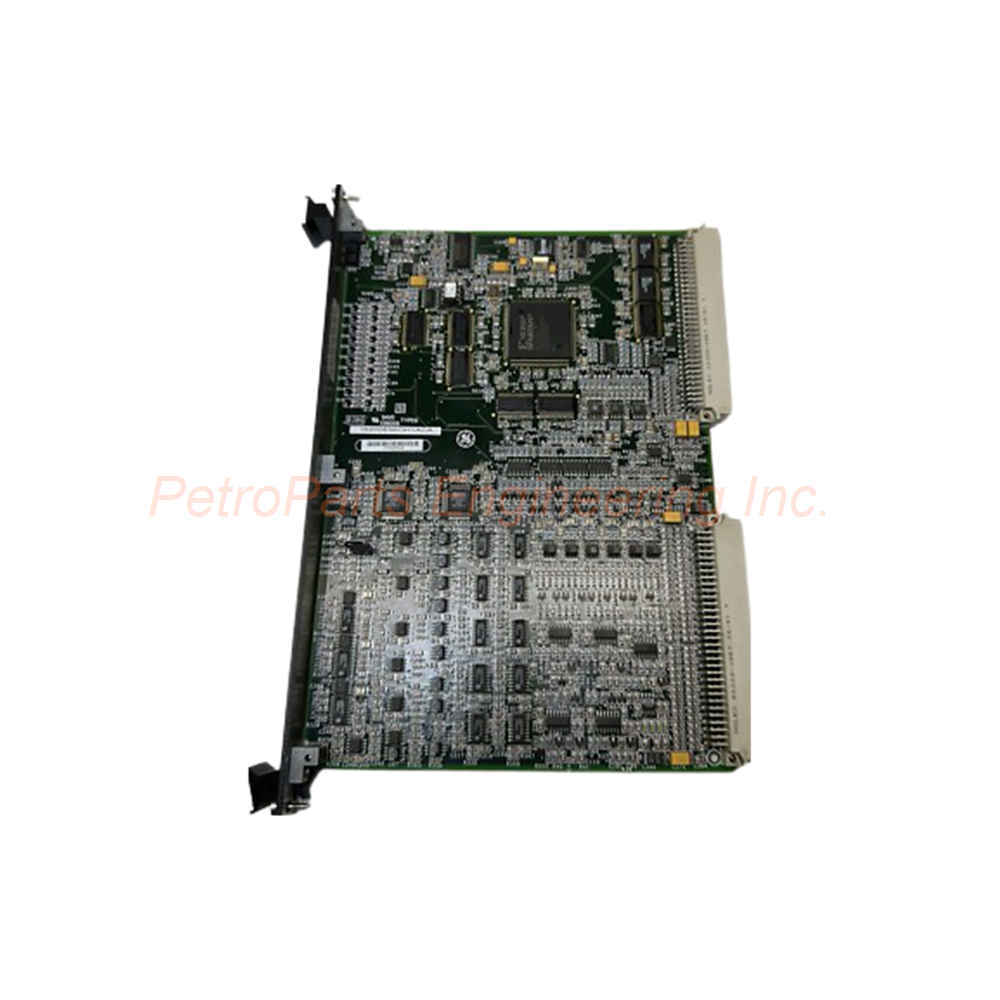

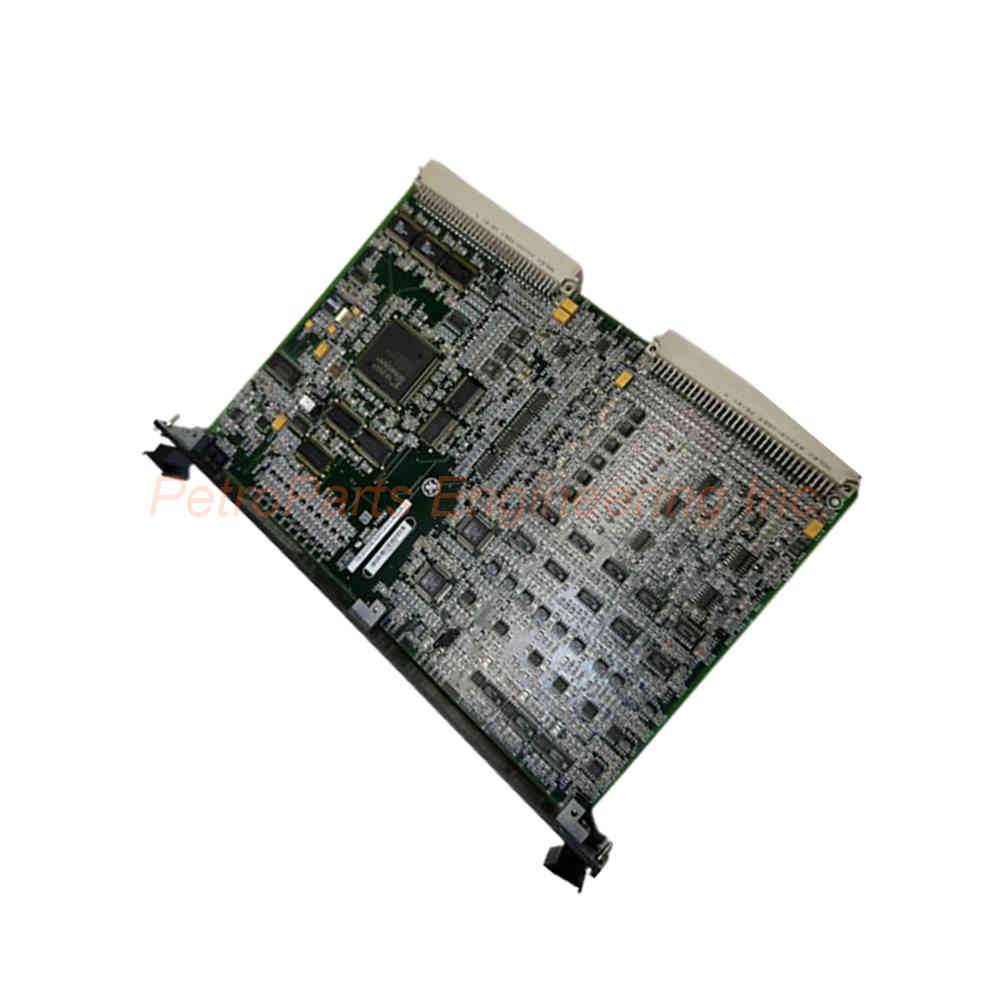

The GE IS200EMIOH1A is an Exciter Main I/O Board (EMIO) from General Electric. This board belongs to the EX2100 series for excitation control systems. The manufacturer designed this board as a single-slot, double-height VME style board that installs directly in the control rack. The United States of America (USA) manufactures this board. Therefore, it serves as the central I/O manager for several terminal boards in the EX2100 system.

Functional Overview of the IS200EMIOH1A

The primary function of the GE IS200EMIOH1A is to manage all inputs and outputs from four terminal boards. Specifically, it handles I/O from the ECTB, EACF, EXTB, and EPCT terminal boards. Consequently, these terminal boards rely on the EMIO for data acquisition and control signal distribution.

Another critical function of the GE IS200EMIOH1A involves gate pulse signal management. The board sends gate pulse signals from the backplane to the ESEL board. After the ESEL board receives these signals, it forwards them to the EGPA board in the power conversion cabinet. For this reason, the EMIO plays an essential role in the firing path for power semiconductors.

I/O Management Capabilities

When controlling other terminal boards, the GE IS200EMIOH1A handles several signal types. First, it manages contact inputs from field devices. Second, it controls pilot trip relay drivers for protection functions. Third, it processes PT (potential transformer) and CT (current transformer) signals for system monitoring. Fourth, it drives output relay drivers for auxiliary control. Consequently, the EMIO provides comprehensive I/O management for the entire excitation system.

De-Excitation Control

The GE IS200EMIOH1A connects directly to the EXTB board. Through this connection, the EMIO board initiates de-excitation when required. Furthermore, the EMIO board controls the EDEX board indirectly through the EXTB connection. As a result, the EMIO participates actively in the field discharge sequence during system shutdown.

Technical Specifications of the IS200EMIOH1A

Board Type and Form Factor

The GE IS200EMIOH1A is an Exciter Main Input/Output board. Its dimensions measure 9.25 inches length by 6.5 inches width. The board follows a single-slot, double-height VME Eurocard form factor. For this reason, it fits into standard EX2100 control rack slots.

LED Indicators

The board features two LEDs located on the front plate. A Power LED indicates connection to the 5 V dc power supply. A Status LED connects to the FPGA's IMOK output, signaling proper board operation. Therefore, operators can quickly assess board health at a glance.

Connections and Backplane Interface

Notably, the GE IS200EMIOH1A has no jumpers, fuses, or cable connectors on the board itself. All I/O board cabling connects to the control backplane (EBKP). Connector P1 communicates with other control boards via the backplane. Connector P2 interfaces with I/O signals through cable connectors on the lower part of the EBKP. Consequently, this design simplifies board replacement and reduces potential failure points on the board.

Weight and Documentation

The board weighs approximately 2 pounds (0.91 kg). Reference manual GEI-100453 provides complete information for the IS200EMIO Exciter Main I/O Board. Additionally, the GEH-6632 EX2100 Excitation Control User's Guide contains EMIO-related information on page forty-eight.

Replacement Procedure (Offline)

First, ensure that the exciter has been deactivated and locked out. Then, open the control cabinet door and check all electrical circuits for power before touching any components.

To remove the GE IS200EMIOH1A, follow these steps:

1. Loosen the screws near the ejector tabs at the top and bottom of the faceplate. (These screws are captive, so you cannot remove them completely.)

2. Lift the ejector tabs to begin extracting the module.

3. Pull the board gently from the rack using both hands.

To install the replacement GE IS200EMIOH1A, follow these steps:

1. Insert the replacement board into the appropriate rack slot.

2. Press firmly on the top and bottom of the faceplate simultaneously using your thumbs.

3. Tighten the screws at the top and bottom of the faceplate to complete the seating process. Tighten these screws evenly to ensure the module seats squarely in the slot.

System Integration Requirements

Required Terminal Boards

The GE IS200EMIOH1A interfaces with four specific terminal boards. These include the ECTB (Exciter Contact Terminal Board), EACF (Exciter AC Feedback Board), EXTB (Exciter Terminal Board), and EPCT (Exciter Pulsing and Control Board). Consequently, these boards cannot function properly without the EMIO.

Signal Processing Chain

The GE IS200EMIOH1A processes PT and CT signals for system monitoring. It also manages contact inputs from customer protection devices. The board drives output relays for auxiliary control circuits. Additionally, it sends logic-level gate pulse signals to the ESEL board, which then forwards these signals to the EGPA in the power conversion cabinet.

Installation Guidelines for the IS200EMIOH1A

First, deactivate the exciter completely and follow all lockout/tagout procedures. Then, locate the correct slot for the EMIO board in the EX2100 control rack. Before insertion, inspect the board for any visible damage. Next, align the board with the card guides in the rack. Press firmly but evenly on both ends of the faceplate to seat the board fully. After that, tighten the top and bottom captive screws evenly to secure the board. Finally, verify that all EBKP backplane connections are secure.

Package Contents

• One (1) GE IS200EMIOH1A exciter main I/O board

• Captive screws (pre-installed on faceplate)

Common FAQs for the IS200EMIOH1A

1. What terminal boards does the IS200EMIOH1A manage?
The GE IS200EMIOH1A manages I/O from four terminal boards: ECTB, EACF, EXTB, and EPCT. Consequently, these boards rely entirely on the EMIO for data exchange.

2. Does this board have any jumpers or fuses?
No, the GE IS200EMIOH1A contains no jumpers, fuses, or cable connectors on the board itself. All cabling connects through the EBKP backplane.

3. What is the physical form factor of this board?
The GE IS200EMIOH1A is a single-slot, double-height VME style Eurocard. Its dimensions measure 9.25 inches by 6.5 inches.

4. What do the two LEDs on the front panel indicate?
The Power LED on the GE IS200EMIOH1A indicates 5 V dc supply presence. The Status LED indicates the FPGA's IMOK output for board health.

5. How does the EMIO participate in de-excitation?
The GE IS200EMIOH1A connects to the EXTB board and initiates de-excitation when required. Through this connection, it also controls the EDEX board indirectly.

Why Choose the GE IS200EMIOH1A?

In summary, this exciter main I/O board serves as the central I/O manager for EX2100 terminal boards. First, it handles multiple signal types including PT/CT, contact inputs, and relay drivers within one board. Second, the single-slot, double-height VME form factor maximizes rack density while maintaining accessibility. Third, the board's jumperless, fuseless design simplifies replacement and improves reliability. Fourth, the EMIO participates actively in de-excitation sequences through its EXTB connection. Fifth, the gate pulse signal chain through ESEL to EGPA ensures proper power semiconductor firing. For these reasons, order the GE IS200EMIOH1A today for your EX2100 excitation control requirements.
