Technical Specifications

The IS200EISBH1A provides twelve channels for signal handling. Input span is configured for standard 4-20 mA signals. Common mode voltage range reaches ±5 V for flexible compatibility. Maximum lead resistance sits at 15Ω for reliable current loop operation. Analog output current ranges from 0-20 mA for versatile connectivity. Operating temperature spans from -30°C to 65°C for industrial environments. Physical size measures 8.26 cm high by 4.19 cm wide. The IS200EISBH1A manual reference is GEI-100454.

Board Physical Characteristics

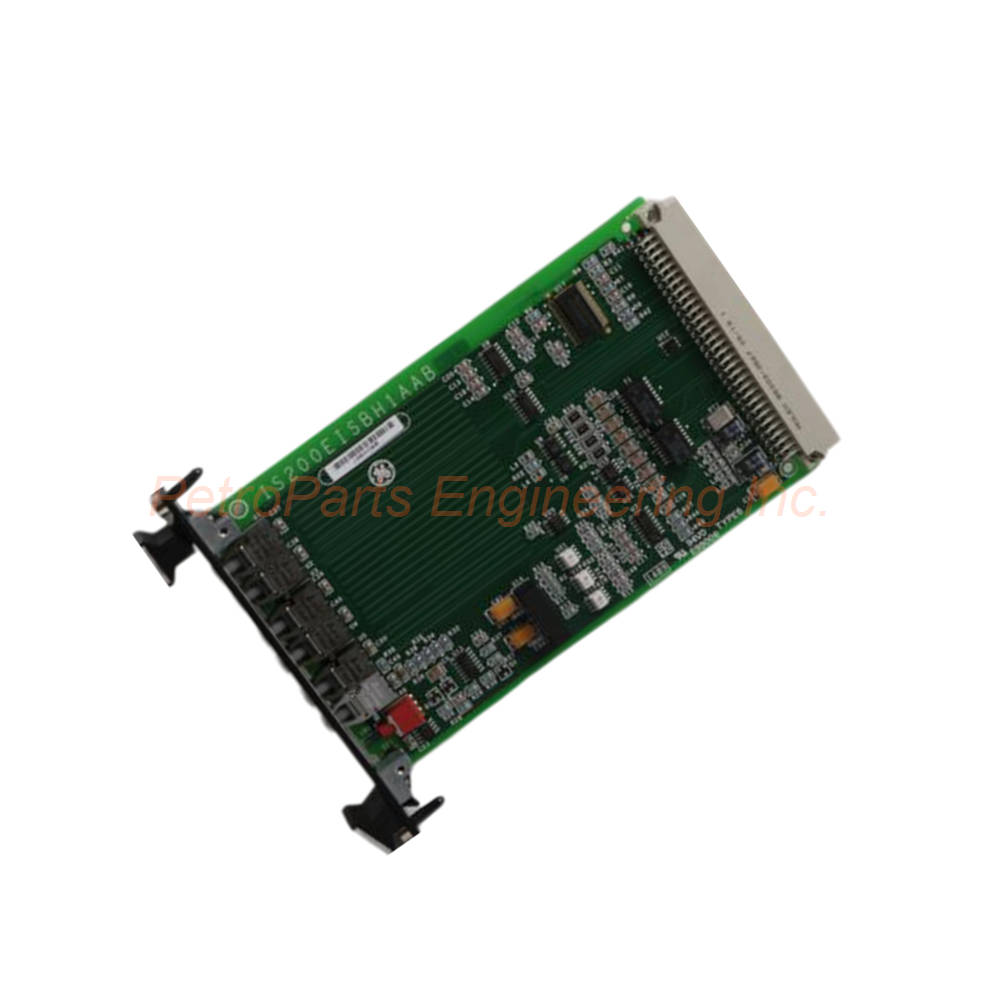

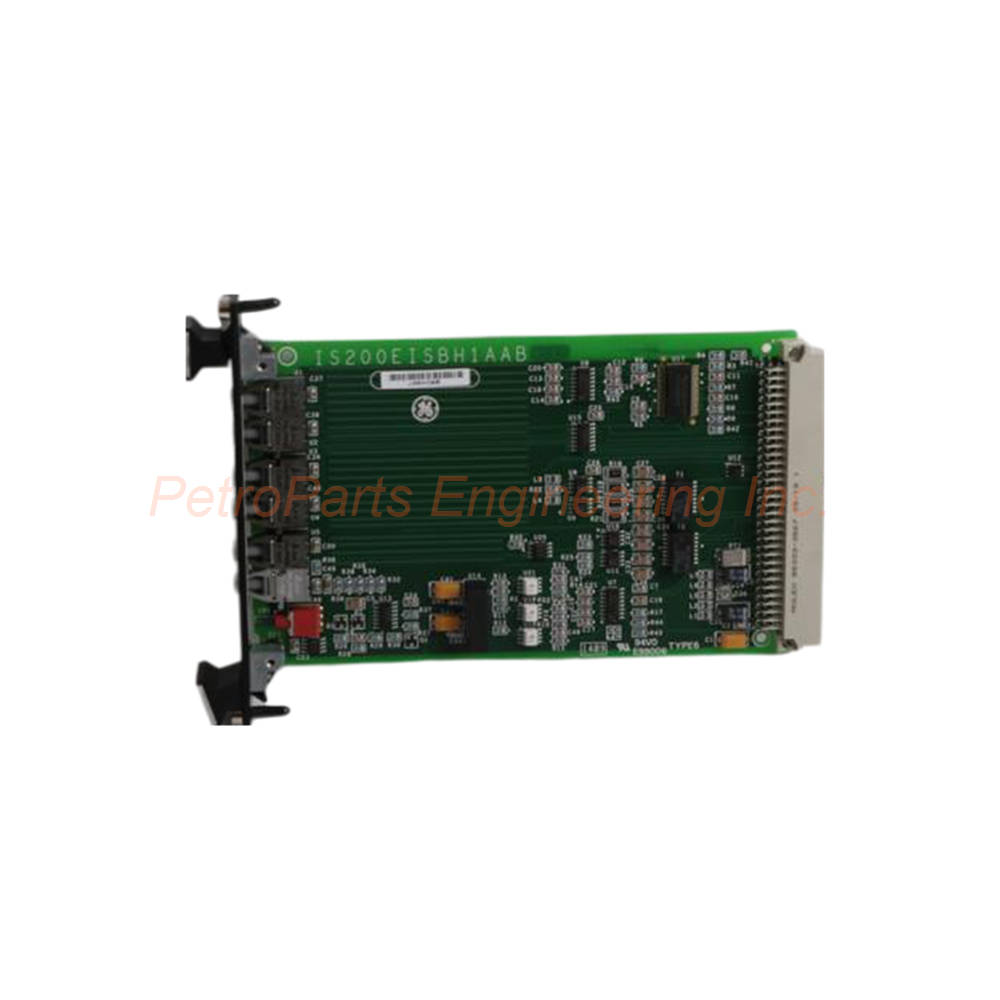

The IS200EISBH1A is a 3U-high module for standardized racks. It occupies only a single slot in the control rack. Six fiber-optic connectors populate the front panel of this board. These connectors receive current and voltage signals from the generator field. Optional signals from the Exciter are also accepted through these connectors. The IS200EISBH1A transmits signals to the Ground Detection module (EGDM). Six status indicators on the front panel provide visual operational feedback.

Functional Description

The IS200EISBH1A serves as a specialized communication interface board. It is designed specifically for the M1, M2, and C controllers. ISBus, a proprietary GE communication interface, exchanges data among these controllers. The IS200EISBH1A manages all fiber-optic communications throughout the cabinets. It handles transmission and reception of variable frequency signals seamlessly. For setups with redundant exciters, this board incorporates ISBus interface electronics. The board communicates between the DSPX and tool/keypad ports using RS-232C.

Signal Flow and Routing

The IS200EISBH1A receives feedback signals through fiber-optic connections. These signals travel across the backplane connector to the DSPX control. The board transmits the feedback it has received over the backplane controller. Additionally, it facilitates communication through the backbone connector. The RS-232C protocol enables connection to tool and keypad ports. Consequently, the IS200EISBH1A serves as a central communication hub. Diagnostic access and configuration are possible through this interface.

Fiber-Optic Connector Functions

The IS200EISBH1A front panel features six distinct fiber optic connectors. These connectors handle specific signal types as follows:

• DC voltage input from the Generator Field via EDCF board

• DC current input from the Generator Field via EDCF board

• Optional voltage input from the Exciter via EDCF board

• Optional current input from the Exciter via EDCF board

• Voltage input to the Ground Detector (EGDM)

• Voltage output from the Ground Detector (EGDM)

Each connector on the IS200EISBH1A serves a dedicated purpose in the system.

System Integration

The IS200EISBH1A operates within the EX2100 Excitation Control System. This board works alongside the DSPX controller in the control rack. The EISB sits directly beneath the DSPX in the rack hierarchy. For redundant exciter setups, multiple IS200EISBH1A boards may be used. The board interfaces with EDCF boards for field signal acquisition. It also connects to the EGDM (Ground Detection Module) for safety functions. All communication adheres to GE's proprietary ISBus protocol standards.

Indicator Functions

The IS200EISBH1A includes six indicators on its front panel. These indicators monitor Gen Field Voltage and Current status. They also display Exciter Voltage and Current conditions. Two additional indicators show GND Detect Input and Output status. Therefore, operators can quickly assess board functionality visually. Each indicator provides real-time status of its associated signal path. The IS200EISBH1A enables straightforward troubleshooting through these indicators.

Installation Guidelines

Power down the EX2100 system completely before handling the IS200EISBH1A. Use proper ESD grounding procedures when touching this board. Insert the board into the control rack slot beneath the DSPX controller. Ensure the board seats firmly into the backplane connector. Secure the board using the ejector mechanisms at top and bottom. Connect the six fiber-optic cables to their correct front panel ports. Verify each connection matches the signal type labeling on the IS200EISBH1A.

Configuration Requirements

No user-configurable jumpers or switches exist on the IS200EISBH1A. The board automatically configures itself at system power-up. System software recognizes the board and assigns appropriate communication roles. For redundant exciter configurations, additional setup may be required. Refer to manual GEI-100454 for specific redundant system instructions. After installation, verify proper communication through the DSPX diagnostic interface.

Package Contents

The IS200EISBH1A includes the following items in its packaging:

• Exciter ISBus Board (IS200EISBH1A) – 1 piece

• Anti-static protective bag – 1 piece

• GE product identification label – 1 piece

• Quick reference connector guide – 1 copy

Note: Fiber-optic cables, backplane, and mounting hardware are sold separately.

Common Applications

The IS200EISBH1A serves critical communication functions in excitation systems. Use it in gas turbine generator excitation control. Apply it in steam turbine EX2100 regulator systems. The IS200EISBH1A is essential for hydro turbine excitation applications. For combined cycle power plants, this board enables reliable communication. It works in industrial cogeneration facilities worldwide. The IS200EISBH1A also suits synchronous motor excitation control systems.

Frequently Asked Questions (FAQ)

1. What controllers work with the IS200EISBH1A board?
The IS200EISBH1A is designed for M1, M2, and C controllers. These are the primary control modules in EX2100 systems.

2. How many fiber-optic connections does this board have?
The IS200EISBH1A has six fiber-optic connectors on its front panel. These handle generator field, exciter, and ground detection signals.

3. What is the typical repair time for this board?
Standard repair service for the IS200EISBH1A takes 3 to 7 days. Rush services may be available for critical applications.

4. Does this board work with non-GE excitation systems?
No, the IS200EISBH1A uses GE's proprietary ISBus protocol. It is specifically designed for GE EX2100 excitation systems only.

5. Where can I find the manual for IS200EISBH1A?
The official manual for IS200EISBH1A is GEI-100454. Contact technical support for manual availability and access.
