Overview

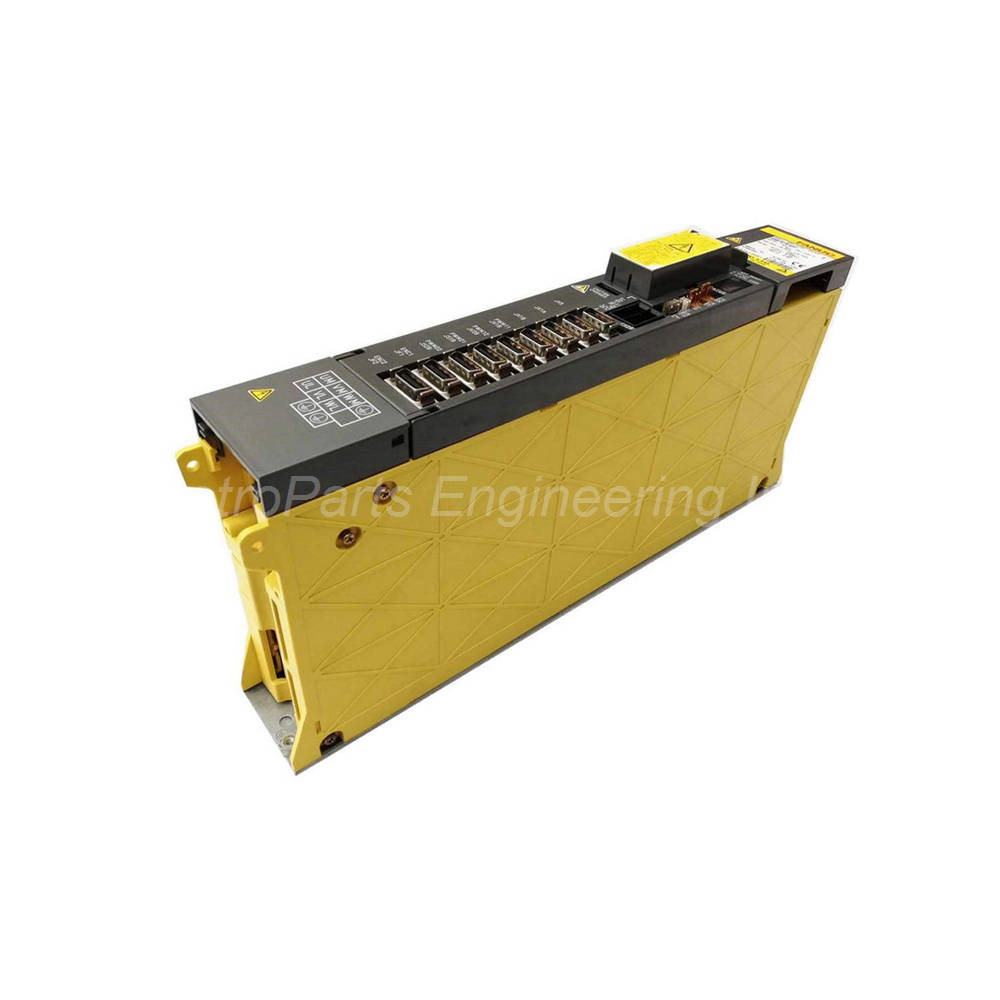

The FANUC A06B-6079-H201 is a versatile dual-axis servo amplifier. This unit belongs to the FANUC A06B servo family. It controls two servo motors independently. The A06B-6079-H201 provides precise motion control for CNC systems. Industrial automation applications benefit from its integrated two-axis design.

This servo amplifier saves valuable cabinet space. One module replaces two separate single-axis amplifiers. The unit supports multiple control modes for different machining tasks.

Technical Specifications

The FANUC A06B-6079-H201 operates on standard industrial power. It accepts 50 or 60 Hz frequency standards. The cooling method uses forced air circulation.

Control and Protection Features

• Control Type: Position, Speed, and Torque Control

• Axis: Dual axis drive

• Protection Features: Overload, Overcurrent, Overvoltage Protection

Environmental and Physical Specifications

• Operating Temperature: 0°C to 55°C

• Weight: 6.80 kg (15.00 lbs)

• Mounting: Vertical or wall-mounted

• Cooling Method: Air cooled

• Application: CNC Systems

Key Features

The A06B-6079-H201 delivers three control modes for flexible operation. Position control ensures accurate tool placement. Speed control maintains constant feed rates. Torque control manages cutting forces during heavy machining.

This FANUC dual-axis amplifier reduces overall system cost. One unit controls two axes simultaneously. The compact design simplifies cabinet layout. Air cooling eliminates the need for complex liquid cooling systems.

Built-in protection features enhance machine reliability. The A06B-6079-H201 monitors operating conditions continuously. It shuts down safely when faults occur. The wide temperature range from 0°C to 55°C suits factory environments. The 50/60 Hz frequency compatibility works with global power standards.

Installation Guidelines

Install the FANUC A06B-6079-H201 vertically on a flat surface. Wall-mounted installation is also acceptable. Maintain adequate clearance around the unit for air circulation. Use proper gauge wiring for both axes.

Connect the input power to the correct terminals at 50 or 60 Hz. Secure the ground connection to prevent electrical noise. Install external circuit breakers for additional safety. Verify all connections before applying power.

Keep the ambient temperature below 55°C during operation. Allow the unit to cool before performing maintenance. Check for dust accumulation on cooling fins regularly. Use shielded cables for motor and encoder connections.

Package Contents

• FANUC A06B-6079-H201 Dual-Axis Servo Amplifier (1 unit)

• Mounting bracket kit

• Terminal block covers

• Grounding screw and washer

• Installation and wiring manual

Frequently Asked Questions (FAQ)

1. What CNC systems work with the FANUC A06B-6079-H201?
The A06B-6079-H201 works with FANUC CNC series requiring dual-axis servo control. It supports milling machines, lathes, and machining centers.

2. What control modes does this A06B-6079-H201 servo amplifier support?
This amplifier supports position, speed, and torque control. These three modes provide flexibility for different machining operations and load conditions.

3. What protection features are included on the FANUC A06B-6079-H201?
The A06B-6079-H201 includes overload, overcurrent, and overvoltage protection. These features prevent damage to the amplifier and connected servo motors.

4. What is the weight of the A06B-6079-H201 servo drive?
The FANUC A06B-6079-H201 weighs 6.80 kg (15.00 lbs). This weight includes the mounting hardware and terminal covers.

5. What is the operating temperature range for this dual-axis servo amplifier?
The amplifier operates from 0°C to 55°C ambient temperature. This range covers most industrial factory environments and machine tool installations.
