Product Overview

Terminal Design and Application

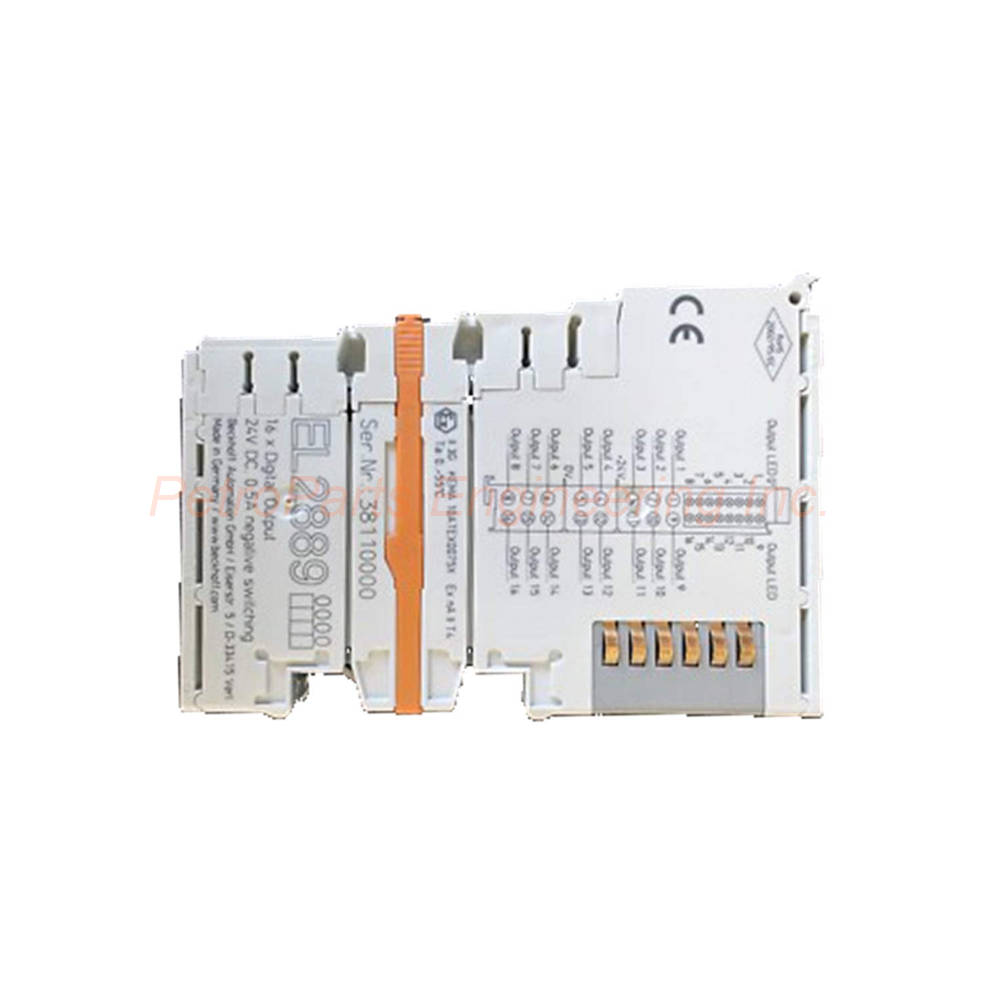

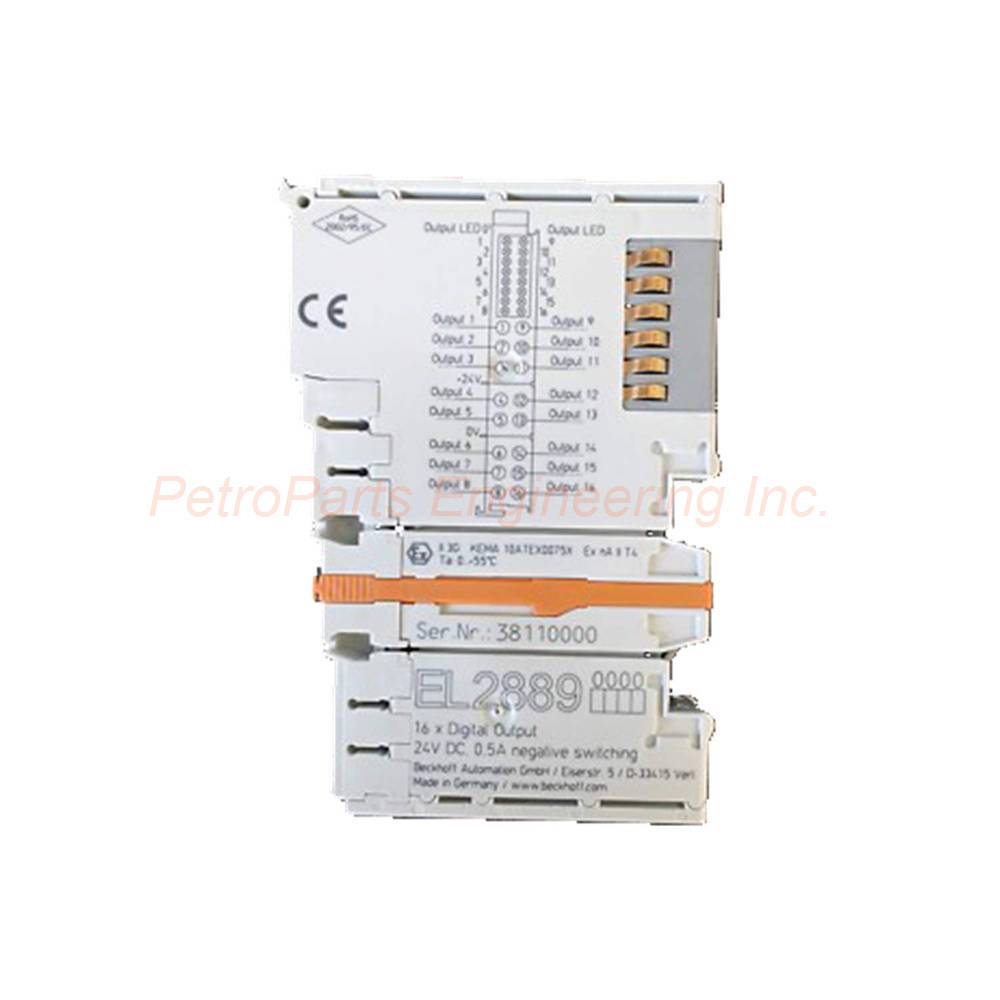

The Beckhoff EL2889 is a digital output terminal from the EL series of EtherCAT Terminals. This terminal connects binary 24 V DC control signals from the automation device to actuators at the process level. Electrical isolation is provided between the E-bus and field potential. Consequently, the EL2889 ensures reliable signal transmission in industrial environments. The EtherCAT Terminal has 16 channels whose signal states are indicated by status LEDs.

Connection Technology and Ground Switching

The connection technology is particularly suitable for single-ended inputs. Therefore, all components must use the same reference point as the EL2889. The power contacts are connected through for convenient power distribution. In the EL2889, the outputs are supplied via the 0 V DC power contact. Ground switching is a special feature of this terminal.

Load Compatibility and Protection

Connection of different load types is possible including ohmic, inductive, and lamp loads. Therefore, the EL2889 adapts to various actuator requirements. The outputs are overload-proof, short-circuit proof, and feature reverse polarity protection. Consequently, the terminal remains reliable even under fault conditions.

Special Features

The Beckhoff EL2889 offers several distinctive features for industrial applications.

• Ground switching for flexible load connection

• Connection of different load types (ohmic, inductive, lamp load)

• Maximum output current of 0.5 A per channel

• Overload and short-circuit proof outputs

• Reverse polarity protection for safe installation

• Tool-free connection by direct plug-in technology for solid wire conductors

• Space-saving use in the control cabinet

• Direct connection of multi-channel actuators in 1-wire connection technology

• Increased packing density with 16 connection points in a 12 mm housing

Technical Specifications

General Specifications

• Manufacturer: Beckhoff

• Part Number: EL2889

• Product Type: Digital Output Terminal

• Connection Technology: 1-wire

• Number of Outputs: 16

• Distributed Clocks: Not supported

• Weight: approx. 70 g

Output Specifications

Switching Times

Current Consumption

Process Image

• Bit Width: 16 outputs

Configuration

• Configuration Required: No address or configuration setting

Electrical Isolation

• Isolation Voltage: 500 V (E-bus/field potential)

Environmental Specifications

Approvals and Markings

• CE

• CCC

• UL

• ATEX

• IECEx

Ex Markings

ATEX: II 3 G Ex ec IIC T4 Gc

IECEx: Ex ec IIC T4 Gc

Housing Data

Connection Cross-Sections

Additional Housing Specifications

• Stripping Length: 8 to 9 mm

• Current Load Power Contacts: Imax = 10 A

• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm

Installation Guide

Follow these steps to install the Beckhoff EL2889 correctly.

1. Mount DIN Rail: First, secure a standard 35 mm DIN rail in your control cabinet.

2. Attach Terminal: Next, clip the EL2889 onto the DIN rail until it locks.

3. Connect Power Contacts: Then, ensure the power contacts are connected through adjacent terminals.

4. Wire Field Devices: After that, insert solid conductors directly or use a screwdriver for stranded wires.

5. Verify Polarity: Meanwhile, confirm all components share the same reference point (0V).

6. Apply Power: Finally, apply 24 V DC power and verify the status LEDs.

The EL2889 requires no address or configuration settings. Therefore, installation is straightforward without programming tools. In addition, use the tool-free direct plug-in technology for solid wire conductors (0.08 to 1.5 mm²). Consequently, proper installation ensures reliable digital output switching.

Package List

The package includes the following physical items.

• Beckhoff EL2889 digital output terminal (1 piece)

• Integrated signal LEDs (16 channels)

• Product label with part number and specifications

• Anti-static protective bag for safe transport

Note: DIN rail is not included. Field wiring is sold separately. No configuration software is required for basic operation.

Frequently Asked Questions (FAQ)

1. How many output channels does the EL2889 provide?

The Beckhoff EL2889 provides 16 digital output channels. Therefore, a single terminal controls up to 16 actuators. The increased packing density fits 16 connection points into a 12 mm housing. Consequently, the terminal saves valuable space in the control cabinet.

2. What is the maximum output current of the EL2889?

Each channel on the Beckhoff EL2889 delivers a maximum output current of 0.5 A. Therefore, the outputs are short-circuit proof for reliable operation. The typical short-circuit current is below 7 A. Consequently, the terminal drives small solenoids, relays, indicator lamps, and other low-power devices.

3. What load types are compatible with the EL2889?

The Beckhoff EL2889 supports three load types: ohmic, inductive, and lamp load. Therefore, it adapts to various actuator requirements without external suppression. Inductive loads are switched safely with breaking energy below 100 mJ per channel. Consequently, the terminal suits diverse industrial applications.

4. What are the switching times of the EL2889?

The Beckhoff EL2889 delivers typical TON switching time of 50 µs. The typical TOFF switching time is 200 µs. Therefore, the terminal responds quickly to control signals from the automation device. Consequently, high-speed output applications are well supported.

5. Does the EL2889 require configuration?

No, the Beckhoff EL2889 requires no address or configuration setting. Therefore, installation is plug-and-play without programming tools. The terminal is automatically recognized by the EtherCAT system. Consequently, setup time is minimized significantly.

6. What approvals does the EL2889 hold?

The Beckhoff EL2889 holds multiple approvals including CE, CCC, UL, ATEX, and IECEx. Therefore, it is certified for use in hazardous areas with Ex ec IIC T4 Gc rating. These approvals simplify global machine certification. Consequently, the terminal suits equipment destined for international markets.

7. What is the operating temperature range of the EL2889?

The Beckhoff EL2889 operates from -25°C to +60°C. Therefore, it functions reliably in cold and moderately hot environments. The storage temperature range extends from -40°C to +85°C. Consequently, the terminal suits outdoor and unheated industrial locations.

Related Accessories

Enhance your EtherCAT I/O system with these compatible parts.

• EtherCAT Coupler: Beckhoff EK1100 for connecting the EtherCAT network

• DIN Rail: Standard 35 mm DIN rail (EN 60715) for terminal mounting

• Power Supply: 24 V DC regulated power supply for terminal operation

• Field Wiring: Solid wire AWG28-16 or stranded AWG22-16 for connections

• Bus Coupler: Beckhoff EK1110 for EtherCAT extension

Always use genuine Beckhoff components with the EL2889. Therefore, third-party terminals may not provide the same packing density or connection technology. In addition, verify hazardous area approvals before installing in explosive environments. Consequently, using authentic parts ensures optimal terminal performance and system reliability.
