Product Overview

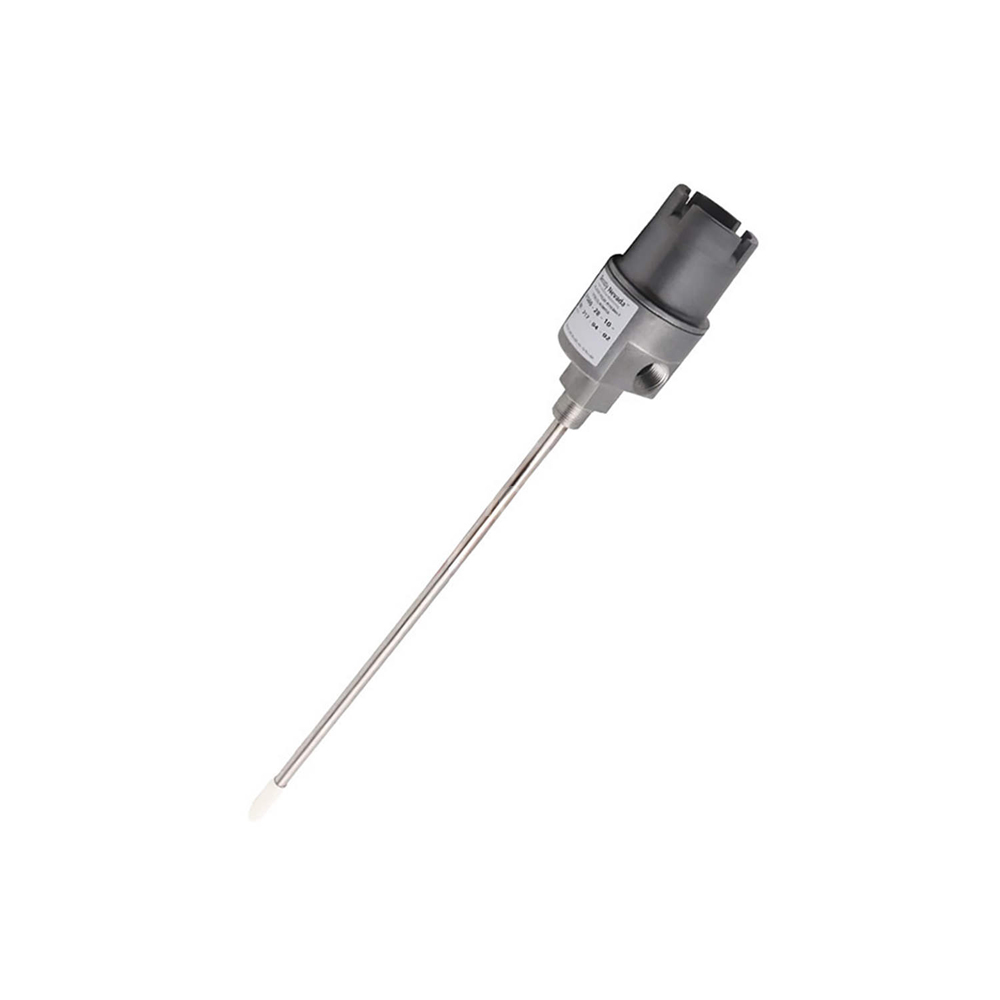

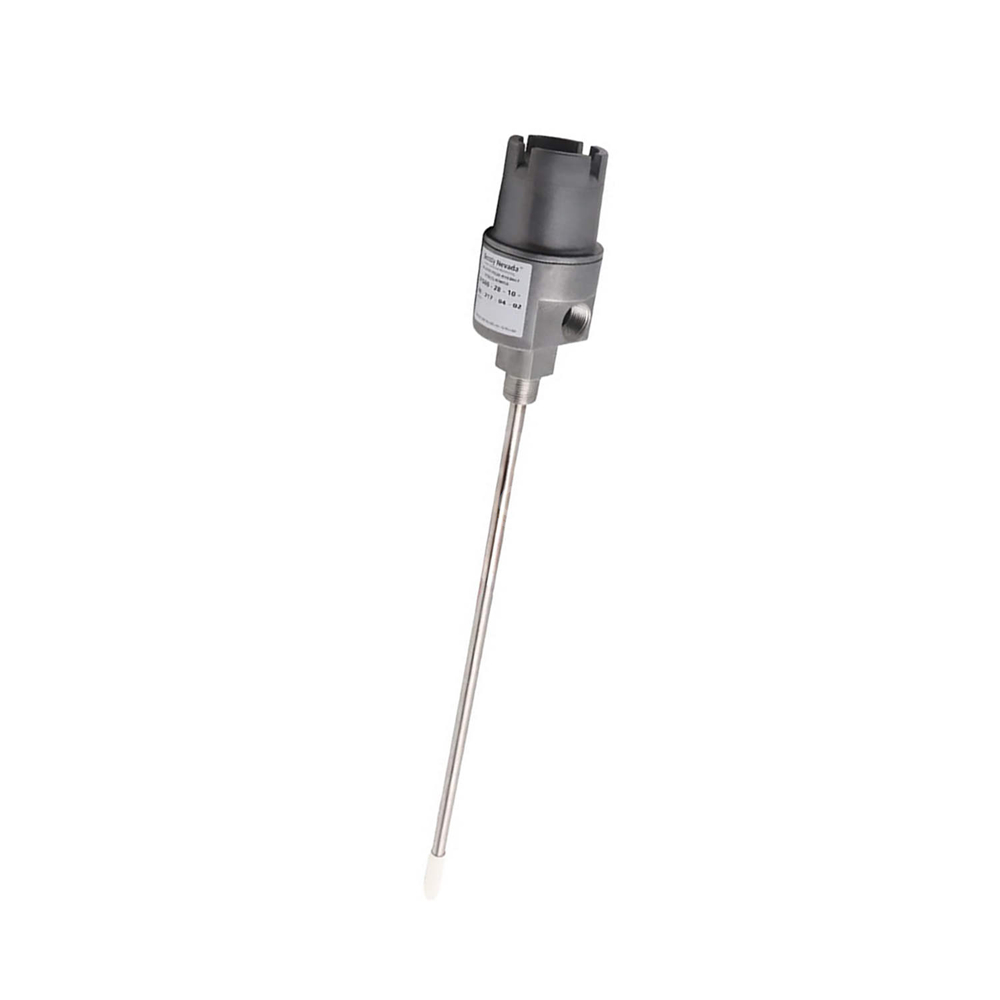

The Bently Nevada 24701-28-05-00-110-03-01 belongs to the 3300 XL series of proximity probe housings. This assembly protects your reverse mount proximity probe in harsh environments. The Bently Nevada 24701-28-05-00-110-03-01 has a 303 stainless steel body with a 304 stainless steel sleeve. You get a dome cover that screws securely into the housing body. The assembly includes threaded ports for conduit connections. The Bently Nevada 24701-28-05-00-110-03-01 includes O-rings and thread seal for leak protection.
Technical Specifications
The Bently Nevada 24701-28-05-00-110-03-01 delivers robust mechanical protection for vibration monitoring applications. All parameters follow the official datasheet.
Model Configuration (24701-28-05-00-110-03-01)
Model: 24701 - Proximity Probe Housing Assemblies
Probe option with connector: 28 = 3300 XL 8mm with approval option
Probe cable length option: 05 = 20 inches (0.5 meters)
Standoff adapter: 00 = No standoff adapter
Probe penetration: 110 = 11 inches
Fittings option: 03
Mounting thread option: 01 = As cast without threads
Physical Specifications
Body material: 303 stainless steel
Sleeve material: 304 stainless steel
Typical weight: 1.8 kg (4.1 lbs) without fittings
Probe cable length: 0.5 meters (20 inches)
Maximum (C) + (D) dimension: 13.5 inches (34.3 mm)
Visible probe information (P/N and S/N): Not visible
Fittings Included (Option 03)
One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for three cable sizes
Grommet size 1: 1/8 to 3/16 inches
Grommet size 2: 1/4 to 5/16 inches
Grommet size 3: 5/16 to 3/8 inches
Assembly Components
The Bently Nevada 24701-28-05-00-110-03-01 includes the following parts.
A dome cover that screws into the housing body
Threaded ports for conduit connections
A probe sleeve of optional length
O-rings for sealing
A reverse mount proximity probe
A thread seal for leak prevention
Optional conduit fittings
An optional standoff adapter
Installation Guide
Follow these steps to install the Bently Nevada 24701-28-05-00-110-03-01 correctly.
Select the correct probe sleeve length for your 11 inch penetration requirement.
Insert the reverse mount proximity probe into the housing assembly.
Apply thread seal to all threaded connections before assembly.
Screw the dome cover securely into the 303 stainless steel housing body.
Connect the 0.5 meter probe cable to your monitoring system.
Install conduit fittings as needed for your specific cable size.
Mount the Bently Nevada 24701-28-05-00-110-03-01 at the desired 11 inch penetration depth.
Packing List
This package for the Bently Nevada 24701-28-05-00-110-03-01 includes the following items.
Bently Nevada 24701-28-05-00-110-03-01 housing assembly (one unit)
3300 XL 8mm reverse mount proximity probe
Dome cover with O-rings
One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with three grommets
Thread seal compound
Frequently Asked Questions (FAQ)
1. What is the probe penetration depth for this 24701 model?
The Bently Nevada 24701-28-05-00-110-03-01 has 11 inches of probe penetration. This is indicated by the suffix code 110 in the product number.
2. What probe works with the Bently Nevada 24701-28-05-00-110-03-01?
The Bently Nevada 24701-28-05-00-110-03-01 is designed for 3300 XL 8mm reverse mount proximity probes. The probe option code 28 confirms this compatibility.
3. What materials are used in the Bently Nevada 24701-28-05-00-110-03-01?
The Bently Nevada 24701-28-05-00-110-03-01 has a 303 stainless steel body. The sleeve uses 304 stainless steel for additional corrosion resistance.
4. What cable length comes with the Bently Nevada 24701-28-05-00-110-03-01?
The cable length is 0.5 meters (20 inches). The Bently Nevada 24701-28-05-00-110-03-01 uses suffix code 05 for this cable option.
5. What fittings are included with the 24701-28-05-00-110-03-01?
The package includes one 3/4-14 NPT plug and one reducer. It also includes a cable seal grip with grommets for three cable sizes up to 3/8 inches.
