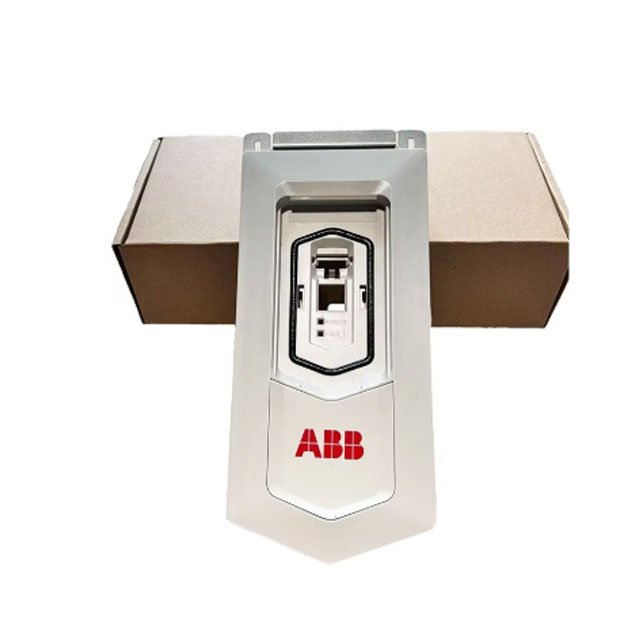

Overview of the ABB ACS510-01-060A-4 Inverter Drive

The ABB ACS510-01-060A-4 is a high-performance Variable Frequency Drive (VFD) specifically engineered for industrial fan and pump applications. As a core member of the ACS510 drive family, this unit excels in energy efficiency and motor control precision. ABB designed this inverter to handle 3-phase loads with an output current of 60 A and a power rating of 30 kW (40 HP).

Operating within a voltage range of 380 V to 480 V, the ACS510-01-060A-4 provides a versatile solution for global industrial standards. Its robust design, combined with advanced software macros, simplifies the complex task of motor regulation in HVAC, water treatment, and manufacturing environments.

Technical Specifications and Performance

The ACS510-01-060A-4 utilizes the R4 frame size, offering a balance between power density and thermal management. The unit weighs 26.5 kg and features dimensions of 600 mm (H) x 270 mm (W) x 450 mm (L).

• Input Voltage (Uin): 380 – 480 V AC, 3-phase
• Frequency Range: 47.5 Hz to 63 Hz
• Output Current (In): 60 A (Normal use)
• Output Power (Pn): 30 kW
• Apparent Power: 42 kVA
• Efficiency Class: IE2 (High efficiency)
• Standby Loss: Minimal 17 W
• Protection Rating: IP21 (NEMA Type 1)

The drive maintains optimal performance up to a nominal temperature of 40°C. ABB’s engineering ensures that the inverter manages harmonics effectively through a built-in swinging choke, which reduces total harmonic distortion (THD) significantly compared to standard drives.

Energy Efficiency and Sustainability

In today’s industrial landscape, energy conservation is paramount. The ACS510-01-060A-4 directly addresses this need. By utilizing an IE2 efficiency rating, the drive minimizes internal energy conversion losses. The intelligent cooling fan control only operates when necessary, further reducing noise and power consumption.

Furthermore, the drive includes built-in energy counters. These tools allow operators to monitor energy savings in kilowatt-hours, local currency, or even CO2 emissions reduction. This transparency helps facilities meet sustainability goals while lowering operational costs.

Advanced Control Features and Macros

One of the standout features of the ACS510 series is the inclusion of pre-defined application macros. These macros eliminate the need for manual parameter entry for common setups.

1. PFC Macro: Controls multiple pumps or fans in parallel.
2. SPFC Macro: Soft pump and fan control for reduced mechanical stress.
3. PID Control: Maintains constant pressure or flow by adjusting motor speed based on sensor feedback.
4. Hand/Auto Macro: Allows easy switching between local manual control and remote automation.

The drive also features a user-friendly assistant control panel. This multi-lingual interface includes a “Help” button to guide technicians through commissioning and troubleshooting, reducing the need for external technical support.

Installation and Environmental Protection

The ACS510-01-060A-4 features a wall-mounted design, making it suitable for electrical rooms and control cabinets. Its IP21 (NEMA Type 1) enclosure protects internal components from falling dirt and light moisture drippings.

For environments with high electromagnetic interference, the drive includes a built-in RFI filter as standard. This filter ensures compliance with EMC standards without requiring additional external components. The R4 frame’s cooling system utilizes a high-performance fan that users can easily replace, ensuring the drive remains in service for years with minimal maintenance.

Application Scenarios

Industrial engineers typically deploy the ACS510-01-060A-4 in the following sectors:

• Water & Wastewater: Controlling centrifugal pumps for pressure boosting and irrigation.
• HVAC Systems: Regulating supply and extract fans in large commercial buildings to maintain air quality and temperature.
• Industrial Cooling: Managing cooling tower fans and circulation pumps.
• Agriculture: Driving high-capacity irrigation pumps with soft-start capabilities to protect piping systems.

Why Choose the ABB ACS510-01-060A-4?

Choosing this ABB inverter means investing in reliability. The ACS510-01-060A-4 reduces mechanical wear on motors by providing smooth acceleration and deceleration. It eliminates the high inrush currents associated with direct-on-line (DOL) starting, which protects your electrical infrastructure. With its comprehensive protection features—including overvoltage, undervoltage, and short-circuit protection—the ACS510-01-060A-4 stands as a guardian for your critical industrial assets.
