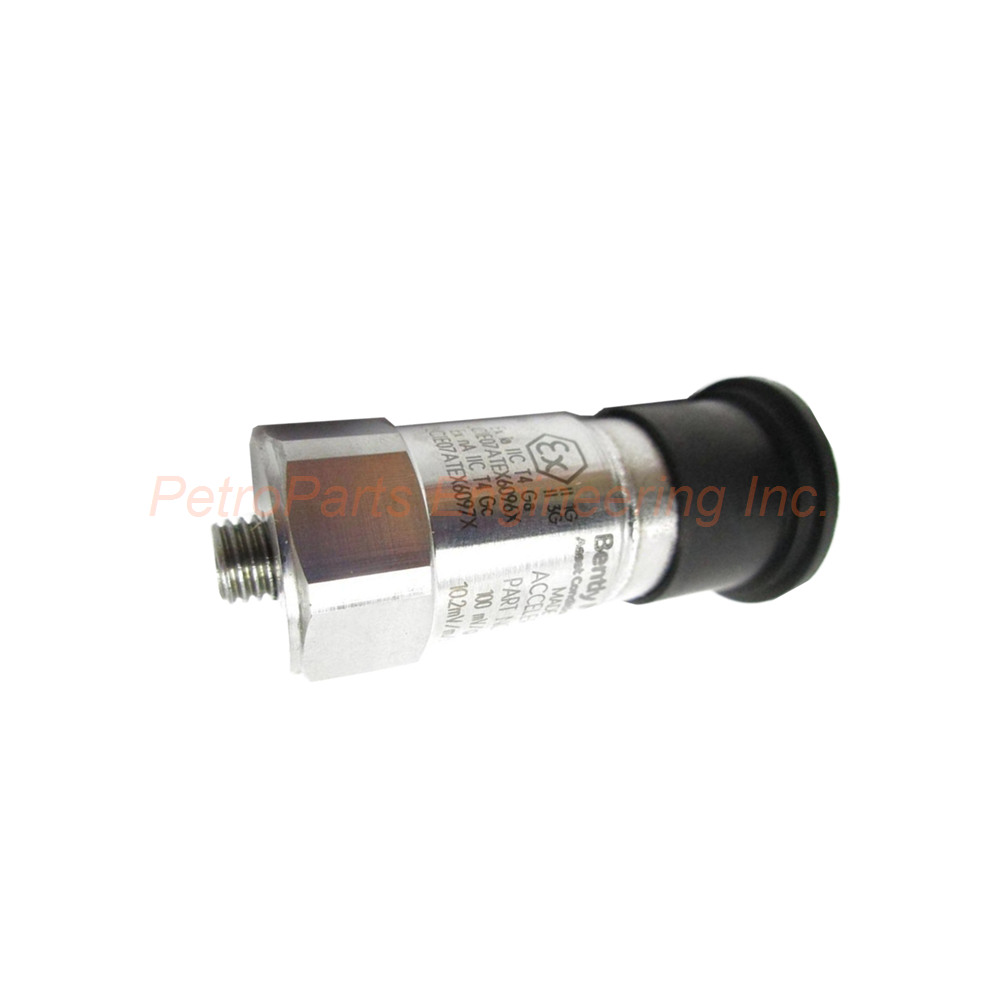

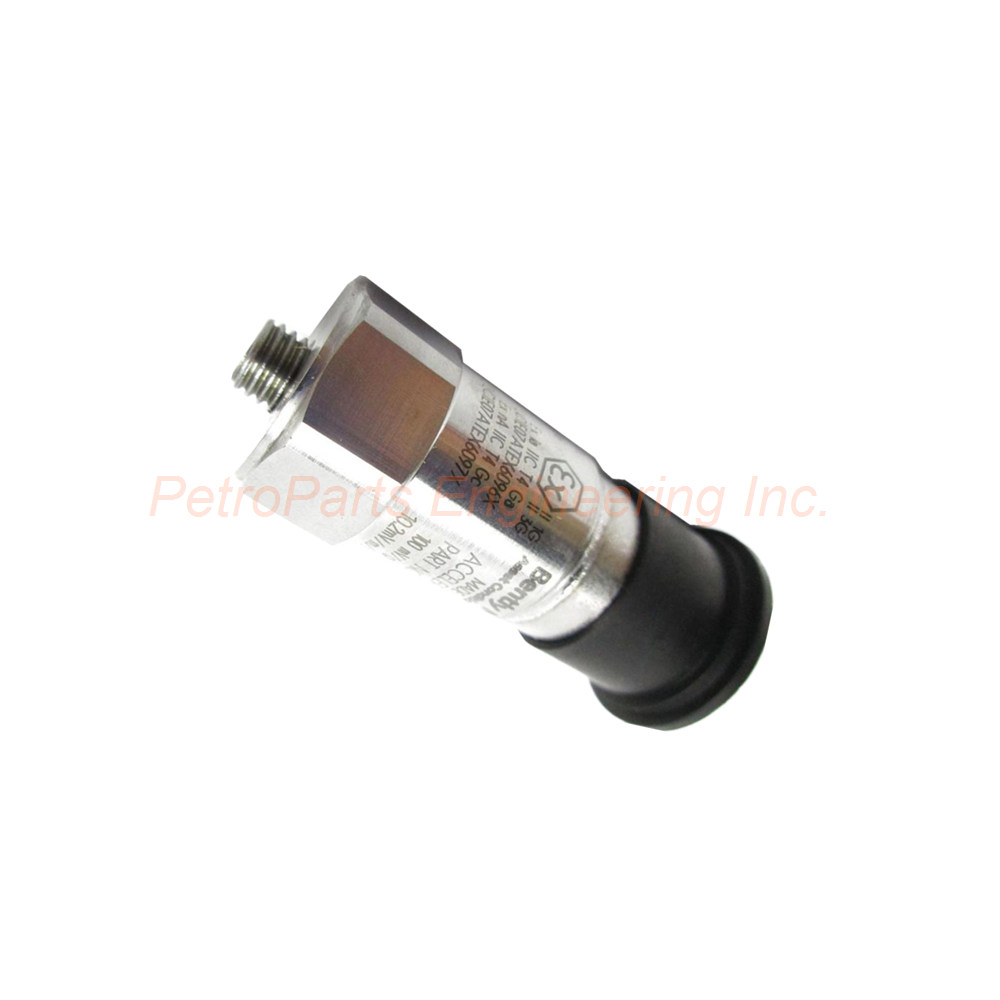

Bently Nevada 200350-01-00-CN – 200350 Accelerometer

The Bently Nevada 200350-01-00-CN is a high-performance accelerometer. Specifically, this device measures vibration on industrial machinery. It is made in the U.S.A. Furthermore, this accelerometer features a shear sensing geometry. The sensing element uses durable ceramic material. Consequently, it delivers reliable and accurate vibration data.

Ordering Options and Configuration

The 01 mounting stud option includes ¼-28 to M6 x 1.00 stainless steel hardware. Meanwhile, the 00 tolerance option provides 100 mV/g ±20% sensitivity. Additionally, the CN agency approval option indicates country specific approval. For reference, the Bently Nevada 200350-01-00-CN suits various monitoring applications.

Sensitivity and Measurement Range

• Sensitivity: 100 mV/g ±20% standard.

• Sensitivity Alternative: 10.2 mV/m/s² ±20%.

• Measurement Range: ±50g maximum.

• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz) at ±3 dB.

• Transverse Sensitivity: ≤7% maximum.

• Amplitude Linearity: ±1% typical.

• Therefore, the Bently Nevada 200350-01-00-CN captures a wide vibration spectrum.

Frequency and Resonant Characteristics

• Mounted Resonant Frequency: 1500 kcpm (25 kHz).

• Broadband Electrical Noise (1-10 kHz): 350 μg (3,434 μm/s²).

• Output Bias Voltage: 8 to 12 VDC range.

• Discharge Time Constant: ≥0.3 seconds.

• Output Impedance: <150 ohms.

• Electrical Isolation (Case): >10⁸ ohms.

• Consequently, noise interference remains minimal during operation.

Power and Excitation Requirements

• Excitation Voltage: 18 to 28 VDC range.

• Constant Current Excitation: 2 to 20 mA range.

• Settling Time: 2.0 seconds within 1% of bias.

• Output Bias Voltage: 8 to 12 VDC nominal.

• Thus, the Bently Nevada 200350-01-00-CN powers up quickly and stabilizes rapidly.

Temperature and Environmental Ratings

• Operating Temperature: -65°F to +250°F range.

• Operating Temperature (C): -54°C to +121°C range.

• Shock Survivability: 5,000 g peak maximum.

• Relative Humidity: 100% relative, condensing, non-submerged.

• Enclosure Rating: IP68 for superior protection.

• Sealing Type: Welded hermetic seal.

• Housing Material: Stainless steel construction.

• Moreover, the Bently Nevada 200350-01-00-CN withstands harsh environments.

Physical Dimensions and Weight

• Hex Size: 11/16 inch (1.8 cm).

• Height: 1.65 inches (4.24 cm).

• Weight: 0.051 kg (51 grams).

• Mounting Thread: 1/4-28 female thread.

• Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N-m).

• Electrical Connector: 2-Pin Mil-C-5015 type.

• Electrical Connection Position: Top of the unit.

• Sensing Element: Ceramic material.

• Sensing Geometry: Shear design.

• Similarly, the compact size allows installation in tight spaces.

Installation Guide

First, prepare the mounting surface on your machine. Then, clean the 1/4-28 female thread on the accelerometer. After that, apply the 01 mounting stud (¼-28 to M6 x 1.00 stainless steel). Next, torque the mounting stud to 2 to 5 ft-lb (2.7 to 6.8 N-m). Do not exceed the maximum torque specification. Subsequently, connect the 2-pin Mil-C-5015 connector to the top port. Then, apply 18 to 28 VDC excitation voltage to the unit. Ensure constant current stays between 2 and 20 mA. Finally, allow 2.0 seconds for settling time before taking measurements. As a result, the Bently Nevada 200350-01-00-CN will provide accurate vibration data.

Packaging List

• One Bently Nevada 200350-01-00-CN accelerometer unit

• One ¼-28 to M6 x 1.00 stainless steel mounting stud

• One protective connector cap

• One calibration certificate

• One installation and wiring guide

Common FAQs

Q1: What sensitivity does the Bently Nevada 200350-01-00-CN provide?
A: This model provides 100 mV/g ±20% sensitivity. Specifically, the 00 tolerance option specifies this exact range. Alternatively, this equals 10.2 mV/m/s² ±20%.

Q2: What is the frequency range for this accelerometer?
A: The frequency range is 30 to 600,000 cpm. This corresponds to 0.5 to 10,000 Hz at ±3 dB. Therefore, it suits most industrial vibration monitoring applications.

Q3: Is the Bently Nevada 200350-01-00-CN suitable for outdoor use?
A: Yes, absolutely. It has an IP68 enclosure rating. Additionally, the housing uses welded hermetic sealing. The operating temperature ranges from -54°C to +121°C.

Q4: What connector type does this accelerometer use?
A: This unit uses a 2-pin Mil-C-5015 connector. The electrical connection position is on the top. Furthermore, the housing is made of stainless steel.

Q5: What is the shock survivability rating for this device?
A: The Bently Nevada 200350-01-00-CN survives up to 5,000 g peak. Consequently, it withstands severe mechanical shocks. However, always follow the maximum mounting torque specification.
