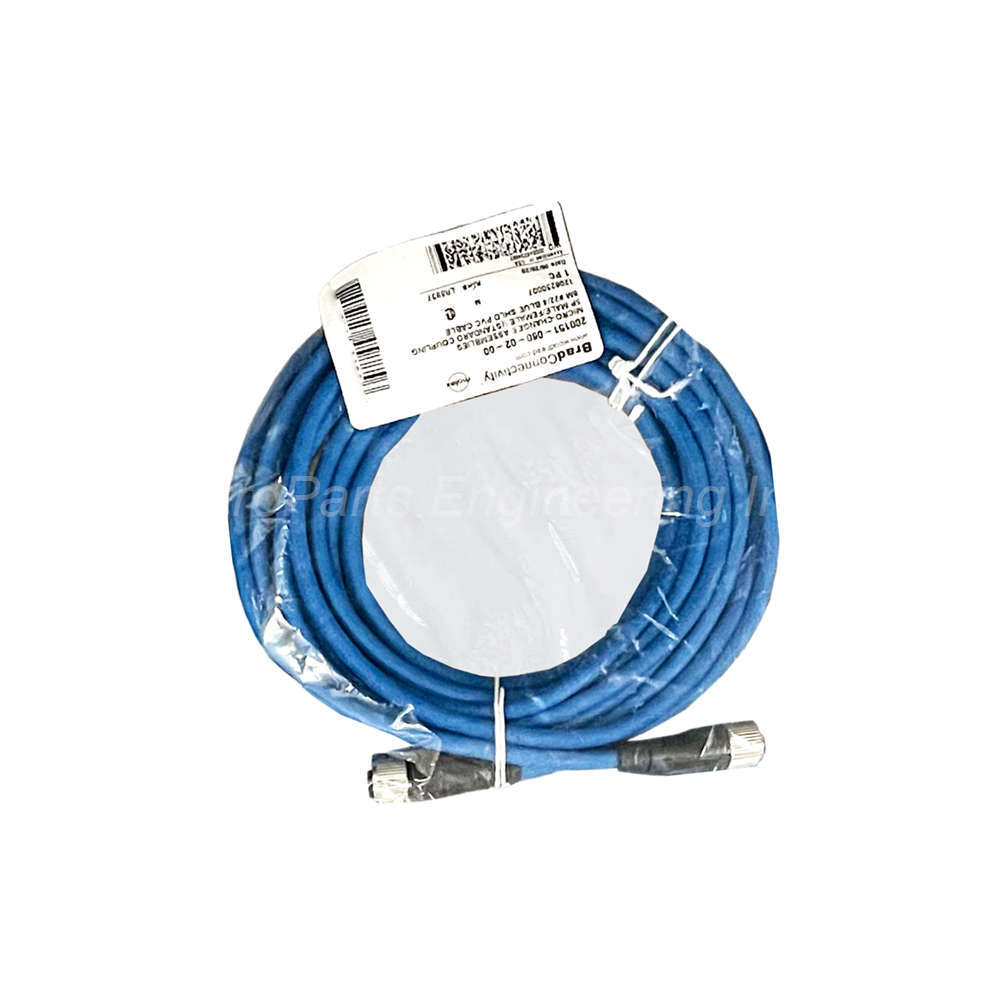

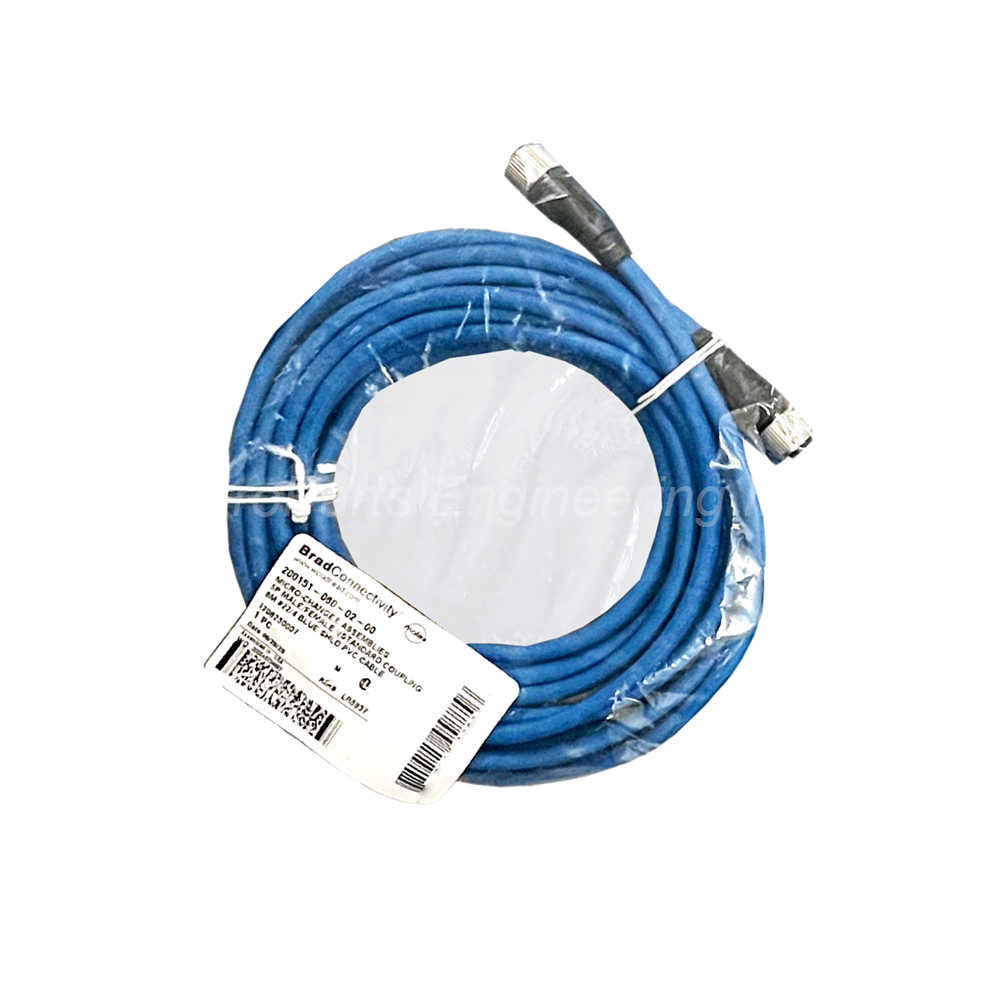

Bently Nevada 200151-20-02-00 Accelerometer Standard Cable

The Bently Nevada 200151-20-02-00 is an accelerometer interface standard cable. This cable has connectors on both ends for easy installation. You can use it to connect accelerometers to monitoring systems. The cable provides reliable signal transmission for vibration measurements. It is designed for industrial machinery protection applications.

Technical Specifications of the 200151-20-02-00

The Bently Nevada 200151-20-02-00 has a total length of 2.0 meters. The armor option is blue cable without armor (code -02). The coupling nut is standard type (code -00). This configuration suits most standard industrial installations.

Cable Construction

The Bently Nevada 200151-20-02-00 uses 4-conductor 22 AWG wire. A braided shield with drain wire provides noise protection. The shield coverage is 85% minimum for reliable signal integrity. The outer jacket is made of blue PVC material. The coupling nuts are nickel-plated for corrosion resistance.

Connector Specifications

The connectors provide an IP67 seal to transducers and mating hardware. The Bently Nevada 200151-20-02-00 connectors are molded directly to the cable. This molding provides excellent strain relief. DC4 electrical insulating compound is added inside the connectors. This compound provides additional moisture protection during thermal shock.

Temperature Ratings

The operating temperature range is -20°C to +100°C. The Bently Nevada 200151-20-02-00 may be used at lower temperatures. However, the cable must not flex or bend below -20°C. Flexing below -20°C may damage the cable. The connector temperature range is -55°C to +121°C.

Minimum Bend Radius

The minimum bend radius is 63.5 mm (2.5 inches). The Bently Nevada 200151-20-02-00 should not be bent tighter than this radius. This prevents internal conductor damage. Proper routing extends cable service life.

Cure Time

The DC4 insulating compound requires 24 hours cure time. This ensures proper moisture protection. Allow full cure before exposing to harsh environments.

Installation Guidelines for the 200151-20-02-00

Route the Bently Nevada 200151-20-02-00 with a bend radius of at least 63.5 mm. Avoid flexing the cable at temperatures below -20°C. Hand-tighten the coupling nuts to the mating connectors. Allow 24 hours for the DC4 compound to cure. Keep the blue PVC jacket away from sharp edges. Use cable ties at recommended intervals for support.

Package Contents

• One (1) Bently Nevada 200151-20-02-00 accelerometer cable (2.0 meters)

• Connectors on both ends (pre-molded)

Common FAQs for the 200151-20-02-00

1. What is the length of the 200151-20-02-00 cable?
The Bently Nevada 200151-20-02-00 has a length of 2.0 meters. Other lengths are available under different part number suffixes.

2. What is the IP rating of the connectors?
The connectors on the Bently Nevada 200151-20-02-00 provide an IP67 seal. This protects against dust and temporary immersion.

3. What is the operating temperature range for this cable?
The Bently Nevada 200151-20-02-00 operates from -20°C to +100°C. Do not flex the cable below -20°C to prevent damage.

4. What is the minimum bend radius for this cable?
The minimum bend radius is 63.5 mm (2.5 inches) for the Bently Nevada 200151-20-02-00. Tighter bends may damage internal conductors.

5. What type of shielding does this cable have?
The Bently Nevada 200151-20-02-00 has a braided shield with drain wire. The shield coverage is 85% minimum for noise protection.

Why Choose the Bently Nevada 200151-20-02-00?

This accelerometer cable provides reliable signal transmission for vibration monitoring. The 2.0 meter length suits many machinery installations. IP67 connectors protect against moisture and dust. The braided shield ensures clean signals in noisy environments. Order the Bently Nevada 200151-20-02-00 today for your accelerometer cabling needs.
