What Makes the ATV930C13N4F a Dependable Choice for Oil and Gas?

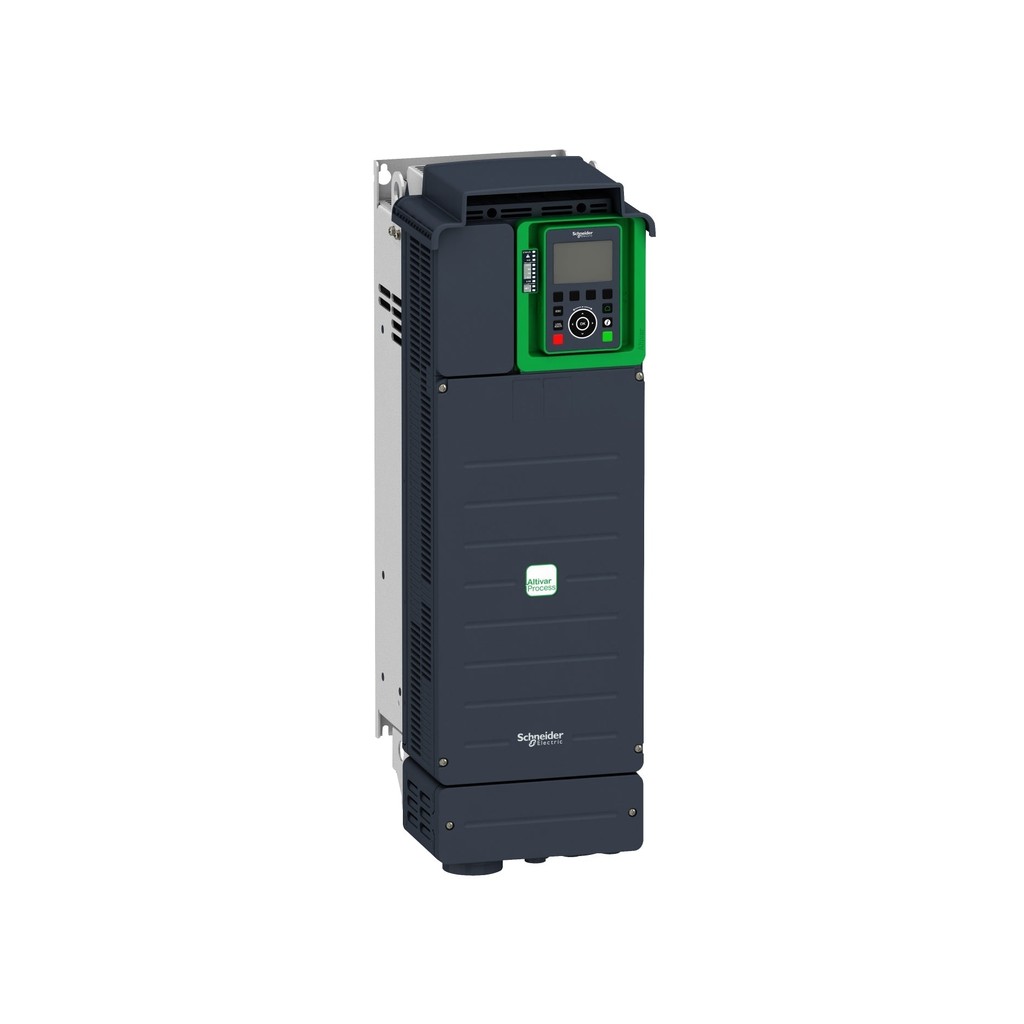

The Schneider Electric ATV930C13N4F is a floor-standing three-phase variable speed drive rated 132 kW in Normal Duty and 110 kW in Heavy Duty. It operates from a 380...440 V supply and includes an integrated Category C3 EMC filter. From a maintenance engineer's viewpoint, this drive is built for demanding environments where uptime is mission-critical.

Its IP21 enclosure and dual-rated ND/HD design allow flexible application across pumps, fans, and compressors. The integrated Safe Torque Off (STO) function, rated SIL3 / Cat. PL e, supports safety-related stopping without external contactors. This simplifies wiring and reduces potential failure points in safety circuits.

Key Specifications and Performance Data

• Supply voltage: 380...440 V three-phase (-15%/+10%), 50/60 Hz
• Motor power (ND): 132 kW with 120% overload for 60 s
• Motor power (HD): 110 kW with 150% overload for 60 s
• Maximum input current: 250 A at 380 V; 232 A at 400 V
• Maximum continuous output current: 250 A (ND); 211 A (HD)
• Operating temperature: 0 to +40 °C standard, derating from 40 to 50 °C
• Storage temperature: -40 to +70 °C
• Relative humidity: 5 to 95% non-condensing
• Dimensions (H×W×D): 2150 x 400 x 642 mm
• Weight: 300 kg (661 lb)

The drive's power dissipation is 2992 W in Normal Duty and 2390 W in Heavy Duty at nominal load. Required minimum air flow is 720 m3/h, which is critical for maintaining internal temperatures in high-ambient installations. The integrated EMC filter (Category C3) helps meet emission requirements without additional external filters, saving panel space and installation time.

How Does This unit Handle Harsh Conditions?

Environmental robustness is a core strength. The drive is rated for IEC 60721-3-3 class 3C3 / 3S3 / 3M3 (except frame size 7), covering humidity, vibration, and temperature extremes typical of oil and gas sites. The IP21 enclosure protects against solid objects and dripping water, suitable for indoor installation.

For high-altitude locations, derating is required above 1000 m: derate nominal current by 1% per additional 100 m up to 3000 m. This ensures reliable operation without overheating. The drive also carries certifications including UL 508C, UL61800-5-1, EN/IEC 61800-3 (category C2/C3), and Achilles Level 2 for cybersecurity. These certifications support integration into safety and control systems with confidence.

Installation and Maintenance Best Practices

Proper installation is key to long service life. Maintain clearances of 100 mm above and below the drive, and 10 mm at the front. Terminal tightening torque for the supply and output copper busbar is 47 N·m (415 lbf·in). The ground bar uses an M12 screw. These values must be followed to prevent loose connections and hot spots.

For maintenance, periodic inspection of cooling fans and heat sinks is recommended. The required air flow of 720 m3/h must be maintained; clogged filters or obstructed airflow will cause derating or tripping. Operating temperature should be monitored, especially if ambient exceeds 40 °C, as derating applies. The drive's built-in diagnostics and Modbus/Ethernet connectivity enable remote monitoring, reducing the need for frequent site visits.

Integration and Communication

This unit includes a dual-port Ethernet switch (RJ45) and a Modbus serial port (RJ45). Built-in protocols are EtherNet/IP and Modbus TCP, with Modbus RTU/TCP serial support. For other fieldbuses, one option slot accepts modules for PROFINET, PROFIBUS DP V1, CANopen, DeviceNet, EtherCAT, or POWERLINK. Up to three additional I/O modules can be added for expanded control.

When integrating into a fieldbus network, note that wiring may require an external gateway or connection module. Confirm cable and gateway compatibility with your supplier to avoid commissioning delays.

Frequently Asked Questions

What is the input voltage range of This unit?

This unit accepts a three-phase supply of 380...440 V (-15%/+10%) at 50/60 Hz. This wide tolerance helps accommodate voltage fluctuations common in industrial power systems.

Can This unit operate in high-temperature environments?

The drive is rated for 0 to +40 °C standard operation, with derating allowed up to 50 °C. Above 40 °C, output current must be reduced according to the derating curve in the catalog.

What safety functions does This unit include?

It integrates one Safe Torque Off (STO) function rated SIL3 / Cat. PL e, with two dedicated safety inputs. This enables safe stopping without external contactors, simplifying safety circuit design.

How much maintenance does This unit require?

Regular inspection of cooling fans, heat sinks, and air filters is advised. Ensure the required air flow of 720 m3/h is maintained and that ambient temperature stays within limits. The drive's diagnostics can alert to issues early.

What is the weight and dimensions of This unit?

The drive weighs 300 kg (661 lb) and measures 2150 x 400 x 642 mm (H×W×D). Ensure floor mounting can support this weight and that installation clearances are respected.

For parts suited to your application's requirements, contact PetroPartsOnline.
