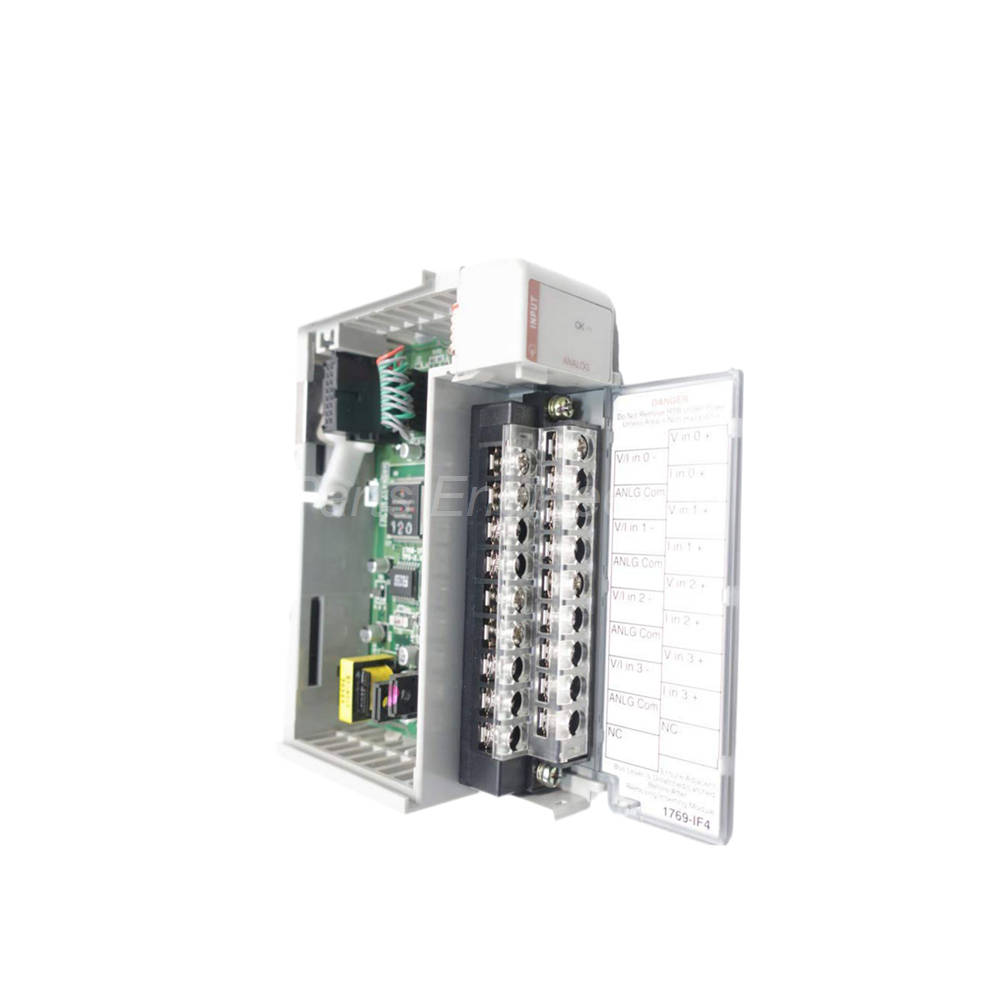

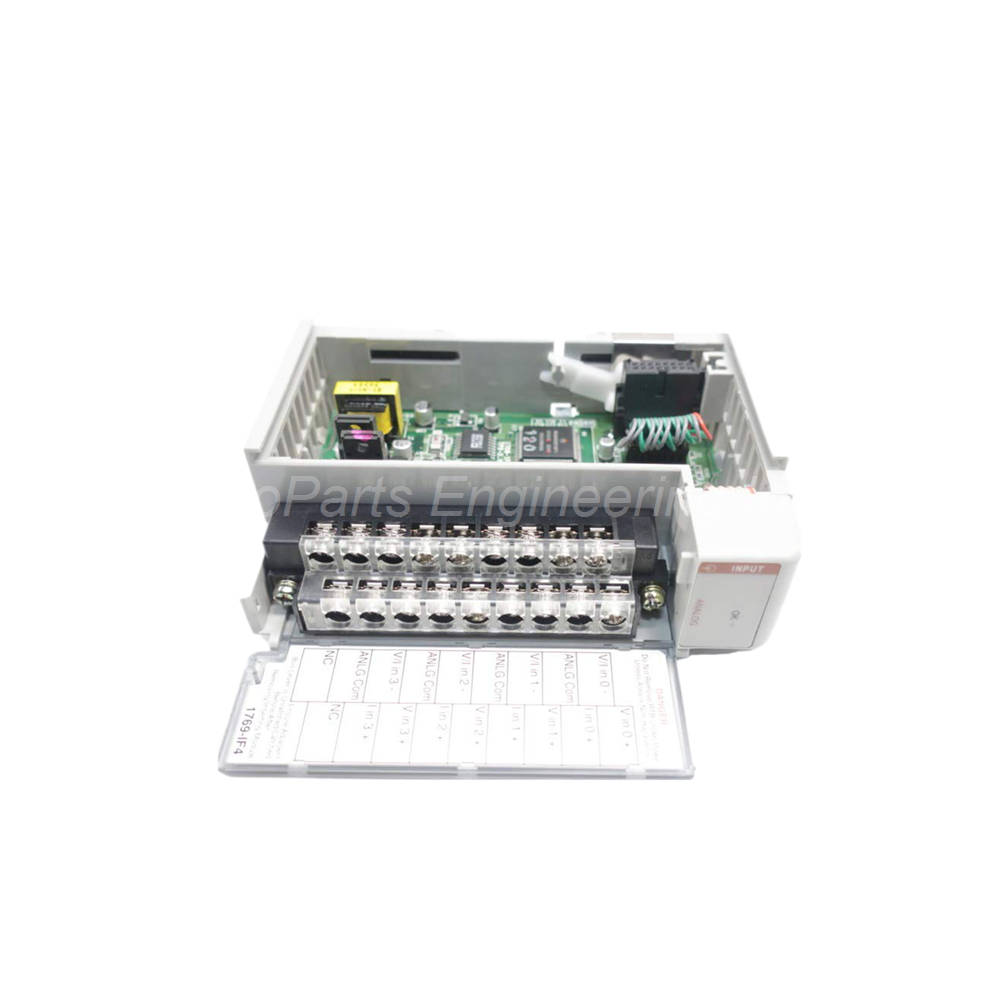

Allen-Bradley 1769-IF4 Analog Input Module Overview

The Allen-Bradley 1769-IF4 is a 4-channel analog input module for CompactLogix systems. This module works with MicroLogix 1500 and 1769 CompactLogix controllers. The Allen-Bradley 1769-IF4 accepts both current and voltage input signals on each channel. Each of the four inputs can be configured individually for differential or single-ended operation. The module uses a Delta-Sigma converter type for accurate analog-to-digital conversion. The Allen-Bradley 1769-IF4 has a resolution of 14 bits for unipolar signals and 14 bits plus sign for bipolar signals. This module does not provide loop power for analog inputs. An external power supply must match your input transmitter specifications.

Technical Specifications

General Specifications

• Manufacturer: Rockwell Automation.

• Brand: Allen-Bradley.

• Part Number: 1769-IF4.

• Product Line: CompactLogix.

• Module Type: 4 Channel Analog Input Module.

• Input Type: Analog Input (Current/Voltage).

• Product Type: Analog Input Module.

• Compatible Controllers: MicroLogix 1500 and 1769 CompactLogix.

• Status: Current Product.

• UPC/GTIN: 10662468992937.

• Series: A and B.

Input Specifications

• Number of Inputs: 4 differential and single-ended inputs.

• Input Current Range: 0 to 21 mA.

• Current Signal Normal Ranges: 0 to 20 mA and 4 to 20 mA.

• Current Signal Full Range: 0 to 21 mA and 3.2 to 21 mA.

• Input Voltage Range: 0 to 10.5 VDC.

• Voltage Signal Normal Ranges: ±10V DC, 0 to 10V DC, 0 to 5V DC, 1 to 5V DC.

• Voltage Signal Full Range: ±10.5V DC, -0.5 to 10.5V DC, -0.5 to 5.25V DC, 0.5 to 5.25V DC.

• Rated Working Voltage: 30V AC and 30V DC.

Converter and Resolution

• Converter Type: Delta Sigma.

• Resolution (Unipolar): 14 bits.

• Resolution (Bipolar): 14 bits plus sign.

Power Specifications

• Backplane Current: 1.4 Amps at 24 Volts.

• Power Consumption: 33.6 Watts.

• Power Dissipation: 7.5 Watts.

• External Power Supply: 24 VDC required.

• Power Supply Distance Rating: 8.

Physical Specifications

• Shipping Weight: 2 lbs (0.91 kg).

• Shipping Dimensions: 8 x 8 x 5 inches.

• Module Dimensions: 87 mm x 35 mm x 118 mm.

• Communication Cable: 4 point.

Environmental Specifications

• Operating Temperature: 0°C to 60°C.

• Storage Temperature: -40°C to 85°C.

• Relative Humidity: 5% to 95% non-condensing.

• Operating Altitude: 2000 meters maximum.

• Operating Vibration: 5 g at 10 to 500 Hz.

• Operating Shock: 30 g.

• Non-Operating Shock: 40 g.

• Relay Operating Vibration: 2 g.

• Relay Operating Shock: 7.5 g.

• Common Mode Voltage Range: ±10V maximum per channel.

• Common Mode Rejection Ratio: >60 dB.

• Normal Mode Rejection Ratio: -50 dB at 50 to 60 Hz.

Data Formats

The Allen-Bradley 1769-IF4 supports multiple data formats:

• Engineering units

• Scaled for PID

• Percent range

• Raw data

Configurable Parameters

• Process alarms

• Input filters

• Real time sampling

• Alarm deadband

Wiring Specifications

• Compatible Cables: Belden or equivalent.

• Wire Sizes: 22-14 AWG solid and 22-16 AWG stranded.

Mounting Options

• DIN rail mounting

• Panel mounting

Installation Guide

Follow these steps to install the Allen-Bradley 1769-IF4 correctly:

1. Turn off all power to the CompactLogix system before installation.

2. Mount the Allen-Bradley 1769-IF4 on a DIN rail or panel.

3. Connect the module to the adjacent Compact I/O module using the bus connector.

4. Wire analog sensors to the 4 input channels using Belden or equivalent cable.

5. Connect an external 24 VDC power supply for loop power (module does not provide it).

6. Configure each channel for current or voltage signal ranges individually.

7. Set the data format to engineering units, PID scaled, percent range, or raw data.

8. Test the Allen-Bradley 1769-IF4 by verifying LED status indicators and analog readings.

Packaging List

• Allen-Bradley 1769-IF4 analog input module (1 unit)

• Anti-static protective bag (1 piece)

• Installation instructions manual (1 copy)

• Product label with catalog number

• Bus connector cover (1 piece)

Frequently Asked Questions (FAQ)

1. What controllers are compatible with the 1769-IF4 module?
The Allen-Bradley 1769-IF4 works with MicroLogix 1500 and 1769 CompactLogix controllers.

2. Does the 1769-IF4 provide loop power for analog inputs?
No, this module does not provide loop power. You need an external power supply matching your transmitter specifications.

3. What input signal ranges does this module accept?
This module accepts 0-21 mA current and ±10.5V DC voltage signals with normal ranges including 4-20 mA and 0-10V.

4. What is the resolution of the Allen-Bradley 1769-IF4?
The resolution is 14 bits for unipolar signals and 14 bits plus sign for bipolar signals.

5. Can I mix current and voltage inputs on the same module?
Yes, each of the 4 channels on the 1769-IF4 can be individually configured for current or voltage signals.
