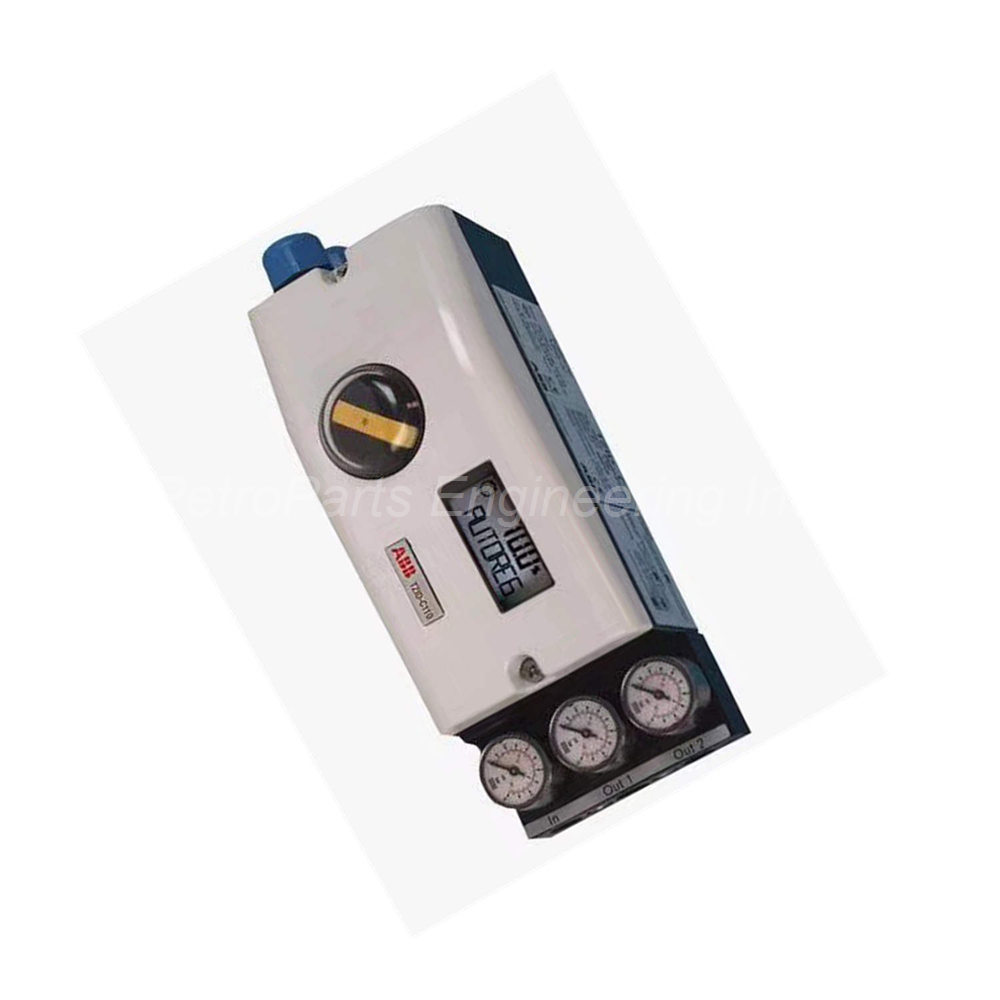

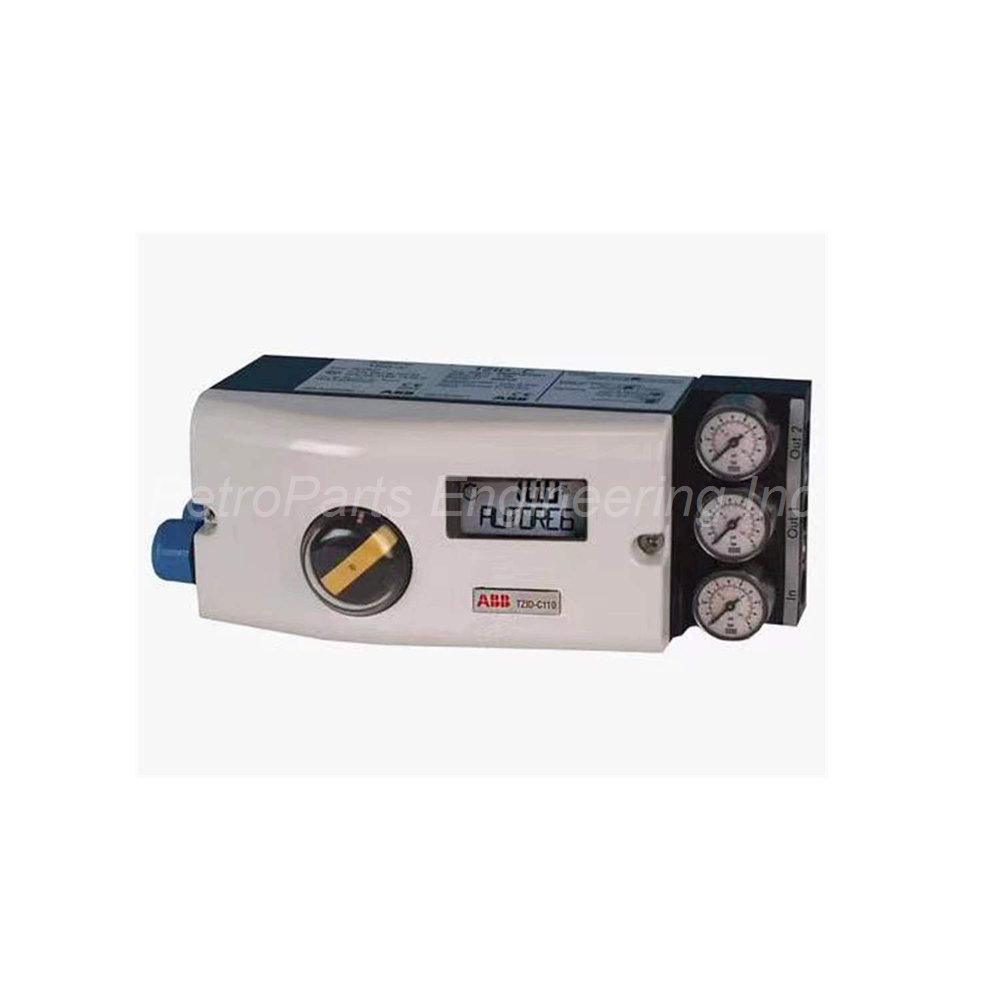

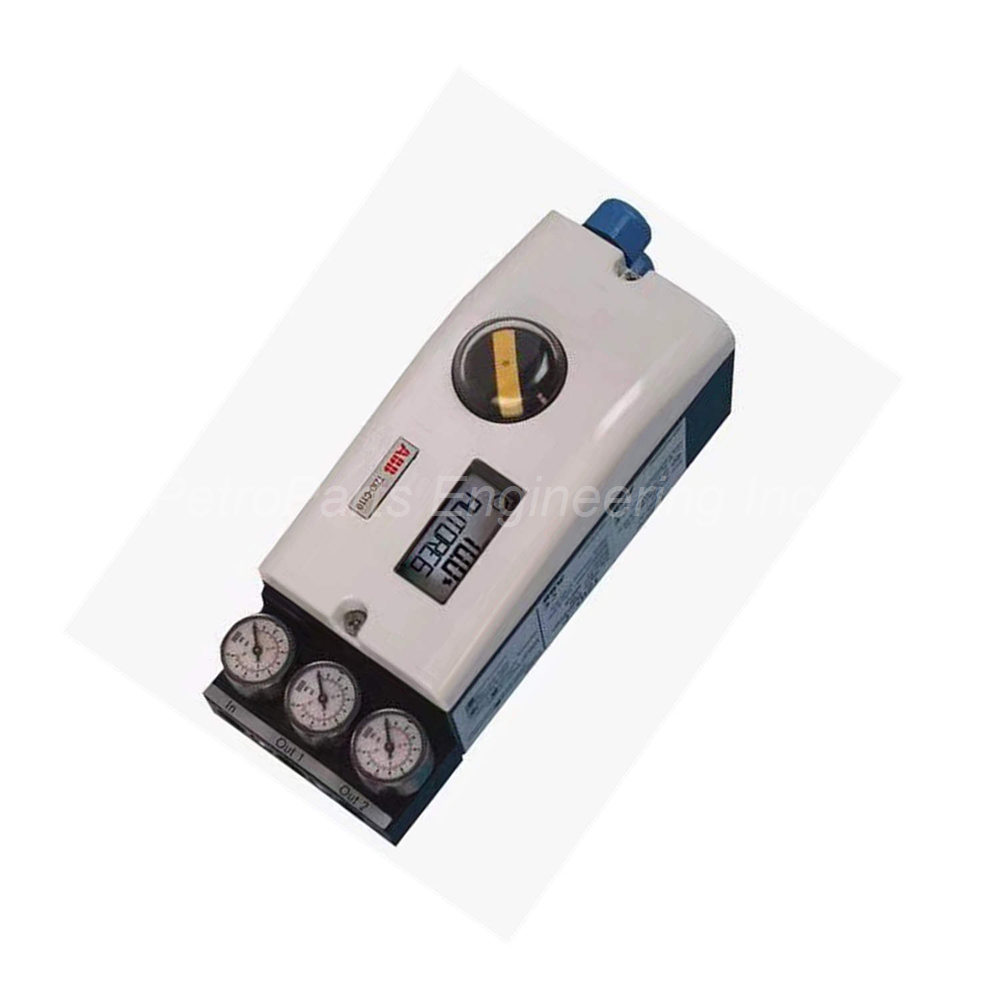

ABB V18347-2041150001 TZIDC-120 Electro-Pneumatic Positioner for Foundation Fieldbus

The ABB V18347-2041150001 is an intelligent TZIDC-120 electro-pneumatic positioner. It is designed for precise valve control in demanding industrial environments. This positioner uses FOUNDATION Fieldbus communication protocol. The V18347-2041150001 comes with an aluminum case and mechanical position indicator. It is configurable and includes an operator panel for local adjustments.

Technical Specifications of the ABB V18347-2041150001 Positioner

This ABB V18347-2041150001 positioner delivers reliable and accurate valve positioning. Its rugged construction suits both linear and rotary actuators.

General Specifications:

• Model: TZIDC-120 Electro-Pneumatic Positioner.

• Communication Protocol: FOUNDATION Fieldbus.

• Intelligence: Intelligent, configurable with indicator and operator panel.

• Application: For linear actuators (DIN/IEC 534/NAMUR) or rotary actuators (VDI/VDE 3845).

Case and Mounting:

• Case Material: Aluminum, varnished.

• Case Finish: Electrostatic dipping varnish with epoxy resin, stove-hardened.

• Case Color: Black, RAL 9005, matt. Cap: Pantone 420.

• Protection Class: IP 65 / NEMA 4X.

• Mechanical Position Indicator: Yes (included).

• Mounting Type: For linear or rotary actuators per industry standards.

Input and Communication:

• Input/Communication Port Code: 4 = FOUNDATION Fieldbus.

• Electrical Connections: Screw terminals (max 1.0 mm² for options, max 2.5 mm² for analog signal).

• Cable Entry: 2 threads 1/2-14 NPT or M20x1.5 (1 with cable gland, 1 with pipe plug).

• Cable Thread: M20 x 1.5.

Pneumatic Connections:

• Air Pipe Thread: 1/4-18 NPT.

• Pneumatic Connection Threads: G 1/4 or 1/4-18 NPT.

Output and Safe Position:

• Output/Safe Position Code: 1 = Single acting, fail safe.

• In case of electrical power failure: Moves to safe position (fail safe).

Explosion Protection:

• Explosion Protection Code: 1 = ATEX EEx ia IIC T6.

• Intrinsic Safety: Yes (ia rating).

Option Modules:

• Shutdown Function Option: 0 = Without.

• Digital Position Feedback Option: 00 = Without.

Design/Varnish:

• Design Code: 1 = Standard.

Environmental Capabilities and Tolerances

The ABB V18347-2041150001 operates reliably in extreme conditions. Its wide temperature range suits outdoor and harsh industrial installations.

Ambient Temperature:

• Operation, Storage, Transport: -40°C to +85°C (-40°F to +185°F).

• With Proximity Switches (SJ2-S1N): -25°C to +85°C (-13°F to +185°F).

Relative Humidity:

• Operational (closed housing with air supply on): 95% annual average. Condensation is permissible.

• Transport and Storage: 75% annual average, non-condensing.

Weight:

• Product Weight: 1.7 kg (3.75 lbs).

Installation and Wiring Guidelines

Proper installation of the ABB V18347-2041150001 ensures reliable valve control. Follow these key points.

• Mounting: Attach to linear actuators per DIN/IEC 534/NAMUR standard. For rotary actuators, use VDI/VDE 3845 mounting.

• Electrical Wiring: Use screw terminals for connections. Do not expose the terminals to mechanical strain.

• Wire Sizes: Max 1.0 mm² for option modules. Max 2.5 mm² for the analog signal.

• Cable Entry: Use the provided M20x1.5 cable gland. The second entry has a pipe plug.

• Pneumatic Tubing: Connect air supply using 1/4-18 NPT fittings. Use G 1/4 threads for other regions.

• Grounding: Properly ground the aluminum case for safety and noise immunity.

• Air Supply Quality: Use clean, dry instrument air for reliable operation.

• Configuration: Use the operator panel for local configuration. Use FOUNDATION Fieldbus for remote setup.

Foundation Fieldbus Communication

The ABB V18347-2041150001 uses FOUNDATION Fieldbus for digital communication. This protocol allows two-way communication between the positioner and your DCS. You can monitor valve position, set parameters, and diagnose issues remotely. The V18347-2041150001 supports device description (DD) files for easy integration. Foundation Fieldbus reduces wiring costs compared to analog 4-20 mA systems.

ATEX Approval for Hazardous Areas

This ABB V18347-2041150001 has ATEX EEx ia IIC T6 certification. The "ia" rating means intrinsic safety for Zone 0, 1, and 2 hazardous areas. Gas group IIC covers hydrogen and acetylene. Temperature class T6 is safe for surfaces up to 85°C. The V18347-2041150001 is ideal for petrochemical, refinery, and gas applications.

Fail-Safe Single Acting Operation

The ABB V18347-2041150001 is a single acting fail-safe positioner. In case of electrical power failure, the unit moves the valve to a safe position. This is critical for emergency shutdown situations. Single acting operation requires only one pneumatic output. The V18347-2041150001 controls spring-return actuators perfectly.

Packing List

• One ABB V18347-2041150001 TZIDC-120 electro-pneumatic positioner.

• One aluminum case with mechanical position indicator (pre-assembled).

• One M20x1.5 cable gland.

• One pipe plug for second cable entry.

• Basic installation and configuration instruction sheet.

Frequently Asked Questions (FAQ)

1. What communication protocol does the V18347-2041150001 use?
The ABB V18347-2041150001 uses FOUNDATION Fieldbus. This is the configuration code 4 in the part number.

2. Is this positioner approved for hazardous locations?
Yes, the V18347-2041150001 has ATEX EEx ia IIC T6 certification. It is suitable for Zone 0, 1, and 2 hazardous areas.

3. What happens to the valve if electrical power fails?
The ABB V18347-2041150001 is single acting fail-safe. It moves the valve to a predetermined safe position upon power loss.

4. What is the ambient temperature range for this device?
The V18347-2041150001 operates from -40°C to +85°C. This applies to operation, storage, and transport.

5. Can I use this positioner on a rotary actuator?
Yes, the ABB V18347-2041150001 mounts on rotary actuators. Use the VDI/VDE 3845 mounting standard. It also mounts on linear actuators per DIN/IEC 534/NAMUR.
