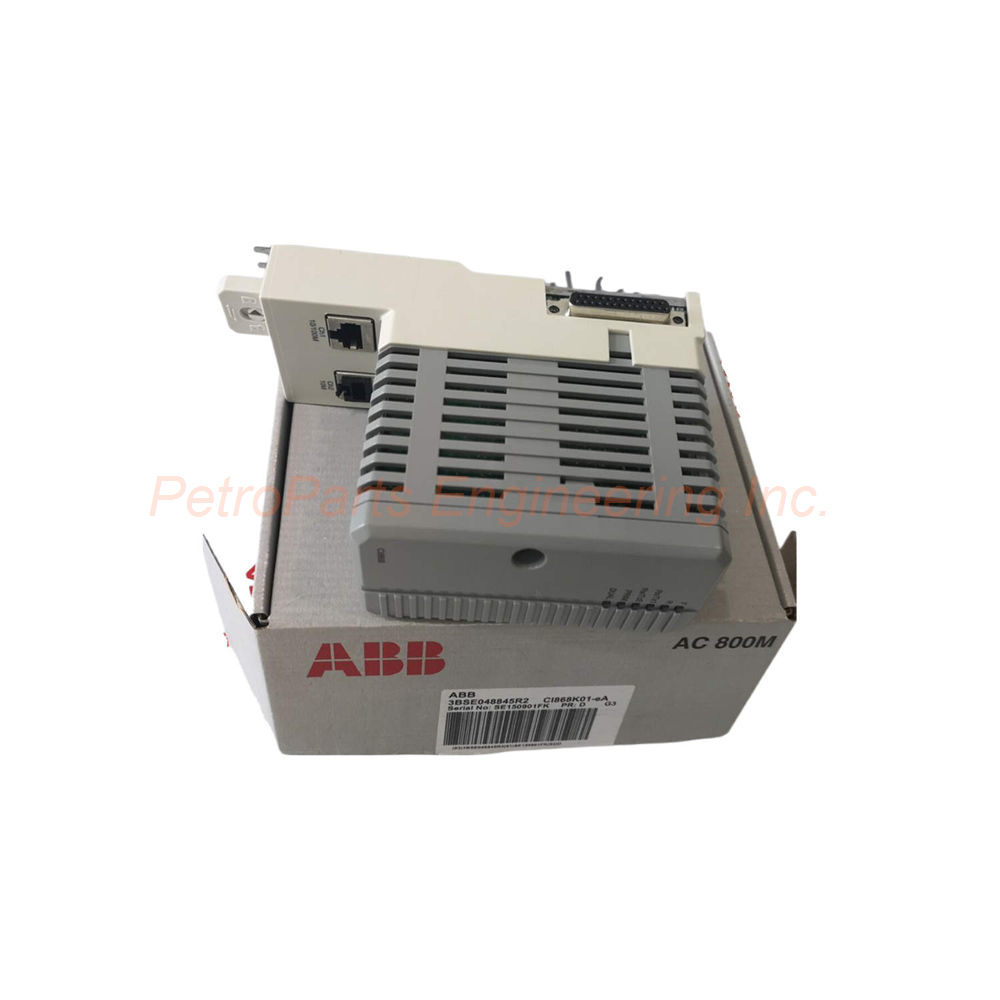

ABB CI868K01 Communication Interface Overview
The ABB CI868K01 is an IEC 61850 communication interface for substation automation. This complete package includes the CI868 communication module and the TP867 baseplate. The ABB CI868K01 enables seamless integration between ABB control systems and IEC 61850 compliant devices. Its product ID is 3BSE048845R1 for accurate ordering and identification. This interface is ideal for power generation and distribution applications. The ABB CI868K01 carries ABB Type Designation CI868K01 for easy reference.
Technical Specifications
General Specifications
Part Number: 3BSE048845R1.
ABB Type Designation: CI868K01.
Catalog Description: CI868K01 IEC 61850 Interface.
Product Type: Communication Module.
Package Includes: CI868 Communication Interface and TP867 Baseplate.
Physical Dimensions
Product Net Depth / Length: 127.5 mm.
Product Net Height: 186 mm.
Product Net Width: 59 mm.
Product Net Weight: 0.7 kg.
Gross Weight: 0.95 kg (estimated with packaging).
Environmental Compliance
RoHS Information: Following EU Directive 2011/65/EU.
WEEE Category: 5 (Small Equipment with no external dimension more than 50 cm).
Number of Batteries: 0 (no batteries included).
SCIP: 70f16b05-fdc2-420a-ba66-823ae79f6afb (Malta).
Protocol Support
The ABB CI868K01 supports the IEC 61850 standard for power utility substations. This protocol enables reliable communication between intelligent electronic devices (IEDs). The interface handles GOOSE messages and MMS services efficiently. It is designed for high-performance substation automation networks.
Installation Guide
Follow these steps to install the ABB CI868K01 correctly:
Turn off all power to the AC 800M or 800xA system completely.
Attach the TP867 baseplate to the DIN rail or rack securely.
Mount the CI868 communication module onto the ABB CI868K01 baseplate.
Secure the module using the locking mechanism provided.
Connect the Ethernet cables to the IEC 61850 network ports.
Configure the IEC 61850 protocol settings using engineering tools.
Power on the system and verify communication status.
Test GOOSE and MMS communication for 3BSE048845R1 with connected IEDs.
Packaging List
ABB CI868K01 Communication Interface (CI868 module, 1 unit)
ABB CI868K01 Baseplate (TP867, 1 unit)
Anti-static protective bag (1 piece)
Installation instruction sheet (1 copy)
Product label with ID 3BSE048845R1
Ethernet port protective caps (2 pieces)
Frequently Asked Questions (FAQ)
1. What protocol does the ABB CI868K01 support?
The ABB CI868K01 supports the IEC 61850 standard for substation automation and power utilities.
2. What is included in this package?
This package includes the CI868 communication module and the TP867 baseplate together as one kit.
3. Does the CI868K01 contain any batteries?
No, the 3BSE048845R1 contains zero batteries according to its environmental specifications.
4. What is the net weight of the ABB CI868K01?
The ABB CI868K01 has a product net weight of 0.7 kg (approximately 1.54 lbs).
5. Is this module RoHS compliant?
Yes, the ABB CI868K01 follows EU Directive 2011/65/EU for RoHS compliance.
