Product Overview

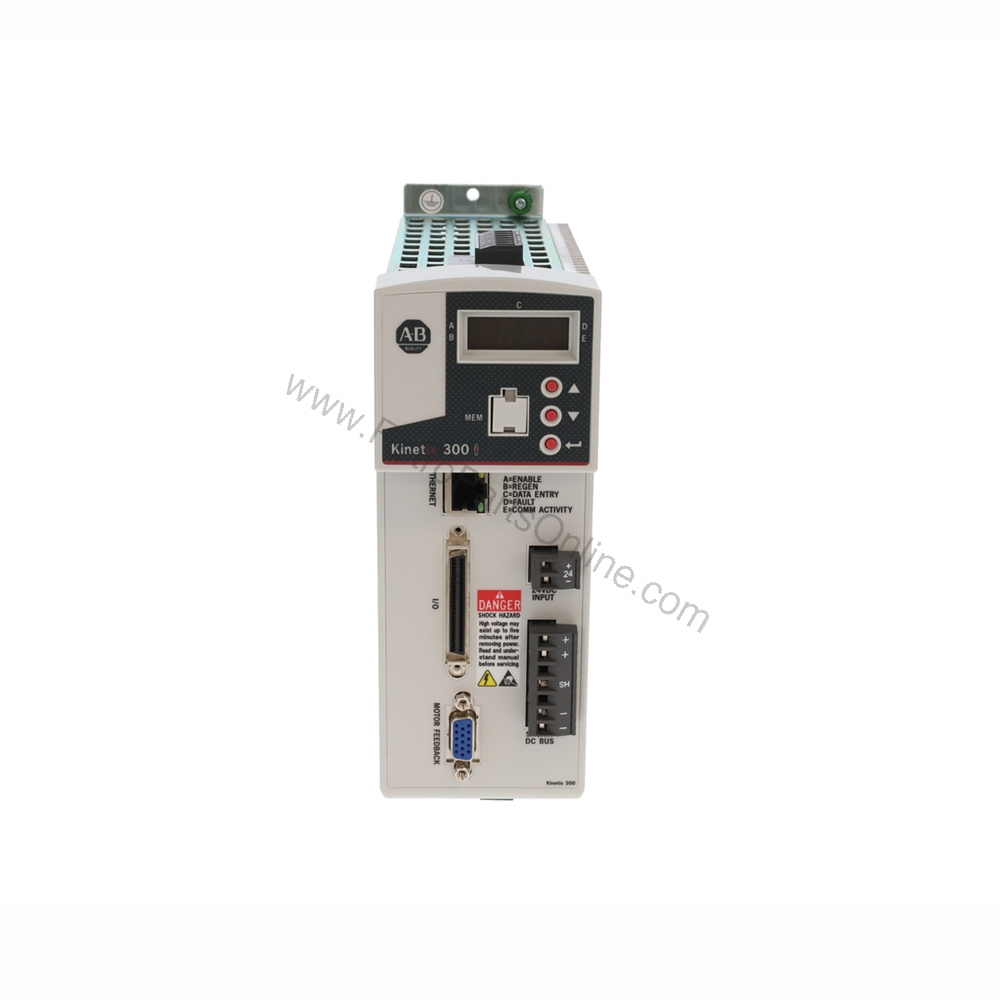

The 2097-V33PR5 is an Allen-Bradley Kinetix 300 EtherNet/IP Indexing Servo Drive from Rockwell Automation. This drive delivers precise position control for demanding industrial automation applications. It supports 120/240V AC single-phase or three-phase input and provides a continuous power output of 2.00 kW. The integrated Safe Torque-Off feature enhances safety during maintenance.
Technical Specifications Analysis
The 2097-V33PR5 operates with an input voltage range of 80-132VAC, 1-phase, 80-264VAC, 1-phase, and 80-264VAC, 3-phase. Input frequency is 48…62 Hz. Continuous output current is 8.0 A RMS (11.3 A 0-pk), with peak output current of 24.0 A RMS (33.9 A 0-pk). Continuous power output is 2.00 kW. Power dissipation is 67 Watts. Torque value is 4.5 lb*in (0.5 N*m). The drive includes Safe Torque-Off certification for ISO 13849-1 PLd/SIL2 levels. Dimensions are 9.37 x 7.29 x 3.72 in (238 x 185 x 94.0 mm) and weight is 4.4 lbs (2.0 kg). Operating temperature range is 32-104 F (0-40 C).
Application Scenarios & Usage Methods
This servo drive is ideal for indexing, positioning, and motion control in packaging, material handling, and assembly lines. It supports up to 32 indexes and S-Curve or trapezoidal motion profiles. Use it with MP-Series or TL-Series servo motors for precise speed and position control. The drive accepts commands via EtherNet/IP, analog input, PTO, or step/direction signals. Its Smart Motor Technology auto-configures motor parameters to reduce setup time.
Installation Guide & Packing List
Install the drive inside an enclosure with adequate ventilation. Maintain minimum clearance of 3 mm on sides and 25 mm on bottom and rear for airflow. Use recommended fuses: KTK-R-30 (30 A) for single-phase or KTK-R-20 (20 A) for three-phase UL applications. The package includes the 2097-V33PR5 servo drive unit and documentation. No additional cables or mounting hardware are included.
Purchasing Advice
Verify your system voltage matches the drive input range: 80-132VAC single-phase, 80-264VAC single-phase, or 80-264VAC three-phase. Ensure your motor is compatible with MP or TL series. For reliable supply, order from PetroPartsOnline, a trusted source for industrial automation and oil/gas parts.
Repair & Maintenance Tips
Periodically inspect the drive for dust buildup and clean with dry compressed air. Check all connections for tightness. Monitor operating temperature to stay within 32-104 F (0-40 C). Replace fuses only with the specified ratings. Do not bypass the Safe Torque-Off circuit. Store in a dry, non-condensing environment.
Frequently Asked Questions (FAQs)
Q: What is the continuous output current of the 2097-V33PR5?
A: The continuous output current is 8.0 A RMS (11.3 A 0-pk).
Q: Does this drive support Safe Torque-Off?
A: Yes, the 2097-V33PR5 includes Safe Torque-Off certified to ISO 13849-1 PLd/SIL2.
Q: What input voltages can the 2097-V33PR5 accept?
A: It accepts 80-132VAC 1-phase, 80-264VAC 1-phase, and 80-264VAC 3-phase.
Q: What motors are compatible with this drive?
A: It is designed for MP-Series and TL-Series servo motors, such as MPL-A320H and TLY-A2530P.
Q: What is the power dissipation of the 2097-V33PR5?
A: The drive dissipates 67 Watts of power.
