Bently Nevada 200152-15-10 Accelerometer Cable Overview

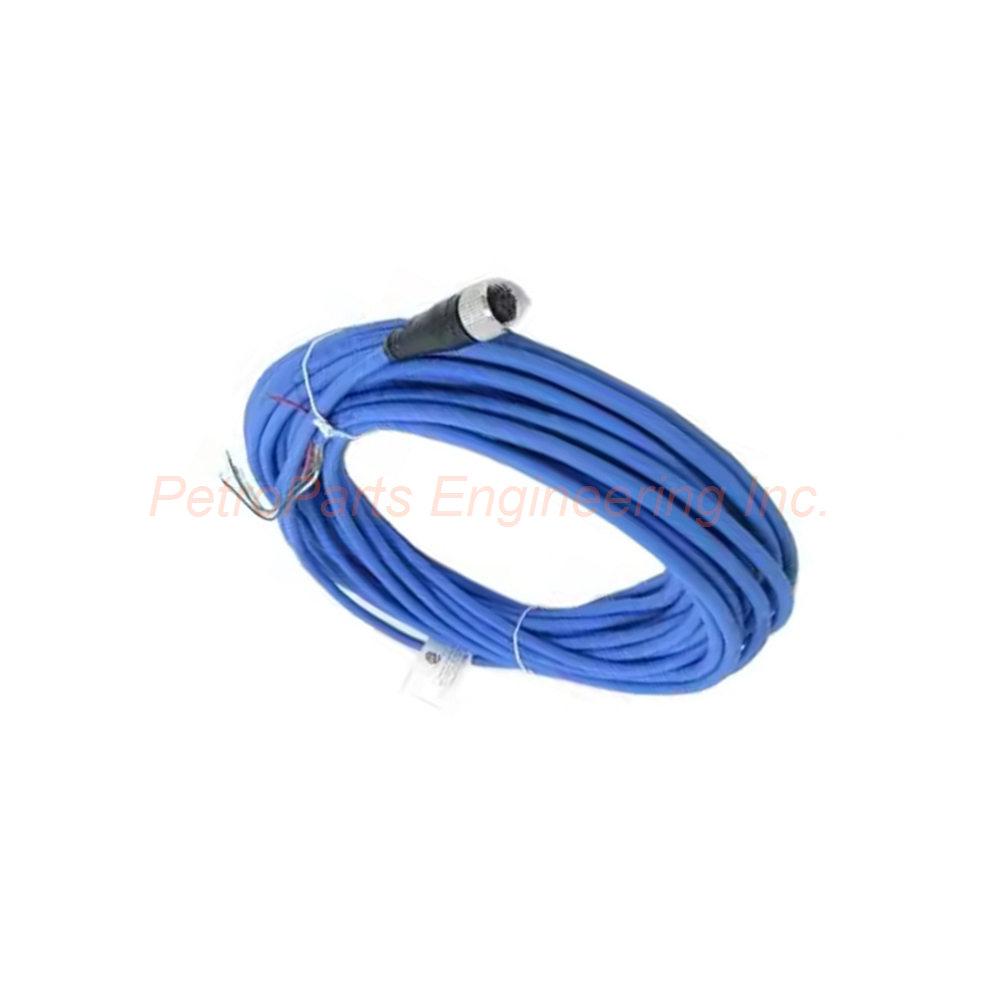

The Bently Nevada 200152-15-10 is a standard accelerometer interface cable. It belongs to the 200150 Series from Bently Nevada. This cable has a connector on the accelerometer end only. The other end is unterminated for customer wiring. Users select the 200152-15-10 for reliable signal transmission from accelerometers. The cable includes an enhanced coupling nut for better grip.

Technical Specifications of 200152-15-10

The Bently Nevada 200152-15-10 has a length of 15 meters. The model number breaks down as 200152 for the cable series. The -15 suffix indicates 15 meters of cable length. The -10 suffix specifies the enhanced coupling nut option. This coupling nut provides better grip for tightening. The nut is installed on the accelerometer end only.

Minimum bend radius is 73.7 mm (2.9 inches). Do not bend the cable more sharply than this value. Construction uses 4 conductors of 22 AWG wire. A braided shield with minimum 85% coverage protects against noise. A drain wire is included for easy grounding. The outer jacket is made of PVC material. Coupling nuts are nickel-plated for corrosion resistance.

Operating temperature range for the 200152-15-10 is -20°C to +100°C. In Fahrenheit, this range is -4°F to +212°F. Lower temperatures may be used if the cable does not flex. Flexing below -20°C can damage the cable insulation. Connectors provide an IP67 seal to transducers and mating hardware. All connectors are molded directly to the cable.

DC4 electrical insulating compound is added inside the connectors. This compound provides extra moisture protection during thermal shock. The temperature range for the insulating compound is -55°C to +121°C. In Fahrenheit, this range is -67°F to +250°F. Cure time for the compound is 24 hours. The cable has a connector on the accelerometer end only. The other end has no connector for field wiring.

Installation Guidelines for Bently Nevada 200152-15-10

Handle the 200152-15-10 cable carefully during installation. Do not bend it past the minimum radius of 73.7 mm. Use cable ties every 30 cm to secure the cable. Leave slight slack between tie points for movement. Connect the molded end to the accelerometer first. Tighten the enhanced coupling nut by hand only. Do not use pliers on the coupling nut.

Connect the unterminated end to your monitoring system. Strip back 25 mm of the outer jacket carefully. Connect the drain wire to a clean earth ground point. Solder or crimp terminals to the four inner conductors. Seal the field wiring end with heat shrink tubing. Do not install the cable where temperatures exceed +100°C. Avoid running the cable near high voltage lines.

Package Contents of 200152-15-10

Your shipment includes these items:

One Bently Nevada 200152-15-10 accelerometer cable

One enhanced coupling nut pre-installed on the connector

One IP67 molded connector on the accelerometer end

One installation data sheet

The package does not include the accelerometer transducer. You must purchase the sensor separately. No mounting hardware is provided with this cable.

Frequently Asked Questions about 200152-15-10

1. What is the difference between 200152 and 200151?

The Bently Nevada 200152-15-10 has a connector on one end only. The 200151 model has connectors on both ends. Choose 200152 when you need to wire the far end yourself. Both cables use the same 4-conductor 22 AWG construction.

2. Can I cut the 200152-15-10 cable to a shorter length?

Yes, you can cut the 200152-15-10 to any shorter length. Cut the unterminated end only, not the molded connector end. Re-terminate the cut end with proper sealing methods. Shortening the cable does not affect signal quality.

3. What is the enhanced coupling nut on this cable?

The -10 option on Bently Nevada 200152-15-10 adds an enhanced coupling nut. This nut has a better grip surface for gloved hands. It makes tightening to the accelerometer much easier. The standard nut is option -00 without enhanced grip.

4. Is the 200152-15-10 suitable for outdoor use?

Yes, the 200152-15-10 has an IP67 sealed connector on the sensor end. The PVC jacket resists UV and weather exposure. Protect the unterminated end in a weatherproof enclosure. Do not leave bare wires exposed to rain or moisture.

5. What is the DC4 compound mentioned in the specifications?

DC4 is an electrical insulating compound inside Bently Nevada 200152-15-10 connectors. It prevents moisture ingress during thermal cycling. The compound cures in 24 hours at room temperature. It remains flexible from -55°C to +121°C.

Compatibility and Application Notes

The Bently Nevada 200152-15-10 works with most Bently Nevada accelerometers. It suits vibration monitoring on turbines and compressors. Use it for bearing condition monitoring applications. The 85% braided shield provides excellent noise rejection. This cable is not RoHS compliant as a spare part. It is designed for legacy system repairs and upgrades. The HS code for customs is 85444200. Dispose of this cable according to local electronic waste rules.
