1794-AENTRXT | Allen-Bradley Flex I/O EtherNet/IP Adapter
Introduction:

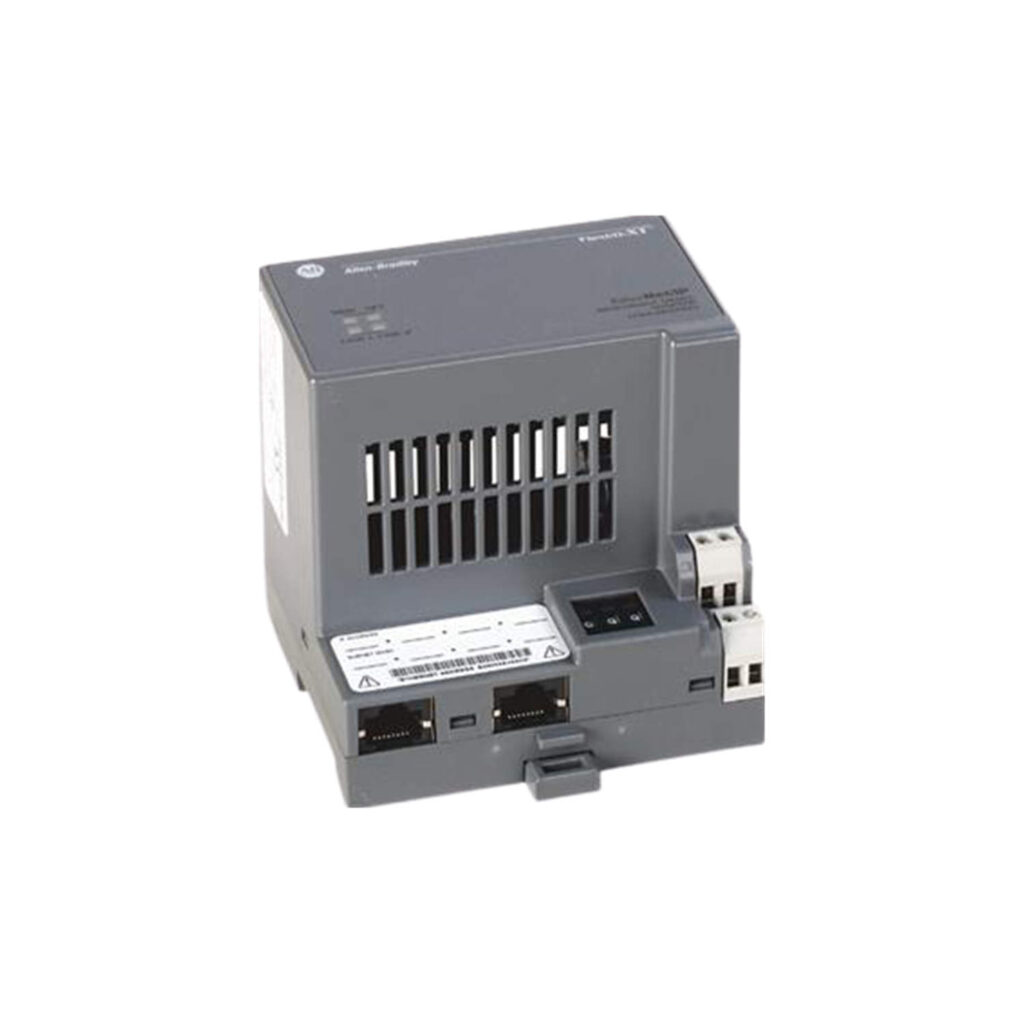

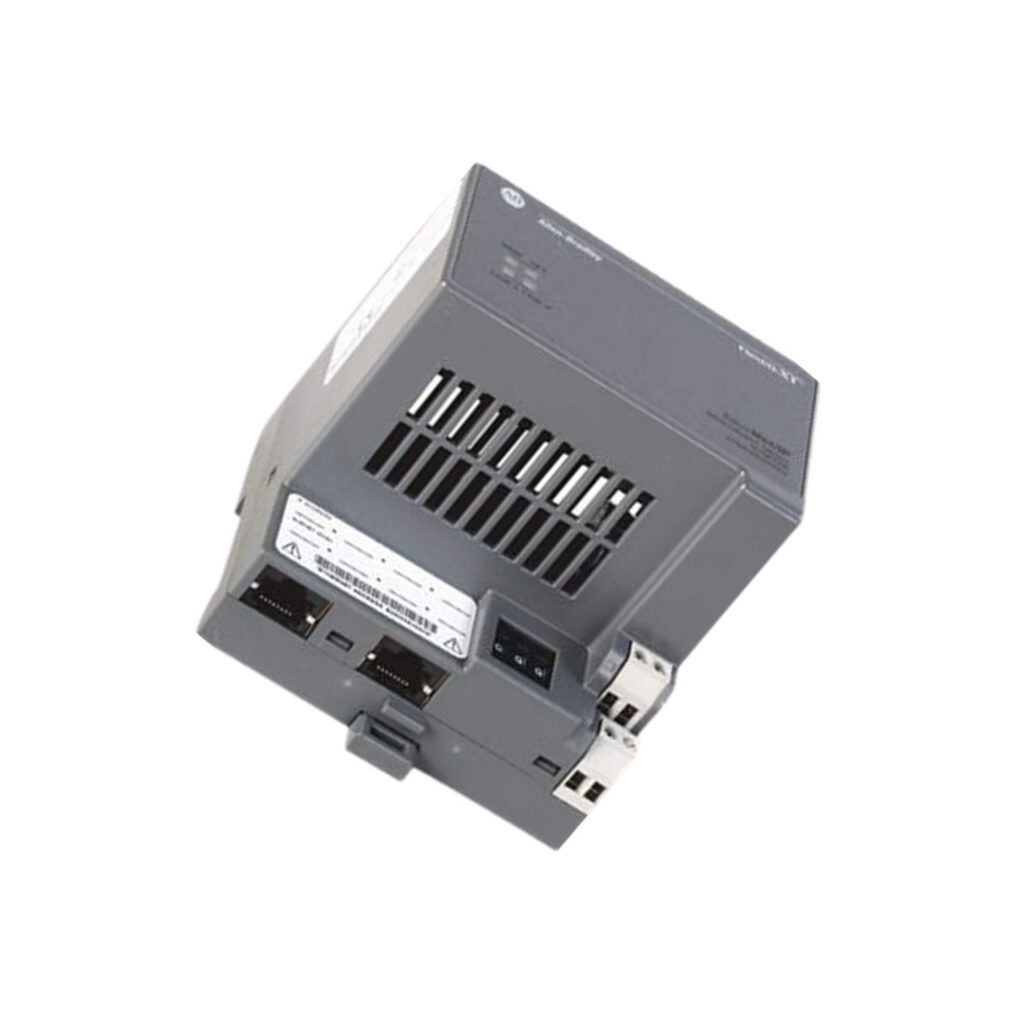

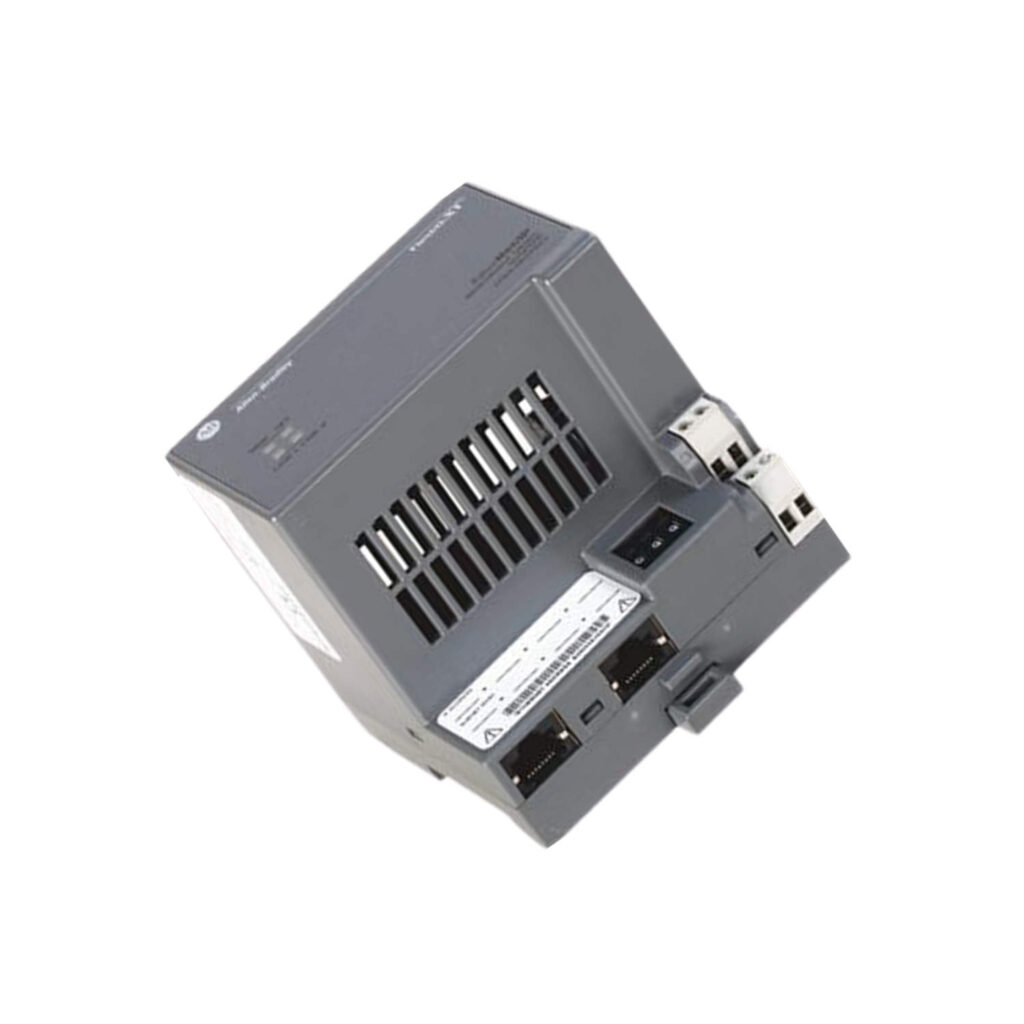

Allen-Bradley 1794-AENTRXT Flex I/O dual-port EtherNet/IP adapter. Supports DLR topology. New original in stock. 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The 1794-AENTRXT is a dual-port EtherNet/IP adapter from Allen-Bradley. It connects Flex I/O modules to an EtherNet/IP network. This adapter supports star, device-level ring (DLR), and linear topologies. It enables remote I/O control in industrial automation systems. The module provides a cost-effective solution for distributed I/O applications.
Application Scenarios
This adapter is ideal for factory floor automation. It works well in material handling systems. It is used in packaging and assembly lines. The module supports process control in chemical plants. It is suitable for oil and gas applications. The adapter also fits water and wastewater treatment plants.
Technical Specifications
The adapter has two RJ45 EtherNet/IP ports. It supports 10/100 Mbps data rates. The module requires 24V DC input power. It consumes 5.5 watts maximum. The operating temperature range is 0 to 60 degrees Celsius. The adapter measures 94 mm by 94 mm by 53 mm. It weighs approximately 0.23 kg. The module supports up to 32 Flex I/O modules per network.
Installation & Maintenance Guide
Mount the adapter on a standard DIN rail. Connect 24V DC power to the module. Use shielded Ethernet cables for network connections. Configure the IP address via the embedded web server. Use RSLinx or Studio 5000 for network setup. Check the module status LEDs during operation. Replace the module only after powering down the system.
Frequently Asked Questions (FAQ)
What is the primary function of 1794-AENTRXT?
The adapter serves as a communication interface between Flex I/O modules and an EtherNet/IP network. It allows remote monitoring and control of I/O points.
What network topologies does 1794-AENTRXT support?
The adapter supports star, device-level ring (DLR), and linear topologies. This flexibility enables various network designs for industrial applications.
What is the maximum number of modules supported per adapter?
The adapter supports up to 32 Flex I/O modules per network. This allows expansion of I/O points in a distributed control system.
What power supply is required for 1794-AENTRXT?
The module requires a 24V DC power supply. It consumes a maximum of 5.5 watts during operation.
Can 1794-AENTRXT be used in hazardous locations?
The adapter is suitable for use in ordinary locations. It is not rated for hazardous environments unless specifically certified.
