1762-IA8 | Allen-Bradley MicroLogix AC Input Module
Introduction:
Allen-Bradley 1762-IA8: 8-point AC input module for MicroLogix. 120V AC, compact design, in stock with 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

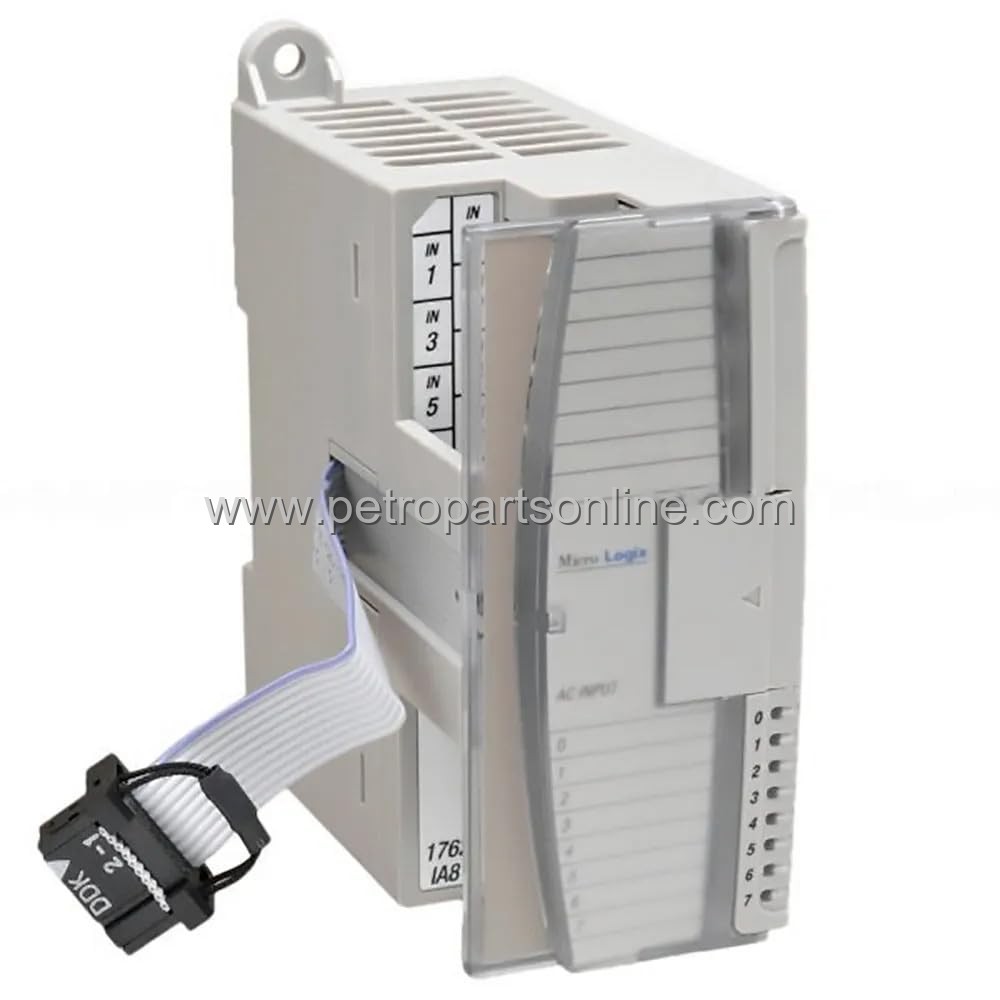

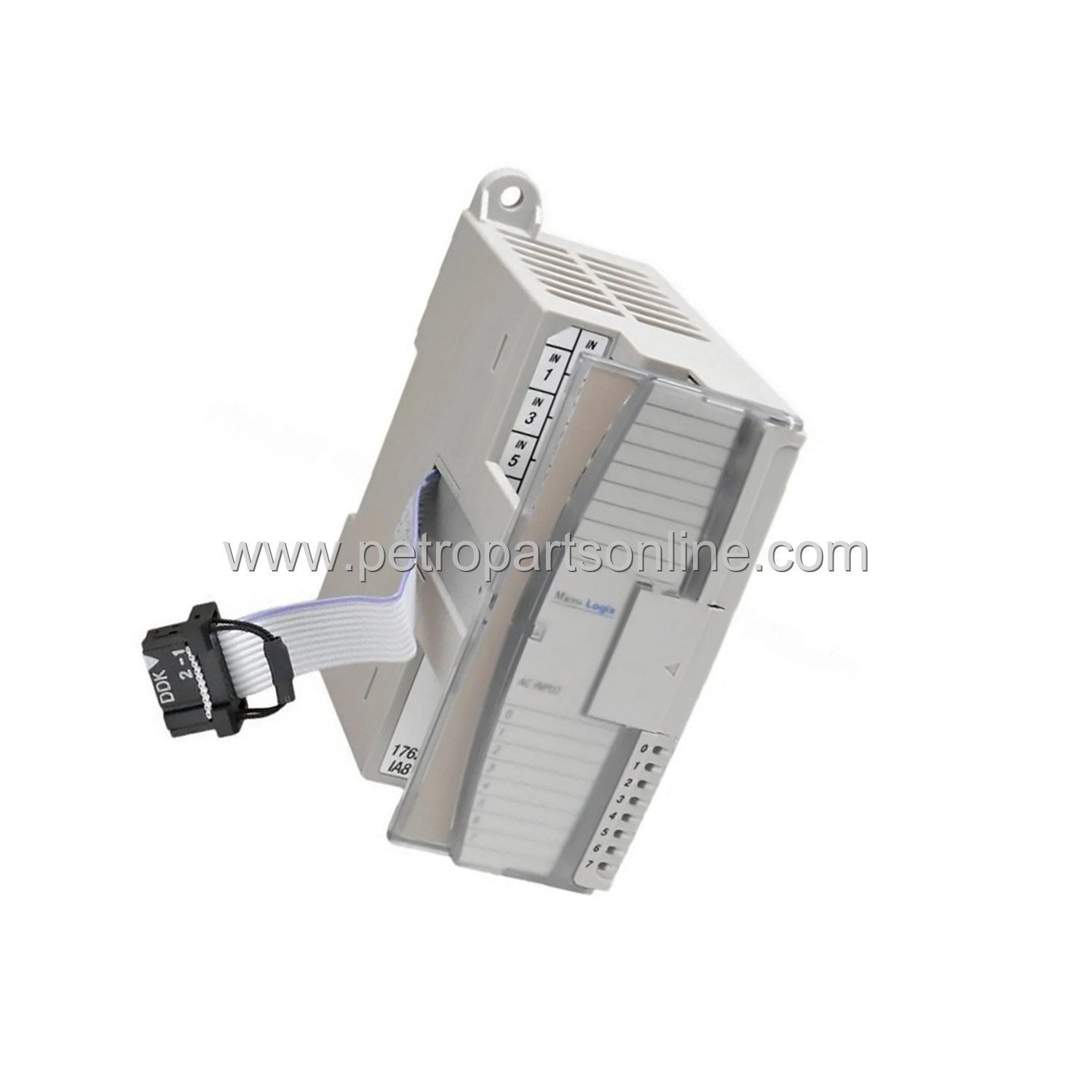

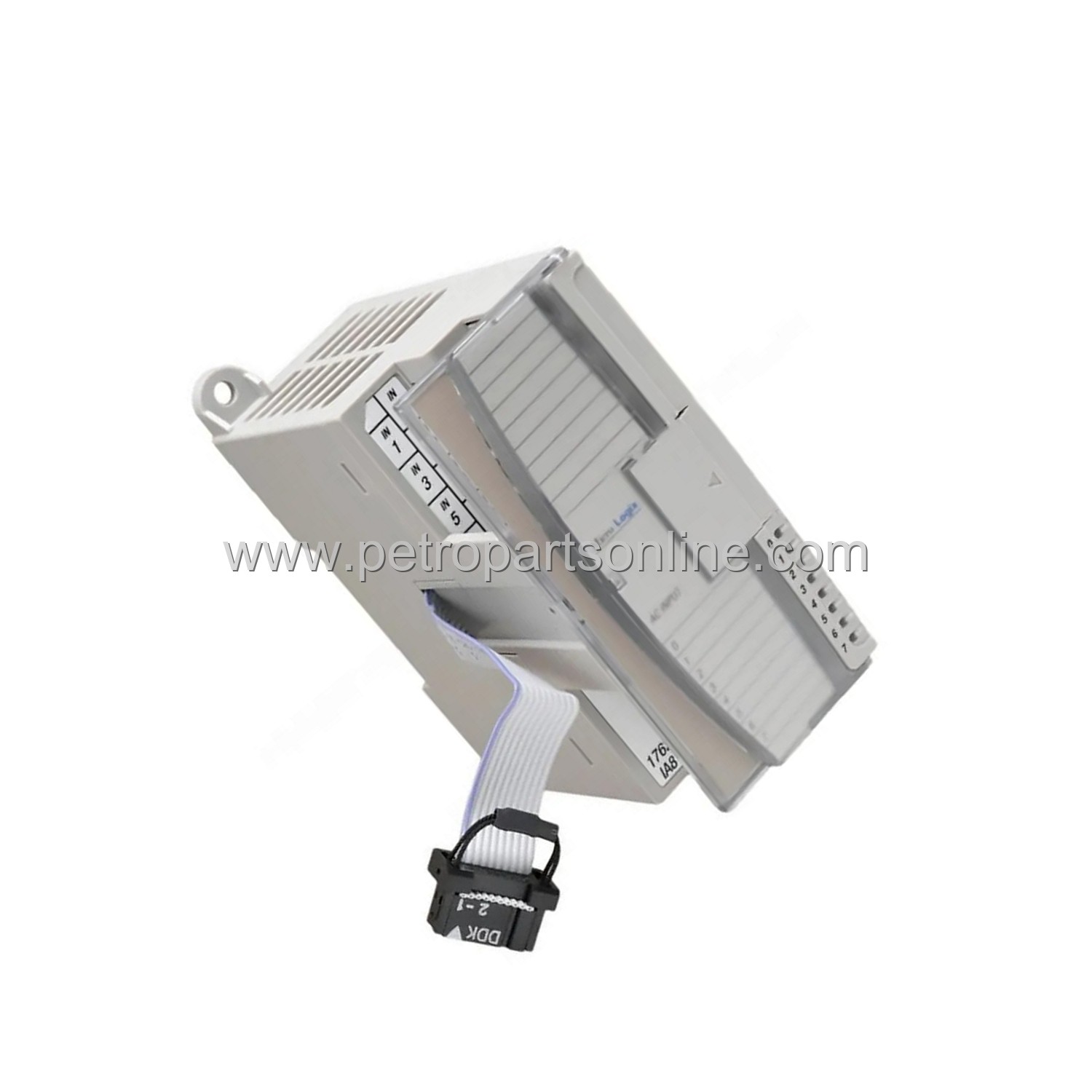

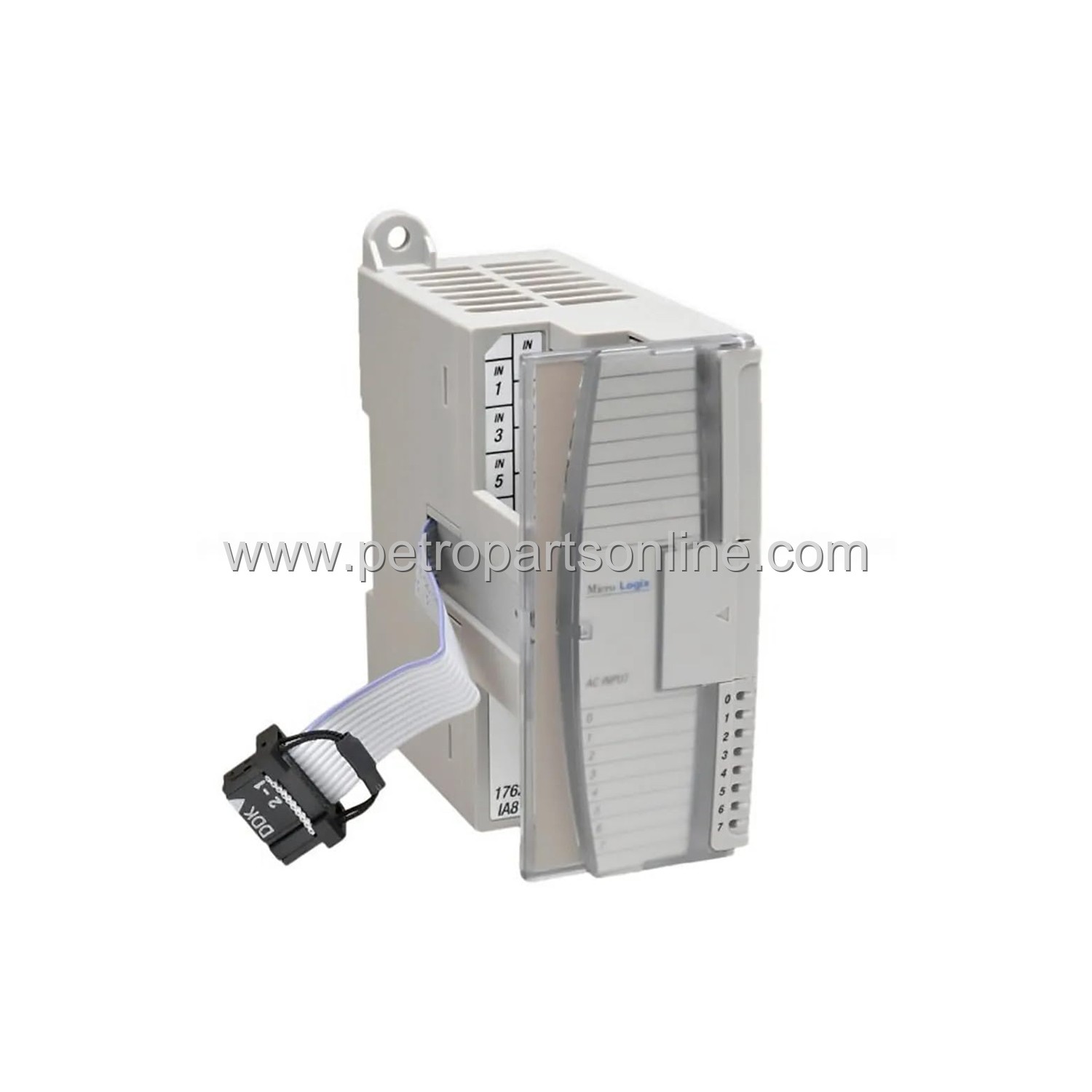

The 1762-IA8 is an 8-point AC input module from the Allen-Bradley MicroLogix series. It is designed for industrial automation systems. This module provides reliable input sensing for 120V AC signals. It is a compact and cost-effective solution for discrete input applications. The module connects directly to the MicroLogix 1200 or 1500 controller base. It supports high-speed input capabilities for precise monitoring. The 1762-IA8 is ideal for machine control and process automation. It helps reduce wiring and simplify system design. The module is built for harsh industrial environments. It ensures stable operation in demanding conditions. This product is a new original unit in stock. It comes with a 12-month warranty for peace of mind.
Application Scenarios
This module is used in various industrial control applications. It monitors the status of limit switches and push buttons. It also reads signals from proximity sensors and relay contacts. Common applications include conveyor systems and packaging machinery. It is suitable for material handling and assembly lines. The module works well in HVAC and building automation systems. It can be integrated into machine tool controls. It supports pump and fan monitoring in process plants. The 1762-IA8 is also used in water treatment facilities. It is a versatile input module for factory automation. Its compact size allows installation in space-constrained panels.
Technical Specifications
- Input Points: 8
- Input Type: AC
- Input Voltage Rating: 120V AC
- Input Frequency: 47-63 Hz
- Isolation Voltage: 1500V AC
- Power Dissipation: 2.5W
- Operating Temperature: 0 to 60 °C
- Storage Temperature: -40 to 85 °C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions: 40 x 110 x 70 mm
- Weight: 0.2 kg
Installation & Maintenance Guide
Install the module on a compatible MicroLogix base. Ensure the system is powered off before installation. Align the module with the base connector and press firmly. Secure the module with the locking tab. Connect input wiring using 14-22 AWG wire. Use a torque of 0.5 Nm for terminal screws. Verify input voltage matches the module rating. Regular maintenance includes checking for loose connections. Keep the module clean from dust and moisture. Replace the module if any physical damage is visible. Refer to the user manual for detailed instructions.
Frequently Asked Questions (FAQ)
What is the primary function of 1762-IA8?
The 1762-IA8 is an 8-point AC input module used to monitor 120V AC discrete signals in MicroLogix control systems.
Can this module be used with MicroLogix 1000?
No, the 1762-IA8 is designed for MicroLogix 1200 and 1500 controllers only.
What is the maximum input frequency supported?
The module supports input frequencies from 47 to 63 Hz.
Does the module require external power supply?
No, the module receives power from the backplane of the MicroLogix base unit.
What is the isolation voltage between input and backplane?
The isolation voltage is 1500V AC, ensuring safe operation in industrial environments.
